  Orders with radio work are delayed 7 - 14 days





Click for larger image

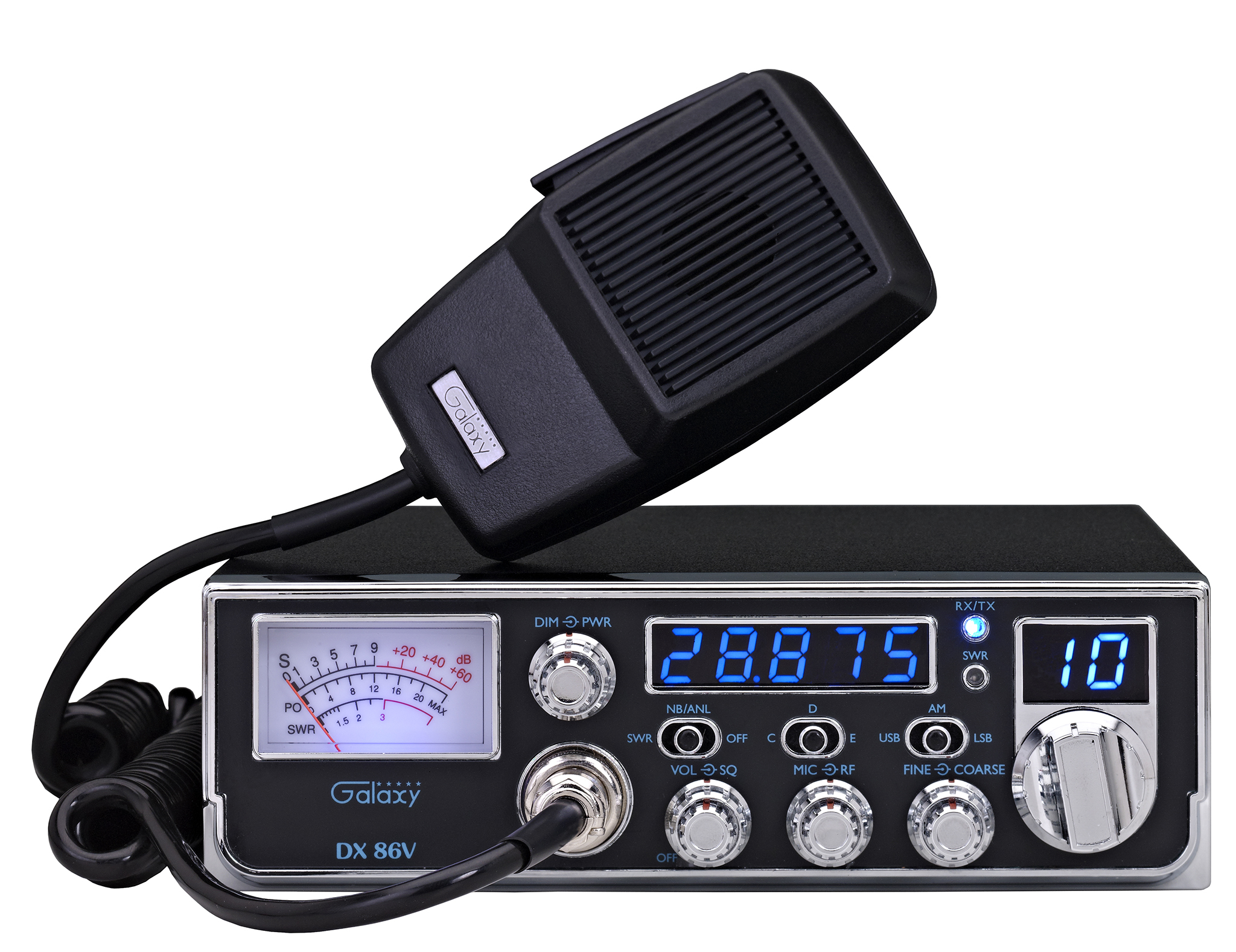

DX 86V
AM 10 Meter AM/SSB Radio

Discontinued

Download Manual
Features

The last new model from Galaxy is an AM/SSB model built for simplicity, the DX86V:

1) Same chassis as the new DX55F and DX66V2 - mid size, front mic with frequency counter but with added SSB.

2) Fine/coarse clarifier, automatic SWR circuit with SWR alert LED.

3) No Echo, no +10KHz switch, no PA, no FM, no Roger Beep.

Because Galaxy was limited on space with the small size, this has way less features than the DX99V2, however, the performance is exactly the same.

This radio is very simple to understand and use.

This is one of those radios that SSB frequency accuracy drifts with temperature changes. We cannot change this, it has been that way with these radios for many years. If you can't live with it, don't buy this radio. Thank you.









Galaxy radios sometimes have a small scratch or ding that the factory covers with touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy radio might though and I cannot control it.

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

CB Microphone Wiring (Galaxy)

Discontinued  ... AM/SSB 10 Meter Mobile...

 *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***
$235.50




Optional Accessories
  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage (AM/FM: 1.5-10w, Peak AM: 20-45w,  SSB PEP: 12~40w)) $49
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects)
$75
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Install Star-Bryte Knobs with dimmer control. Includes a Knob set , parts and labor. (lines on knobs don't match factory) $169

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1 ~ 10w 1 ~ 10w 1 ~ 10w
SSB 9 ~ 30w 6 ~ 20w 15 ~ 43w
PEAK AM 11 ~ 35w 3 ~ 11w 22 ~ 50w
*The most informative and the one we use.
