            Road King 56



Click for larger view

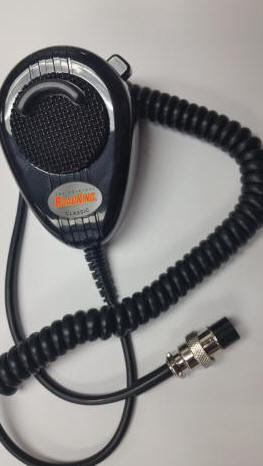

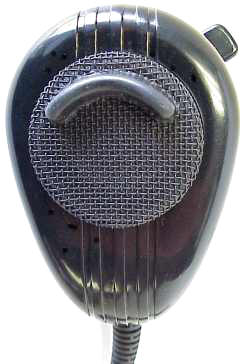

RK-56

Noise Canceling Microphone



     The Road-King 56 (RK-56) Dynamic Microphone is designed for voice communications applications requiring a rugged, hand-held microphone. Its noise-canceling design makes it particularly effective for use in noisy locations, and its excellent voice response characteristics make it a good choice in quiet areas as well.

     The RK-56 uses dynamic, differential type cartridge which discriminates against sounds greater than ½-inch (12 mm) away. A non-marking lip guard assures the user of correct microphone-to-mouth positioning. Best noise cancellation is achieved with the edge of the lip guard just touching the upper lip. The push-to talk switch is located on the top of the microphone housing. The RK-56 is equipped with the  Highest Quality, "BELDEN" six-conductor, receive coiled cord which is relieved at the microphone housing by a telephone type strain relief grommet. The cord may be wired for either relay or electronic switching.

  • Dynamic LO-Z Noise canceling microphone
  • Non-Amplified
  • Polyurethane coated steel grill screen
  • Limited one year warranty
  • Made in U.S.A. by Telex
  • REQUIRES PLUG and WIRING









...RK56B with Belden Mic Cable.... $49.99




Additional Items you might also consider:
Wire with high quality 4 pin Plug for Cobra / Uniden / President / Galaxy / Radio Shack / Ranger $15
Wire with high quality 5 pin Plug for  Cobra / Uniden / President. $15
Wire with high quality 5 pin DIN Plug for Cobra / Uniden $15
Wire with high quality 4 pin Plug for Midland $15
Wire with high quality 6 pin Plug for Ranger $15
Wire with high quality 5 pin DIN Plug for Radio Shack / Sears $15
Wire with high quality plug for OTHER. Please specify  your exact Radio and Model in the end of your Order Form when Checking out. $15



Specifications:
  • Microphone type:  Noise-canceling dynamic
  • Frequency response: 100 Hz to 8 KHz
  • Output level at 1 KHz:
    Open circuit: -72 db (ref: 0 db= 1 V/ubar)
    Power level: -55db  (ref: 0 db= 1 mW/10 ubar)
  • Output Impedance: 2000 ohms (matches 600-5000 ohm inputs)
  • Cable (mic cord):
    6 conductor, receive, coiled cord: 12 inches (304 mm)
    retracted and 6 feet (1.8m) extended.
  • CASE: receive Cycolac
  • Weight:8 ounces (0.2 kg)
