   10 Meter Mobile Radio

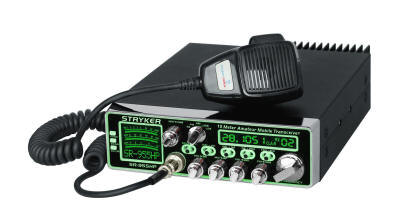

Click for large image

SR-955 HPC
Version 1

AM/FM/SSB 10 Meter Radio

See NEW Version 2 Here

Download Manual
 (.rar) Download Software
High performance stable SSB operation, outstanding AM audio and PC programming make the SR-955HPC the new industry standard!

The new Stryker SR-955HPC was designed from the ground up for excellent all mode performance. Up until now most 10 meter mobiles that performed well on SSB weren't very good on AM. The other half that were great on AM were terrible on SSB, at last we've designed a radio that excels on AM, FM & SSB!
Features

Important Features Include:
High Power - The SR-955HPC is uses four IRF-520 mosfet transistors that produce 70+ watts PEP. If you want be heard, the SR-955HPC has the power required to do some serious talking.

7-Color Frequency Display - The SR-955HPC features a 7-Color frequency display (Stryker Exclusive)

Brilliant 7-Color LED Backlit Face Plate- Choose from 7 colors with the push of a button or let the CPU controller scan through all of the colors on it's own. Our exclusive face plate design provides operators with back lighted controls, making adjustments even in the darkest conditions easy.

Dimmer Control- We listened to your feedback over the years and that's why the SR-955HPC comes with a 32 position dimmer circuit with the lowest position turning the lights all the way off. If your eyes are sensitive to certain lights in the dark this is a must have feature!

Clarifier - Our clarifier gives you the option of choosing if you want the fine control to be used only on receive or also on transmit. You can also select how much range the fine and coarse clarifiers have.

Band / VFO - You can choose between using traditional band mode or VFO mode for continuous operation throughout the frequency range.

PC Programmable - You can further customize your radio using your PC!

Digital Echo with/ Dual Front Mounted Controls - Provides the operator a much wider range of effects and control than typical factory or aftermarket echo boards. Our board is able to reproduce the human voice with virtually no distortion providing maximum clarity and enjoyment.

Six Roger Beeps - Six different roger beeps are included with the SR-955HPC. These are controlled using a switched that is located on the front panel. This is a feature that you will find on virtually no other radio direct from the factory. Most importantly you can create your own customizable roger beeps using our PC software and then load them on to the SR-955PHC's on board memory!.

Variable Power Control - Allows the operator to adjust or vary their carrier from a two watt to over 70 watts PEP.

Variable Talk Back Control -  The infamous talk back squeal is virtually eliminated with our independently controlled talk back circuitry. The operator can adjust the volume to the perfect level as operating conditions require. Best of all the user no longer has to turn down the microphone gain to stop the annoying squeal that is often the result of poor design or cost cutting at the production level.

Up-Armored (TM) Receiver- Our exclusive receiver protection works even under the harshest conditions, such as those experienced at a busy truck stop with many operators running high power radios. In addition our receiver filtering is tighter than most radios on the market. This means adjacent channel rejection is improved.


Factory OEM values on these watt meters
Dosy Bird RMS *Bird 43P
AM 2 ~ 15w 2 ~ 15w 2 ~ 15w
FM 2 ~ 50w 2 ~ 50w 2 ~ 50w
SSB     14 ~ 64w
PEAK AM 7 ~ 55w
* The most informative and the one we use



 To do a factory reset
all of the options to the default settings.
This helps when you get something messaed up
and don't know what.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca




DISCONTINUED
See Version 2
...SR-955HPC... $419.50

Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) --> Frequency Chart $49
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E  Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector.
10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25
Add a power Supply to run this as a Base Station in the house. $89

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 2 ~ 20w 2 ~ 20w 2 ~ 20w
FM 1 ~ 40w 1 ~ 40w 1 ~ 40w
SSB 6 ~ 58w 6 ~ 36w 18 ~ 76w
PEAK AM 7 ~ 40w 3 ~ 22w 35 ~ 78w
*The most informative and the one we use.


Additional Features Include:
  • Width : 7-7/8 in
    Height : 2-3/8 in
    Depth : 9-1/4 in
  • Scan your favorite channels or frequencies
  • Large Square S/RF & SWR Meter
  • Advanced NB/ANL Circuit Reduces Interference
  • AM/FM/SSB Operation and PA Circuitry
  • Automatic calibrating SWR meter for precise measurements
  • Hi-Cut Noise Filter
  • Front microphone connector for easy mounting in tight spaces
  • Receive and Microphone gain controls
  • 3 Year Limited Factory Warranty
  • Optional CTCSS Module



General Specifications

  •     Frequency Range: 28.000-29.700 MHz & 24.890 - 24.990
  •     (PC Programmable)
  •     Frequency Bands 1/2/3/4/5/6/7/8/9/10 & VFO
  •     Channel 40 channels (programmable) in each band
  •     Input voltage 13.8V
  •     Antenna connector UHF SO239
  •     Frequency Control Phase-Locked-Loop Synthesizer
  •     Frequency Step 100Hz/1KHz/10KHz/100KHz/1MHz
  •     Frequency Tolerance of 0.005%
  •     Frequency Stability 0.001%
  •     Temperature Range -20c  + 50c



Transmitter Specifications

  •     Power Output AM: 15W 60+ W PEP /
        FM 45W / SSB: 60+W(PEP)
  •     Current Drain 12A (with modulation)
  •     Unwanted Sideband 50dB
  •     Frequency Response:
  •     AM/FM: 300 to 3000Hz *** SSB 450 to 2500Hz
  •     Output Impedance 50 ohms, unbalanced
  •     Modulation AM ***FM *** SSB
  •     Inter-modulation Distortion SSB:
  •     3rd order, more than -25dB
  •     5th order, more than -35dB
  •     SSB Carrier Suppression 55dB



Receiver Specifications

  • IF Frequency AM/FM:10.695 MHz 1st IF, 455 kHz 2nd IF
     SSB: 10.695MHz
  •  RF Gain Control 45 dB for optimum signal reception
  •  Automatic Gain Control:
  •  Less than 10 dB change from 10 to 100,000 mv
  •  Squelch Adjustable: threshold less than 1.0uV
  •  Automatic Squelch Control(only AM/FM)1.0uV
  •  Audio Output Power 3 watts into 8 ohms
  •  Frequency response: AM/FM: 300 to 3000 Hz
      SSB 450 to 2500 Hz
  •  Built-in Speaker 8 ohms, round.
  •  External Speaker Jack Sensitivity SSB: 0.25uV for 10dB
      AM:1.0 uV  for 10dB FM: 1.0uV for 20dB
  • Adjacent-Channel Selectivity: AM/FM: 70dB *** SSB: 70dB Image Rejection: More than 65 dB
