  Orders with radio work are delayed 3 - 14 days






Click for larger view

K-602

HAM/CB Brackets
by K-Link ®

Download Manual



NOTE:

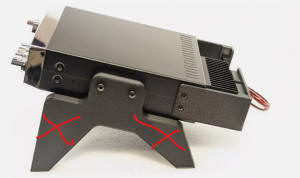

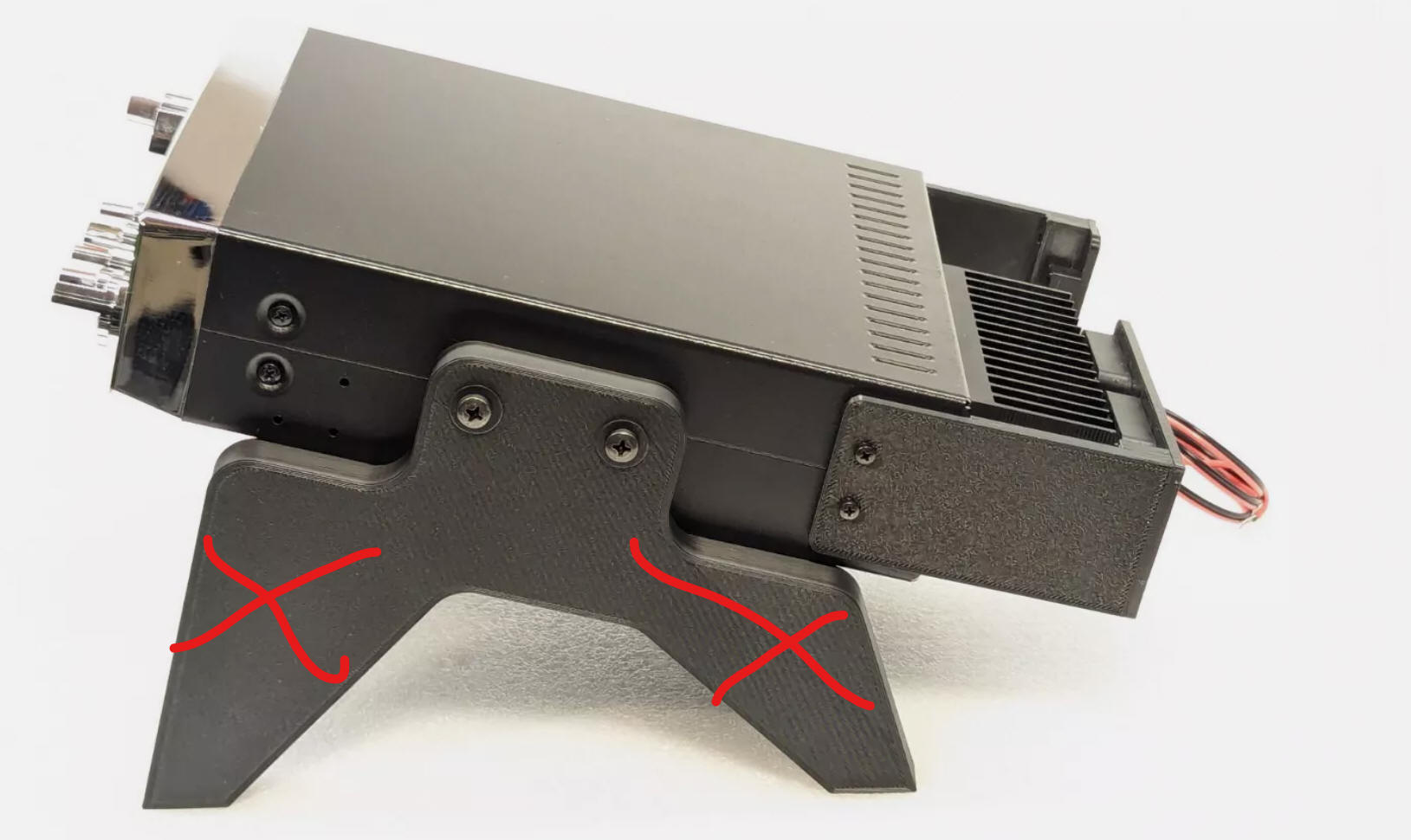

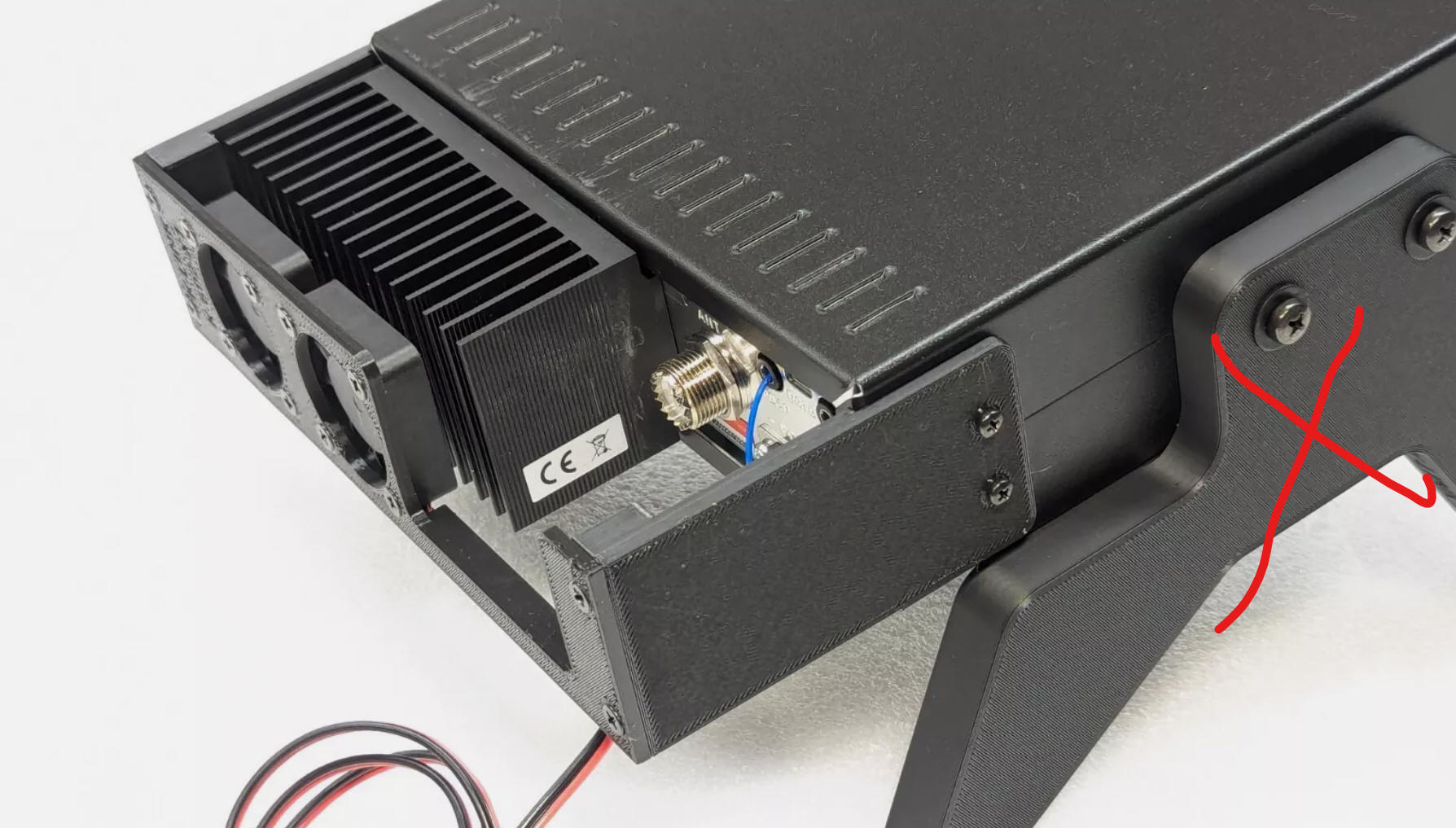

Transceiver and mounting brackets are not included.

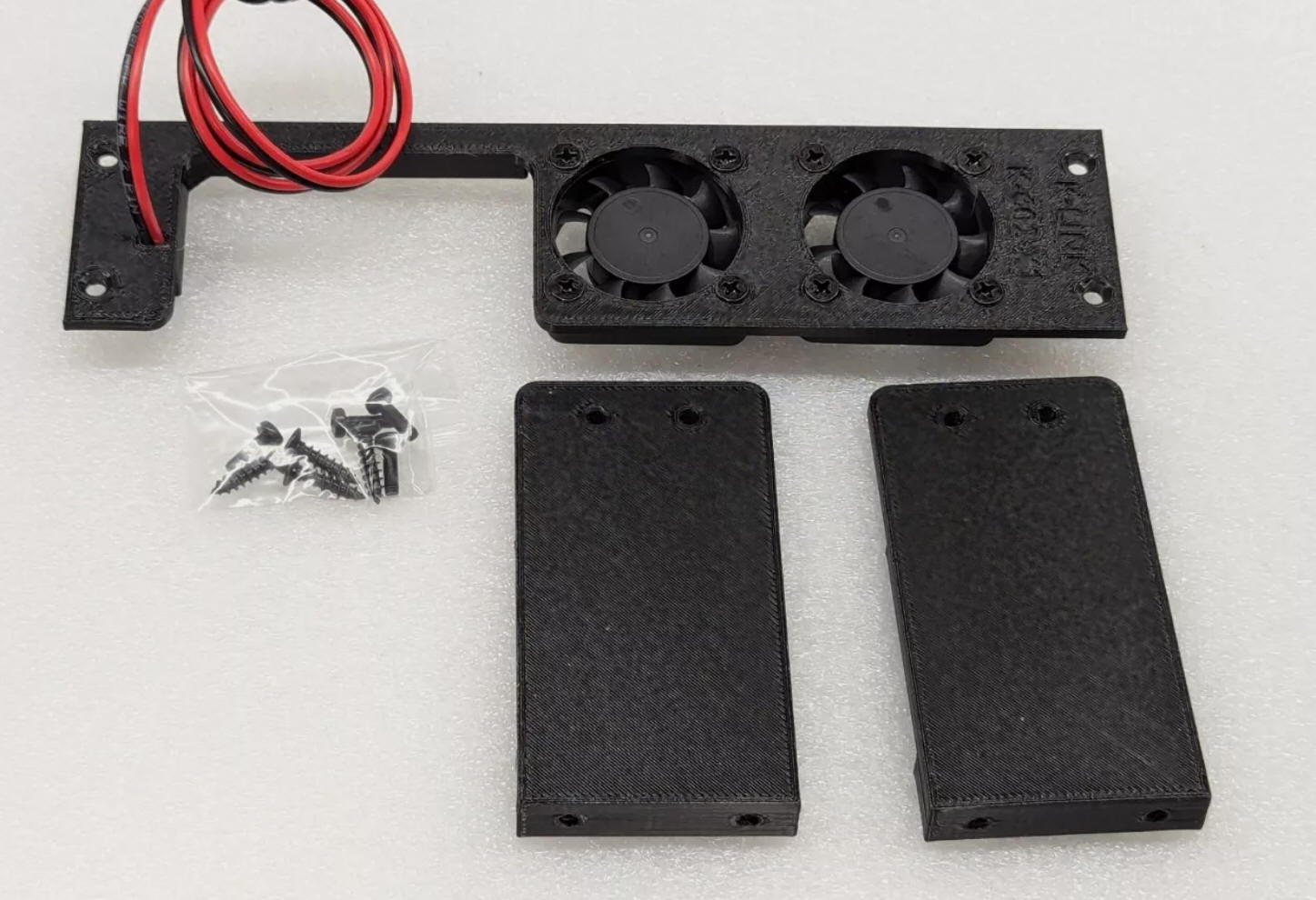

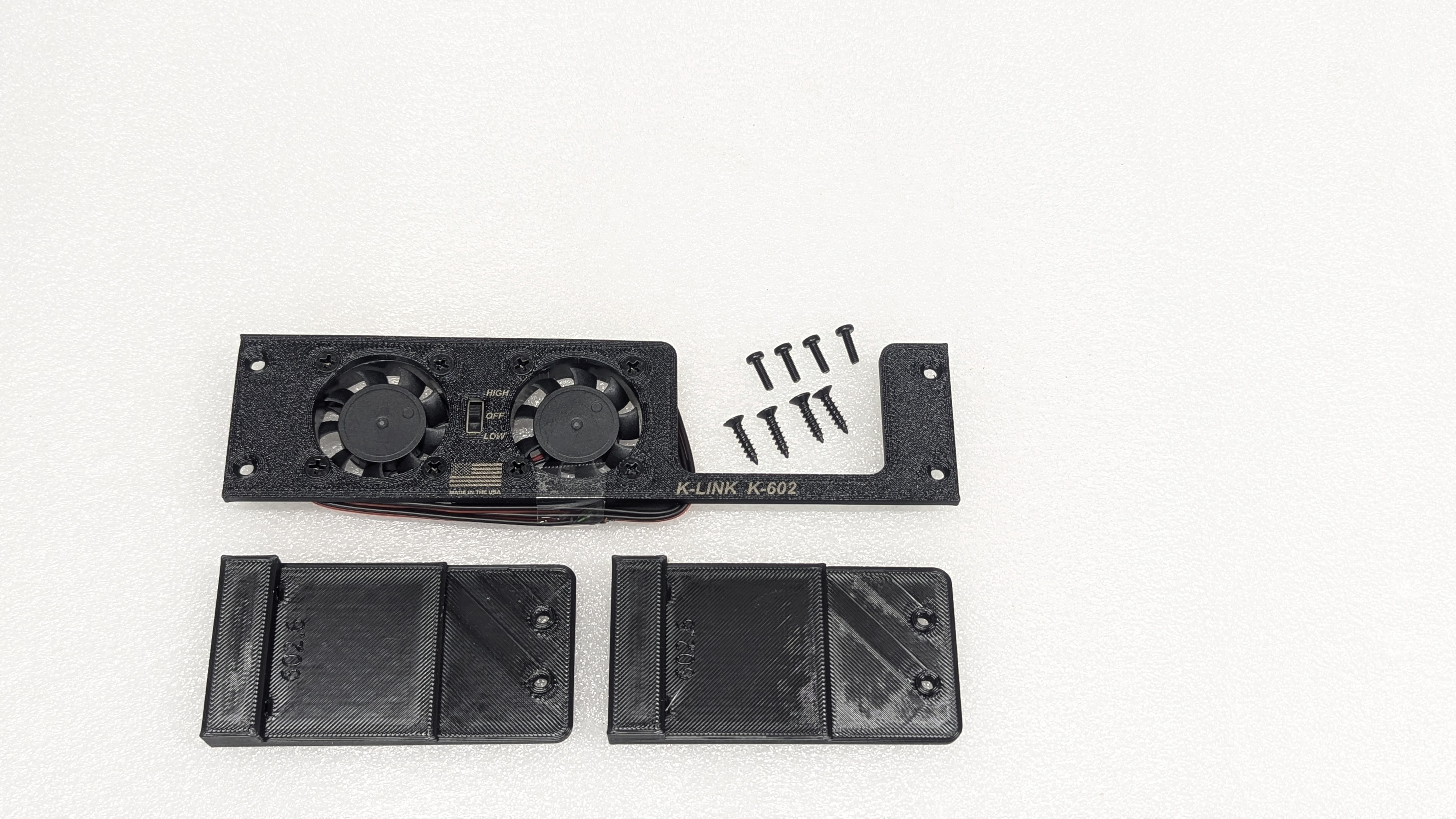

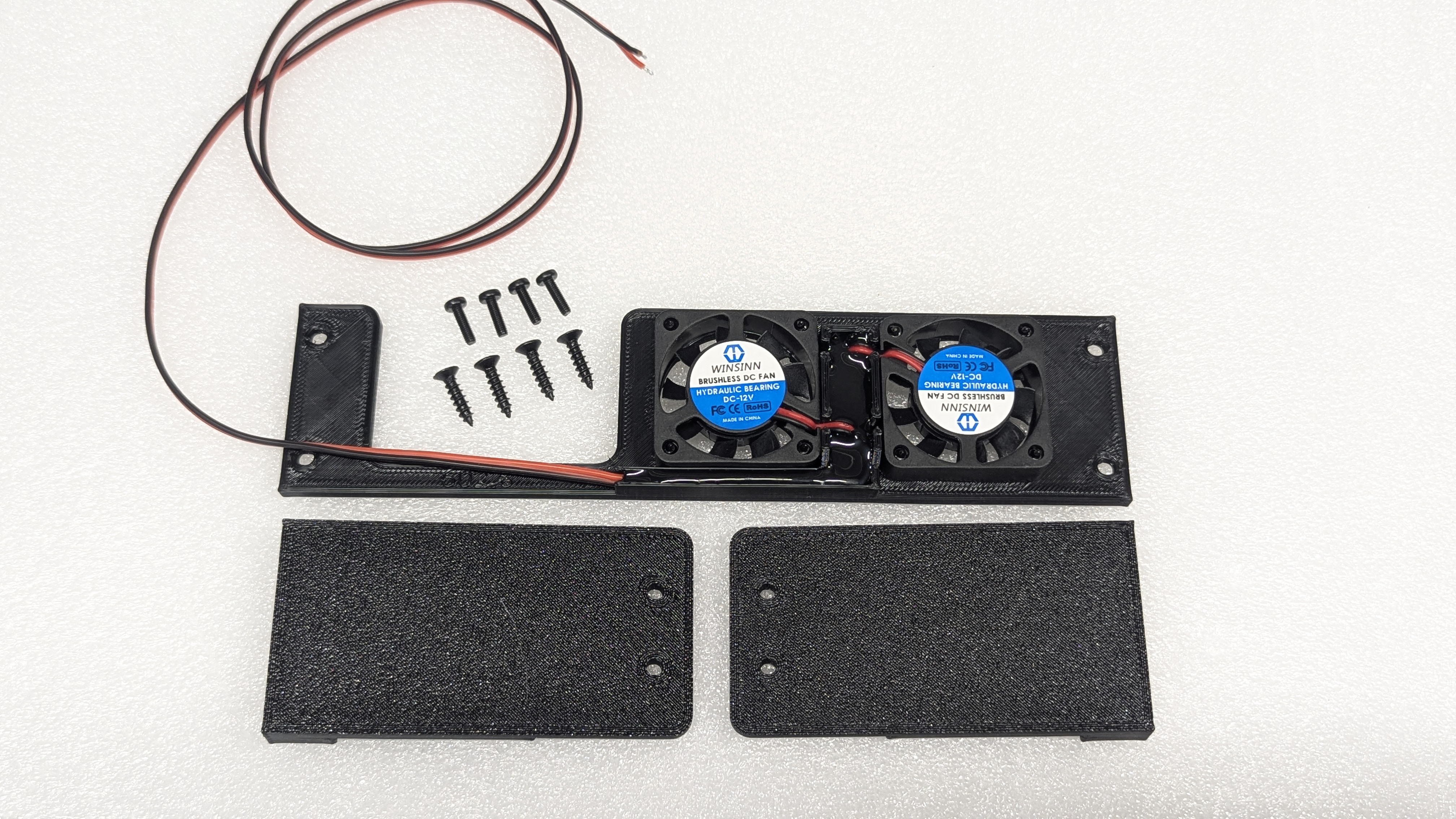

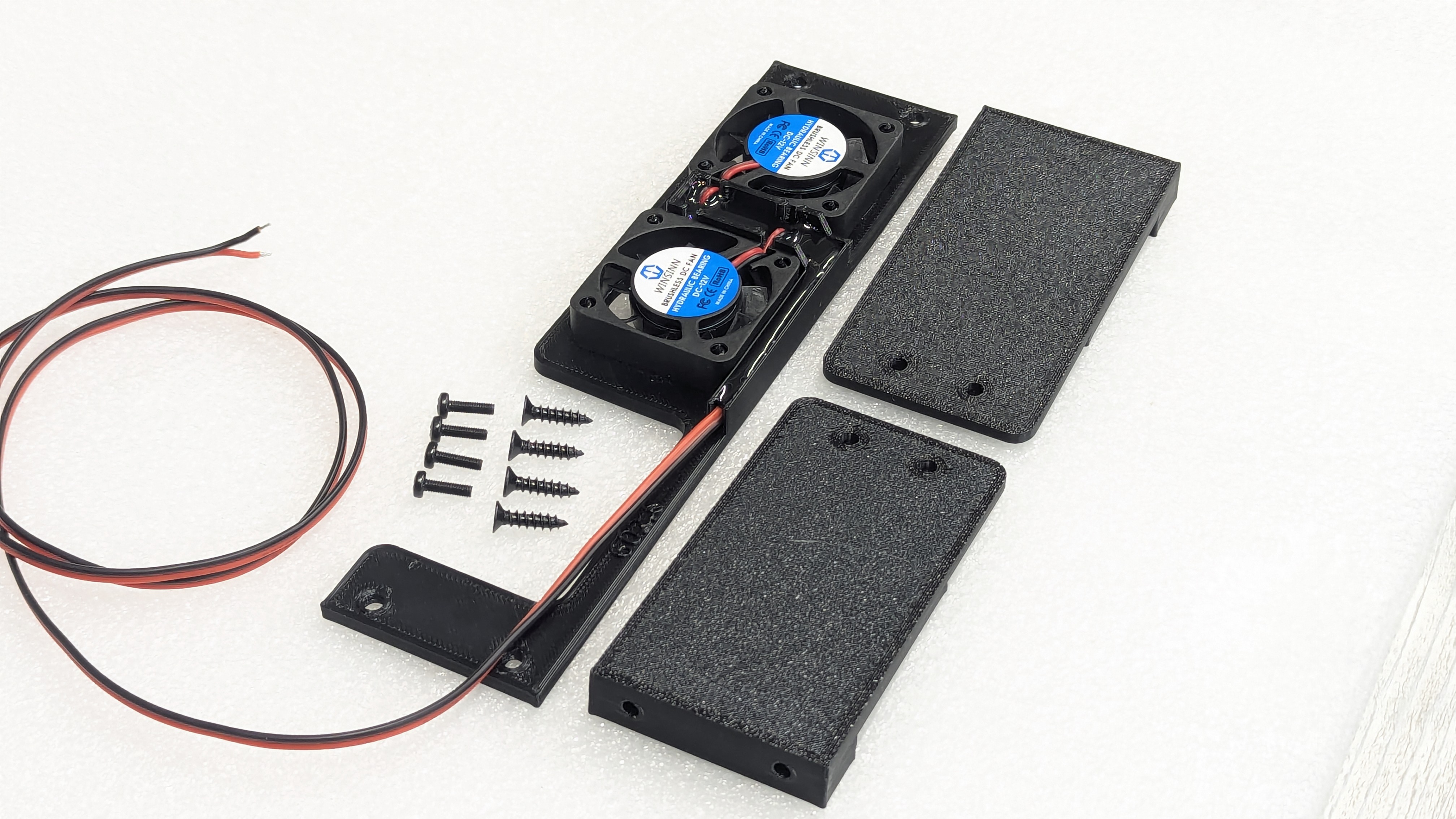

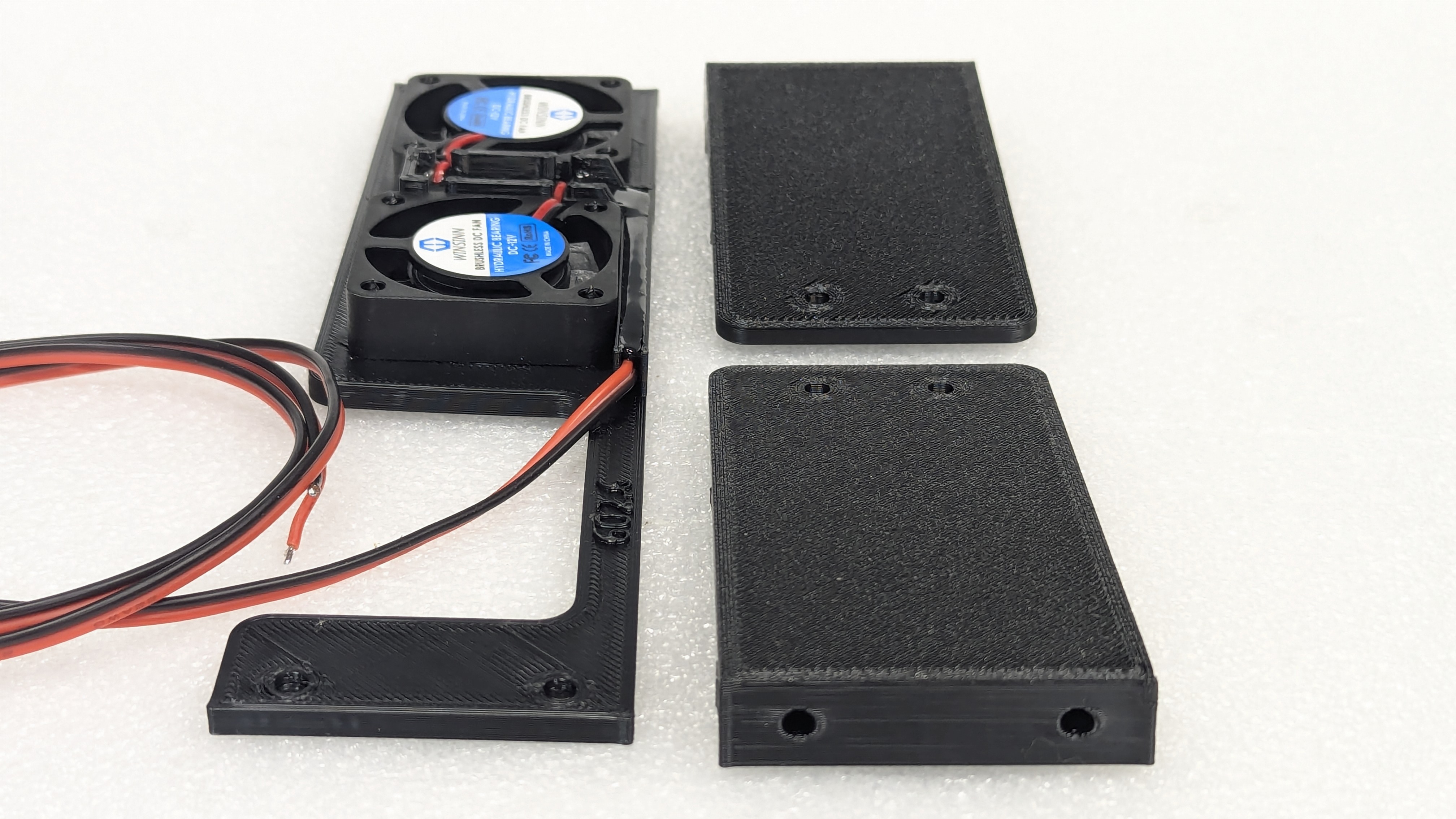

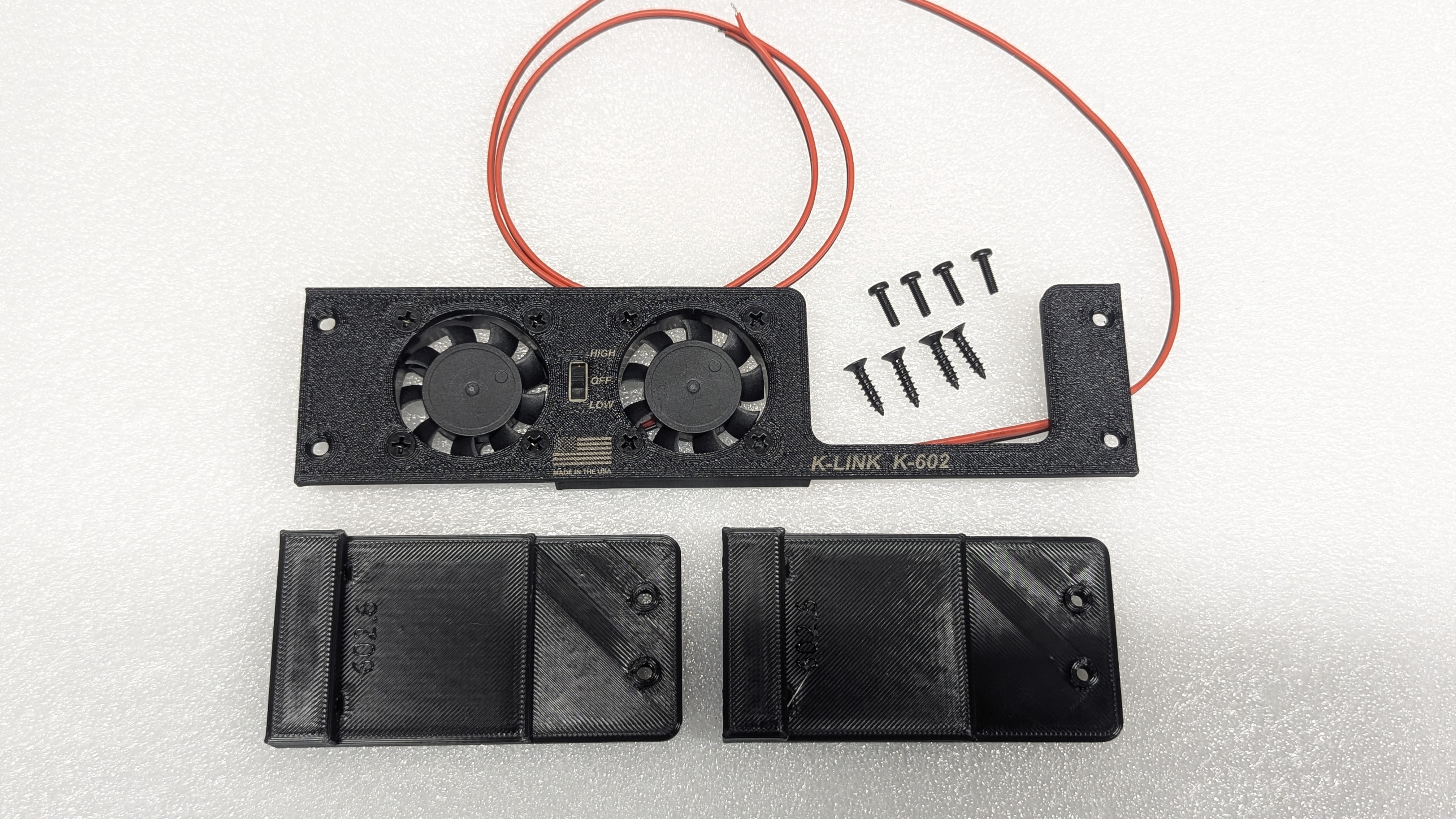

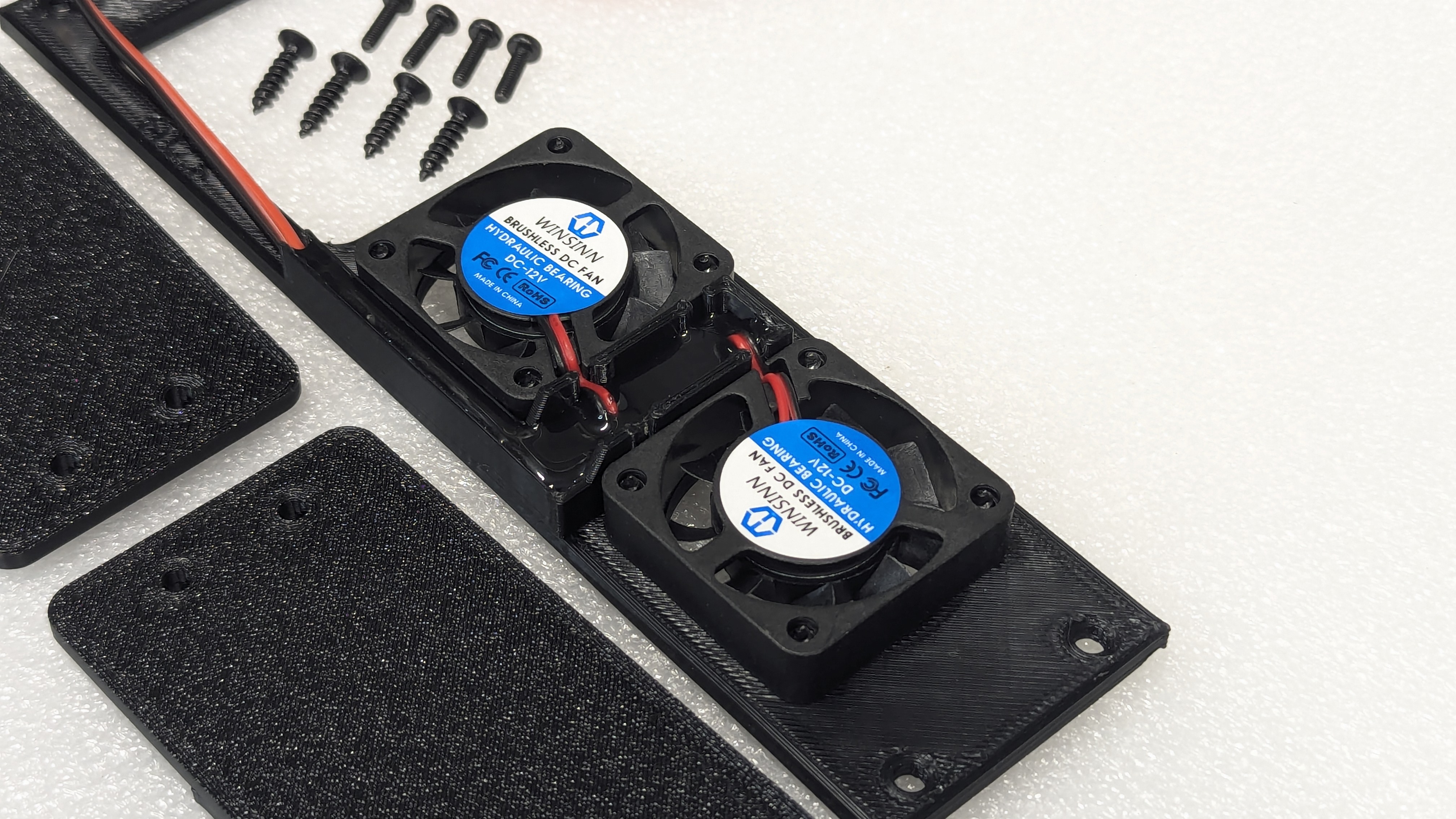

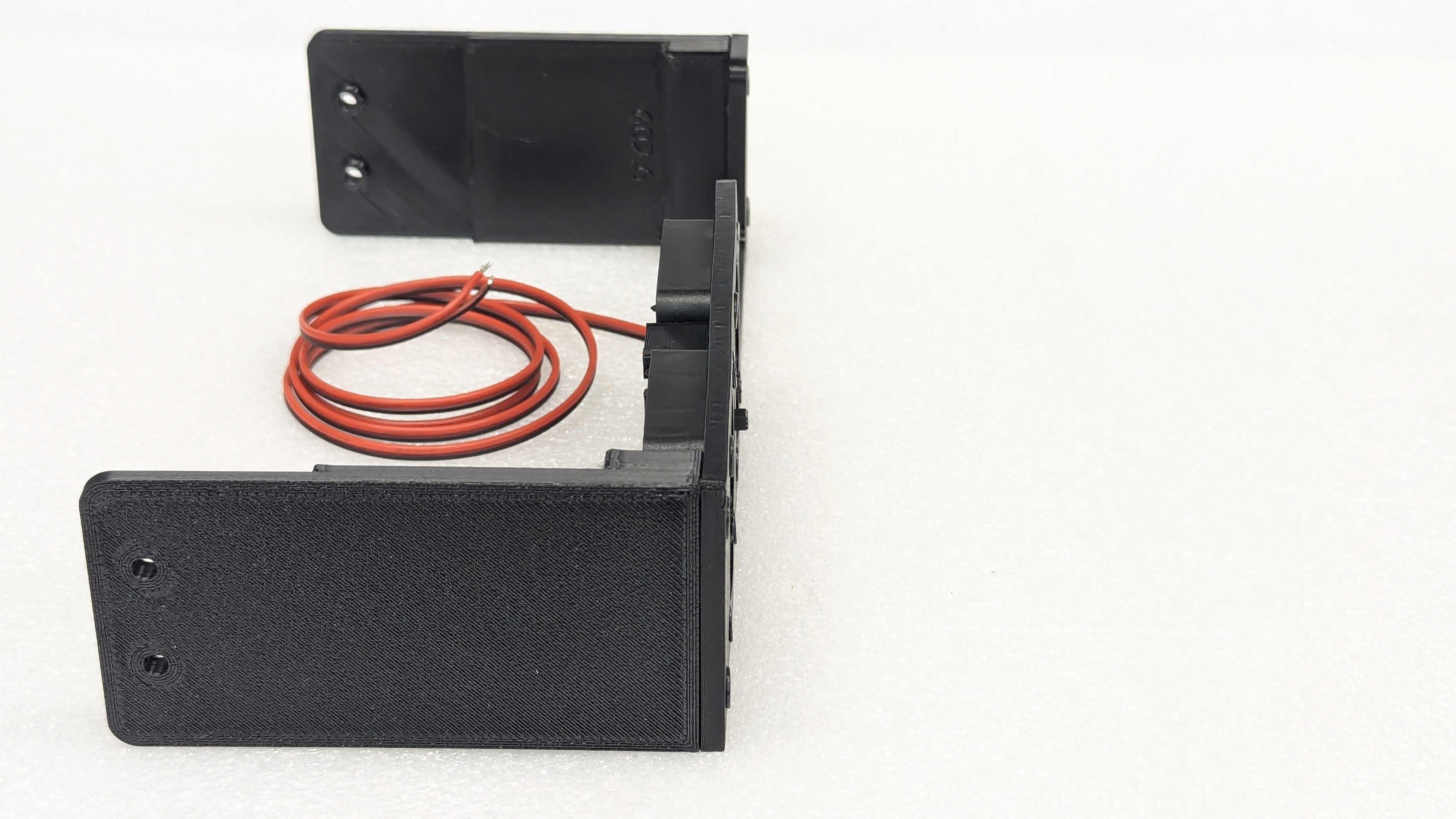

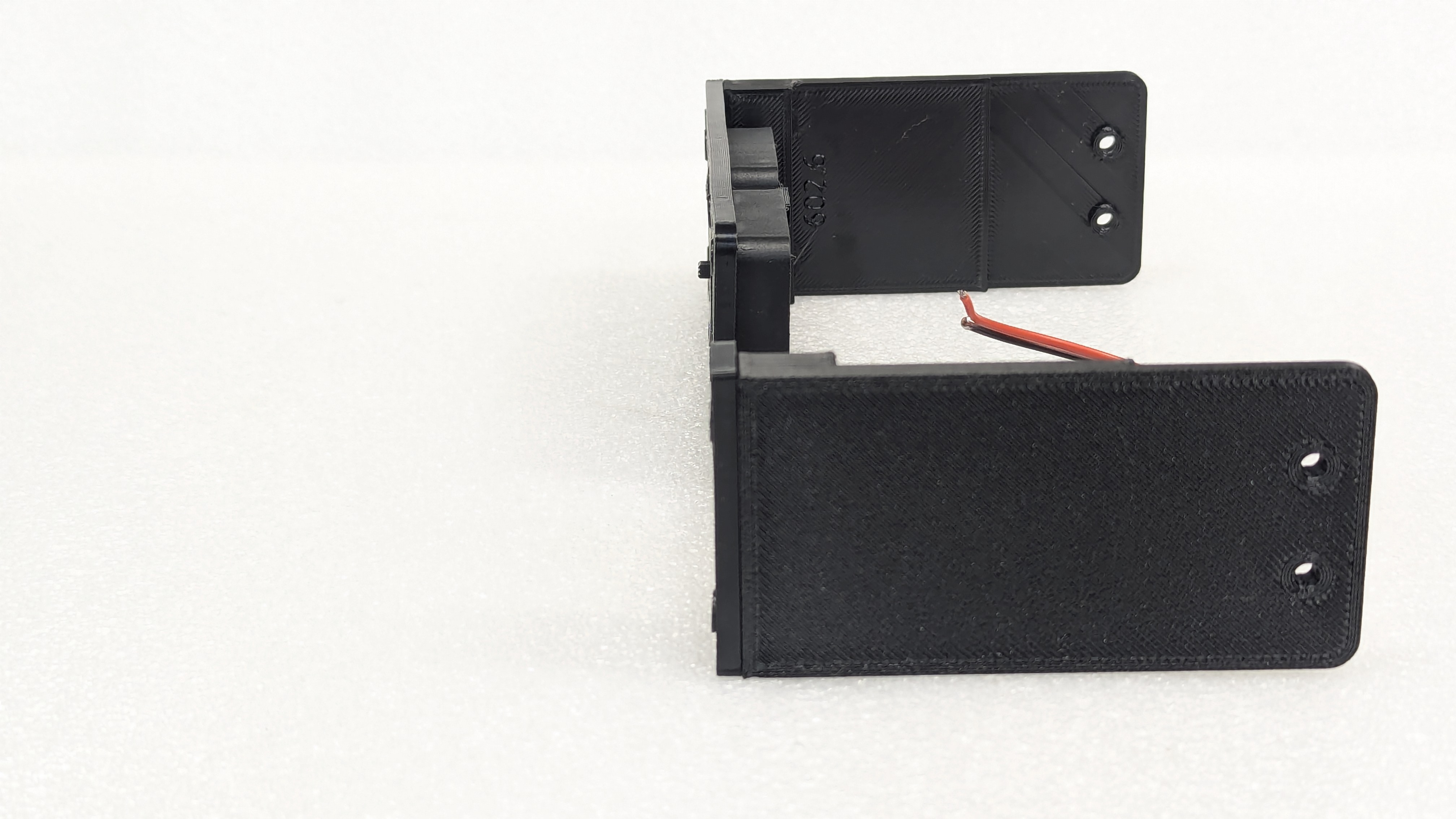

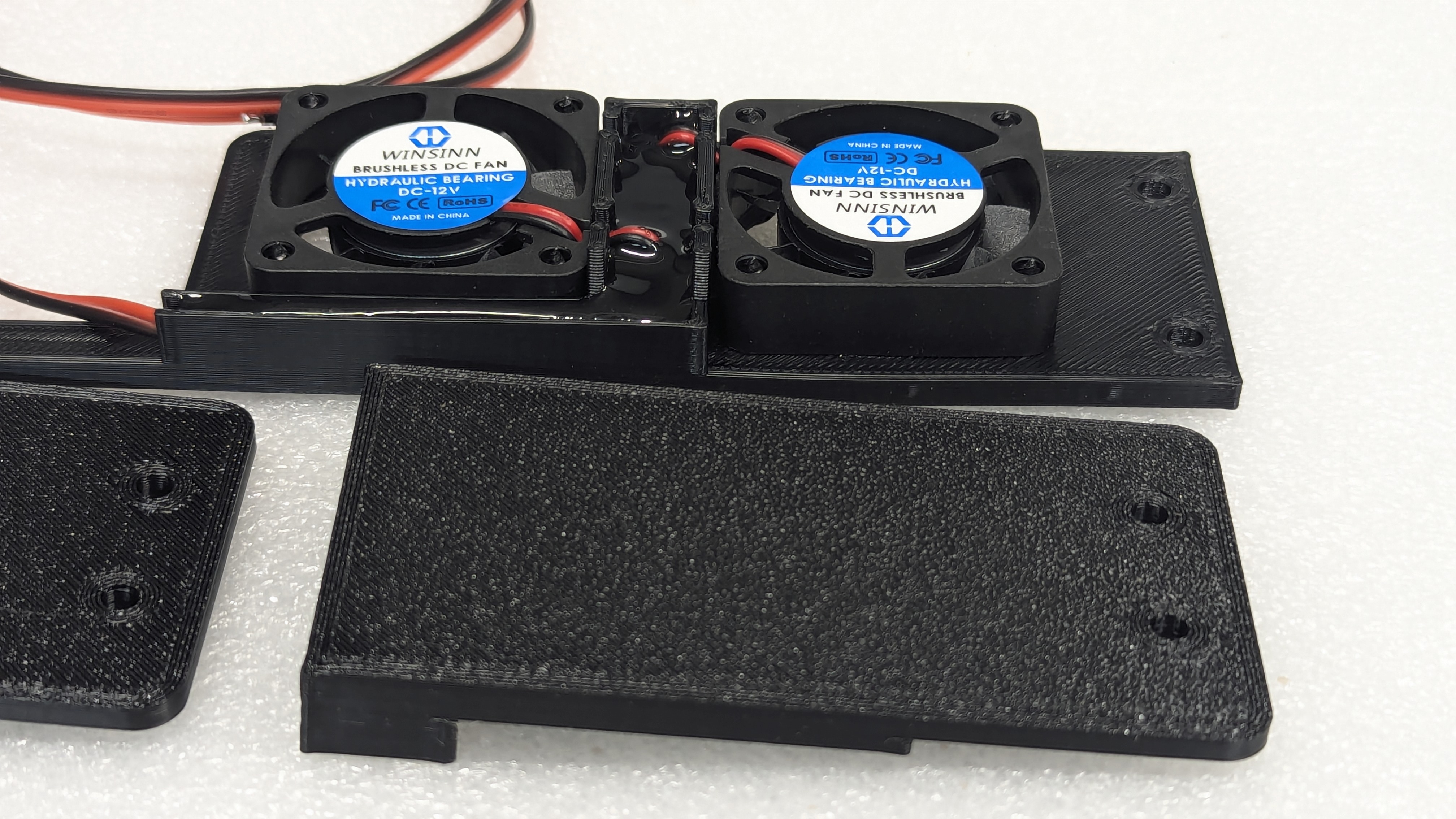

The K-602 Fan Kit is disassembled for shipping as shown in photos

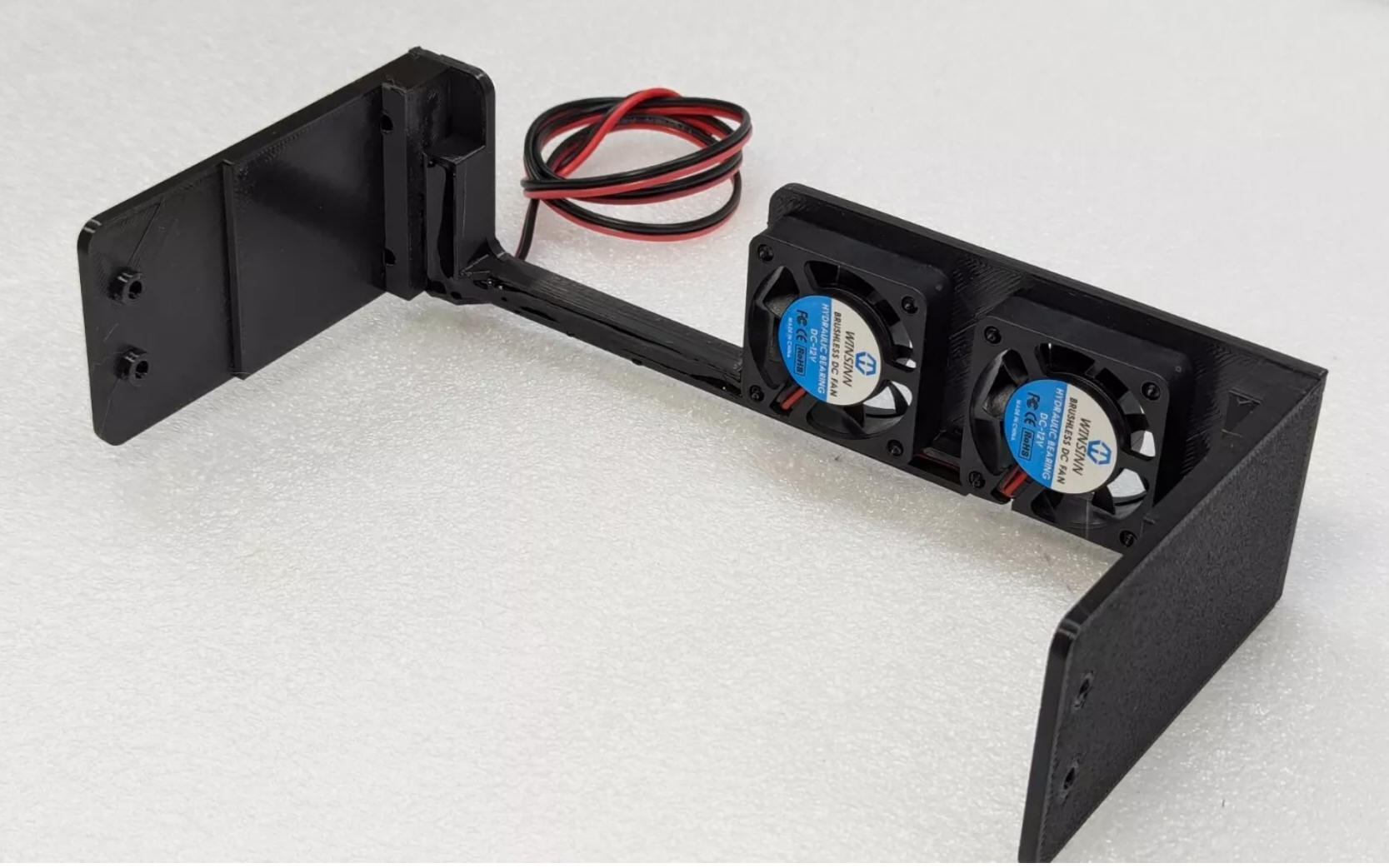

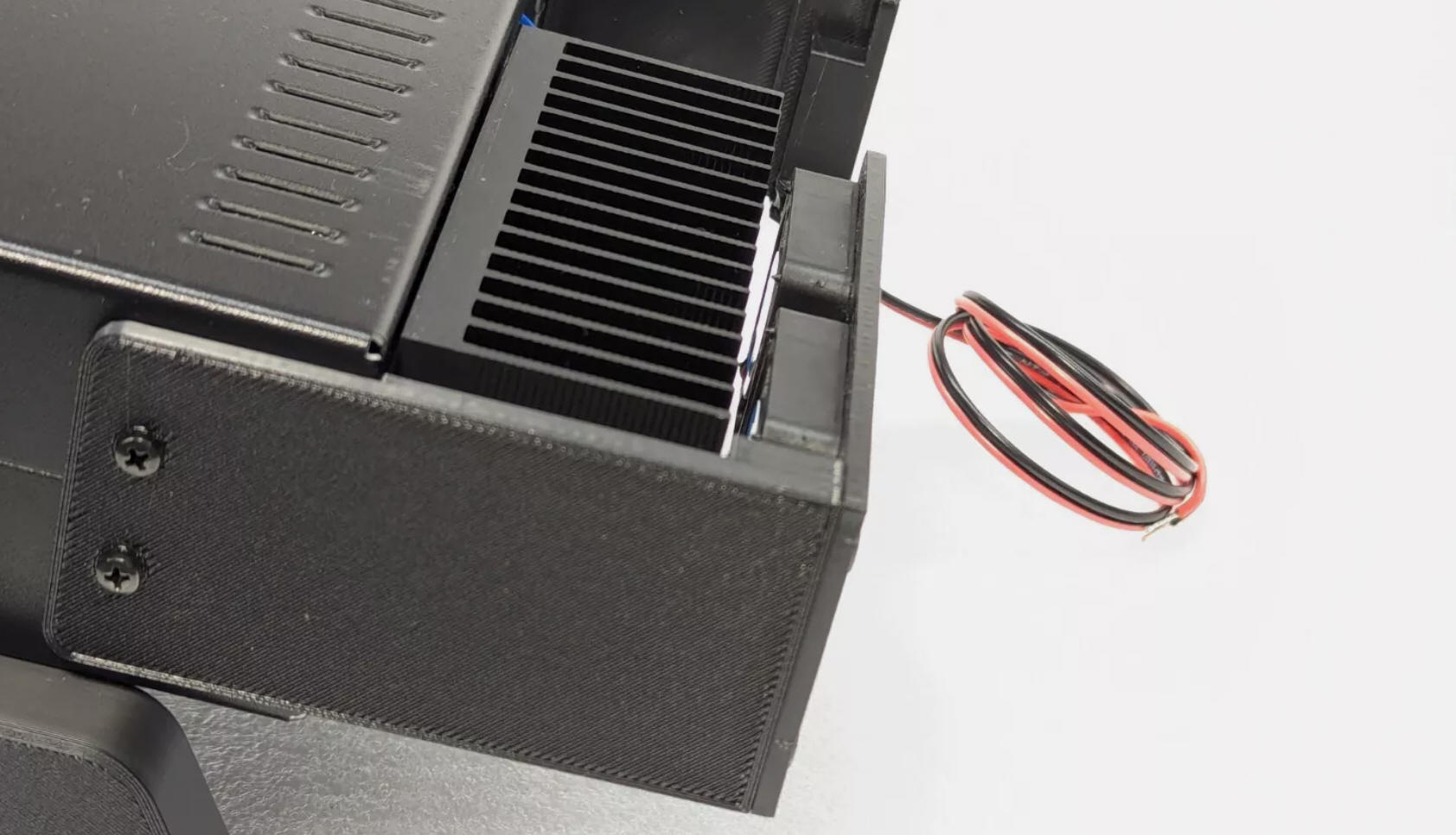

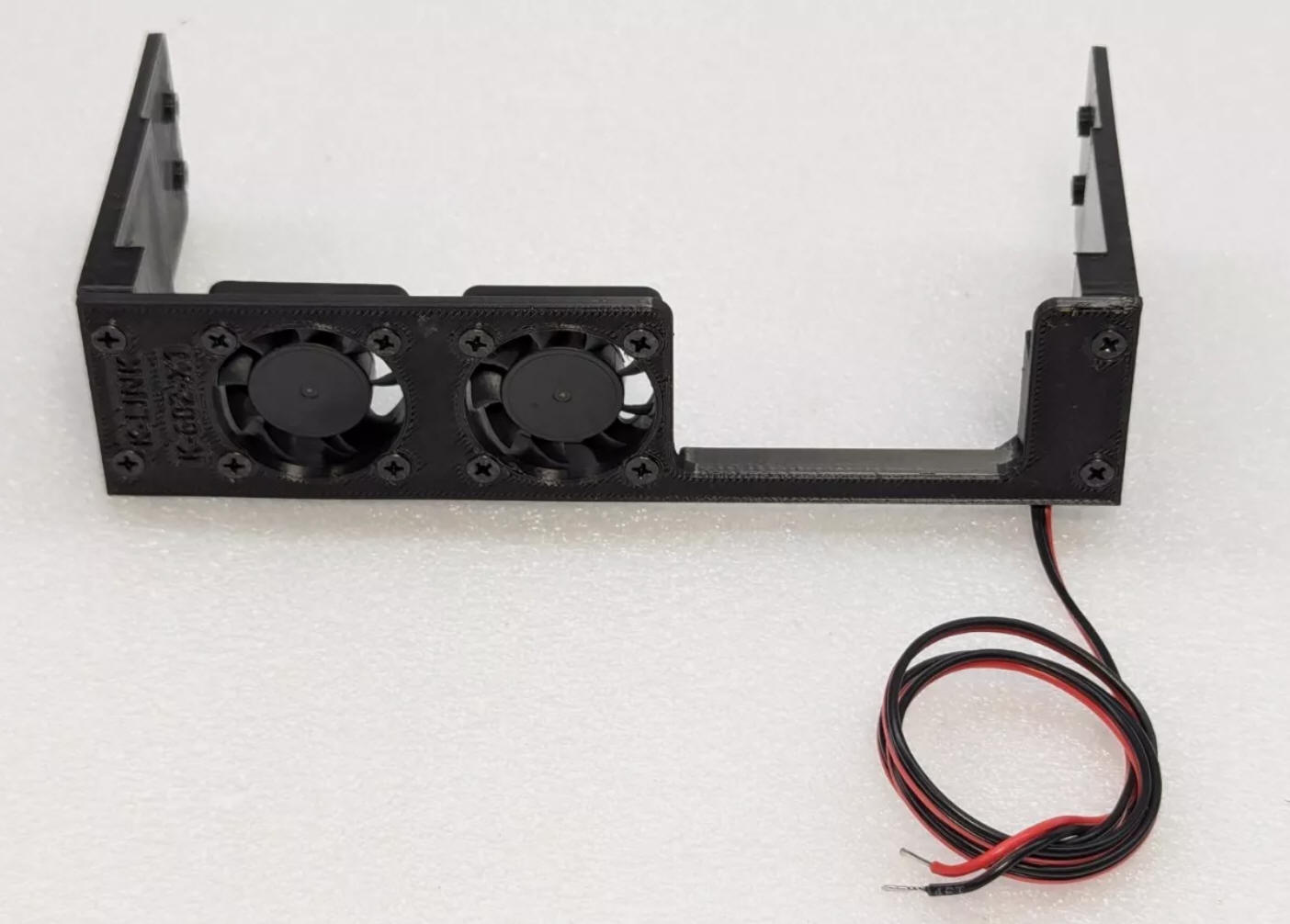

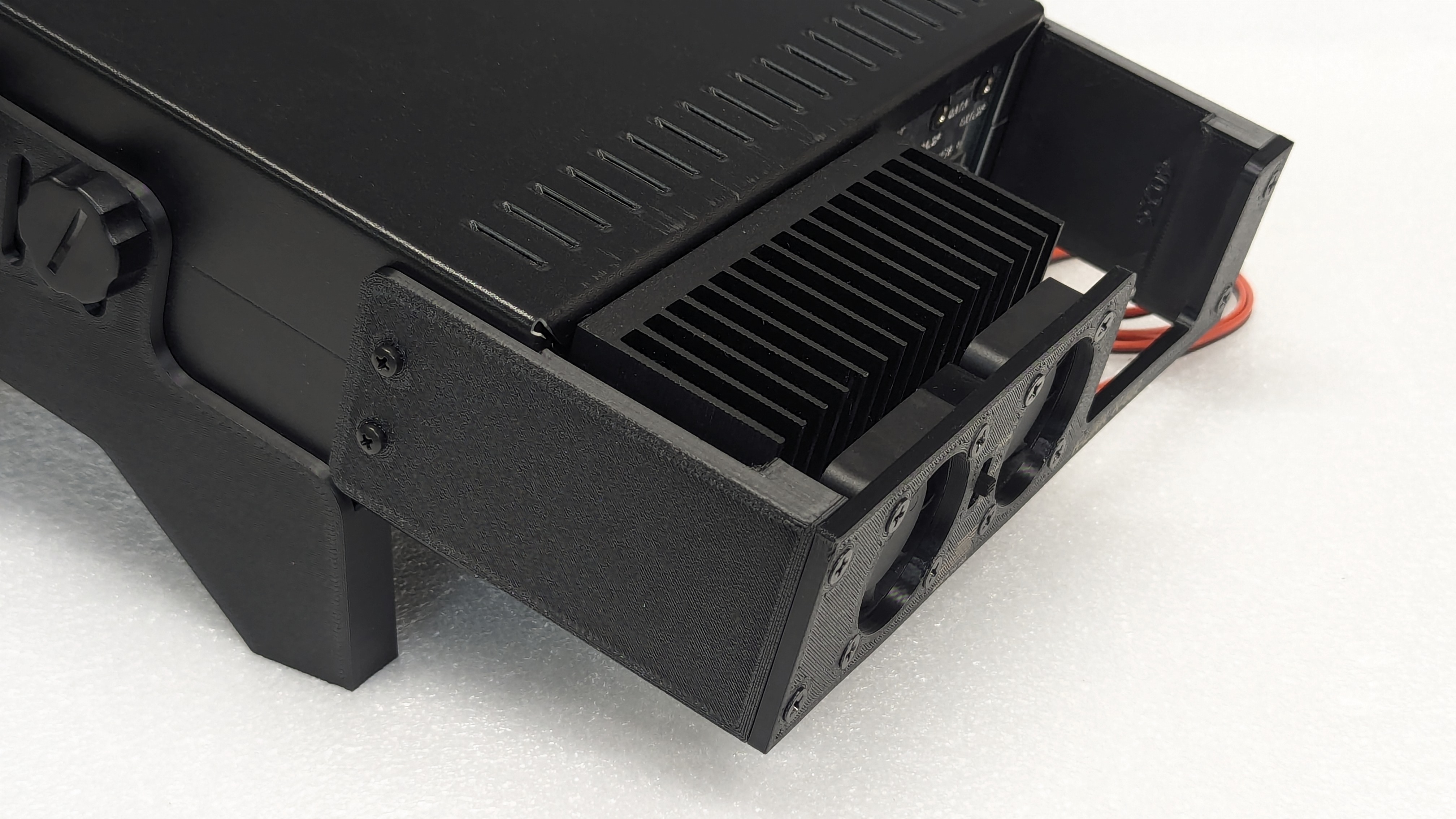

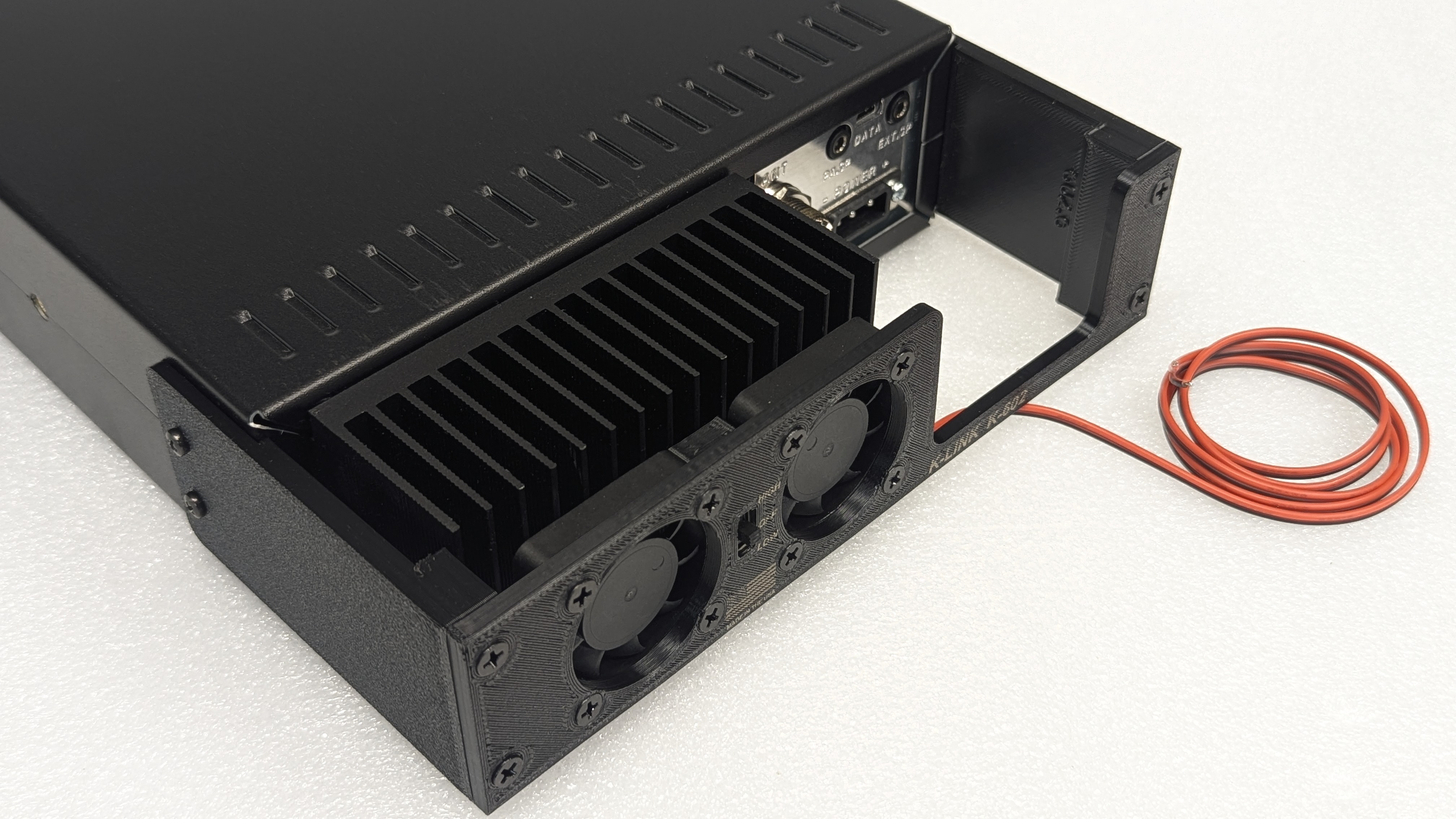

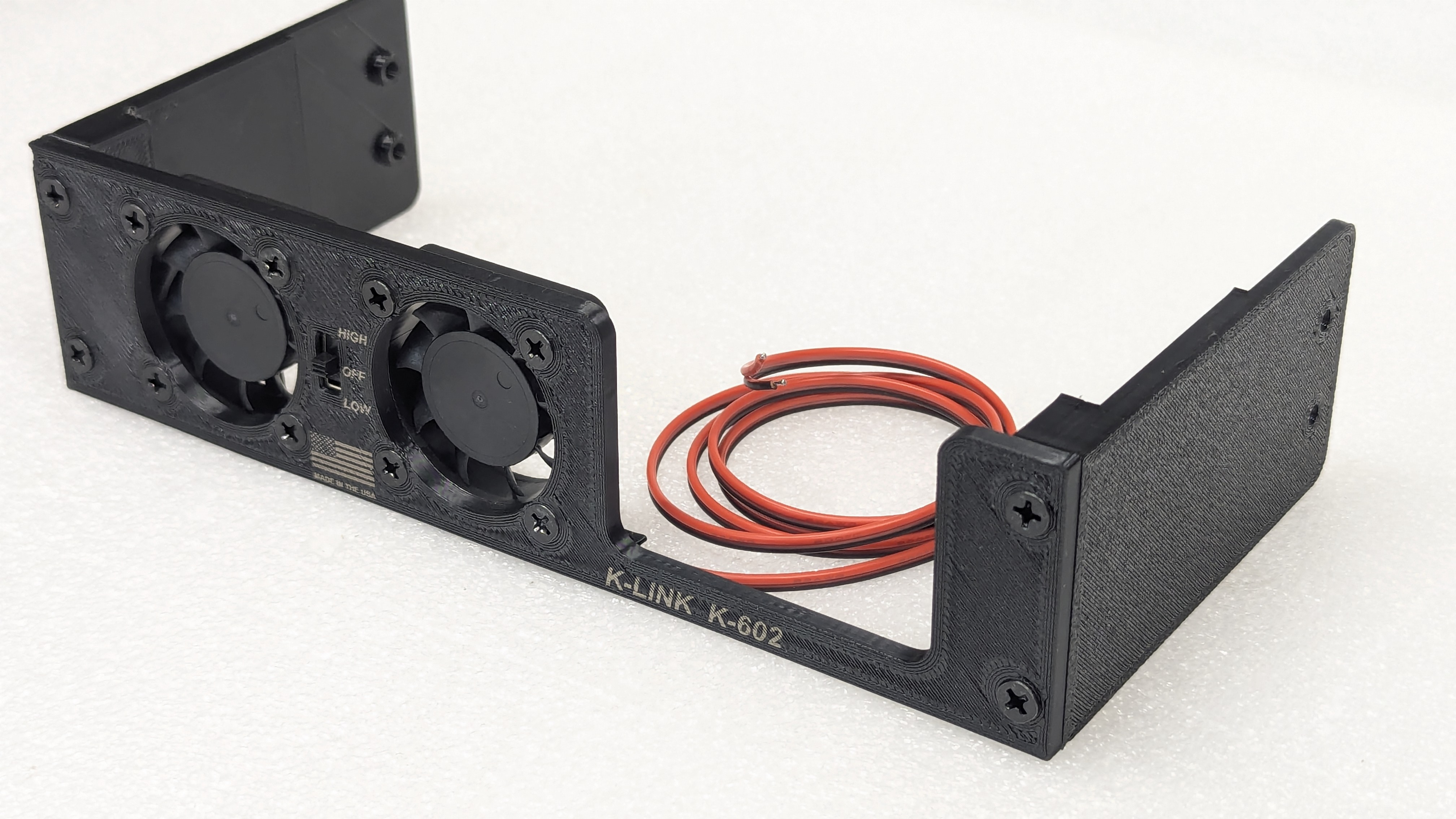

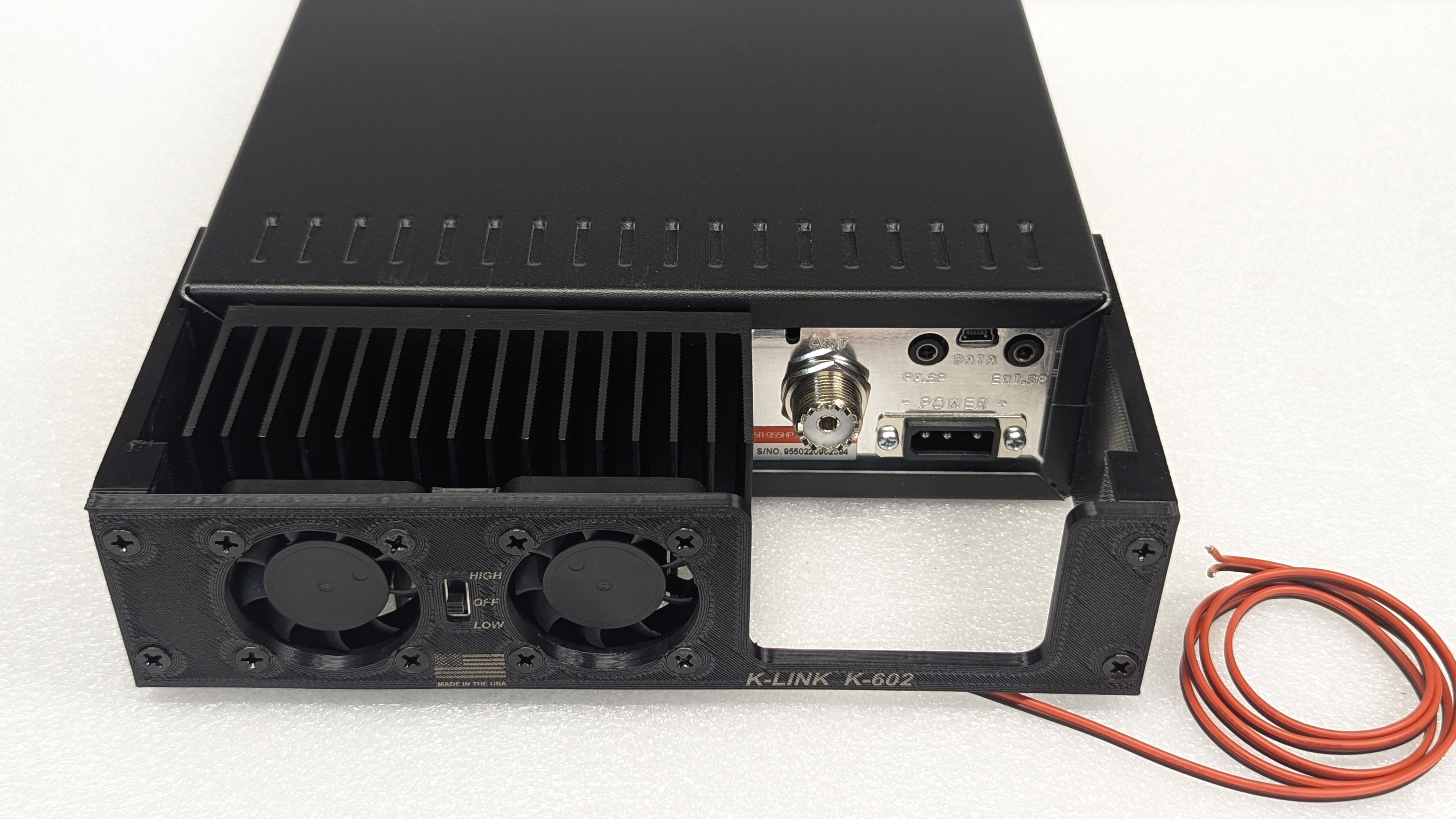

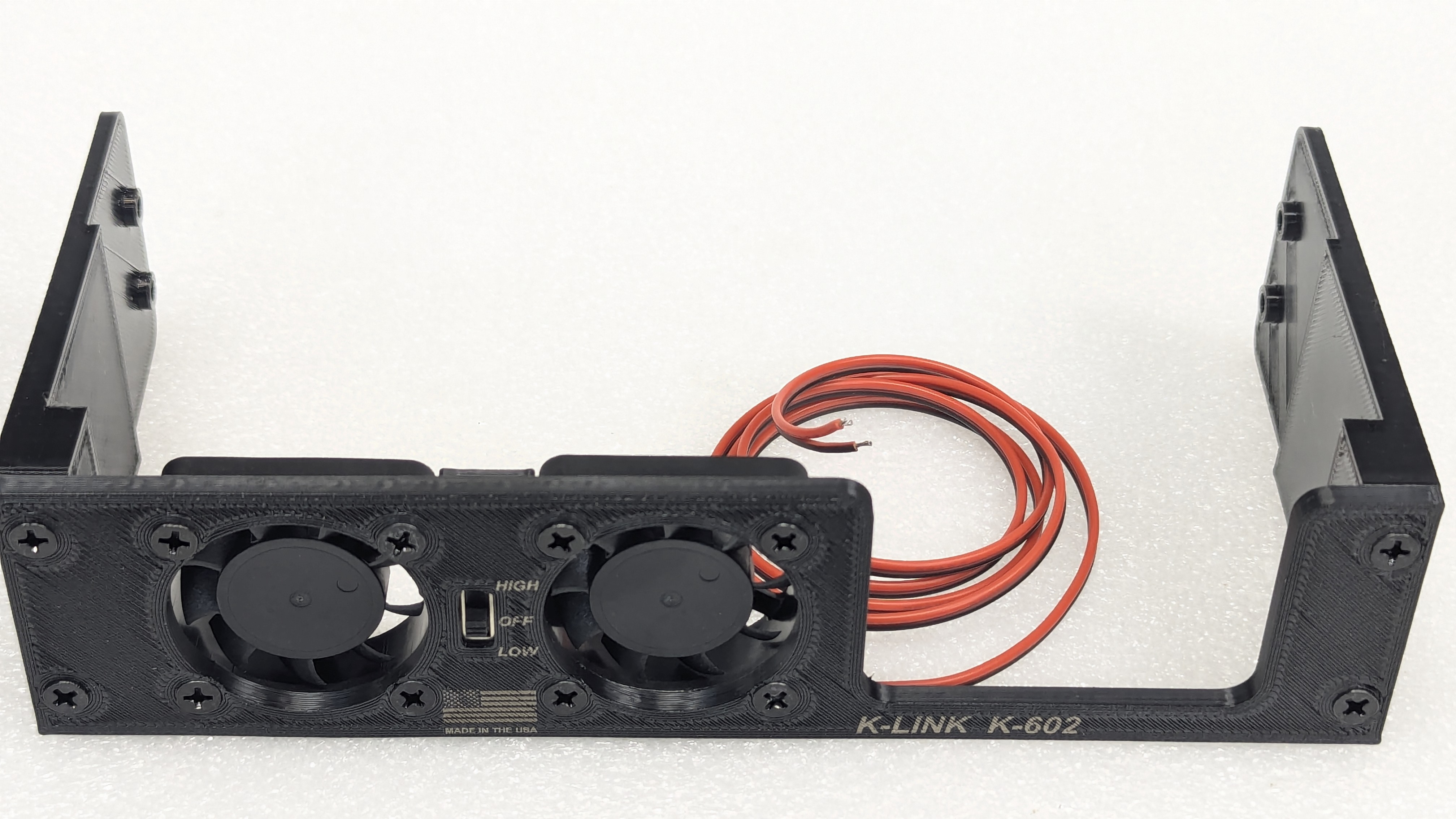

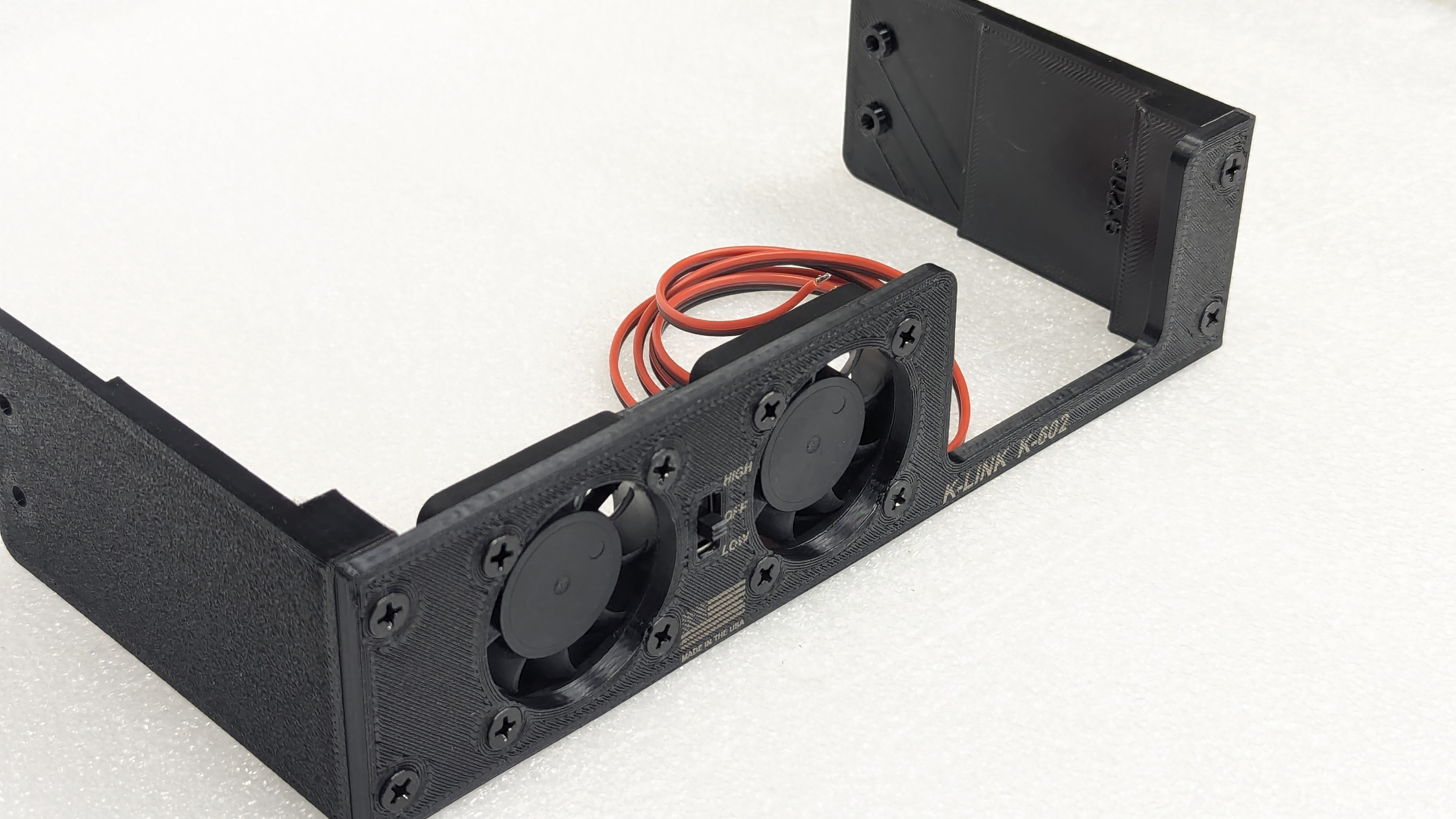

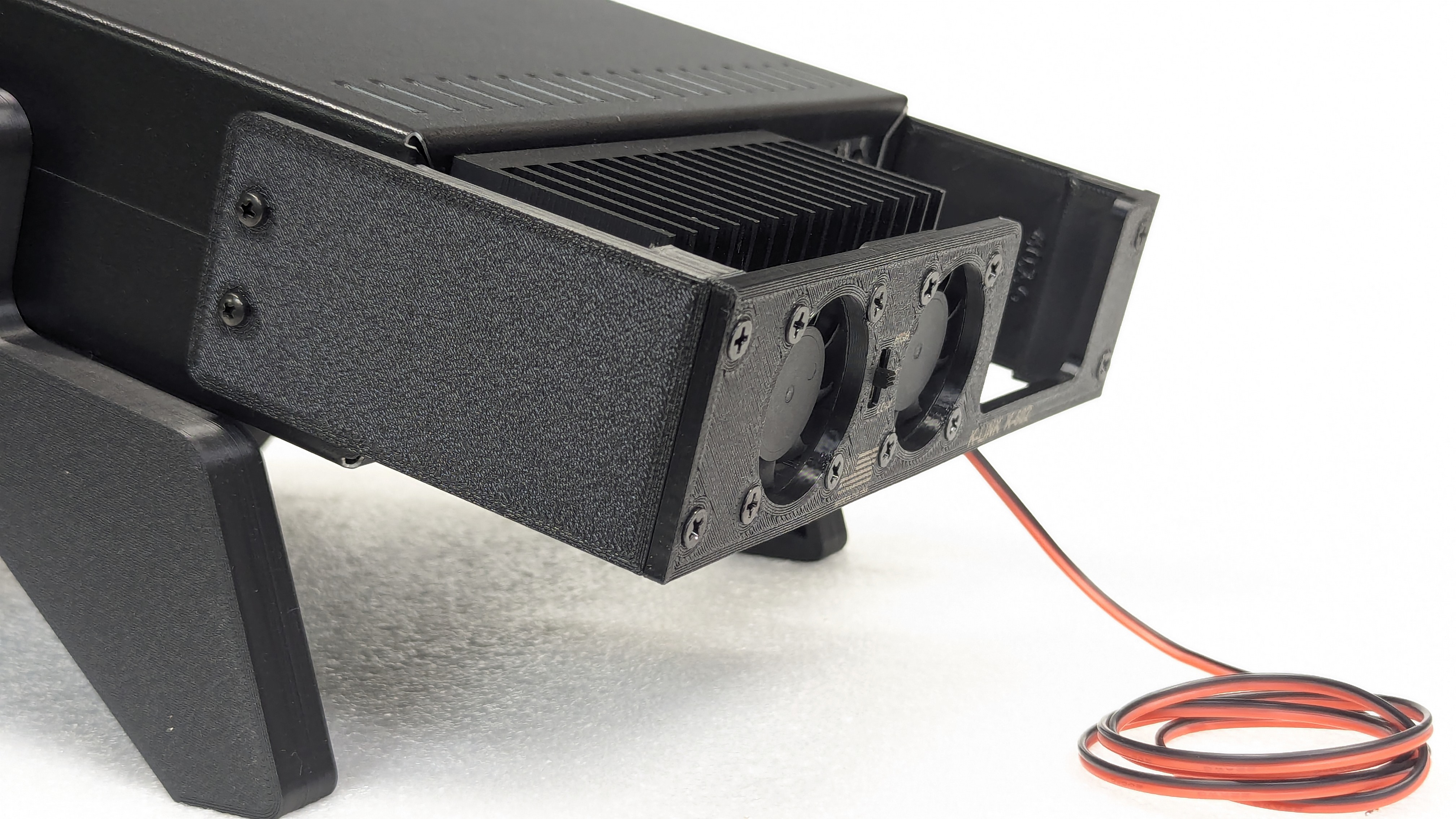

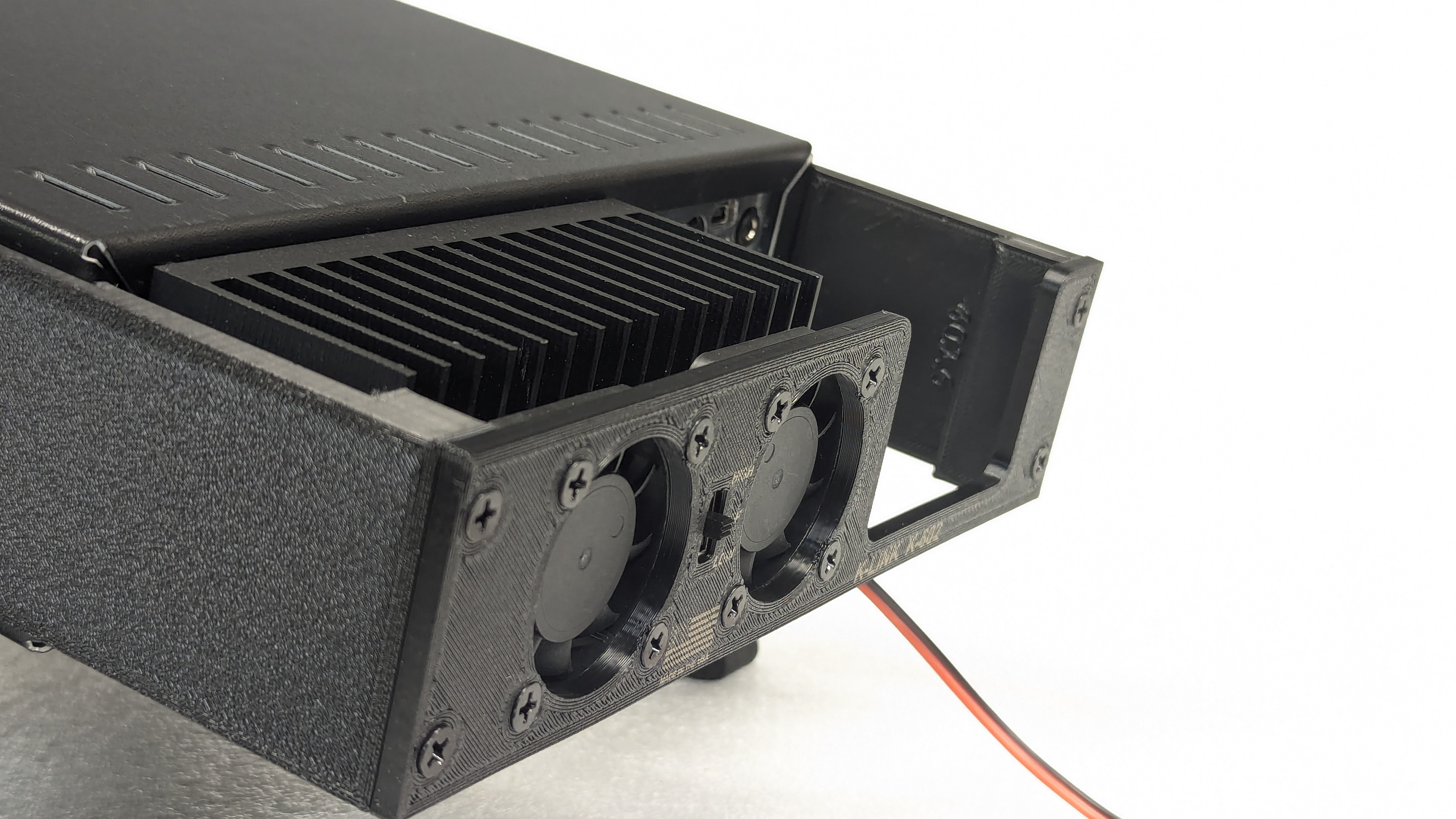

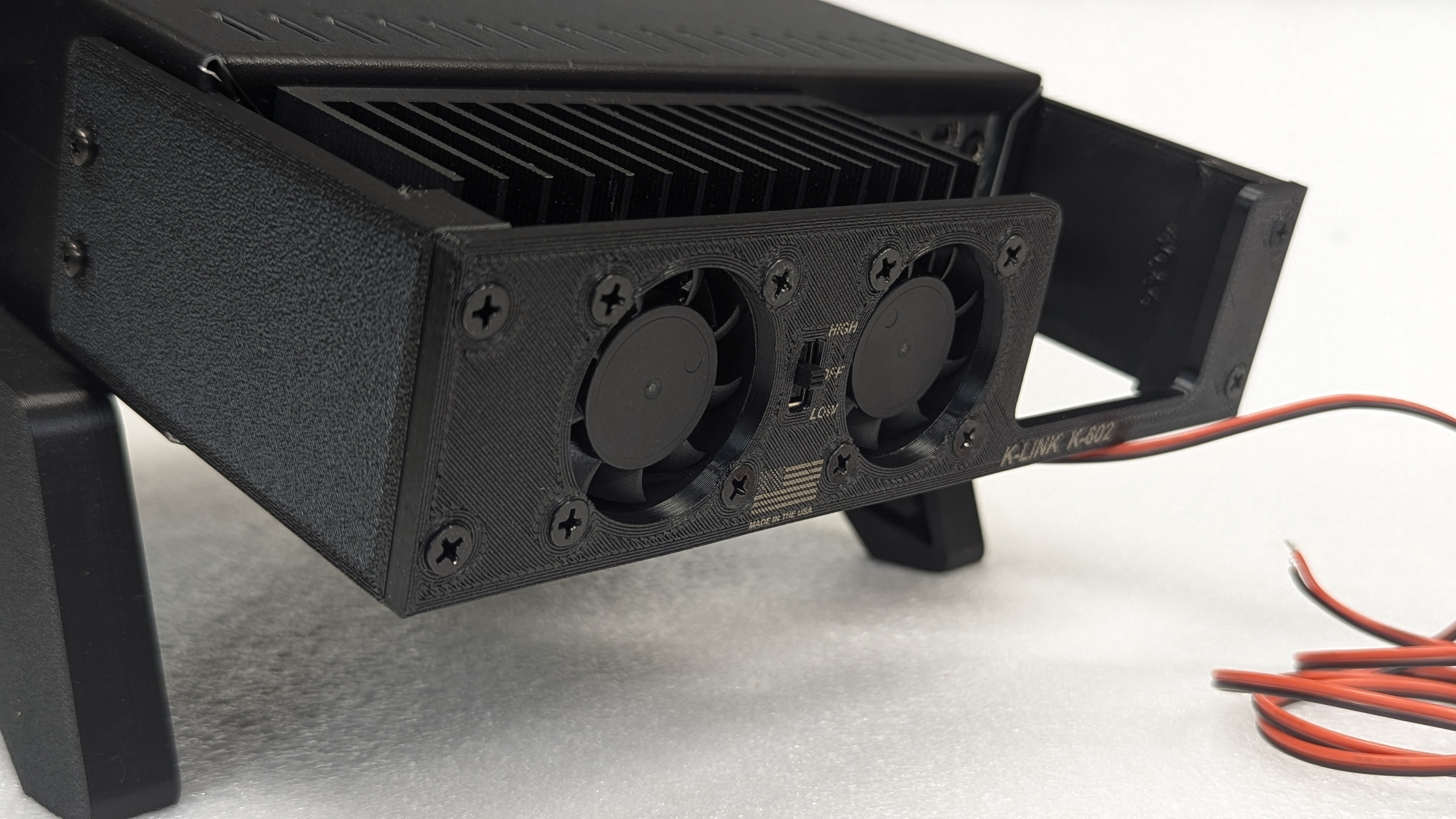

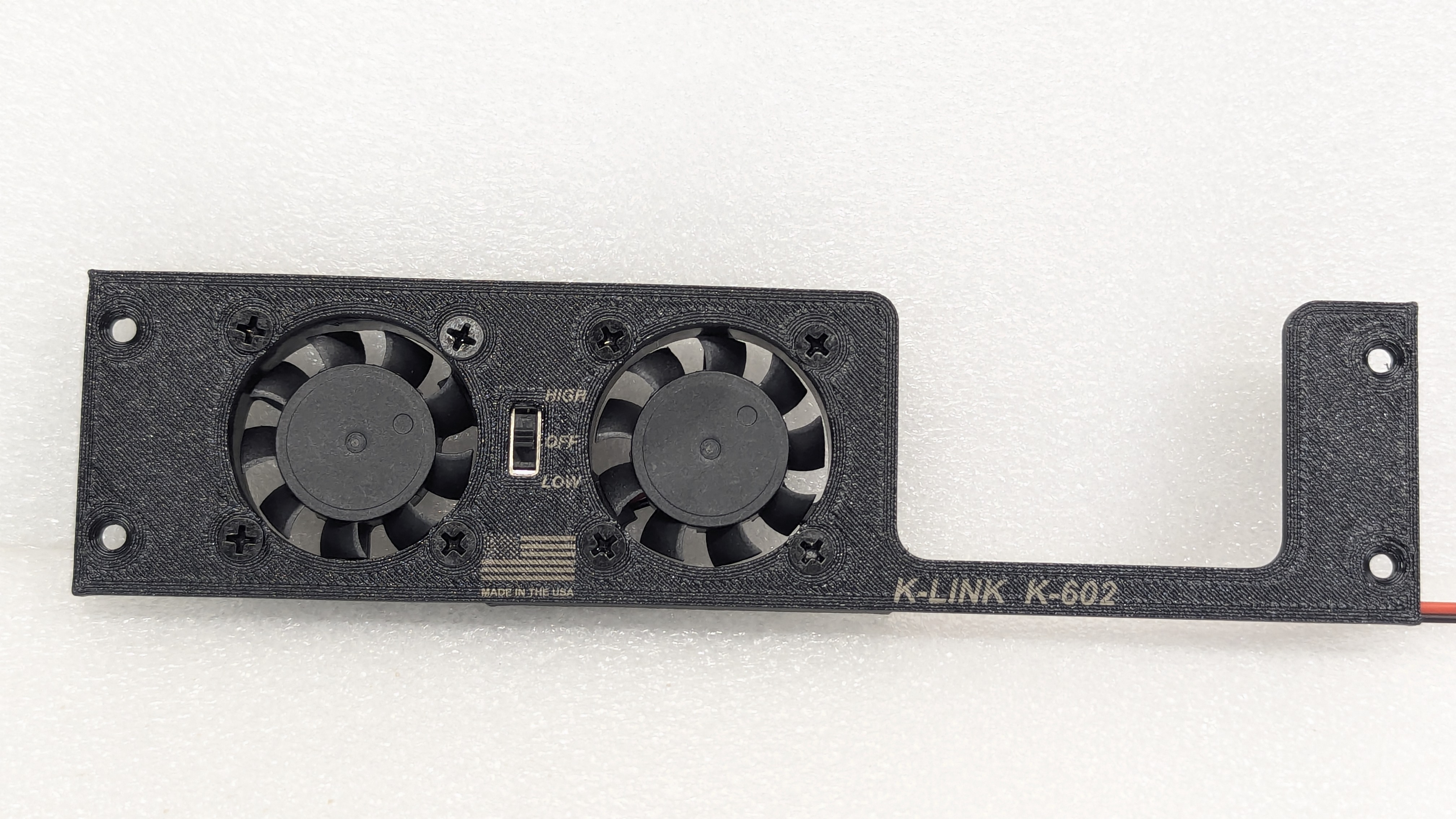

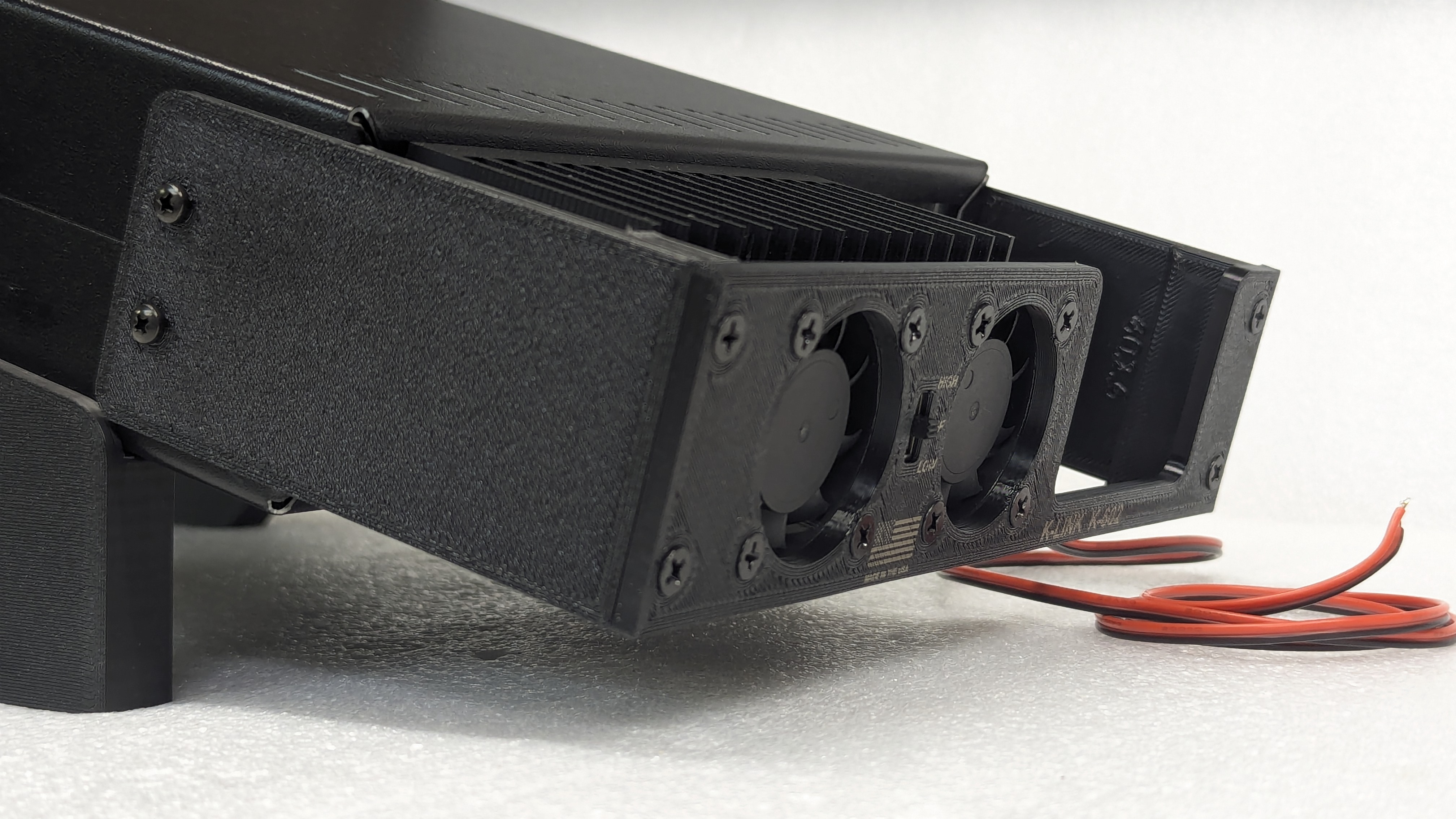

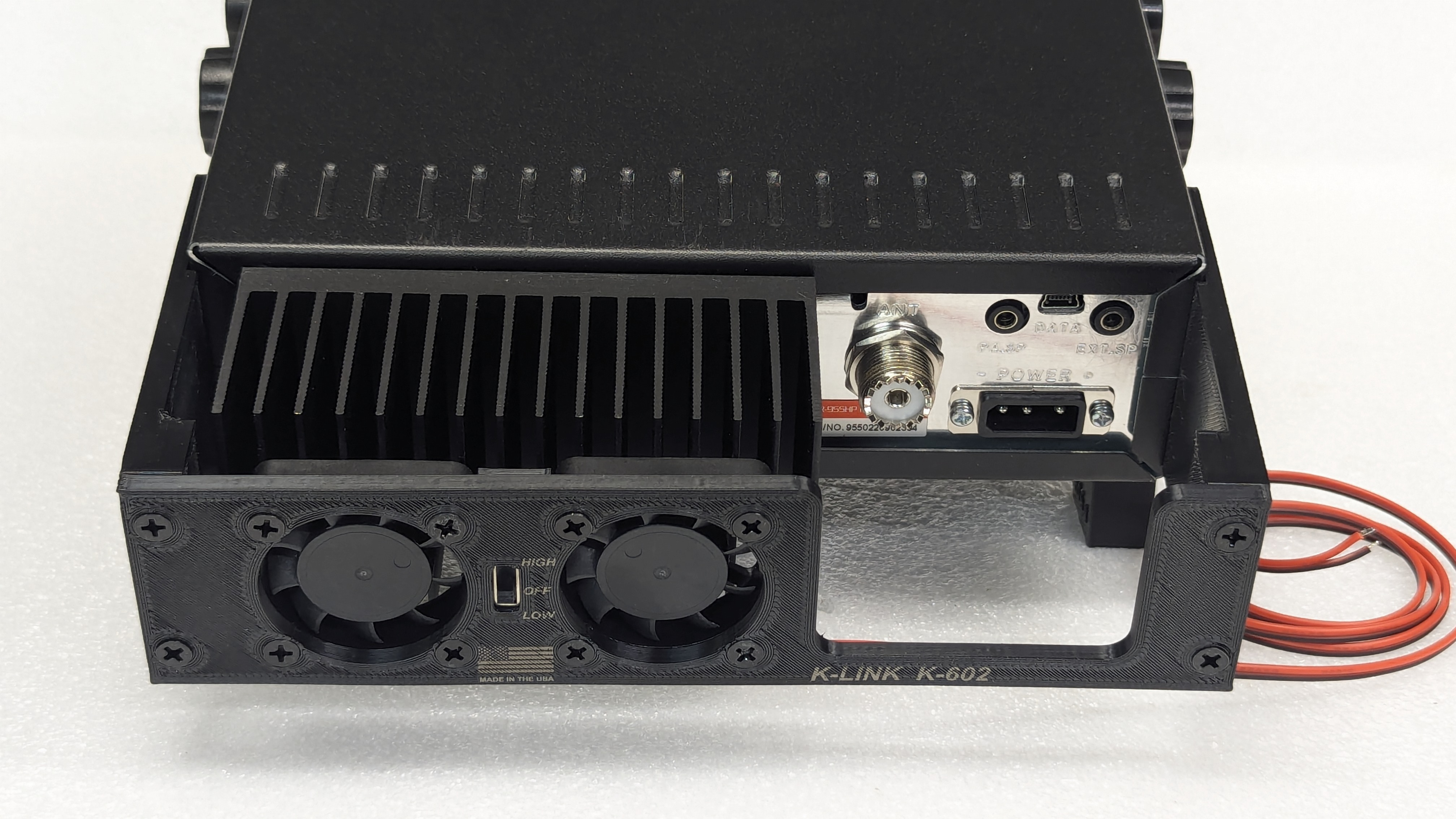

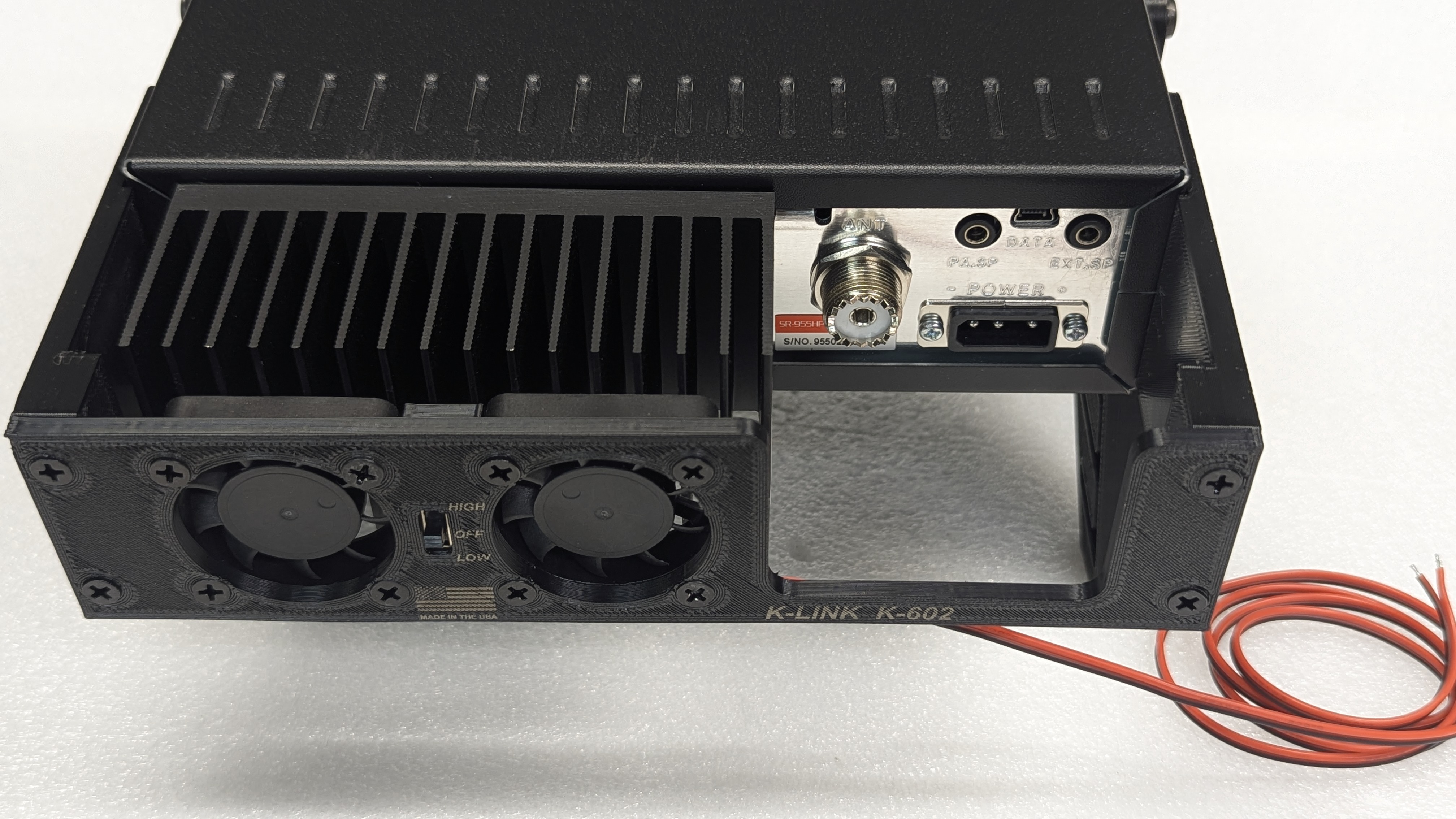

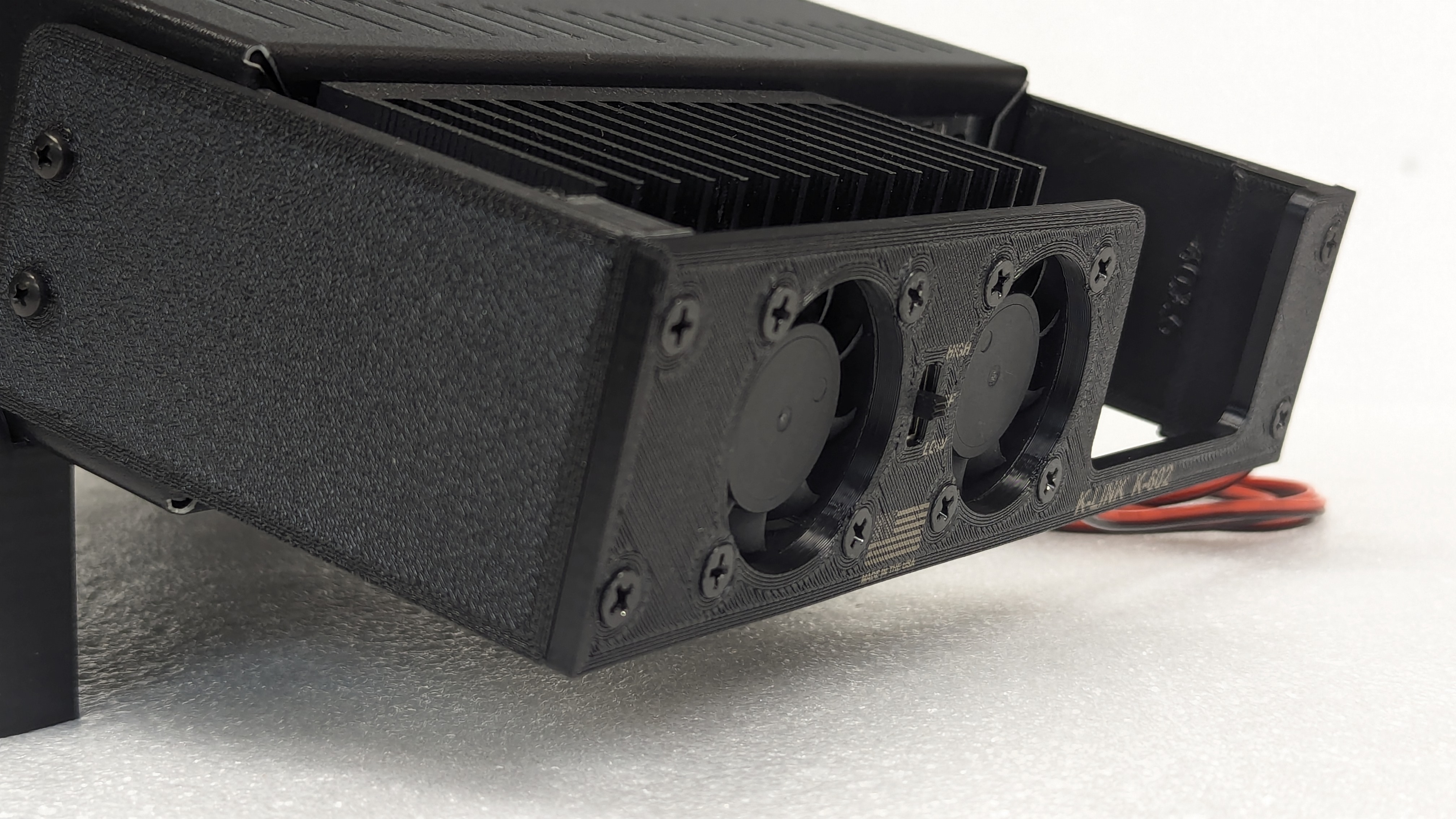

K-LINK K-602 Fan Kit  -

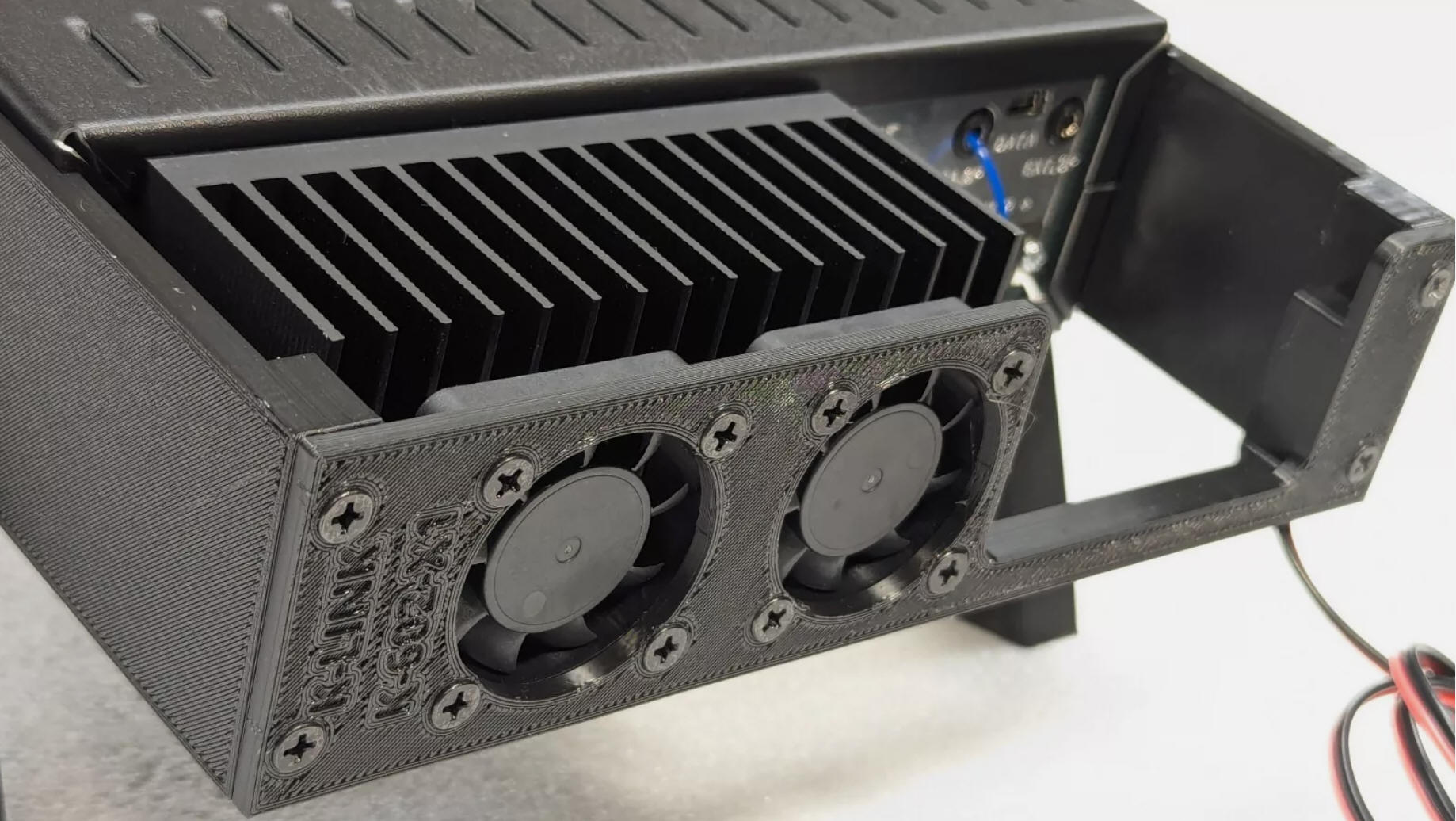

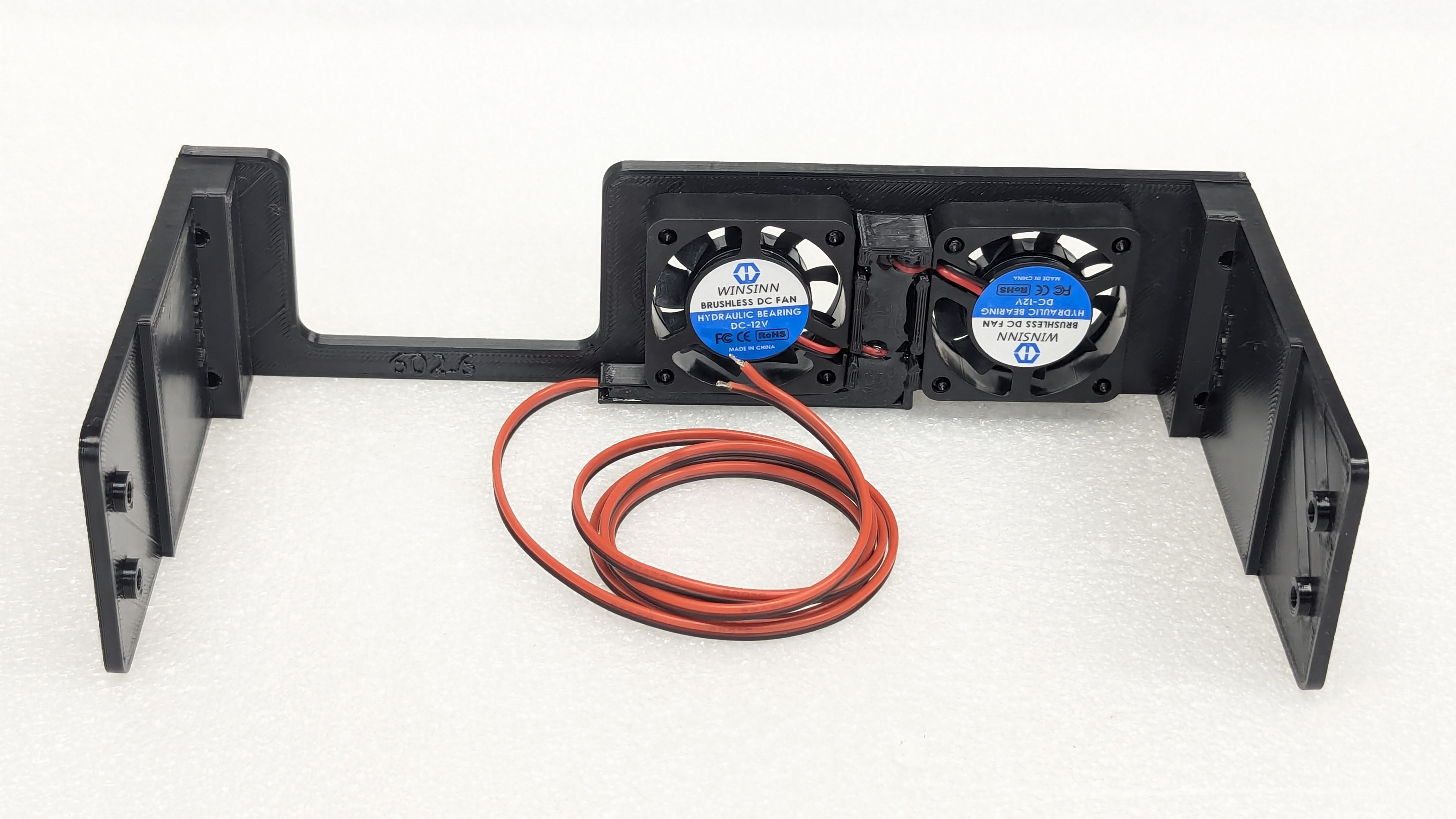

  • Twin 40mm brushless fans
  • Reduced for quiet operation and longer life
  • 24" wire leads
  • Longer case screws included
  • Fits
    • Stryker SR-955HPC, (all models)
      and SR-655HPC ( all models)
    • AnyTone AT-5555N II,
    • Ranger RCI-2950DX6
    • Radioddity QT-60
  • PETG material withstands environments up to 150ºF
  • 30ºF Drop in temperature of heatsink at MOSFET finals*

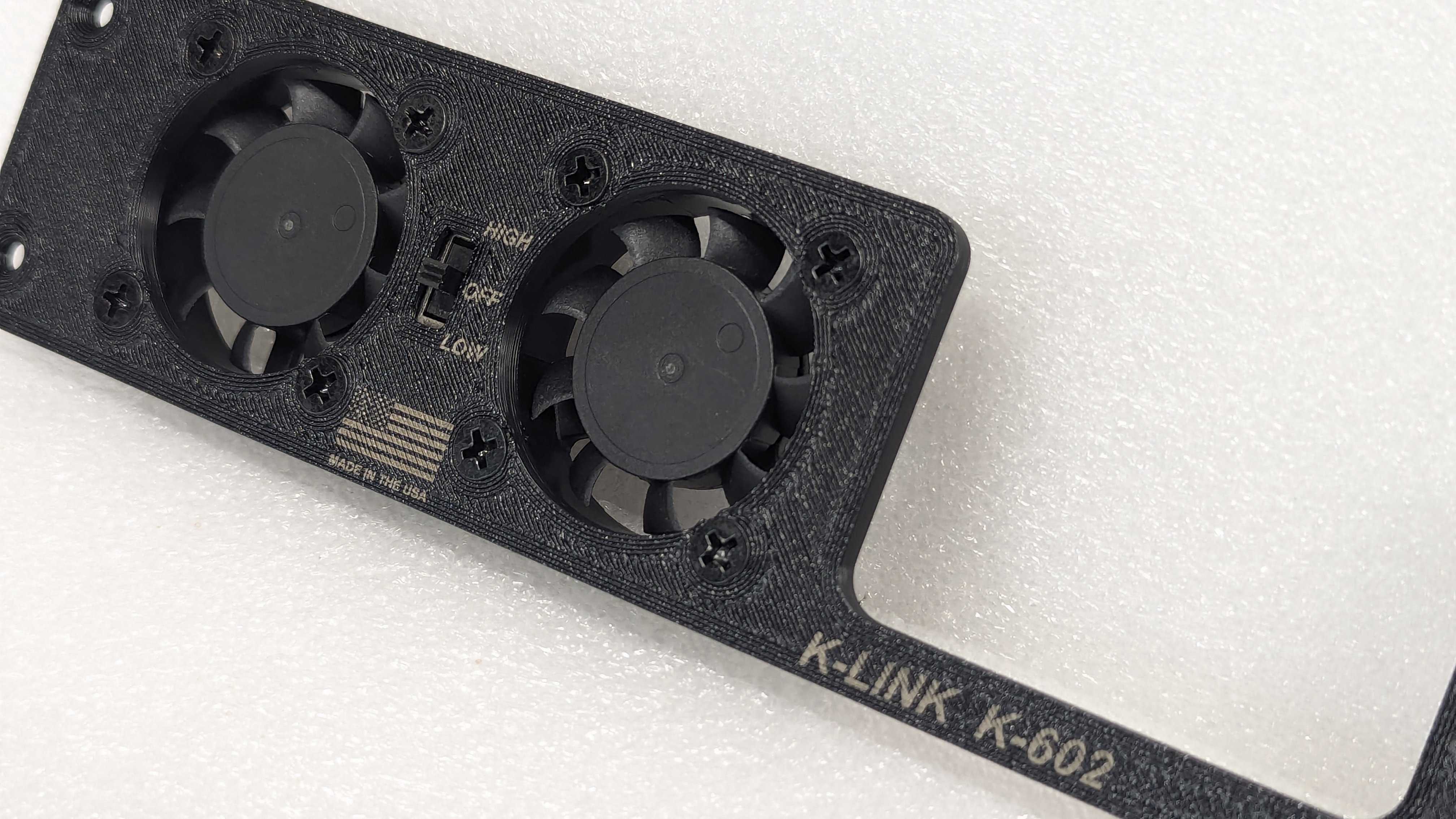

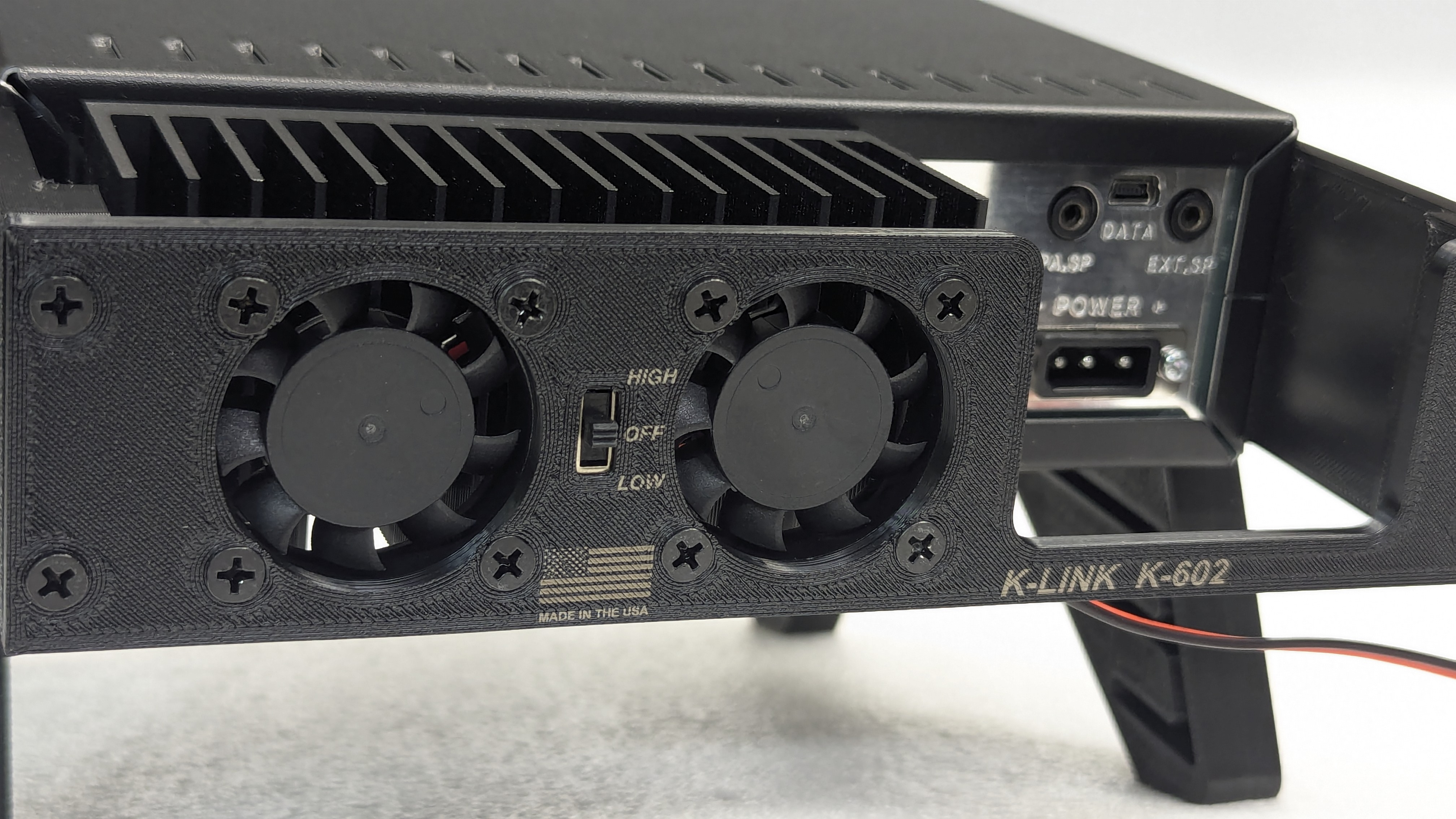

  • Off, Low and High modes set via switch

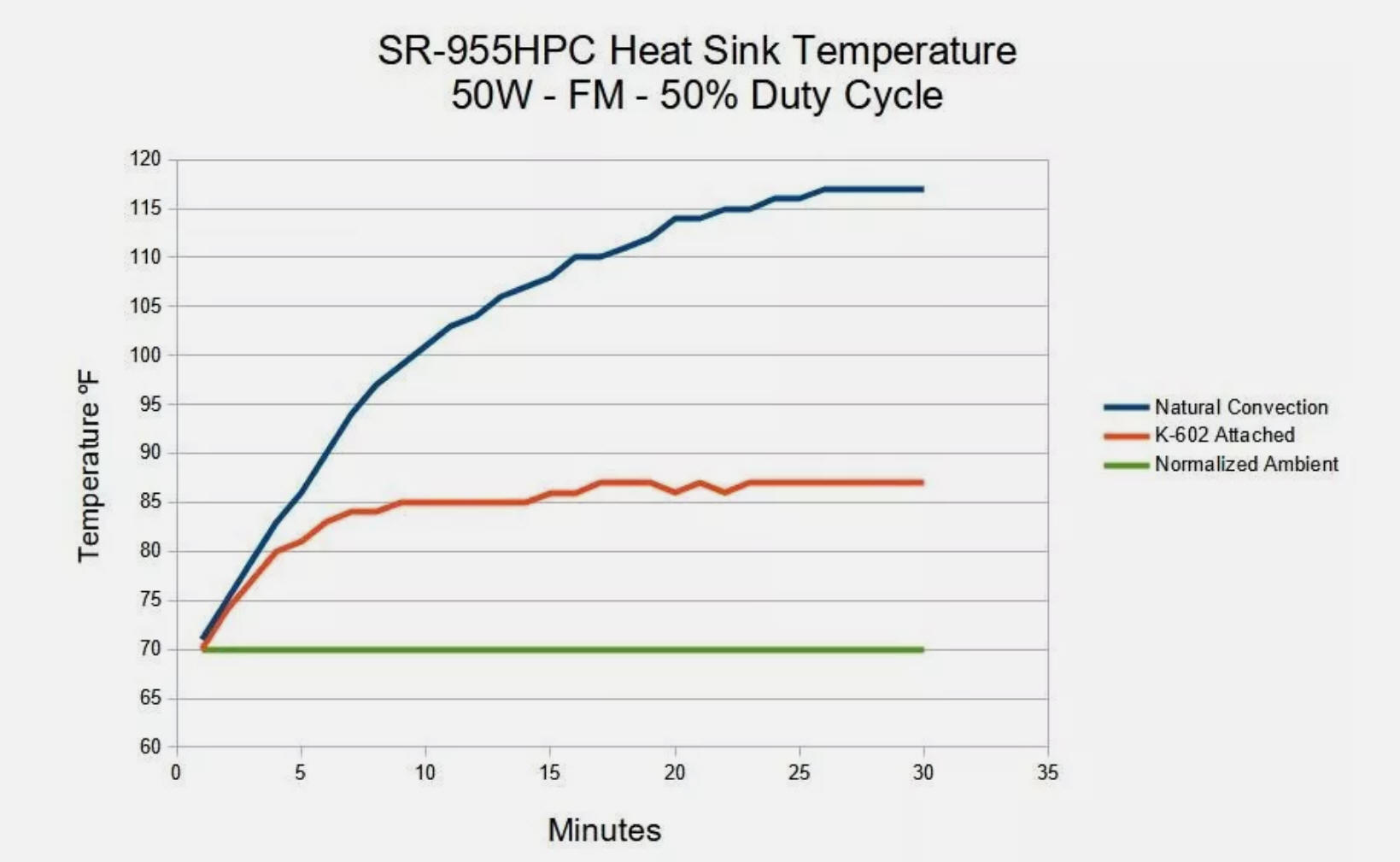

* Heatsink temperature test:
  • Stryker SR-955HPC (standard)
  • 14.1VDC
  • Test duration: 30 minutes
  • Heatsink temperature sampled at MOSFET finals
  • FM mode
  • 50W output
  • 50% duty cycle (10 sec on / 10 sec off)
  • Natural convection baseline test and K-602 attached and running




Options
 ...K-Link Bracket... $39
