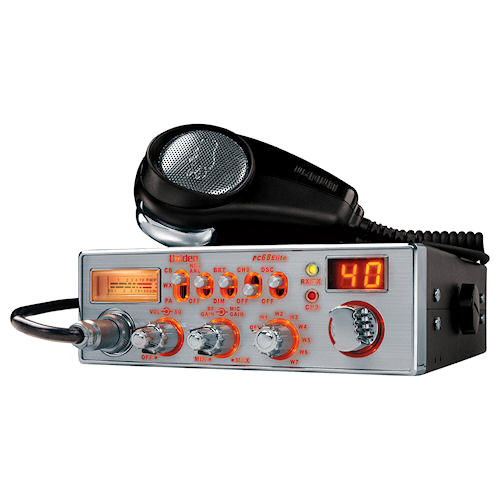

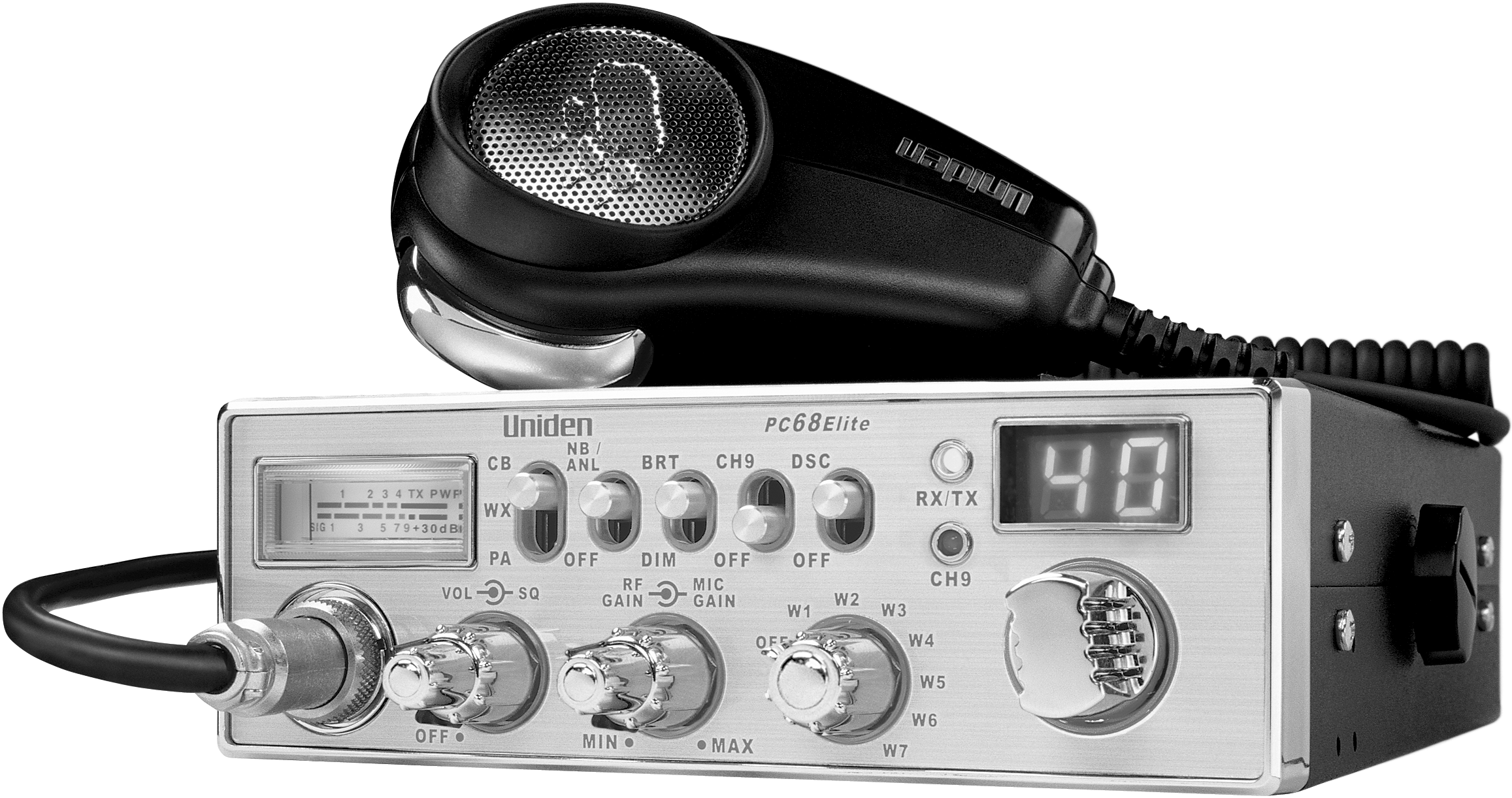

Mobile CB Radio



Download Manual


  • 40 Channel Operation
  • Dynamic Squelch Control
  • Enhanced Night Vision Display
  • Display Dimmer Control
  • RF Gain Control
  • Mic Gain Control
  • Ergonomic Pistol Grip Mic
  • Channel Indicator
  • Instant Channel 9
  • PA/CB Switch
  • Analog S/RF meter
  • 7 Weather Channels
  • Backlit Control Knobs







...Mobile CB radio...
Only 2 more..
Optional Accessories

 Tune-up. 25 W peak power (perform a tune-up to radio to increase power, audio and performance)  AM carrier 4 watts and 24-26 watts peak power. $29

 NEW MOSFET Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a higher power MOSFET) AM carrier 5 watts and 35-40 watts peak power. $59

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)

 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects TRB-X2/X3 Echo board)
Sound Byte link
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
Sound Byte link
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)

 Install Talkback
(wired inside the radio so that when you talk you can hear yourself)
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
Channel: 40
Frequency Range: 26.965 - 27.405 MHz
Weather Frequencies:  162.400 MHz (WX CH1)
162.425 MHz (WX CH2)
162.450 MHz (WX CH3)
162.475 MHz (WX CH4)
162.500 MHz (WX CH5)
162.525 MHz (WX CH6)
162.550 MHz (WX CH7)
Frequency Control: PLL Synthesizer
Antenna Impedance: 50 ohms
Power lnput: 13.8 VDC
Current Drain TX: AM Full Modulation 2.2 A max)
RX: Squelch 0.4 A (NOMINAL)
Operating Temperature: -30C to 50C (CB)
-10C to 50C (WX)
-10C to +50C (DSC on)
Accessories: DC Power Cord
Microphone Hanger
Mounting Bracket
Size (W x D x H): 160mm x 217mm x 55mm
Weight: 1.7 kg
Output Power: 4 watts
Emission Type: 6A3
Hum and Noise: Better than 40 dB
Frequency Tolerance:  0.002%
Modulation Percentage (Peak): 100%
Spurious Rejection: -70 dB
Output Impedance:  50 ohm, unbalanced
Sensitivity at 10 dB S+N/N: 0.5 μV
Sensitivity at 500 mW Audio Output: 0.5 μV
Squelch Threshold: 0.5 μV
Antenna Impedance: 50 ohms
Squelch Tight: 1000 μV
Signal Meter S-9: 100 μV
Audio Output Power (max.): 5 watts
Audio Output (10% Dist.): 4 watts
Selectivity @ 6 dB Down: 7 kHz
Adjacent Channel Rejection: 70 dB
Image Rejection: 90 dB
Internal Speaker Impedance: 16 ohms
External Speaker Impedance: 8 ohms
Output Power at 10% Distortion: 4 watts
Specifications shown are typical and subject to change without notice.

The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT sound great with a stock mic on it.
 If your CB is more than a tool for work, you NEED to upgrade your microphone.  My personal favorites are the Astatic 636L and RD104E.
