  Orders with radio work are delayed 3 - 14 days


Cobra 29 LTD CLASSIC

29 LX-FM

AM/FM

Download Manual

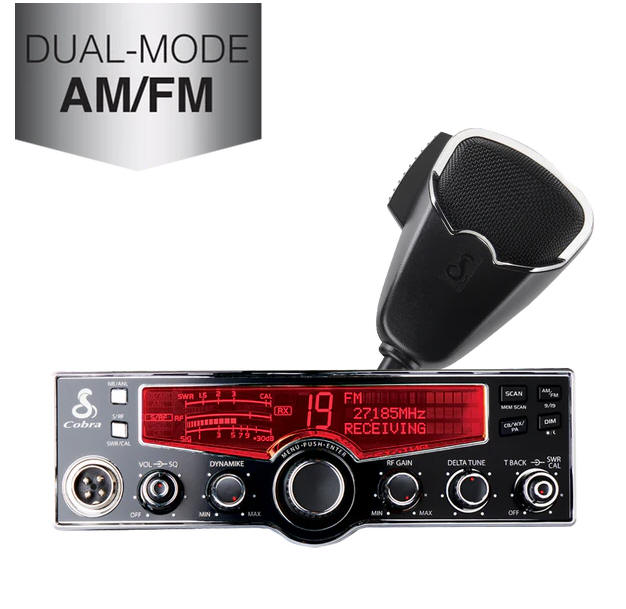

 The Cobra 29 LX features a selectable LCD Dot Matrix display to complement the interior of your vehicle. Now, thanks to Cobra's leadership to enable FM mode usage with CBs used in the United States and Canada, you can enjoy dual-mode AM/FM functionality in your CB.


 Features

  • 4-Color LCD Display
    Easy-to-read display with selectable colors displays in green, blue, amber, and red.
  • Dual-mode AM/FM
    Access AM and FM channels to communicate with more users and with better sound quality.
  • NOAAź Weather Gain access to updated NOAAź weather reports for inclement weather conditions.
  • Weather and Alert Scan The 29 LX will automatically scan for the strongest weather channel and alert tone available.
  • On-Screen Frequency Display Get a quick view of your operating CB and weather frequencies.
  • Radio Check Feature Get RF power, vehicle voltage, and antenna SWR status diagnostics.
  • 4-Color Display Easy-to-read screen with display options for green, blue, amber, and red.
  • NOAA Weather Alerts Built-in NOAA receiver with emergency alerts and inclement weather warnings.
  • Weather and Alert Scan Automatically scans for the strongest weather alert channels.
  • Frequency Display Displays your operating CB and Weather frequencies
  • Radio Check Diagnostics for RF power, vehicle voltage, and antenna SWR status.
  • Clock and Alarm Set an alert for any time.

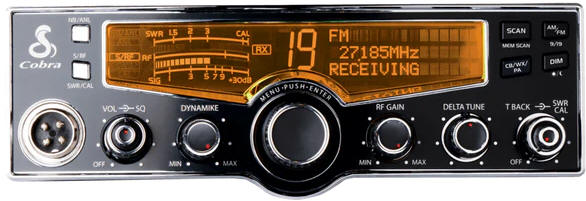

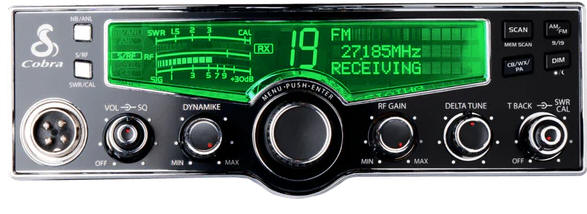

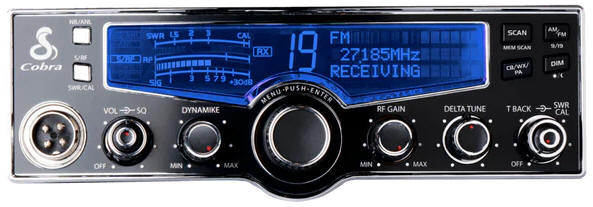

4-color Illuminated LCD Display Allows programming of Blue, Red, Amber or Green display.

Cobra 29LX AM/FM

Cobra 29LX AM/FM





The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.


SPECIFICATIONS
Unit Dimensions: 7-1/4 x 2-1/4 x 8-5/8

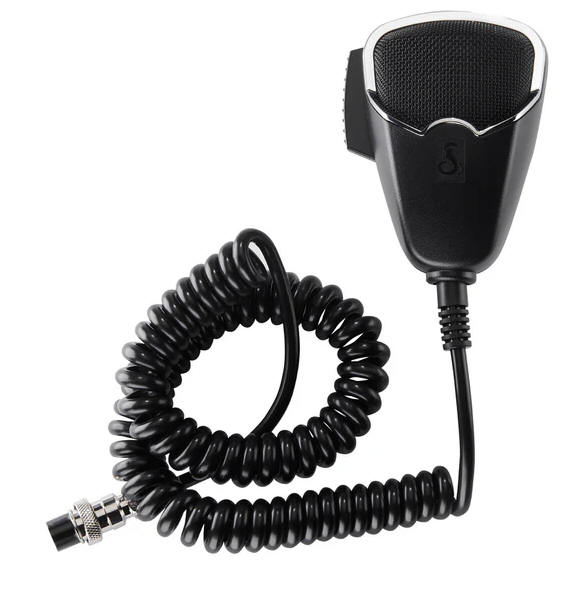

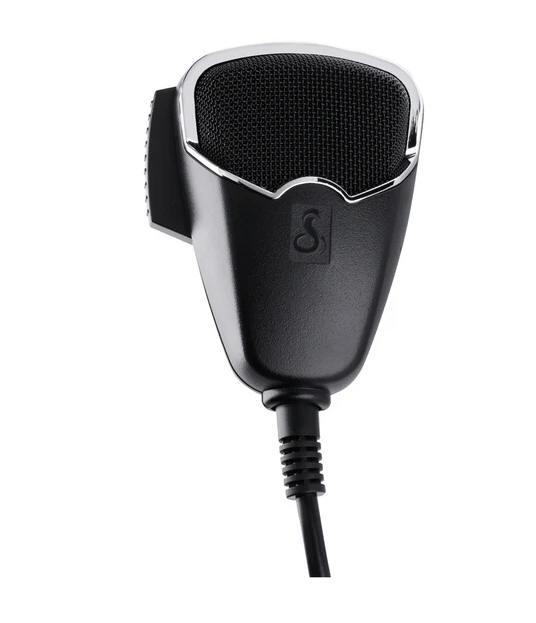

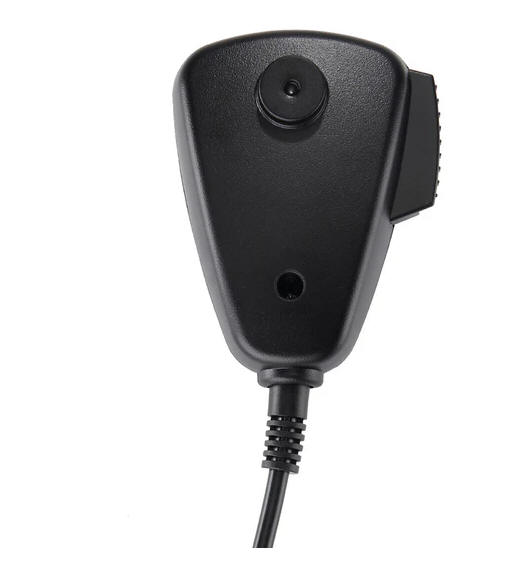

Microphone Type: 4 Pin Screw-On Dynamike
Frequency Control: Phase Lock Loop Synthesizer
RF Output Power: 4 Watts (Maximum FCC allowed)
CB Channels: 40 Channels (26.965 to 27.405 MHz)
Individual Carton
Dimension: (in) 		11-7/8 x 13-1/8 x 2-3/4



CB Microphone Wiring (Galaxy)

... Cobra 29 LX w /FM...

 $199.50





Optional Accessories
Tune-up. Perform a tune-up to radio to increase power, audio and performance.  $29
Switch Option
Dead Key
  Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
or
 $59
 		 VARIABLE POWER Install a power regulator / super modulator circuit and a new variable rear control. Perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 5 watts variable. $79
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 10,000uF Capacitor is also added for additional DC filtering. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
 10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade		 $59
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $34
RD104E  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $46
Astatic D104-M6B  Astatic D104M6B Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $59
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)		 $75
Sound Byte link
  Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65
Sound Byte link
  Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)		 $65
SOLD OUT
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a switch on the side to record 120 seconds and to play it back) $77
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
Chrome covers  Exchange the top and bottom covers to Chrome Covers. $32
Diamond Plate Covers Exchange the top and bottom covers to Diamond Plate Covers. $22
Klink Bracket K-Link Radio Supports makes for a great Table top base station $25


Tuned up values on these watt meters
Dosy Bird RMS *Bird
Peak
AM 5w 5w 5w
Peak 12w 6w 25w

Tuned up valueswith MOSFET Final
Dosy Bird RMS *Bird
Peak
AM 9w 9w 9w
Peak 27w 12w 51w
* Most informative and the one we use.
08/07/25








Cobra 2 Year Warrantee

For Operational or Technical Assistance with a Cobra Product call Cobra at 1-773-889-3087. You'll find answers to many of your questions in our Their FAQ's section. Cobra's automated help desk is available 24 hours a day 7 days a week. Live operators are available Monday through Friday 8 AM to 8 PM CST
