10 Meter Mobile Radios

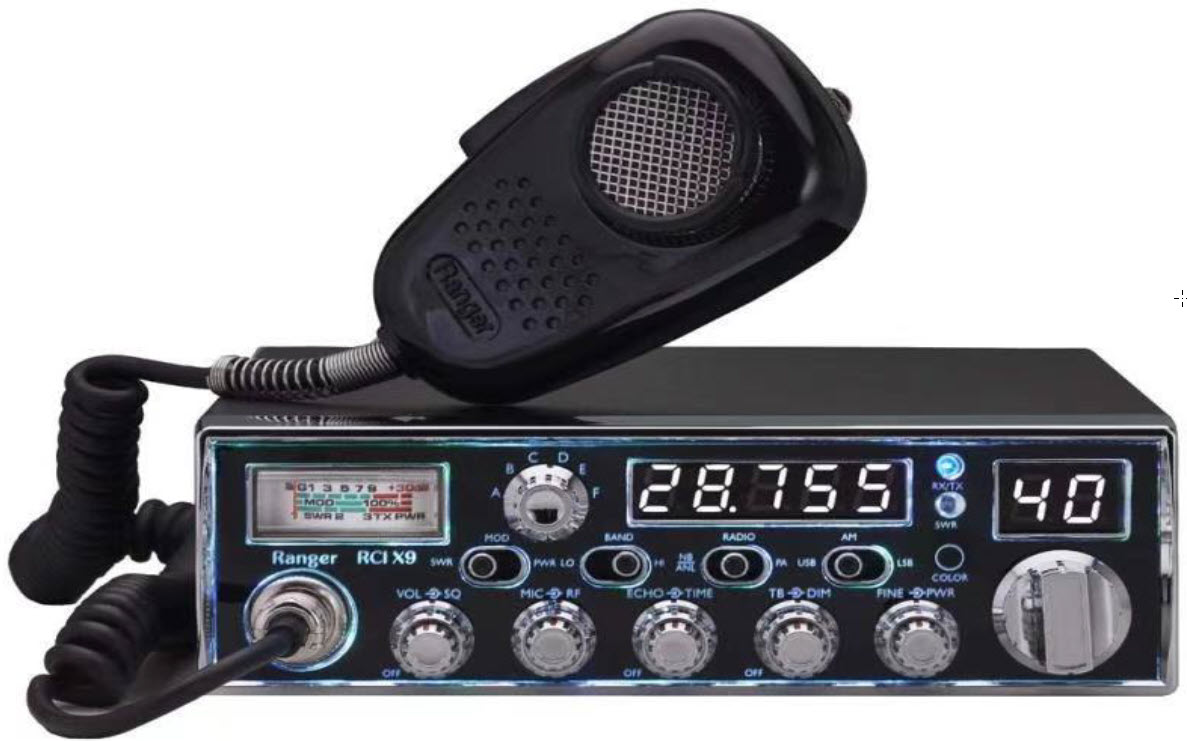

RCI-X9
Click image for larger view

Ranger
RCI-X9
AM/SSB 10M Mobile Radio

Download Owners Manual

Rangers new RCI-X9 has an AM peak and SSB PEP of about 120 Watts from a 10 Meter Amateur Radio with Smaller Case Size.



  • Compact 39 Size, A Radio That Will Fit Into Most Trucks
  • Hi Power 120 Watts PEP.
  • White LED Display Lights.
  • Touch Select Multi Color Backlite Bezel Plate.
  • Twin Fans Cooling.
  • Variable Echo Control & Switched Talk-back.
  • Variable power output control, adjusts your deadkey power.
  • Antenna Warning Light.
  • FREE  Ranger SRA-198 Noise Cancelling Mic.
  • Built in SWR Meter & Frequency counter.
  • Heavy Duty Circuits.
  • Top Stability Counter.

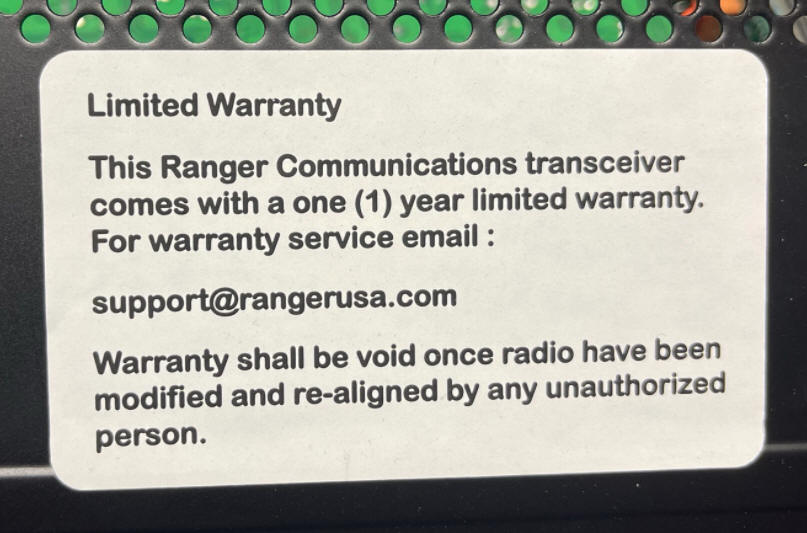

RCI-X9 Warranty



Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.

** Above is a standard statement we display for ALL ranger radios but this particular model RCI-X9 needs to be emphasized more. Here are some examples of cosmetic  imperfections we have seen already.  We have NOT seen any internal or electronic defects in these radios. They all have worked perfectly.

Ranger_RCI-X9_defectsRanger_RCI-X9_defects

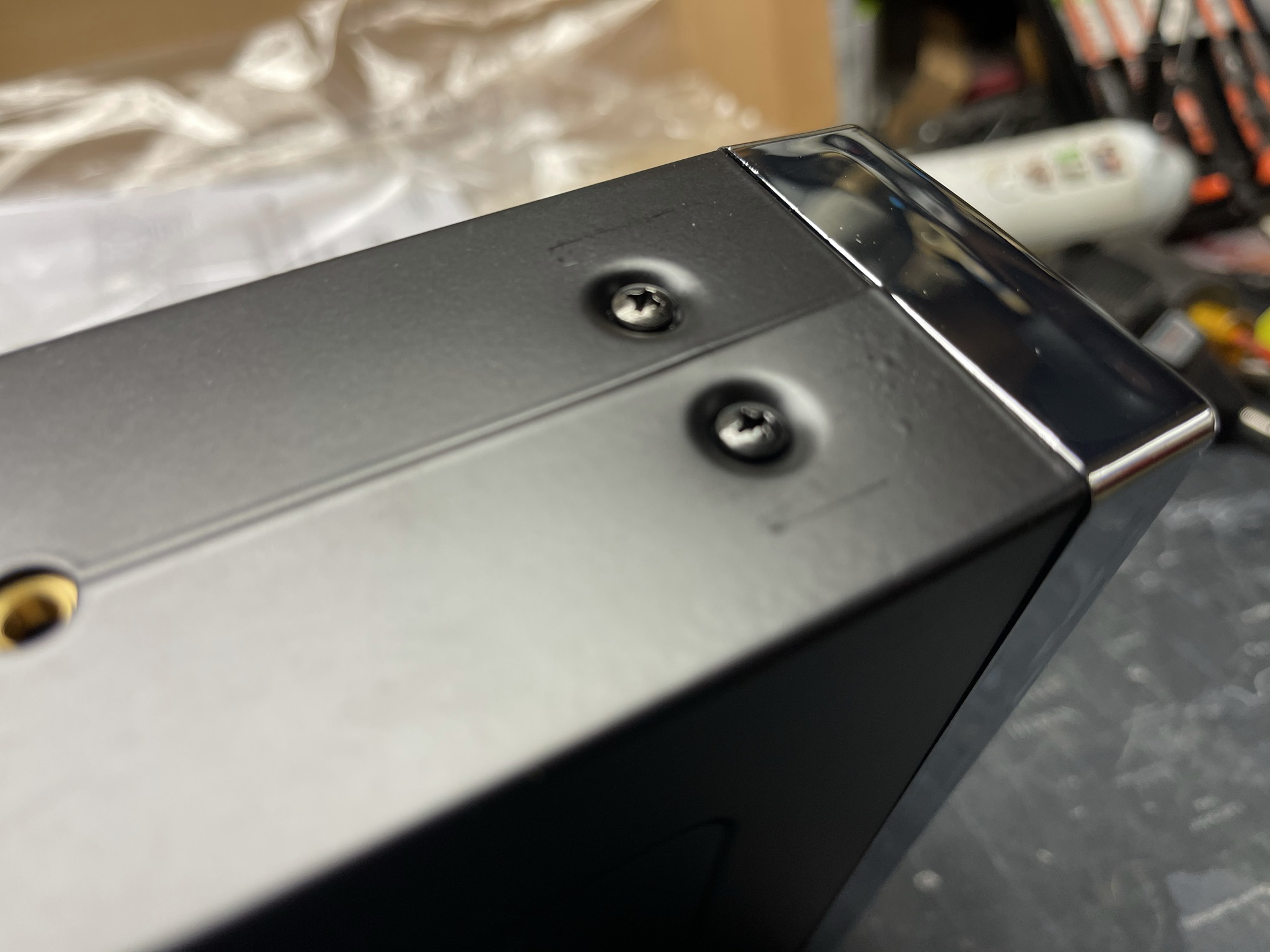

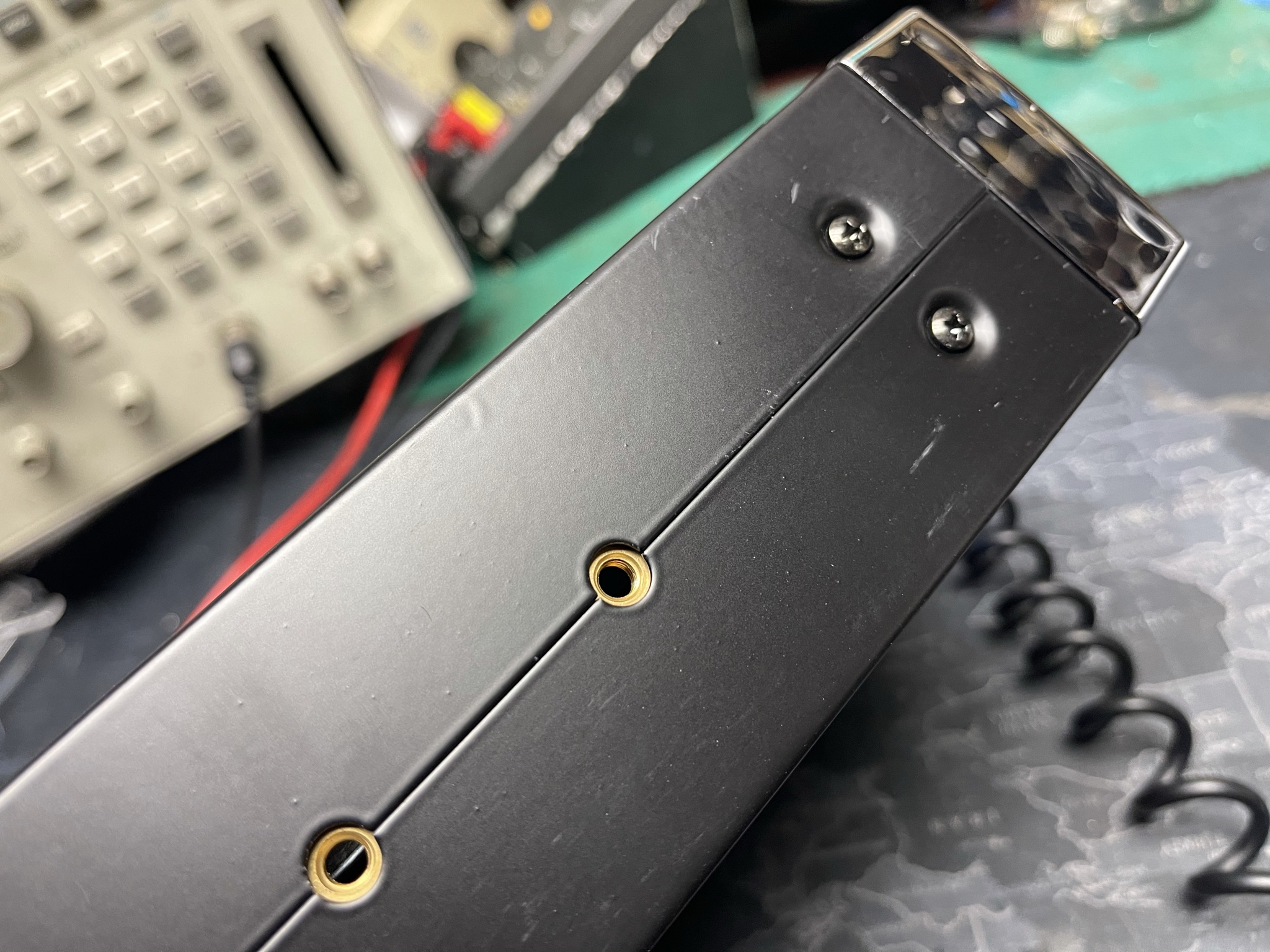

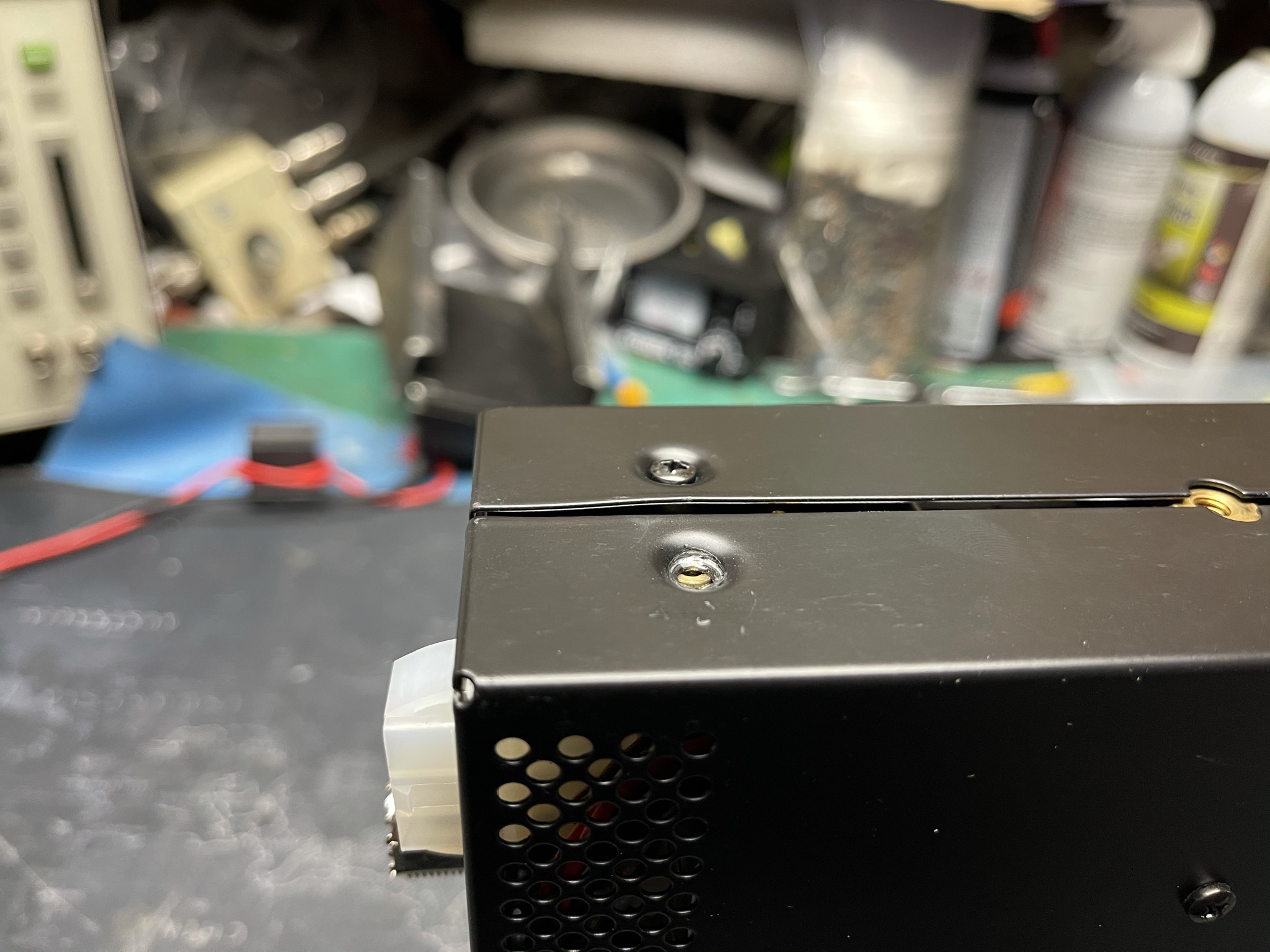

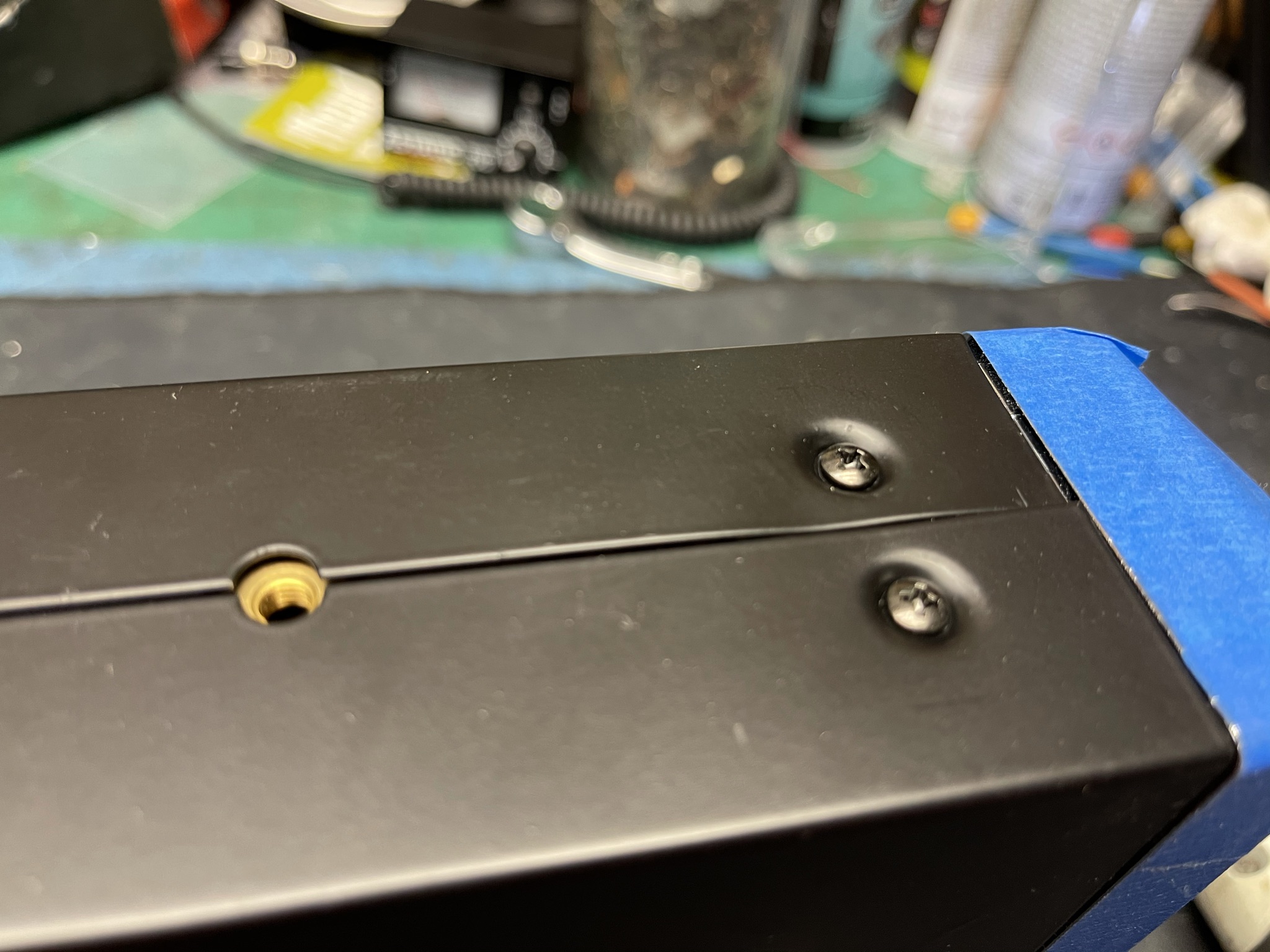

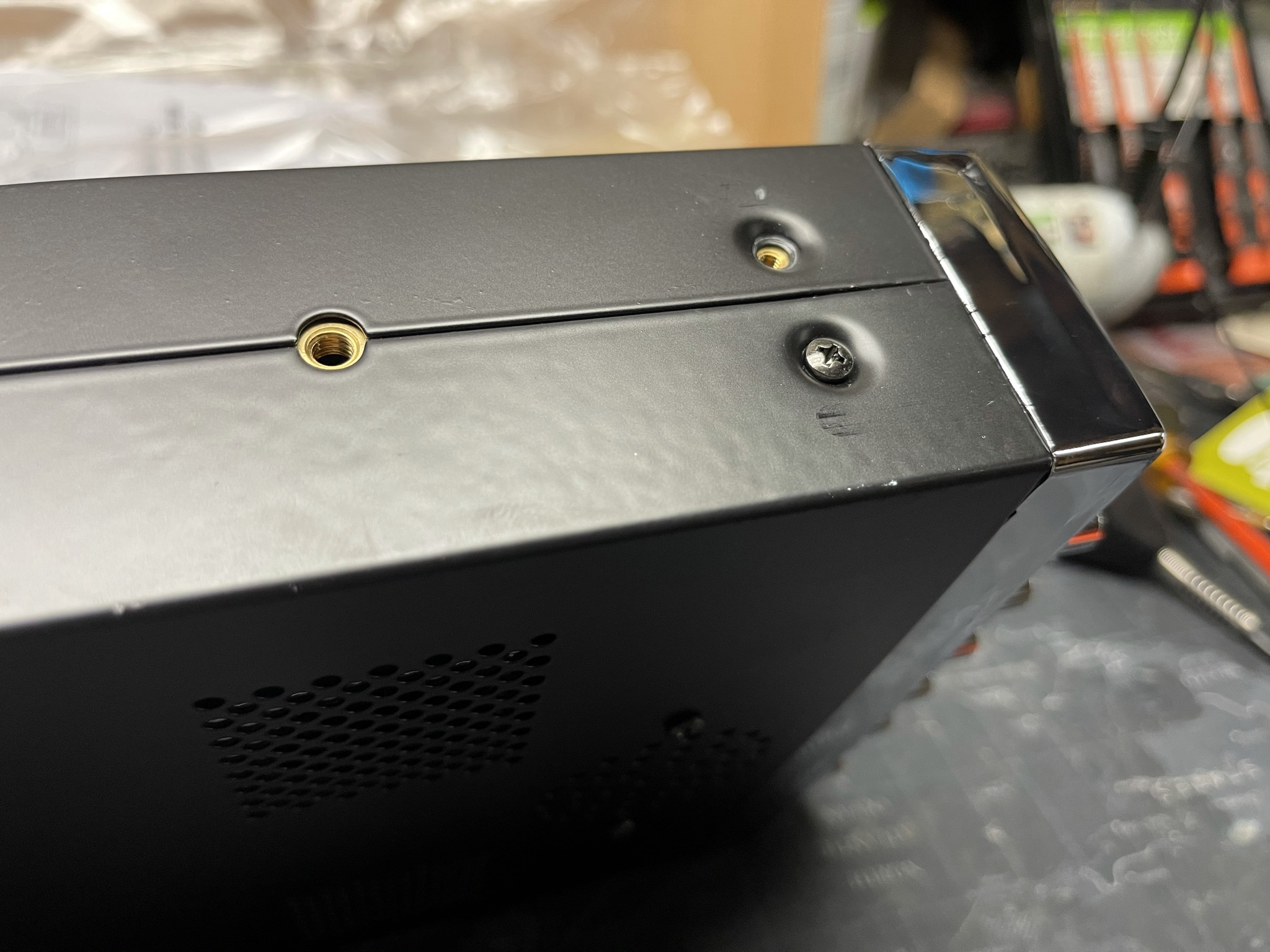

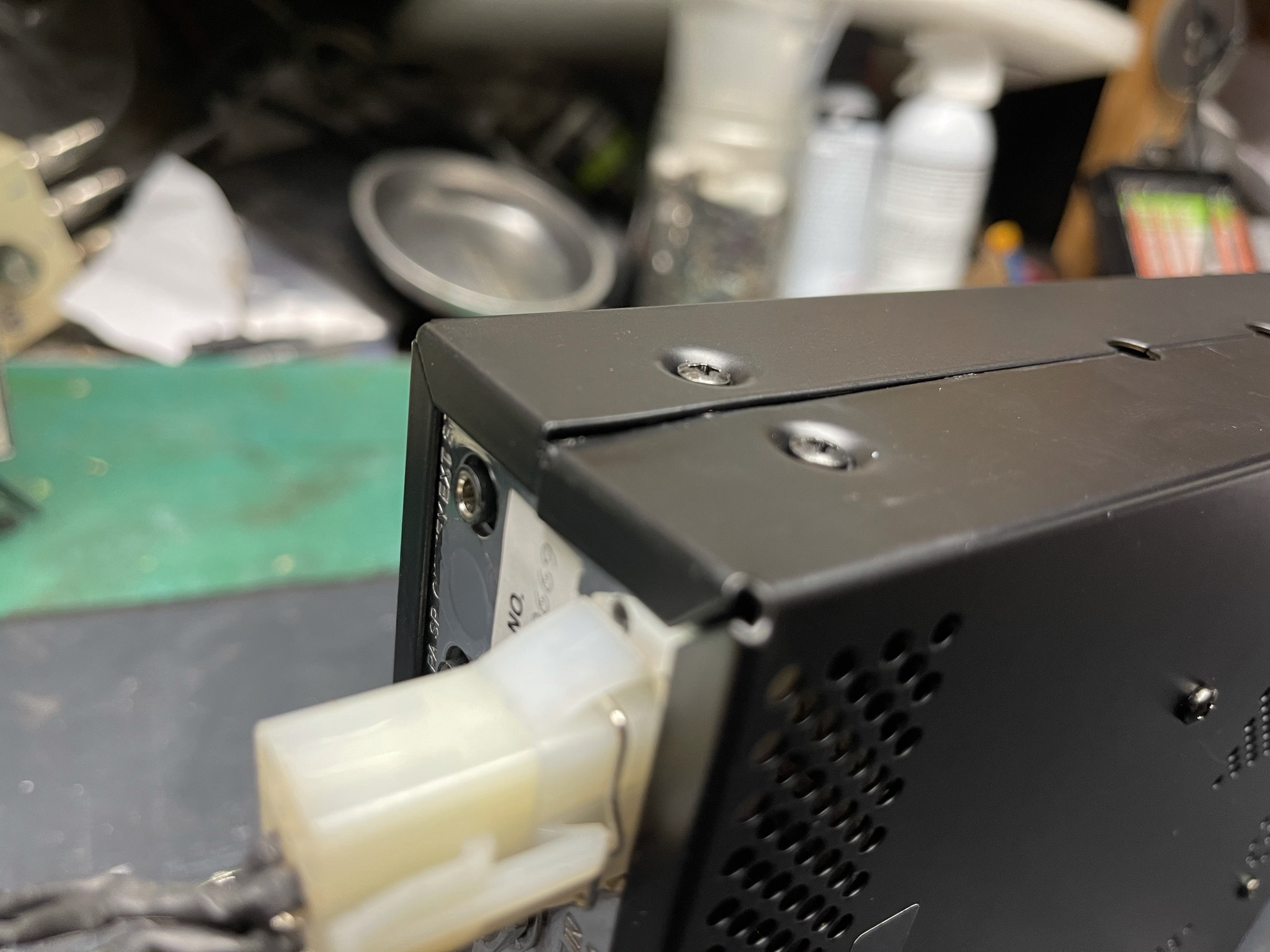

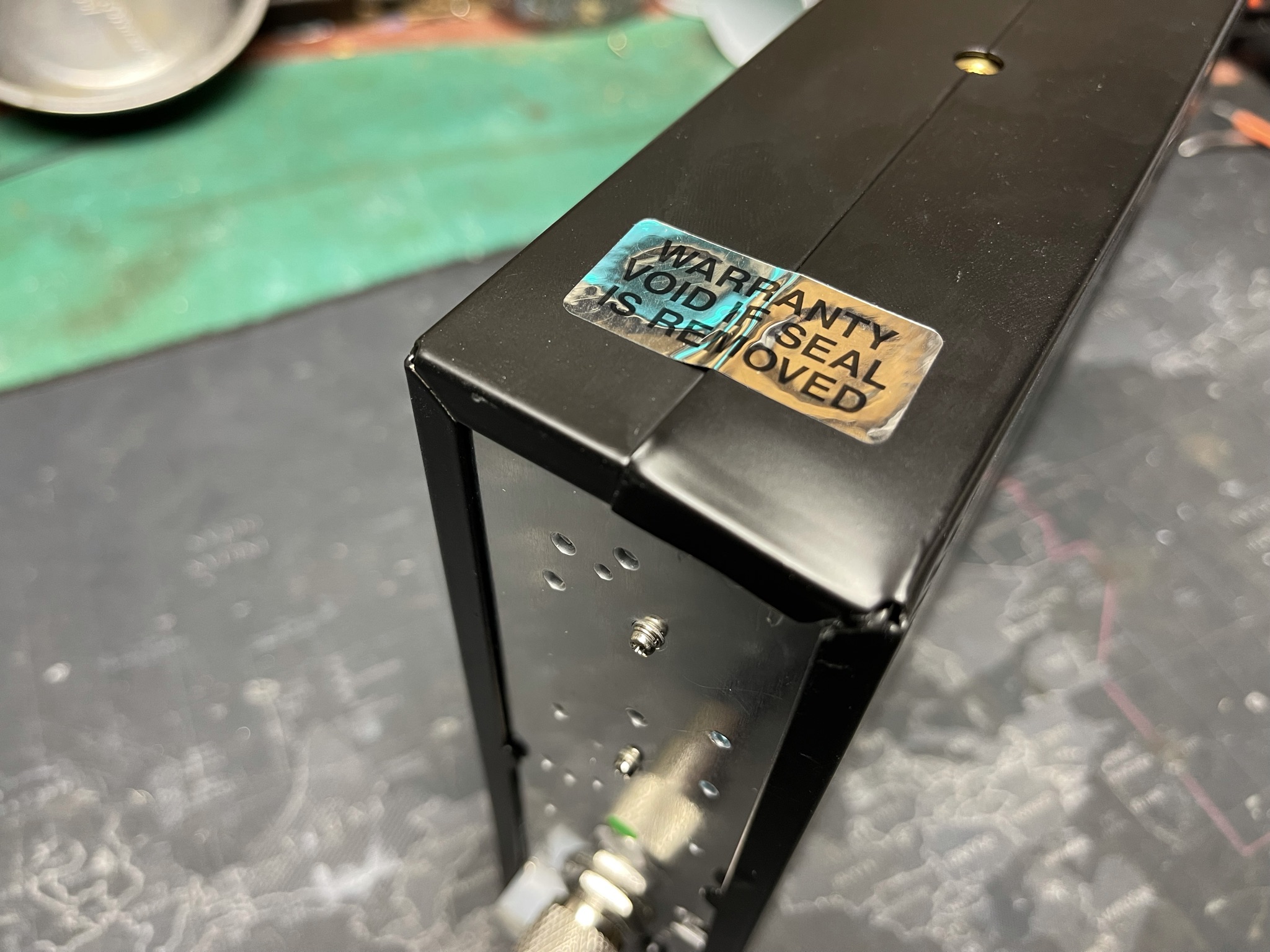

Many have covers that don't meet and look warped on sides
or have dented edges.

.Ranger RCI-X9 DefectsRanger RCI-X9 DefectsRanger RCI-X9 Defects

RCI-X9 defects

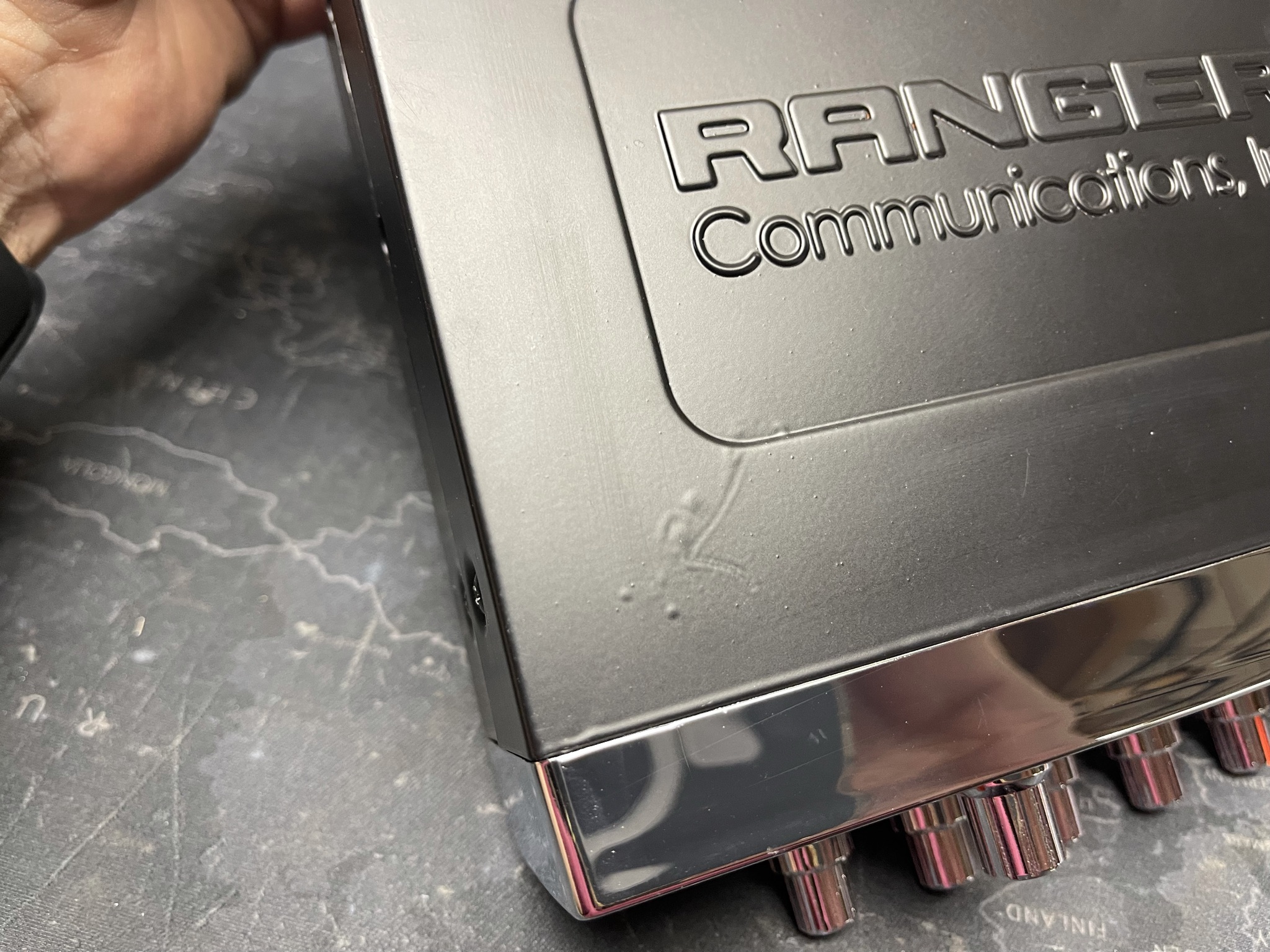

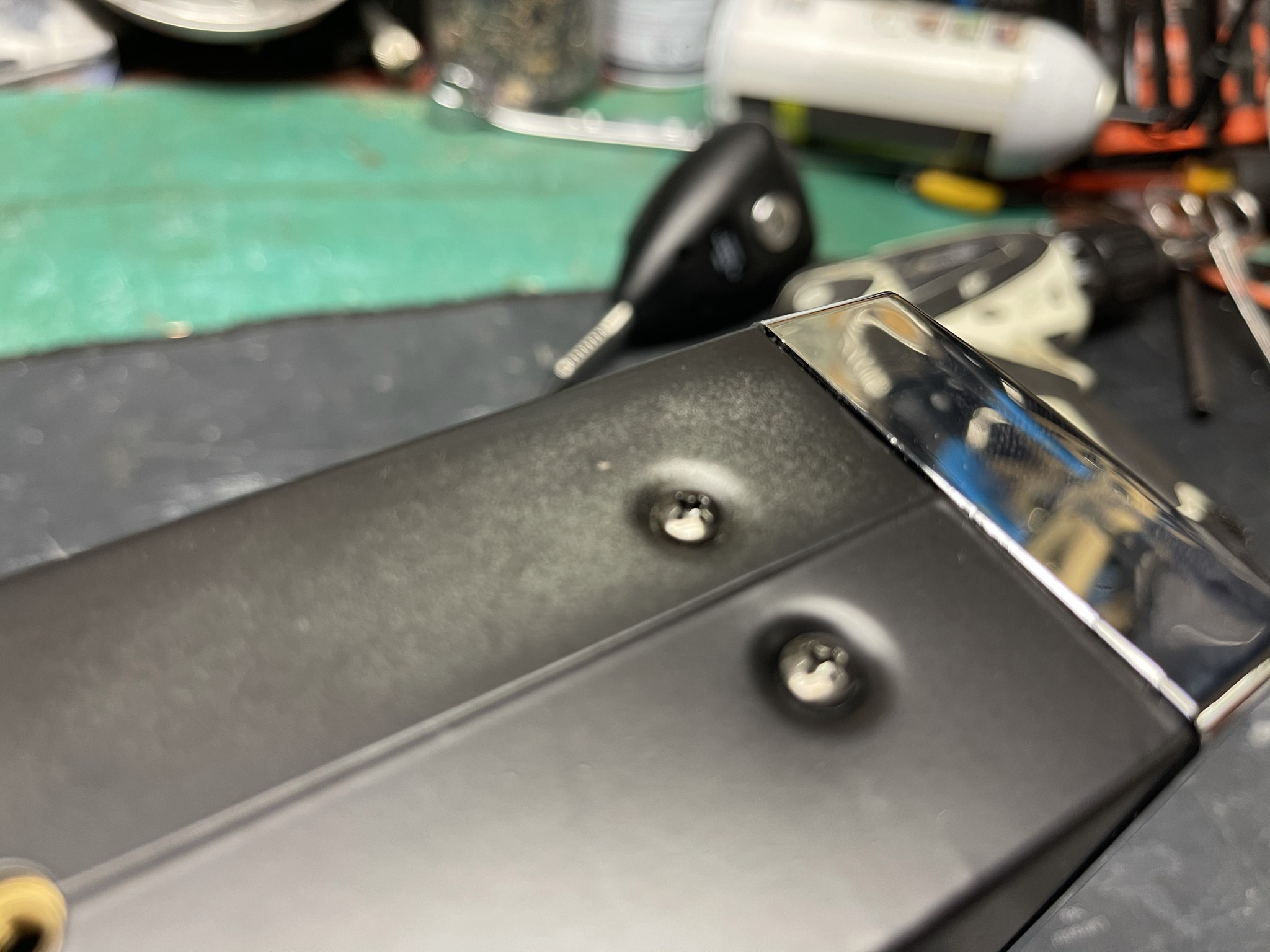

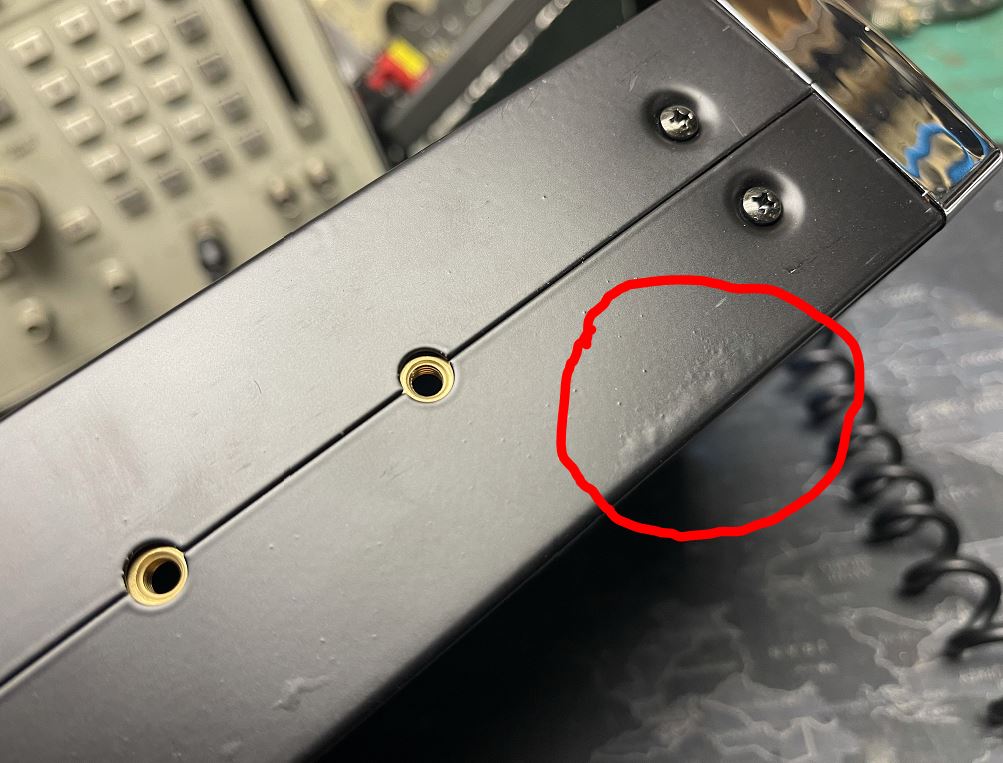

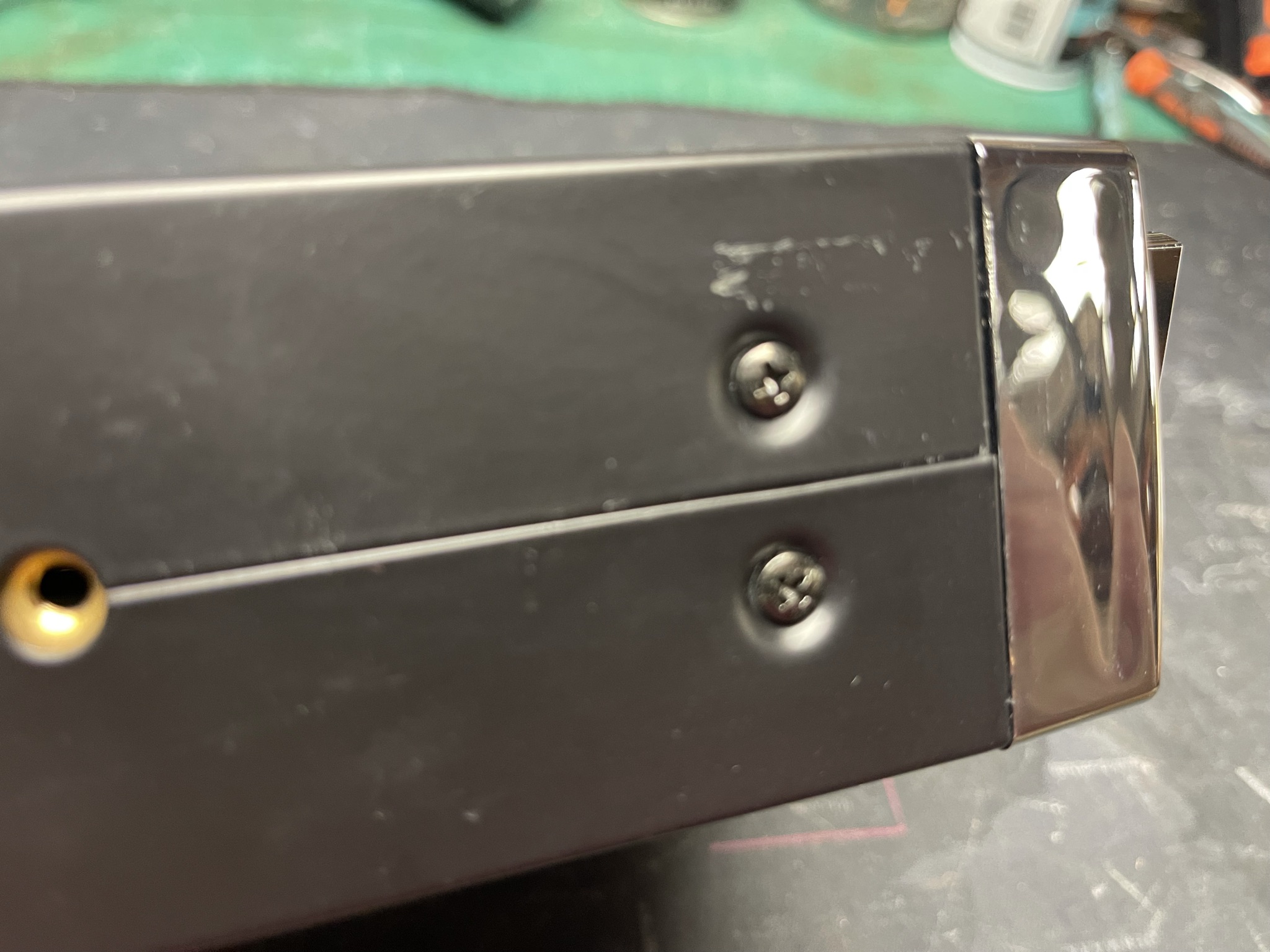

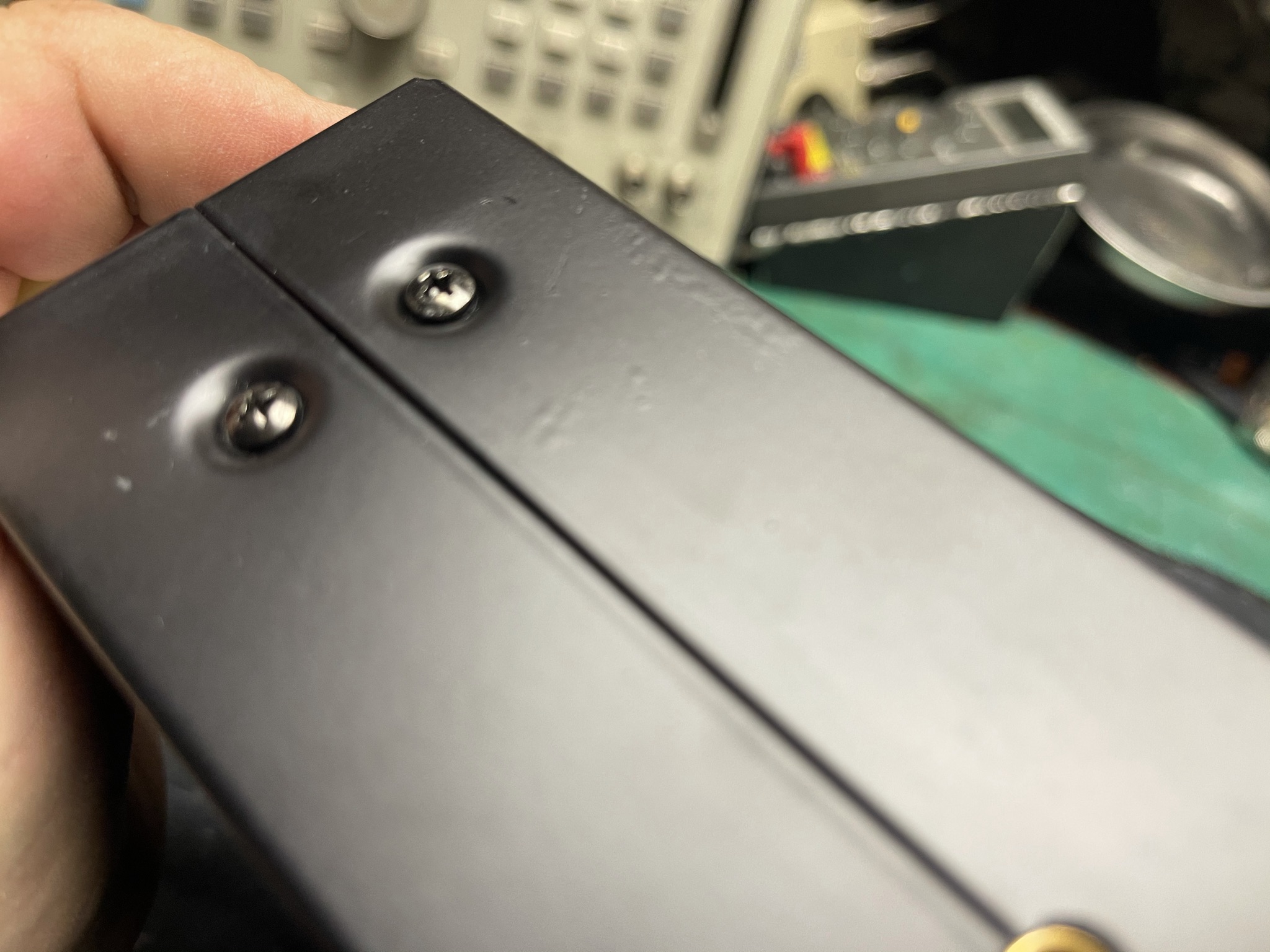

Paint can be faded, chipped or bubbled up. As shown.

Ranger RCI-X9 defectsRanger DefectsRanger Defect covers
Ranger Defect coversRCI-X9 DefectsRCI-X9 Defects



These photos are NOT from the same radio, each is a different unit. Every unit has something "non-perfect" about it as far as cosmetic appearance.











Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

For a much better Radio Try this Stryker SR-955HPC
SOLD OUT ... AM/SSB 10 Meter Mobile ...
** Cosmetically Imperfect covers, see note below...
$439.50

Optional Accessories
Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage)
AM 2~20w Carrier, 40~125w Peak, 100~120w SSB PEP.
$49
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25



 General
 Frequency Range

28.755 - 29.660 MHz

 Modes

AM/USB/LSB

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.01%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H) 7-3/8 (W) x 8-3/4 (D) x 2-1/4 (H) Inches
 Input Voltage

 13.8 V DC





 Transmitter



 RF Power Output

AM: 20W 120W PEAK
SSB 120W PEP

 Spurious Emission

Better than -50 dB

Carrier Suppression

 -50 dB

 Frequency Response

300 to 2500 Hz

 Microphone

Plug-In dynamic; with push-to-talk switch and coiled cord


Reciever
 Sensitivity

AM : 0.5 μV for 10dB Sinad SSB : 0.25μV for 12dB Sinad

 Squelch Sensitivity



 Image Rejection

- 50 dB

 Audio Output Power

2.5W @ 10% THD

 Audio Response

300 to 2500 Hz
