10 Meter Mobile Radios

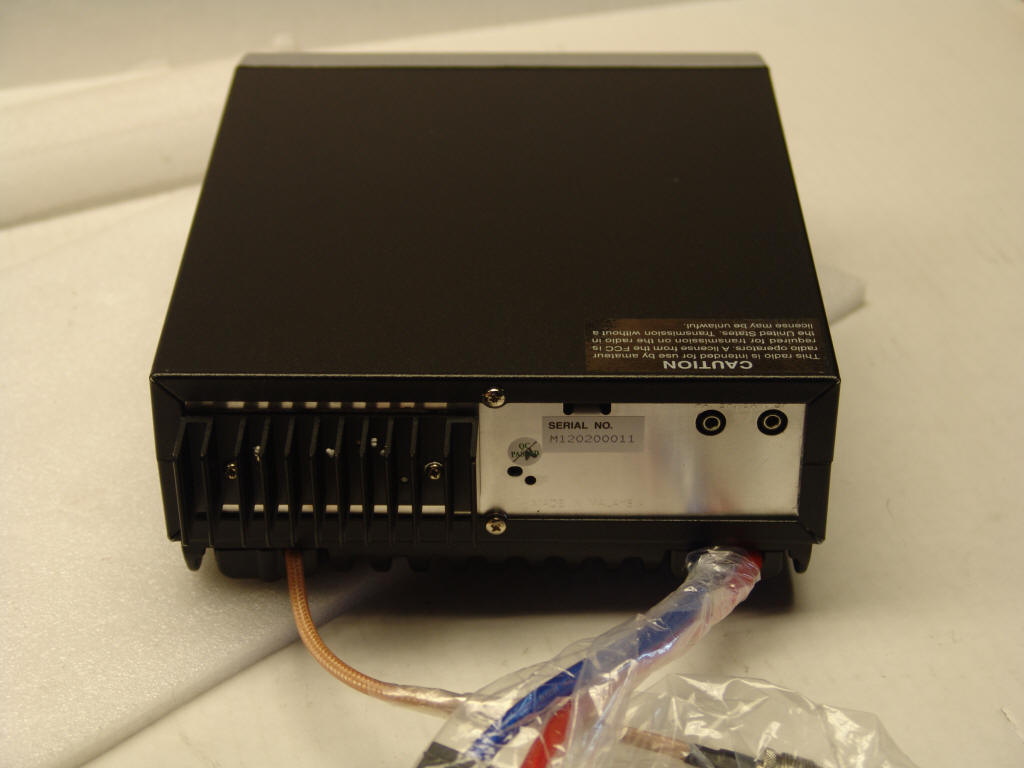

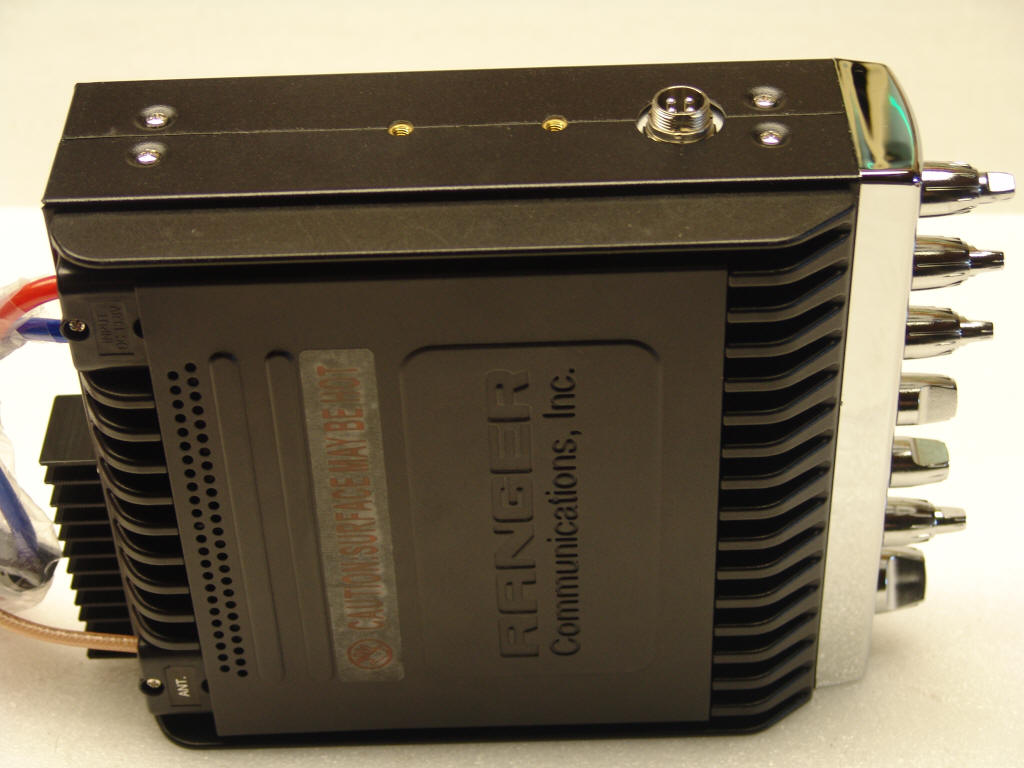

RCI-69FFB4
AM/FM/SSB 10M Mobile Radio

Download Manual*







NOTICE: ALL Ranger RCI-69FFB4 units now
come with Chinese 2SC-2879 transistors.
The Toshiba 2SC-2879 transistors are all gone.







Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

If this radio requires Warranty service;
 We ask that you please send directly to Ranger.
Fill out
this form first.


69FFB4's are here !!! $659.50
* The manual refers to a PA function that is in error.


Optional Accessories

 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39

 Install a switch in the back to turn off the 400w amp.
(wired behind the radio with a switch for on/off)
$13

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$43

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
Sound Byte link
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65
Sound Byte link
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18



 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-SSB-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 C to + 50 C

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 10-3/4"
x 2-7/8"

 Weight

12 Lbs.


 Transmitter



 RF Power Output
NOTICE: ALL Ranger RCI-69FFB4 units now
come with Chinese 2SC-2879 transistors.
The Toshiba 2SC-2879 transistors are all gone.

AM-FM: 200W RMS
AM: 350W PEAK
SSB PEP: 300W
After Tune-Up:
AM-FM: 100W RMS
AM: 425W PEAK
SSB PEP: 400W

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 V

 Squelch Sensitivity

0.5 V

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD



NOTICE: ALL Ranger RCI-69FFB4 units now
come with Chinese 2SC-2879 transistors.
The Toshiba 2SC-2879 transistors are all gone.



If you need Warranty service;
 We ask that you please send directly to Ranger.
Fill out
this form first.



















The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT sound great with a stock mic on it.
 If your CB is more than a tool for work, you NEED to upgrade your microphone.  My personal favorites are the Astatic 636L and RD104E.
