RCI-63FFC1
AM/FM 10M Mobile Radio



Download Manual

The Ranger RCI-63FFC1 amateur mobile transceiver offers exceptional value for Novice and Technician Class amateurs upgrading to Tech Plus and higher.

This entry-level unit is designed for easy, reliable and safe mobile operation. Available in high power versions, the RCI-63FFC1 transceiver provides excellent receiver sensitivity and multi-mode operation at a fraction of the cost of full band transceivers.

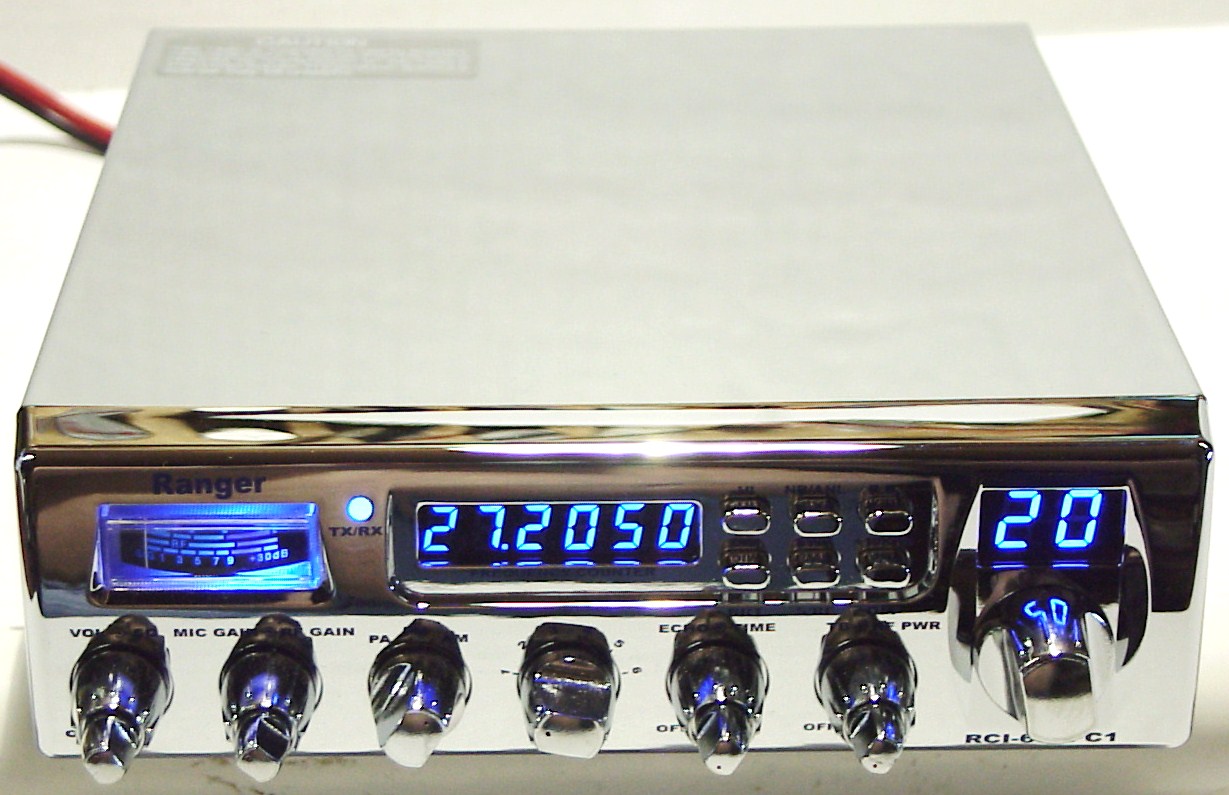

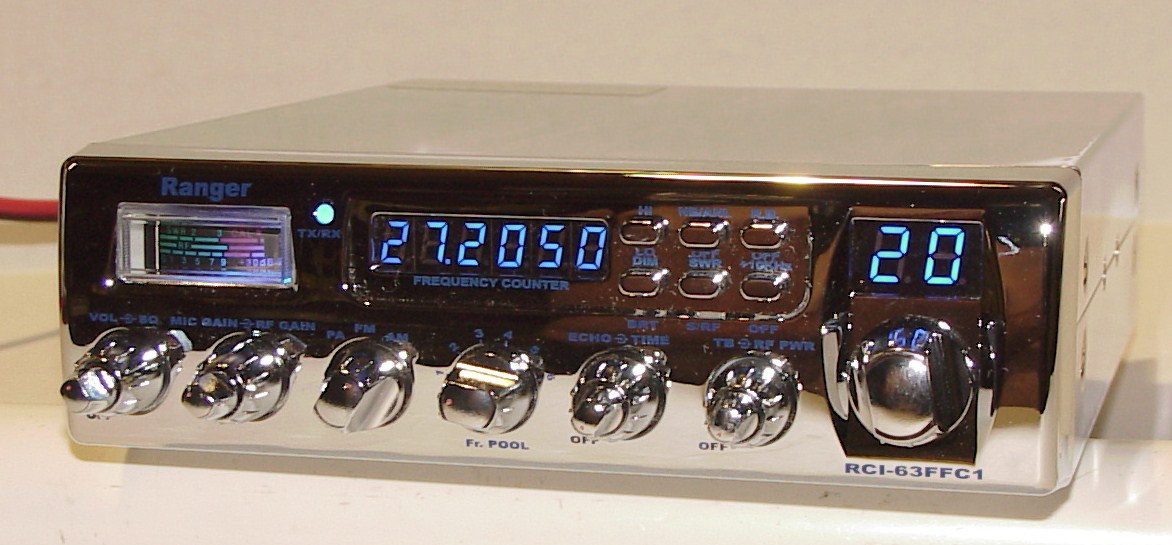

The easy-to-use frequency selection system covers the 10- meter amateur band in 6-band segments. Actual operating frequency is accurately displayed in the 6-digit LED display that’s easy to read even in bright sunlight.

A channel indicator speeds return to a popular or previously used frequency without interfering with the operator's attention to the road.

Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise reduction during mobile operation.

Front panel RF power output control and RF Gain controls enable the operator to set transmitter power and receiver sensitivity to match operating conditions.

Additional front panel controls assure optimum performance under widely varying conditions:

— A +10 kHz switch complements the frequency selection system by shifting the Tx and Rx frequencies up by a known amount for increased driving safety.

— Easy-to-read panel meter - three-functions indicating received signal strength, transmitter power output, and antenna SWR.

  • AM -FM and PA Modes
  • High Sensitivity Receiver Design
  • Echo &Talk/Back
  • Variable RF Power Output
  • Built-in Frequency Counter
  • Blue LED Display
  • Multifunction Panel Meter
  • Display Dimmer
  • Fully Chromed Housing and Face

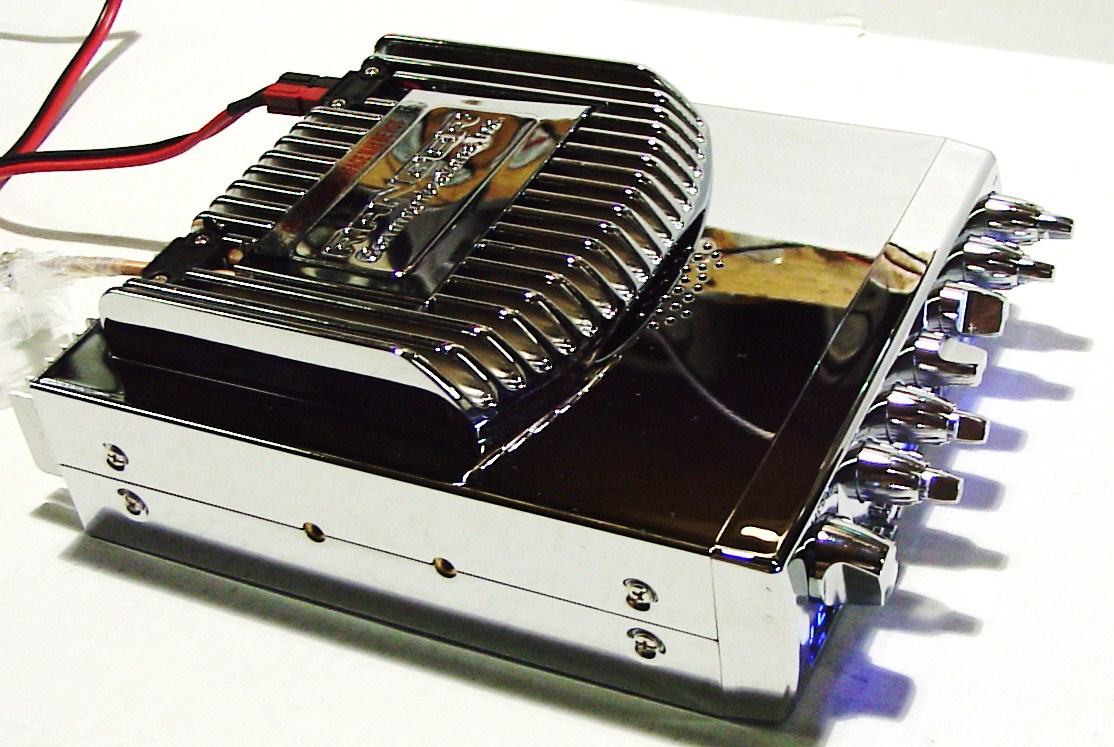

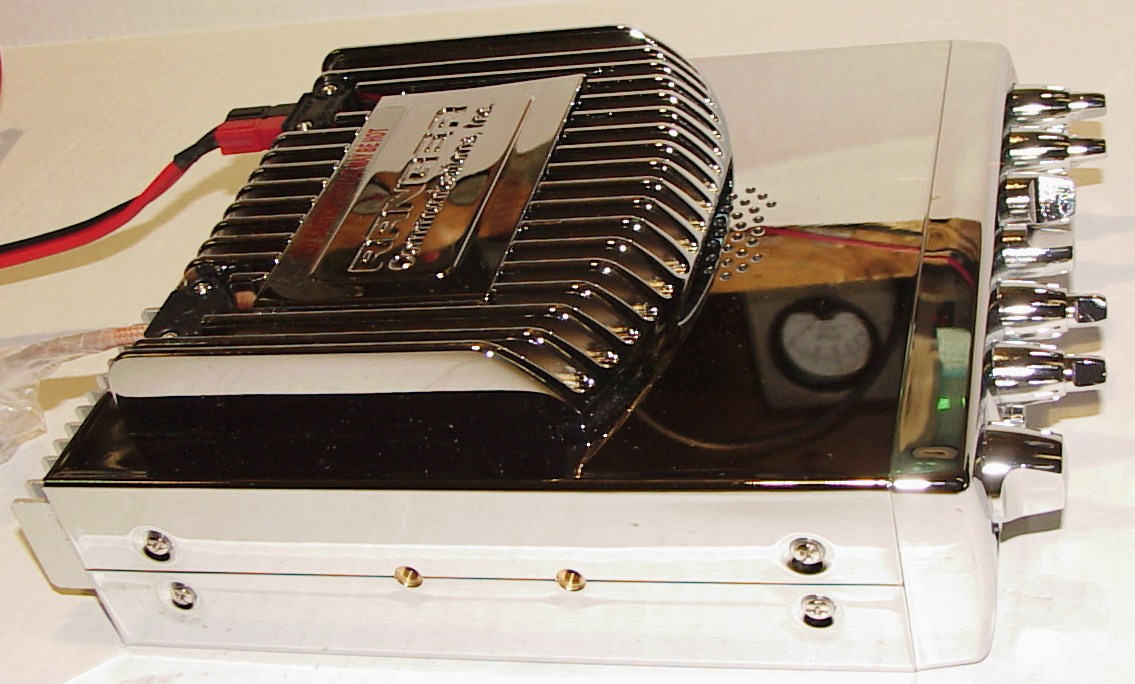

  • Heavy Duty Chrome Heat Sink

"Heavy Duty Chrome Heat Sink"









CB Microphone Wiring (Galaxy)





Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

    *** This Item has been Discontinued
         by the manufacturer and remains
         here for reference and support
         information only. ***
$299.50



Optional Accessories

 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $35

 Install a switch in the back to turn off the 100w amp.
(wired behind the radio with a switch for on/off)
$13

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$43
SOLD OUT
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
Sound Byte link

SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65
Sound Byte link

SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25











 General
 Frequency Range

28.245 - 29.655 MHz

 Modes

AM-FM-PA

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ºC to + 50 ºC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 Ohms

 Size (W x D x H)

7-7/8" x 11-7/8"
x 2-7/8"

 Weight

8 Lbs.


 Transmitter



 RF Power Output

AM-FM: 40W RMS
AM: 90W PEAK
(After Tune-up)
AM-FM: 30W RMS
AM: 125W PEAK

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic


 Receiver



 AM Sensitivity for 10 dB SINAD

0.5 µV

 Squelch Sensitivity

0.5 µV

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD



... This radio is
No longer available ...
