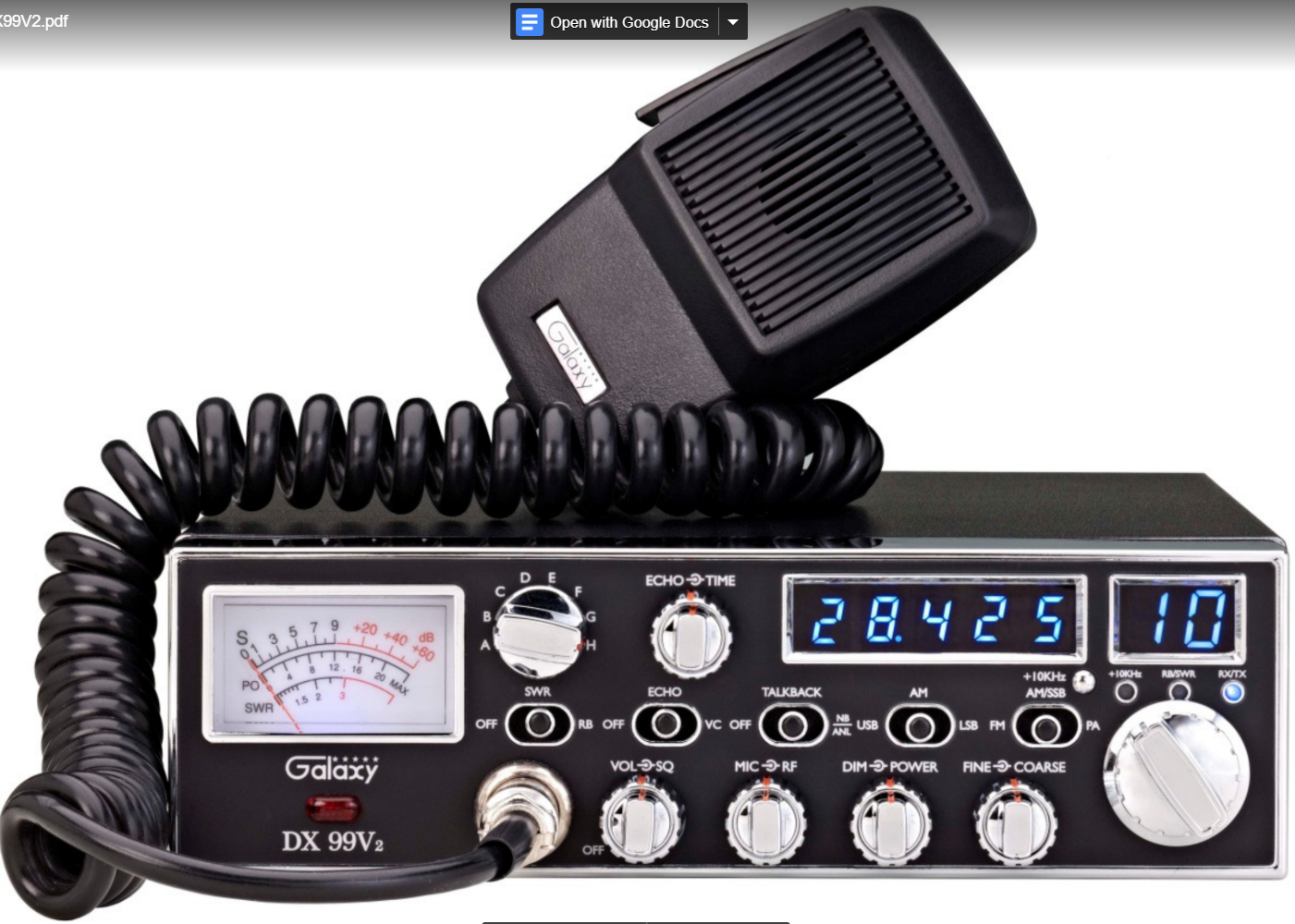

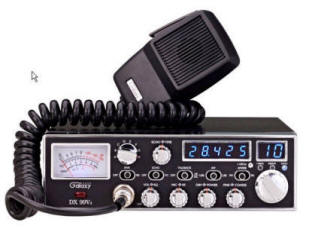

DX 99V2
AM / FM / SSB  10 Meter Radio

Download Manual

The New DX-99V2 is the only Galaxy All mode mobile radio that operates on AM-FM-LSB-USB. n

With dual Mosfet finals (instead of 4 or 8 finals) the DX-99V2 draws less than 10 amps and can be hooked up anywhere standard radios are wired. No special heavy wire.



Features

  • High Performance main circuit board (same as the one used in the DX98VHP). Provides increased frequency stability and accuracy for SSB, as well as increased sensitivity and selectivity on receive.

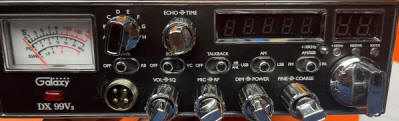

  • Streamlined Chassis with front mic jack
  • Blue LED channel and frequency digits
  • SWR circuit (preset calibrate "auto")
  • Talkback Circuit with on/off
  • RED Modulation lamp
  • Echo and Voice changer (no Robot)
  • Alert lights:
    • High SWR
    • +10KC on
    • Roger Beep on
    • TX and RX
  • Extended 3 year limited Warranty.




 ...Galaxy 99V2... $299.50


Optional Accessories
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $39
 RFX-85 Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a completely new final section consisting of even higher power MOSFETs)
AM carrier 15 watts and 75+ watts peak power.
$119

 RFX-150 Final. (perform a tune-up to radio to increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 160+ watts peak power.

$185
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$28

 Install an MD-1 Top Gun Modulator.
(wired behind the radio with optional switch for on/off)
$38
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) $25

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$41
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$43

  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $69

  Install a Record/Playback Module 60 seconds (wired inside the radio with  two pushbuttons on the side to record 60 seconds and to play it back) $79

Sound Byte link address

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link address

 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

FULL 10 Meter band coverage for higher class operators. The new frequency range will be 26.065 to 29.655

$50






GENERAL
Frequency Range 28.315 ~ 28.755 MHz
Emission AM/FM/USB/LSB
Frequency Control Phase-Lock-Loop (PLL) Synthesizer
Frequency Stability 0.001%
Temperature Range -30C to +50C
Antenna Impedance 50 Ohms
Antenna Connectors Standard SO-239 type
Input Voltage 13.8V DC
Size 2-3/8 (H) x 7-7/8 (W) x 9-1/4 (D).
Weight (radio, not shipping) 5 lbs.
Shipping Carton 10 Lbs in a Box 20" x 1"4 x 11"
TRANSMITTER
RF Power Output AM/FM: 2W~10W
USB/LSB: 40W PEP
Current Drain AM: 4 Amps SSB: 7 Amps
Spurious Emission -50 dB
Unwanted Sideband -50 dB
Audio Distortion 10%
Frequency Response 300 to 2500Hz
Microphone Dynamic
Clarifier Range Coarse: 6.0KHz,
Fine: 1.0KHz
RECEIVER
Sensitivity for 10 dB (S+N)/N AM: < 0.5 V;
USB/LSB: < 0.25 V
Squelch Sensitivity < 0.5 uV
Selectivity -55 dB
Image Rejection -50 dB
AGC Figure of Merit 100 mV for 10dB Change in Audio Output
Audio Power Output  2.5W @ 10% Distortion
Audio Response 300 to 2500 Hz



The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT sound great with a stock mic on it.
 If your CB is more than a tool for work, you NEED to upgrade your microphone.  My personal favorites are the Astatic 636L and RD104E.
