10 Meter Base Station

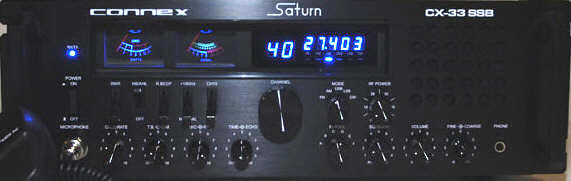

CX 33 SSB
Saturn
AM/FM/SSB 10 Meter Base Radio

  Download Manual

Features

  • 6 Bands of 40 channels each.
  • New main PC board for increased stability and sensitivity
  • Five digit BLUE frequency counter
  • Two large, easy-to-read BLUE lit Meters
  • Meter Scales for Signal, Power Output, SWR and Modulation (AM only)
  • Variable dimmer control
  • Red/Green Transmit/Receive LED
  • Noise Filter circuit for increased signal-to-noise ratio
  • "On-Demand" switch-able Talk Back circuit with Volume Control
  • +/-10 KHz Switch
  • Noise Blanker/Automatic Noise Limiter
  • Roger Beep
  • Mic Gain
  • Receive Gain
  • SSB in addition to AM/FM/CW/PA
    • PA includes Echo
  • 25 watts Maximum Output Power - SSB
  • 10 watts Maximum Output Power - AM
  • Variable Output Power
  • 1.5 KHz Clarifier for Receive only
  • 5.0 KHz Clarifier for Receive and Transmit
  • Dimensions:
    • 19"W x 6-1/2"H x 14"D (with handles)
    • 16-1/2"W x 6-1/2"H x 13-1/4"D (handles removed)
  • radio Weight -- 21 pounds
  • Shipping weight and size (double boxed and oversized)
    • 32 pounds.
    • Inner Box with Foam inserts (22"x18"x11")
    • inner box wrapped in 3 layers of bubble wrap and
      placed inside a larger Outer Box. (25 x 22 x 20
      ), this
      provides for shock protection that foam inserts do not have.
  • UPS Ground with $500 insurance and Signature required.



VIDEOS

Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)
Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca








...Connex CX-33SSB Saturn... $499.50



Optional Accessories

 Tune-up and frequency conversion. (Some radios have internal factory options for expanded frequency coverage / more channels) $35

 RFX-150 Final. (perform a tune-up to radio to increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 160+ watts peak power.
You must supply the necessary external DC power supply.

$165

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$28

 Install an MD-1 Top Gun Modulator.
(wired behind the radio with optional switch for on/off)
$38

 Astatic 878DM Amplified DESK microphone.
(wired for this radio with a four pin plug and a battery installed)
$66

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$55

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)
$57

  Install a Record/Playback Module 18 seconds
(wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back)
$69

  Install a Record/Playback Module 60 seconds
(wired inside the radio with  two pushbuttons on the side to record 60 seconds and to play it back)
$79

Sound Byte link address

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

Color

 Install bright LED lighting behind the 2 meters. I like white the best and is the only color I guarantee you will see bright and nice. Other colors are pretty but not as easy to read the meter if your getting up there in age. :o) $19

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18

Due to high shipping prices on this unit and the high probability that it will go to the manufacturer anyway, we ask that you send this unit -
directly to Connex  for Warranty service.
