             10 Meter Mobile Radio

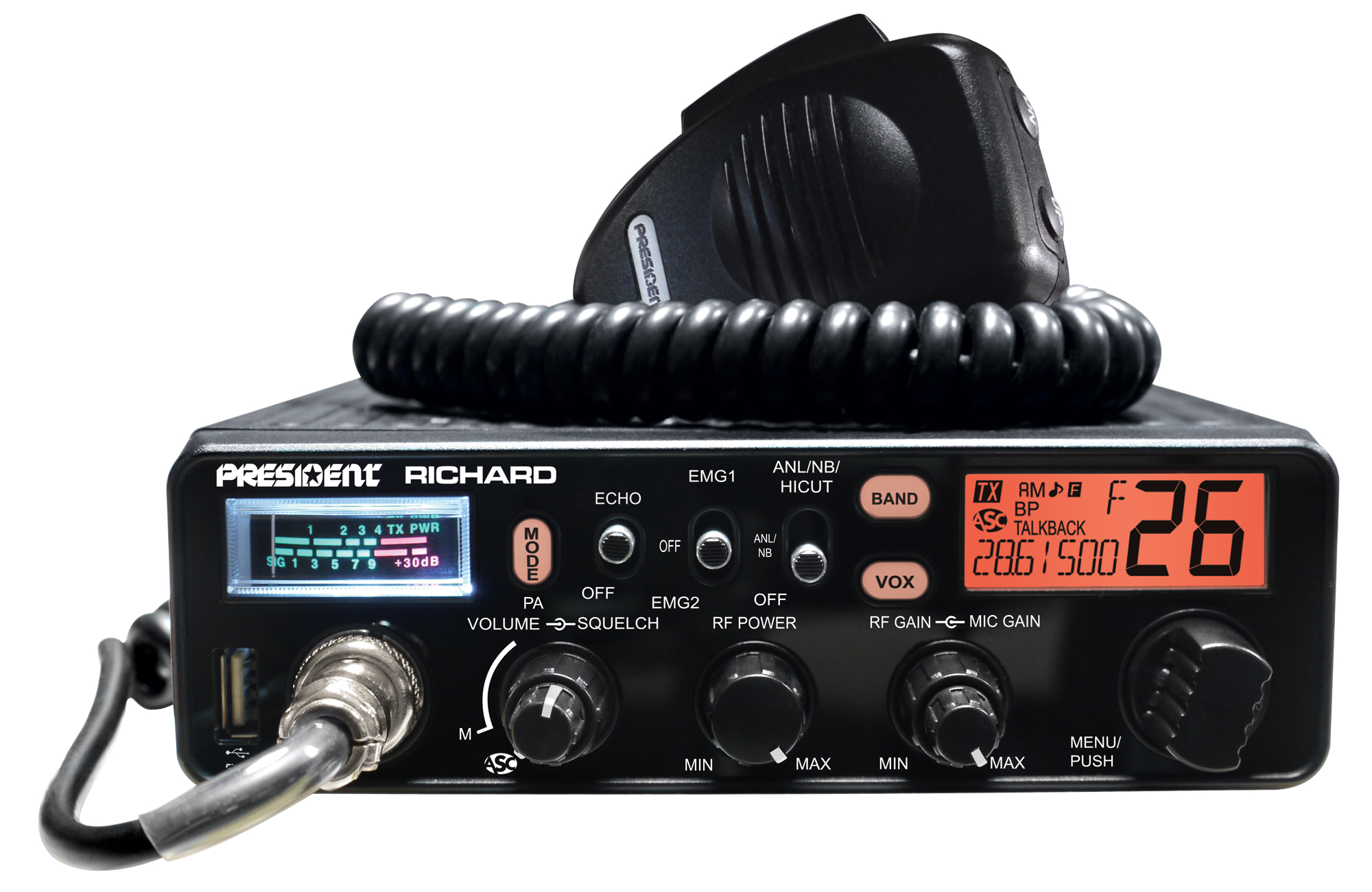

President Richard


Richard
AM/FM  10 Meter Radio

 ..



    Download Manual

The President's brand is synonymous with advanced technology, quality, and prestige. As such, Consumers who purchase a Presidnt Antenna together with a President radio, will get a full five-year warranty on the purchase of their new radio. Warranty Duration 2 + 3 years.

Features

- Rotary switch channel selector
- Volume adjustment and ON/OFF
- SIZE : 6,69 x 6.29 x 2.05 inches
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- ANL filter, NB and HI-CUT
- RF Gain / Mike gain
- Scan
- Talkback
- MENU function key
- Beep Function
- Roger Beep
- Mode switch AM/FM
- Tone
- VFO Mode (continuous scanning of 28.000 Mhz to 29.700 Mhz)
- Vox
- Echo
- Mic type electret / dynamic
- SWR (Power Reading /SWR)
- Preset emergency (EMG 1&2)
- TOT (Time Out Timer)
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A




                Mic wiring diagram::

Back light color:

Richard-1_Orange-rE.jpg Richard-1_Orange-rE.jpg Richard-1_Orange-rE.jpg
Richard-1_Orange-rE.jpg Richard-1_Orange-rE.jpg Richard-1_Orange-rE.jpg














Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

... Richard.... $199.50

Optional Accessories

 Frequency conversion and simple tune-up . Frequency Chart

$15
DIGIMIKE Noise Cancelling Microphone Pre-wired with high quality 6 pin Plug. $47
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 6 pin plug)
$61
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 6 pin plug)
$44
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
  Install a Record/Playback Module 30 seconds (wired inside the radio with  two pushbuttons on the side to record 30 seconds and to play it back) $77

Sound Byte link address


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 30 second sound byte you want)
$65

Sound Byte link address


SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 2 ~ 12 2 ~ 12 2 ~ 12
FM 4 ~ 40 4 ~ 40 4 ~ 40
PEAK AM 4 ~ 28 2.5 ~ 12.5 8 ~ 45+
* The most informative meter and the one we use.

.................General..................

Modulation modes: AM / FM
Frequency ranges: continuous scanning of 28.000 Mhz to 29.700 Mhz
Antenna impedance: 50 ohms
Power supply: 13.8 V
Size (W x D x H): 6,69 x 6.29 x 2.05 inches / 170 x 160 x 52 mm DIN Size
Weight:   2.43 lbs / 1.1 kg
.............Transmission............
 Frequency allowance: +/- 300 Hz
Output Power: 13 W AM (~50 W PEP) / 40 W FM
Transmission interference: inferior to 4 nW (- 54 dBm)
Audio response: 300 Hz to 3 KHz
Emitted power in the adj. channel: inferior to 20 μW
Microphone sensitivity: 3 mV
Drain: 7 A (with modulation)
Modulated signal distortion: 1.8 %
...............Reception................
Maxi. sensitivity at 20 dB sinad: 0,7 μV -110 dBm (AM) / 0,35 μV -116 dBm (FM)
Frequency response : 300 Hz to 3 kHz in AM/FM
Adjacent channel selectivity: 60 dB
Squelch sensitivity: mini 0.2 μV - 120 dBm / maxi 1 mV - 47 dBm
Frequency:  image rejection rate : 60 dB
Intermediate frequency rej. rate: 70 dB
