UNIDEN

Mobile CB Radio

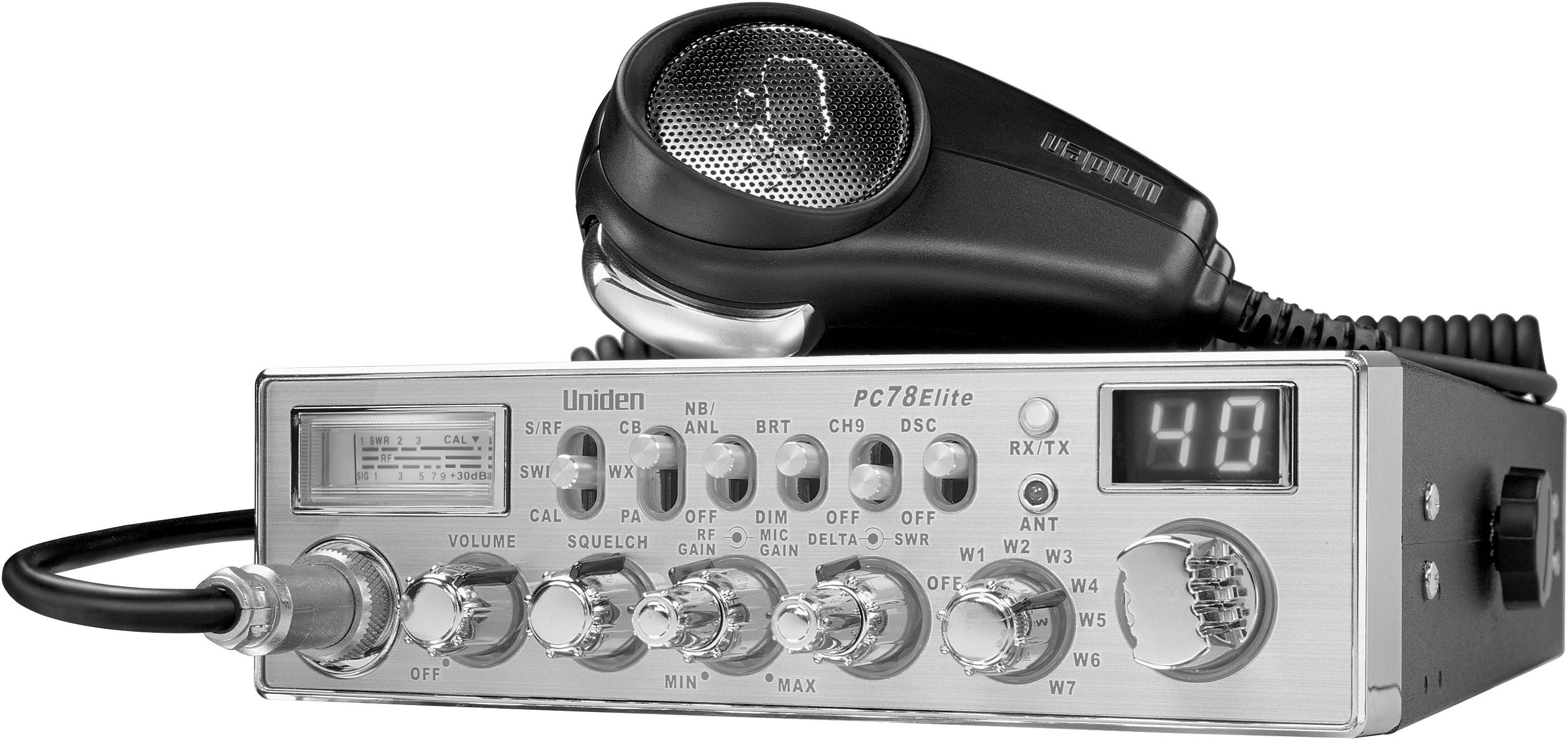

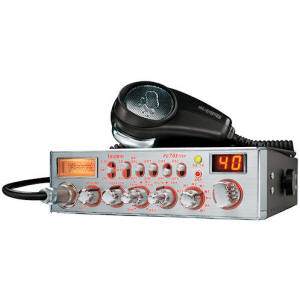

PC78 ELITE

...Discontinued...

Download Manual



  • 40 Channel Operation
  • Dynamic Squelch Control
  • Delta Tune
  • Enhanced Night Vision Display
  • Display Dimmer Control
  • RF Gain Control
  • Mic Gain Control
  • Ergonomic Pistol Grip Mic
  • Channel Indicator
  • Instant Channel 9
  • PA/CB Switch
  • Analog S/RF/SWR Meter
  • 7 Weather Channels
  • Backlit Control Knobs






 CB Microphone Wiring (Galaxy)











...Mobile CB radio...
...Discontinued...
$119.50

Optional Accessories

 Tune-up. 23 W peak power (perform a tune-up to radio to increase power, audio and performance)  AM carrier 5 watts and 25 watts peak power. $29

 Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)
$26

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects)
$29
or
$75
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46

Sound Byte link



SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65

 Install Talkback
(wired inside the radio so that when you talk you can hear yourself)
$10
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25




GENERAL
Channel: 40
Frequency Range: 26.965 - 27.405 MHz
Weather Frequencies:  162.400 MHz (WX CH1)
162.425 MHz (WX CH2)
162.450 MHz (WX CH3)
162.475 MHz (WX CH4)
162.500 MHz (WX CH5)
162.525 MHz (WX CH6)
162.550 MHz (WX CH7)
Frequency Control: PLL Synthesizer
Antenna Impedance: 50 ohms
Power lnput: 13.8 VDC
Current Drain TX: AM Full Modulation 2.2 A max)
RX: Squelch 0.4 A (NOMINAL)
Operating Temperature: -30°C to 50°C (CB)
-10°C to 50°C (WX)
-10°C to +50°C (DSC on)
Accessories: DC Power Cord
Microphone
Microphone Hanger
Mounting Bracket
Size (W x D x H): 160mm x 217mm x 55mm
(6.3"x8.49"x2.17")
Weight: 1.7 kg
TRANSMITTER
Output Power: 4 watts
Emission Type: 6A3
Hum and Noise: Better than 40 dB
Frequency Tolerance:  ±0.002%
Modulation Percentage (Peak): 100%
Spurious Rejection: -70 dB
Output Impedance:  50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB S+N/N: 0.5 μV
Sensitivity at 500 mW Audio Output: 0.5 μV
Squelch Threshold: 0.5 μV
Antenna Impedance: 50 ohms
Squelch Tight: 1000 μV
Signal Meter S-9: 100 μV
Audio Output Power (max.): 5 watts
Audio Output (10% Dist.): 4 watts
Selectivity @ 6 dB Down: 7 kHz
Adjacent Channel Rejection: 70 dB
Image Rejection: 90 dB
Internal Speaker Impedance: 16 ohms
External Speaker Impedance: 8 ohms
PUBLIC ADDRESS
Output Power at 10% Distortion: 4 watts
Specifications shown are typical and subject to change without notice.
