Mobile CB Radio


    Click image for larger view

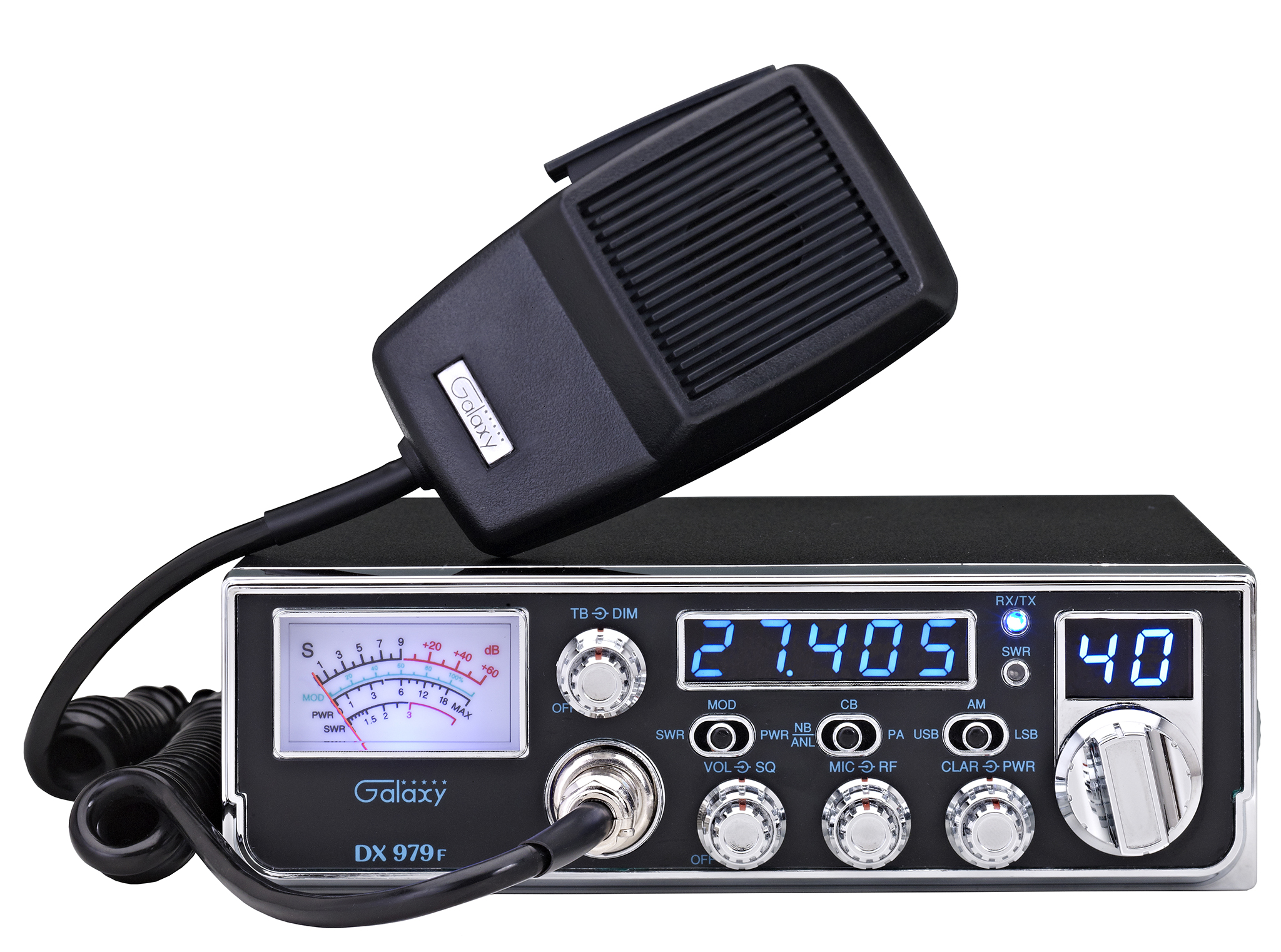

DX-979F

AM/SSB Mobile Radio



I am announcing two new CB models. Both are in our mid-sized chassis. The same chassis as our DX929 and DX979, but with a full size five digit blue LED frequency counter built in. It is 7.25 inches wide and fits into any slot that a Cobra 29 would fit into. The same size blue frequency and channel  LED digits as our full size radios but these digits are in a new SMT package containing all five digits. They actually look better than any of the previous models we have. Look closely at the frequency digits in the pictures. All previous models use five separate digits for the frequency counter. Both models have a front mic jack and the Galaxy StarLite (backlit) faceplate.

Features are as follows:

A) The DX979F is exactly like the current DX979 except it has a built-in five digit frequency counter using large blue LEDs instead of a jack in the back for the external FC347.


Following is the description for the DX979F:

Galaxy CB radios are designed with Features that a serious CB operator can appreciate and a new user can easily master. The radio functions are laid out in a driver friendly format essential for ease of use while keeping your eyes focused on the road ahead. Each knob or button controls its own task, minimizing the need to look at a display or cycle through multiple menus. Big radio Features in a smaller package set the DX-979F apart from the crowd. A big calibrated meter, front mic jack and sideband operation along with our backlit faceplate give this radio maximum bang for the buck.

Galaxy DX-979F Features include:

Features

  • AM/SSB and PA Modes.

  • Large, easy-to-read meter with: power output scale calibrated for AM and SSB.

  • Modulation percentage scale for use on AM.

  • Incoming signal strength scale indicates up to 60 dB over S9.

  • SWR ratio scale.

  • StarLite faceplate (all lettering is backlit in blue).

  • Automatic SWR circuit (no complicated calibration procedure).

  • High SWR alert circuit with warning LED.

  • Talkback circuit with on/off switch and volume control.

  • Variable power output control. Variable dimmer control.

  • Noise Blanker and Automatic Noise Limiter circuits.

  • Blue frequency and channel LEDs with blue meter lamp.

  • Mid-sized chassis with front mic jack.

  • Clarifier control.

  • Blue/Red LED indicator for RX/TX.

  • Receive (RF) gain control.

  • Mic gain control.

  • Rear jacks for external speaker and public address use.

  • Two year Limited Warranty.

  • Dimensions:7-1/4"W x 9"D x 2-3/16"H (Can slide into a 7-1/2" x 2-1/4" opening) (Depth does not include knobs or antenna connector).

  • Radio weight with microphone: 4.1 pounds. Shipping weight: 6 pounds.

  • What's in the box beside the radio: Handheld microphone, radio mounting bracket and microphone mounting hardware, power cord, owner's manual.





























Warranty Information


... DX-979F AM/SSB CB radio ... $189.50


See our CUSTOM MODEL
Galaxy DX-979 PRO-RFX


Optional Accessories

 Tune-up. 30+ W peak power (perform a tune-up to radio to increase power, audio and performance)  AM carrier 1~6 watts and 28-33 watts peak power. $29
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and lower noise)
$26

 Install an MD-1 Top Gun Modulator.
(wired behind the radio with optional switch for on/off)
$38
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
 Tune-up and frequency conversion. OPTION #1(Install extra channels with switches in back of radio and tune up radios output) $79
 Tune-up and frequency conversion. OPTION #2
(Install extra channels with a Lescomm 120 channel kit and tune-up)

$119

Slider Option
 Clarifier "Slider" conversion.
(Modify the Clarifier to control TX and RX frequency. This mod is an add-on to the two frequency conversions listed above for $15.
If this is done alone , without freq mods, it will cost $35)
$15/
$35

Palomar SL-41 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$49

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29

 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$39
 Install an Echo board. (BACK or SIDE)
(wired internal to the radio with dual controls on the side or back to control speed and echo effects)
$65

  Install a Record/Playback Module 18 seconds (wired inside the radio with  a switch on the side to record 18 seconds and to play it back) $77

Sound Byte link

 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link

 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18
Colors
Install Nitro Knobs with dimmer control. Includes a 6 Knob set , parts and labor. $134
SOLD OUT
 The  FC-347 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $59

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications demo. Enter your Gmail so we can send a share to our Google drive for you to view. We upload twice monthly. $19

SOLD OUT

 RFX-85 Final. (perform a tune-up to radio to increase power, audio and performance and replace the bipolar transistor final with a completely new final section consisting of even higher power MOSFETs)
AM carrier 15 watts and 75+ watts peak power.
SSB output 65-75w PEP

SOLD OUT
 RFX-150 Final. (perform a tune-up to the radio. Increase power, audio and performance and a completely new final section consisting of even higher power MOSFETs) AM carrier 35 watts and 145+ watts peak power and 130+w PEP on SSB. $185

RFX-150 FAN KIT Installed Install FOUR - 30 x 30 x 10mm Black Fans with a switch for on/off combined with the amp on/off switch. $69



The item most overlooked when ordering a custom radio is the microphone.  Your new tuned radio will NOT
sound great  with a stock mic on it  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the Astatic 636L and RD104E.

If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.
