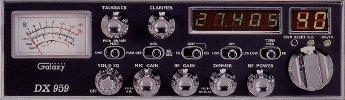

DX 959 Closeup View
   Click image for larger view

DX 959

AM/SSB Mobile CB Radio

Download Manual

Features
  • Large, easy-to-read meter with 4 scales:
    1. "S" Meter indicates up to 60 dB over S9
    2. Modulation Percentage Scale for use on AM
    3. Power Scale Calibrated for AM and SSB
    4. SWR Scale
  • Automatic SWR Circuit (no complicated calibration procedure)
  • "Talkback" Circuit with On/Off Switch and Volume Control
  • Variable Power Output Control
  • Roger Beep with On/Off switch and LED Indicator
  • Galaxy Noise Filter for use on weak signals
  • High SWR Alert LED Indicator
  • Two Year Warranty as explained below:
  • Five-digit Frequency Display
  • +/- 1.0 kHz Receive Clarifier
  • Noise Blanker and Automatic Noise Limiter
  • AM, SSB and PA Modes
  • 3-Position Tone Control Switch
  • Green/Red LED Indicator for RX/TX
  • LED Channel Indicator
  • Dimmer Control
  • Receive Gain Control
  • Mic Gain Control

new  Viagra 120 Channel Mod



... AM/SSB Mobile CB Radio ...

$174.50

new  Viagra 120 Channel Mod
Optional Accessories
 Tune-up. (perform a tune-up to radio to increase power, audio and performance) $25
 Tune-up and frequency conversion.
(Install
Viagra 120 channel board using tone switch and tune up radios output)
$90
 Tune-up and frequency conversion.
(Install extra channels with switches in back of radio and tune up radios output))
$60
 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$65
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$54
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a four pin plug and a battery installed)
$65
 DM-452 Echo  Amplified microphone
(wired for this radio with a 4 pin plug)
$30
 Install an Echo board.
(wired internal to the radio with dual controls on the outside to control speed and echo effects)
$65
 Install a Roger Beep tone board.
(wired inside the radio with a switch for on/off)
$55
 Install a Roger Fart board.
(wired inside the radio with a switch for on/off)
$55
 Install a 5-tone Roger Beep board.
(wired inside the radio with a switch for on/off)
$65
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$18


Warranty Information

Specifications

GENERAL:
Channels 40
Frequency Range 26.965 - 27.405 MHz
Emission AM/USB/LSB
Frequency Control Phase-Lock-Loop Synthesizer
Frequency Stability 0.001%
Temperature Range -30oC to +50oC
Input Voltage 13.8V DC
Antenna Impedance 50 Ohms
Speaker Impedance 8 Ohms
Size 7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H)
Weight 6 lb.
TRANSMITTER:
RF Power Output AM 4W; USB/LSB 12W PEP
Frequency Response 300 to 2500 Hz
Frequency Tolerance 0.005%
Spurious Emission Better than -55dB
Unwanted Sideband Better than -55dB
RECEIVER:
Sensitivity for 10dB S+N/N AM: 0.5uV; USB/LSB: 0.25uV
Squelch Sensitivity Less than 0.5uV
Audio Power Output 2W @ 10% distortion
Image Rejection Ratio -65dB
AGC Figure of Merit 100mV for 10dB Change in Audio
Clarifier Range +1.0 KHz
