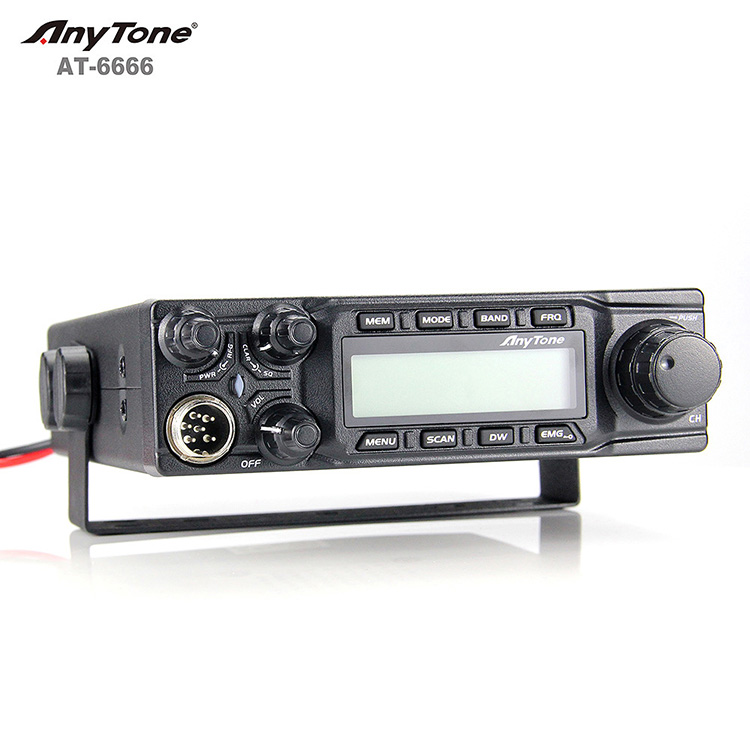

AT-6666

   Anytone AT-6666 Title

Download Manual

Features

  • Frequency: 28.000-29.700MHz (25.615~30.105MHz)

  • Power: AM PEP Max: 60W FM Max: 45W SSB Max: 60W

  • Big LCD displays frequency and all kinds of information

  • FM、AM、USB、LSB 、PA mode

  •  Frequency Tuning Step 100Hz, 1KHz, 10KHz, 100KHz, 1MHz 4. ± 1.5KHz Clarifier

  •  Flexiable menu function and PC programming software

  • ECHO Function

  • SQ, ASQ Function (FM and AM mode only)

  •  RF GAIN Adjustment

  • RF PWR Adjustment

  • SCAN Function

  • Programmable RB Function

  • NB/ANL Function

  • DW DUAL-WATCH Function

  • BEEP Voice Prompt

  • +10KHZ Function

  • SWR、S/RF function

  • TOT function

  • HI-CUT Function

  • EMG CALL

  • SWR PROTECTION

  • Power Supply Voltage Protection

  •  Key-Lock Function

  • Seven (7) Color LCD Display

  • Six(6) Groups Memory Channel

  •  CTCSS/DCS Code(Optional)

  • DTMF Function

  • Operating Voltage: 13.8 DC





At-6666

AT-6666 Anytone AT-6666

AT-6666AT-6666






Tune and Convert?

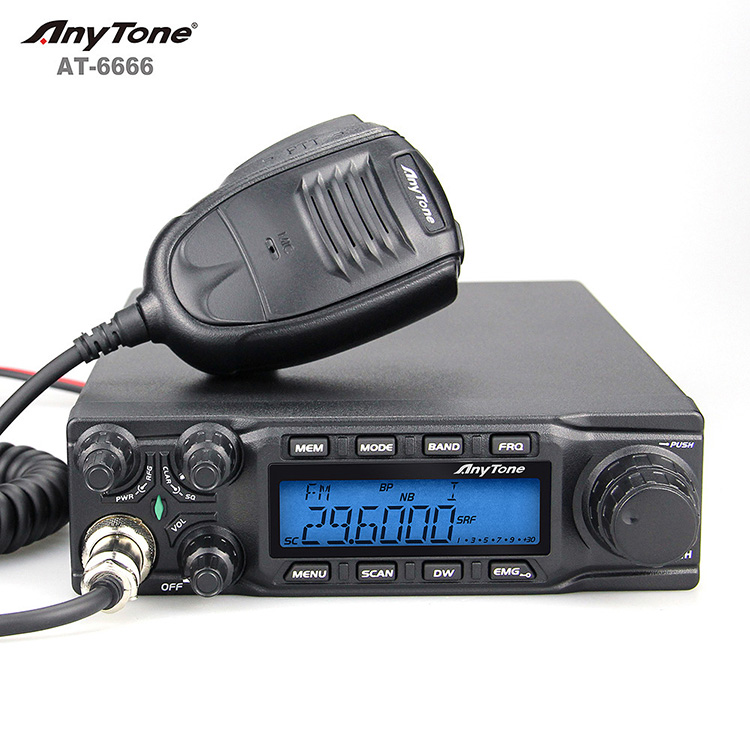

Anytone AT-6666
10-Meter Radio
 $259

SZ


Optional Accessories
Select Above  Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency)		 $40
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $79
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 6 pin plug)		 $61
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 6 pin plug)		 $44
RD104E  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 6 pin plug and a battery installed)		 $61
Astatic D104-M6B  Astatic D104M6B Amplified microphone.
 (wired for this radio with a 6 pin plug and a battery installed)		 $74
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
Add a  small fan kit in the back to keep the radio cool
* Customer is CA recommends this kist for everyone over 80 degrees, or it gets hot.		 $49
Stand

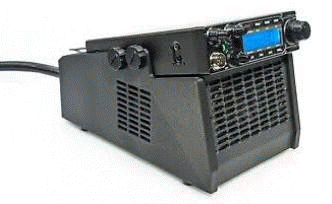

 Add a power Supply and speaker and fan to run this as a Base Station in the house. $159

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM .5-14 5-14 5-14
FM 1-40 1-40 1-40
SSB 9-80 9-76 12-100
PEAK AM 6-46 4-19 50-100
*Most informative and the one we use
2/24/25

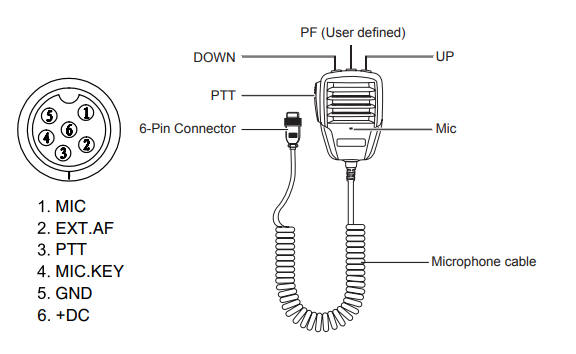

MICROPHONE
DIAGRAM



Mic wiring Anytone
