Ranger RCI-69FFC6 Transceiver

More information

RCI-69FFC6
AM/FM/SSB 10M Mobile Radio

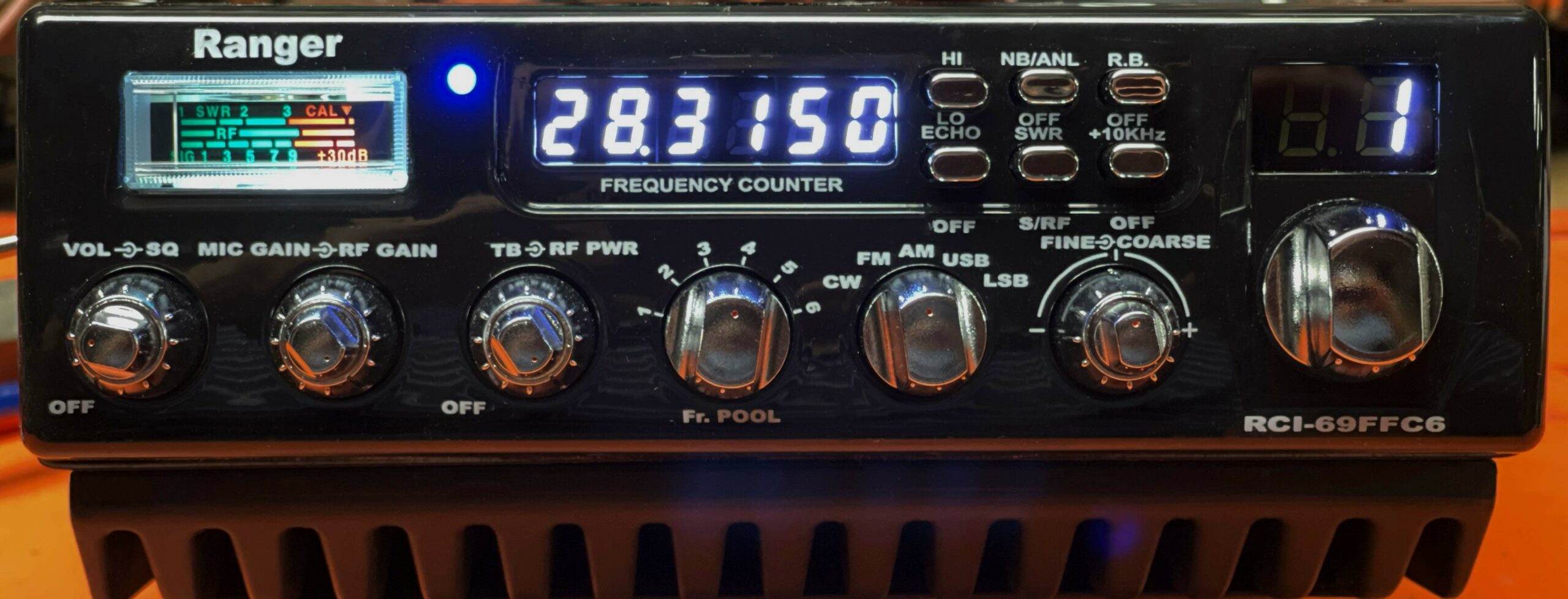

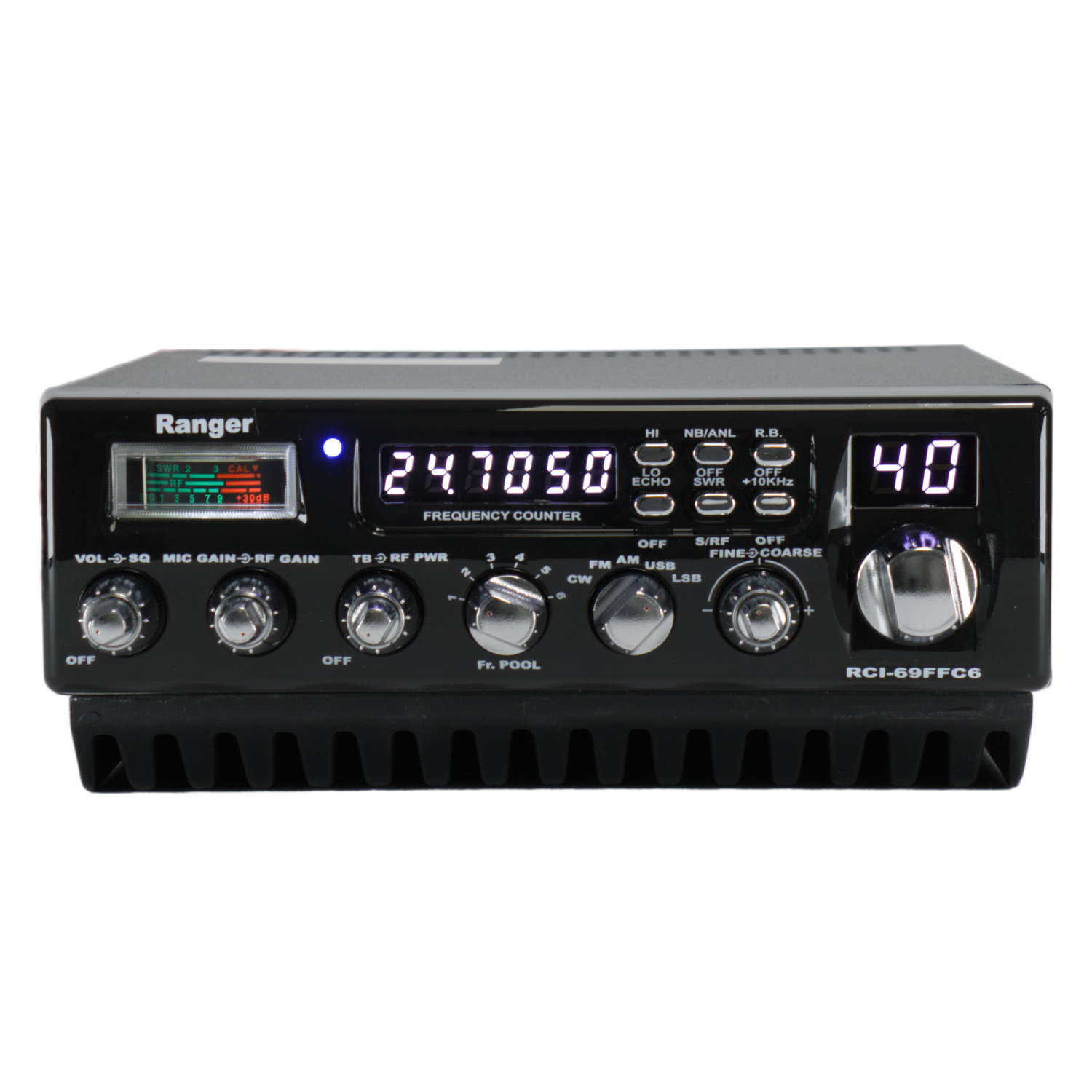

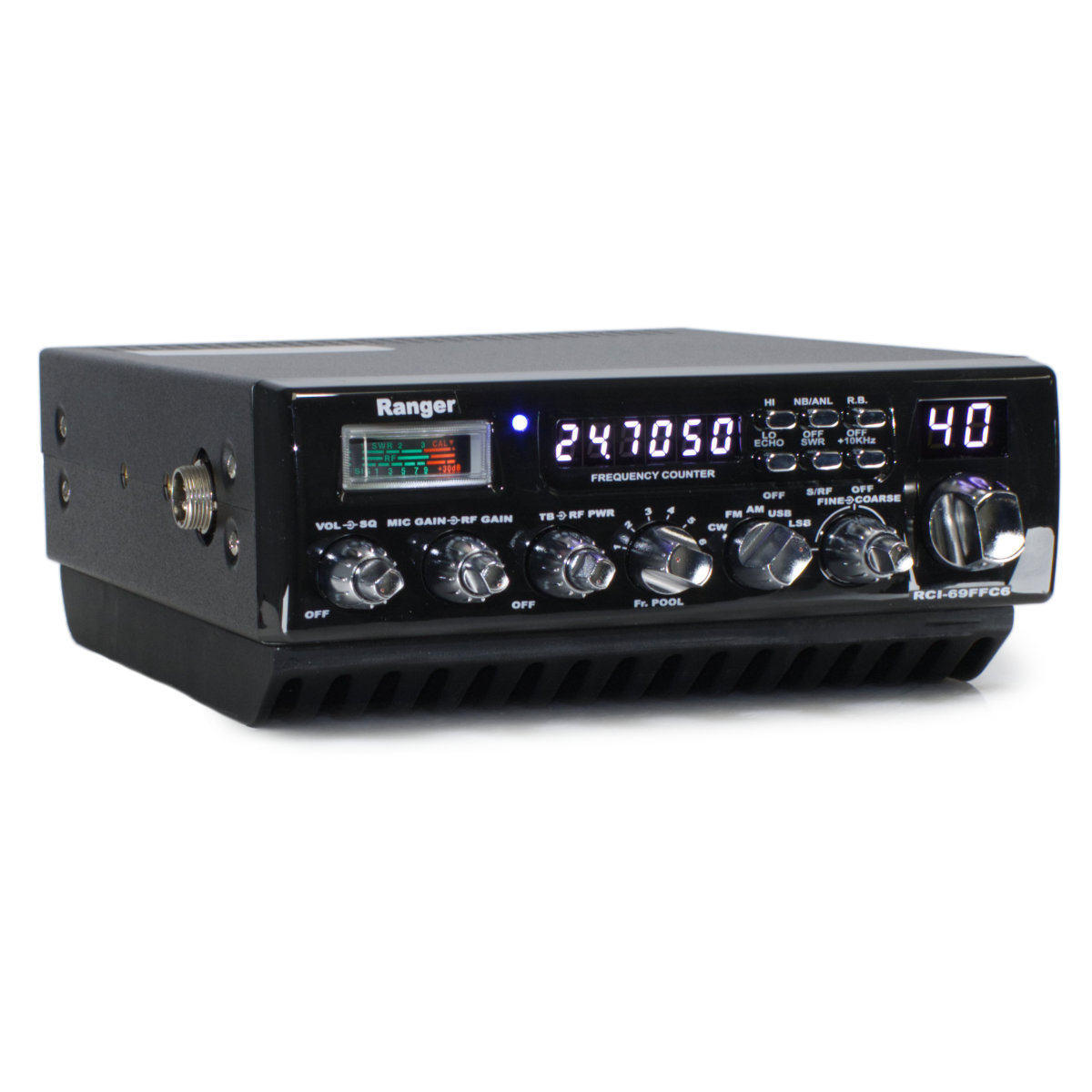

If you’re ready for a more powerful amateur radio experience, the Ranger RCI-69FFC6 10-meter radio with 450 watts PEP may be exactly what you’re looking for. The black faceplate with contrasting chrome control knobs, multipurpose meter, six-digit frequency counter and large channel number display gives the RCI-69FFC6 (an upgrade from the 69FFB6) a classic appearance. It features white LED display lights, improved SSB frequency drift performance and an effective cooling system to match the power output. A heavy duty heatsink and fan at the back help keep things cool to ensure optimal performance. And thanks to the built-in double FET balance mixer you can enjoy excellent intermodulation performance in receive mode, while the new PLL and VCO design promises a stable operating frequency.

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it.

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.

Warranty and support is provided by Ranger USA at https://www.rangerusa.com/warranty-information or by phone at 619-271-4035. We do not offer an in-house warranty on this product.

Features

  • 10-meter amatuer radio
  • AM/FM/USB/LSB/CW modes
  • 450 Watts PEP
  • Six-digit frequency counter
  • TX/RX LED
  • HI/LOW tone switch
  • Echo switch
  • NB/ANL switch
  • S-RF/SWR switch
  • Roger beep
  • RF gain/MIC gain
  • Volume/Squelch control
  • Talkback
  • Variable RF power output control
  • Fine/Coarse clarifier control
  • Channel selector control

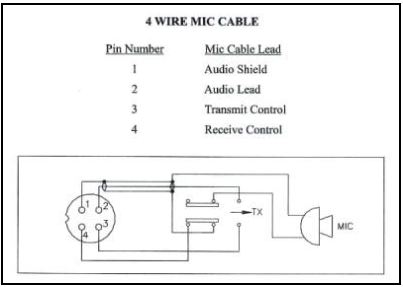

  • 4-Pin microphone jack on side
  • Size LxWxH (heatsink to control knobs): 11.25″ x 7.875″ x 3.26″

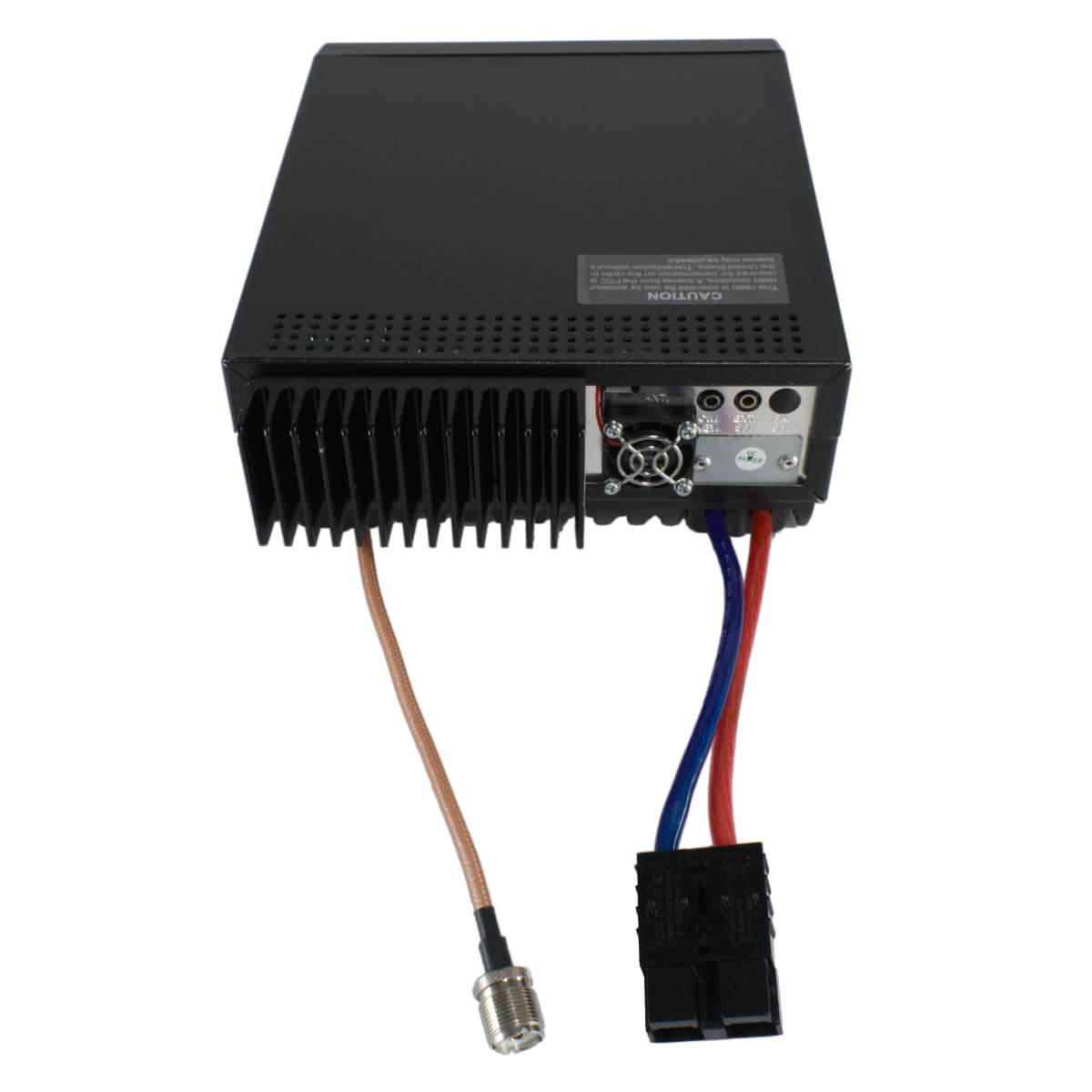

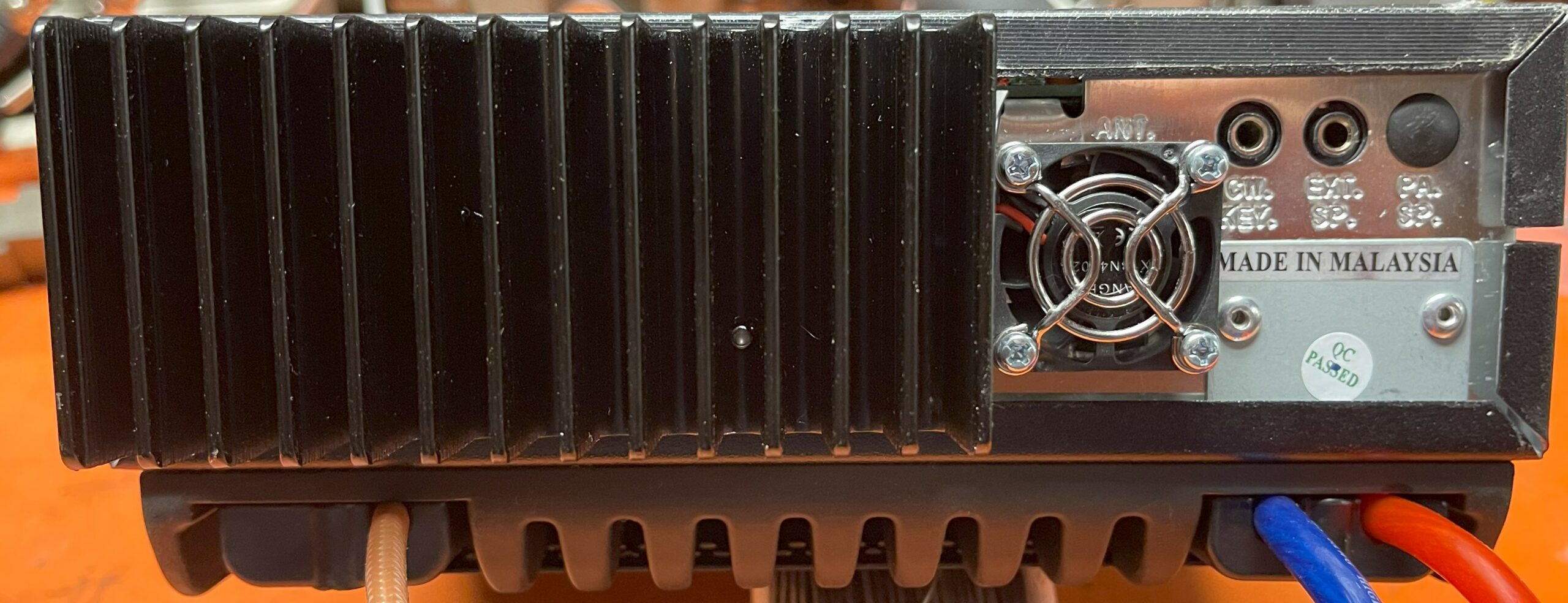

  • Cooling fan in back
  • LED lights in white
  • Improve SSB frequency drift performance.
  • Improve RX sensitivity and stability.

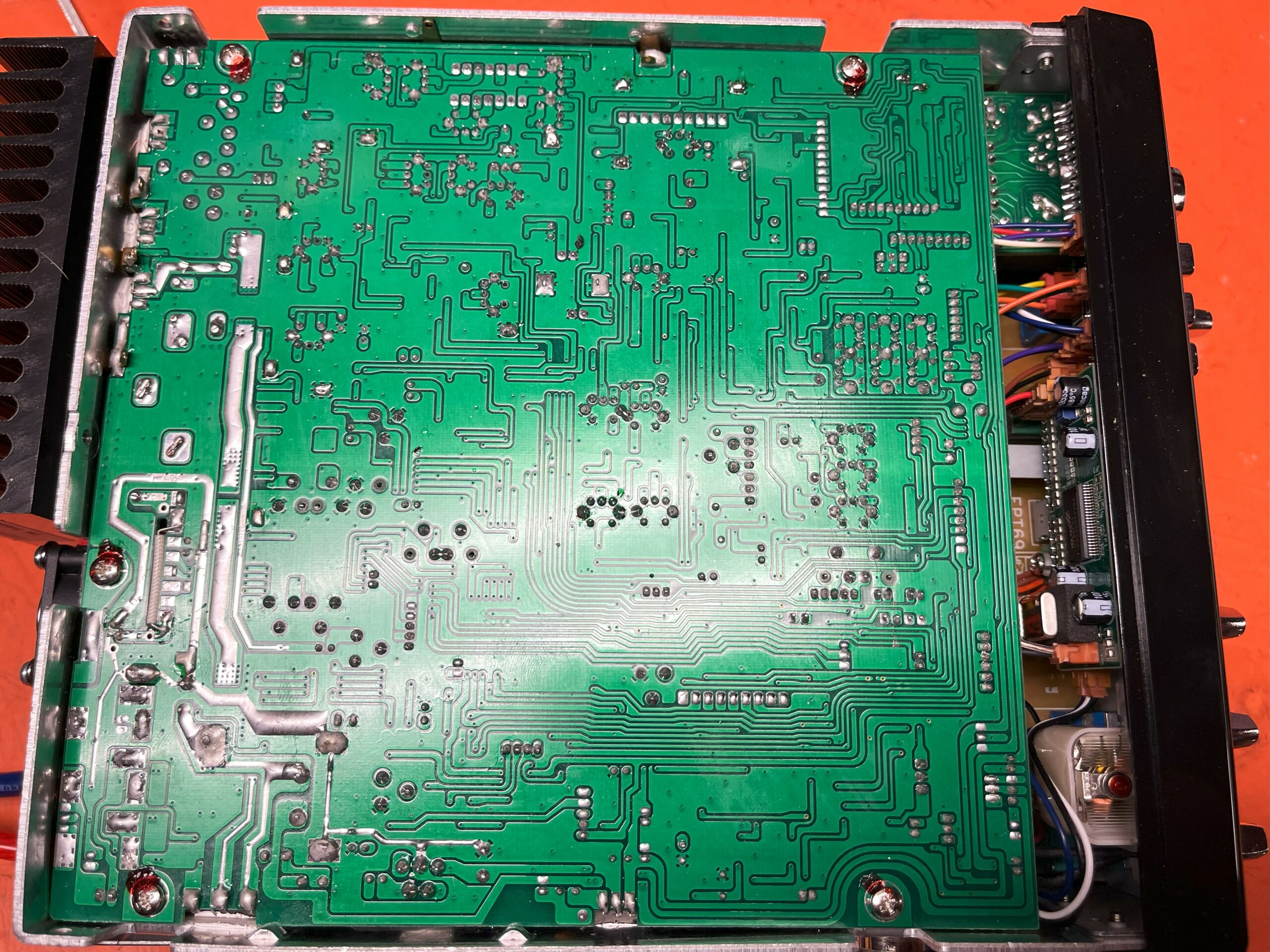

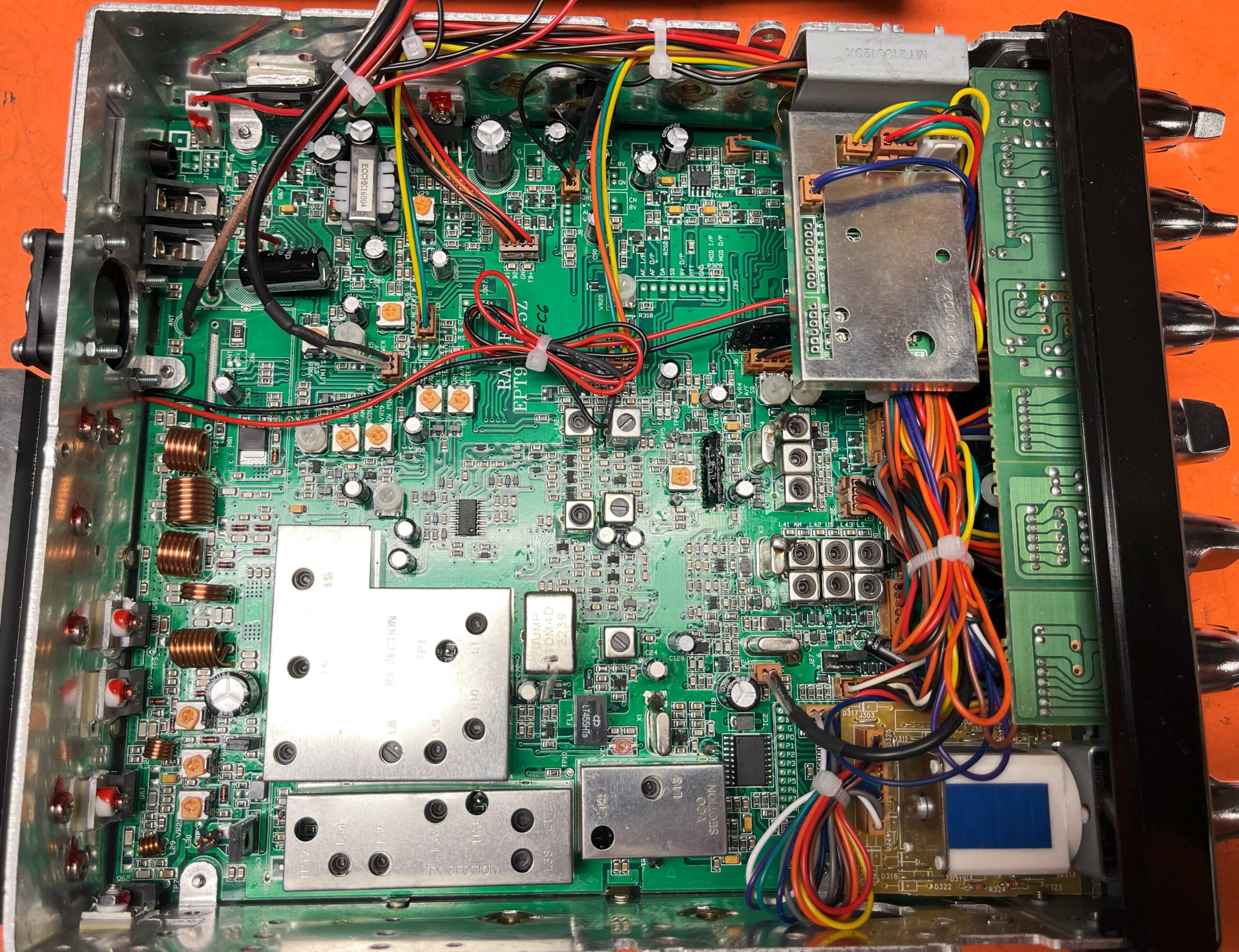

  • New Main PCB, EPT990015Z

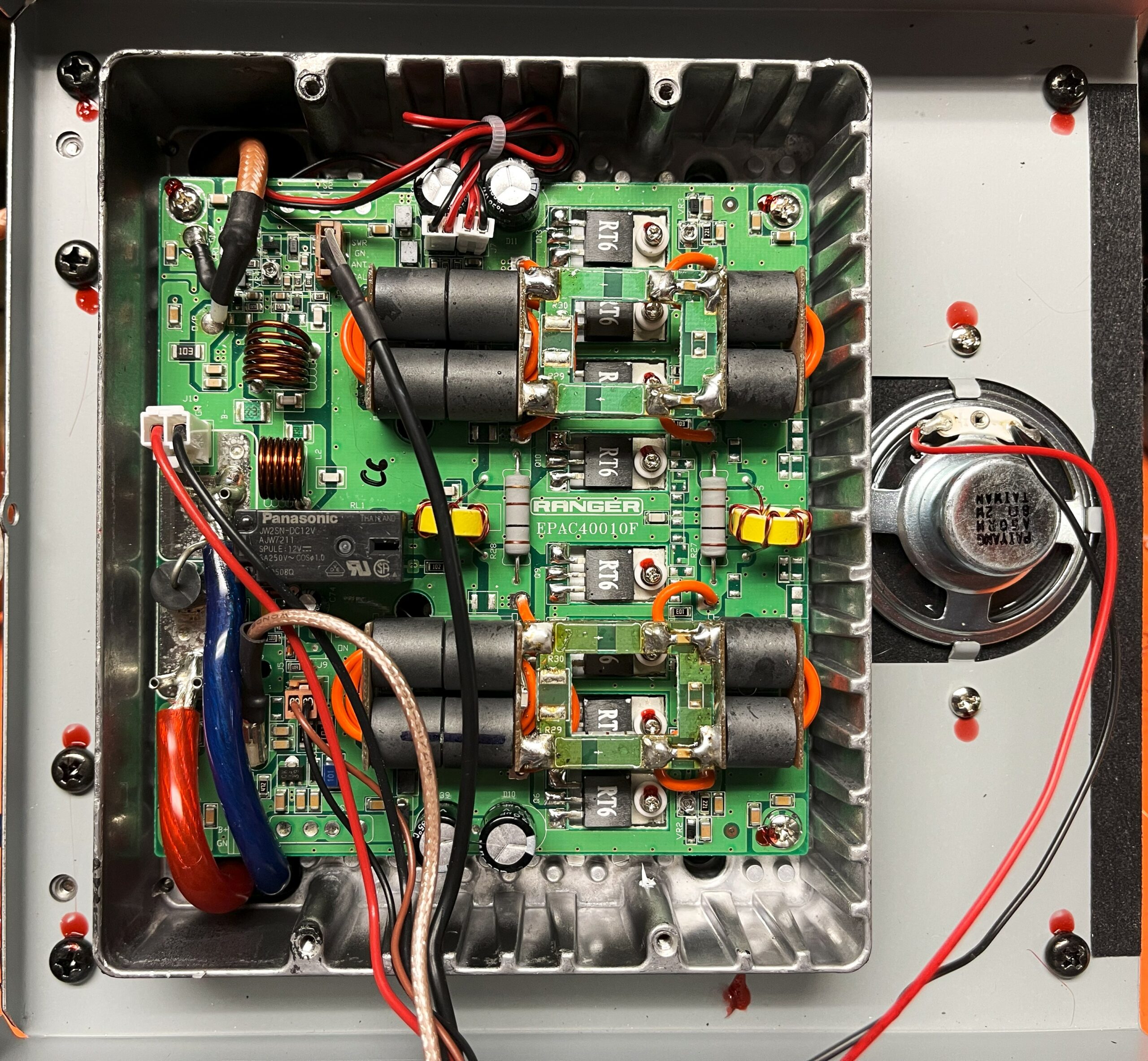

  • New final section with 4 x mosfets
    and a Big heatsink on Back.

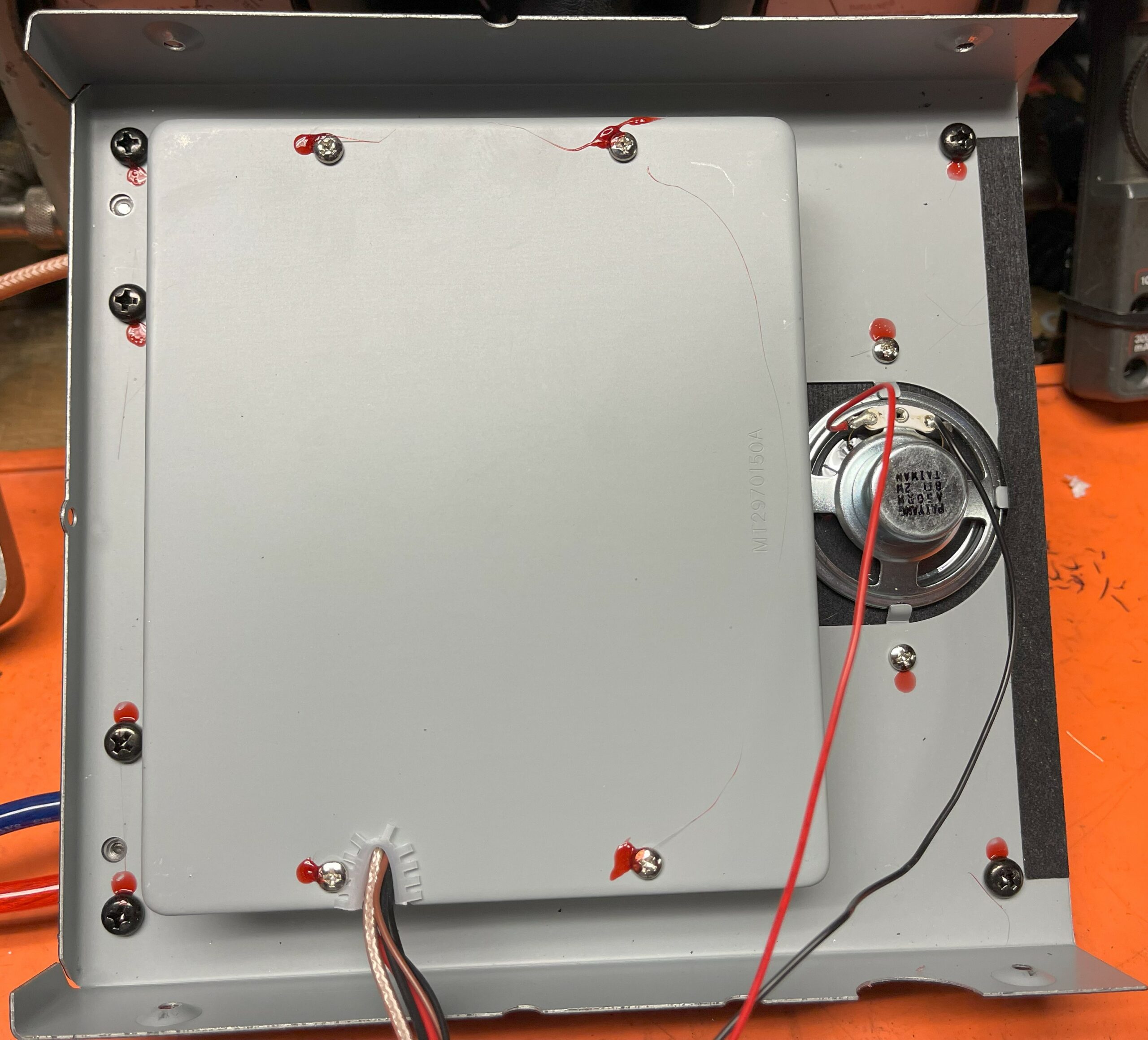

  • Louvered top cover for air flow.

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

Original price was: $839.50.Current price is: $799.50.

Upgrade Performance

Tune UP
Tune-Up and Frequency Conversion
Tune-up, Alignment and Expanded Frequency Conversion.
$49.00

Optional Upgrades

10ft 8G Power Wire Extension & Assemble
10ft 8G Power Wire Extension & Assemble
We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord. *** THIS IS SOLD WITH RADIO ONLY ***
$25.00
Install a Record/Playback Module
Install a Record/Playback Module
Wired inside the radio with two push buttons on the side to record 120 seconds and to play it back.
$77.50

Install a Noise toy

Wired inside the radio with a switch or push button to trigger any 30 second sound byte you want. Put a link to your sound byte in the box.

Install an Amp Switch

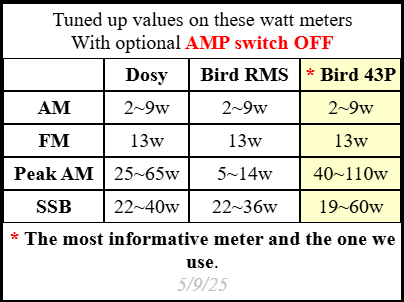

Install a switch to turn off the 450w amp, wired in the radio with a switch for on/off for the amp.

Upgrade Microphone

Astatic 636L Noise Canceling microphone
Astatic 636L Noise Canceling microphone
$34.50
RK-56B Microphone
Turner RK-56B Noise Canceling microphone
Pre-wired with high quality 4 pin Plug for Cobra / Uniden / President / Galaxy / Radio Shack / Ranger
$46.50
D104-M6 Amplified Microphone
D104-M6 Amplified Microphone
Amplified microphone (wired 4-pin and a Duracell battery added)
$59.50

Upgrade Speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00
Order total:

Popup code

Scroll to Top
General
Frequency Range28.245 - 29.655 MHz
ModesAM-FM-SSB-PA
Frequency ControlPLL Synthesizer
Frequency Stability0.001%
Operating Temp. Range- 20 ºC to + 50 ºC
Input Voltage50 Ohms
Size (W x D x H)7-7/8" x 10-3/4" x 2-7/8"
Transmitter

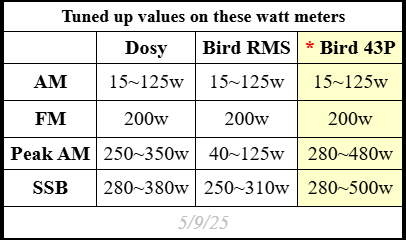

RF Power OutputAfter Tune-Up: AM-FM: 100W RMS AM: 450+W PEAK SSB PEP: 425+W
Spurious Distortion- 50 dB
Audio Distortion10 %
Frequency Response300 to 2500 Hz
MicrophoneDynamic
Receiver
AM Sensitivity for 10 dB SINAD0.5 µV
Squelch Sensitivity0.5 µV
Image Rejection- 55 dB
Hum and Noise- 40 dB
Audio Output Power2.5W @ 10% THD
