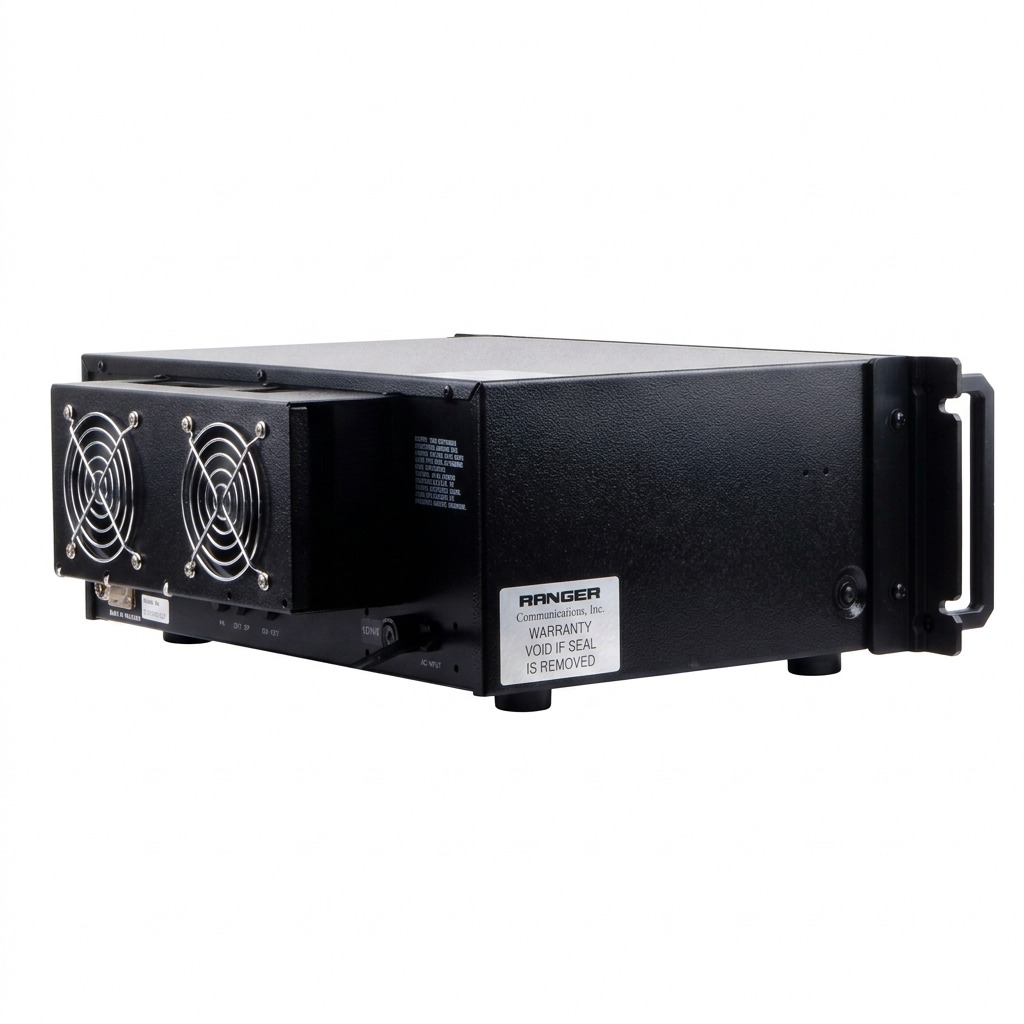

Ranger RCI-2995DXHP Base Transceiver - Image 4
Ranger RCI-2995DXHP Base Transceiver - Image 5
Ranger RCI-2995DXHP Base Transceiver - Image 6
Ranger RCI-2995DXHP Base Transceiver - Image 7
Ranger RCI-2995DXHP Base Transceiver - Image 8
Ranger RCI-2995DXHP Base Transceiver - Image 9
Ranger RCI-2995DXHP Base Transceiver - Image 10
Ranger RCI-2995DXHP Base Transceiver - Image 11
Ranger RCI-2995DXHP Base Transceiver - Image 12
Ranger RCI-2995DXHP Base Transceiver - Image 13
Ranger RCI-2995DXHP Base Transceiver - Image 14
Ranger RCI-2995DXHP Base Transceiver - Image 15
Ranger RCI-2995DXHP Base Transceiver - Image 16
Ranger RCI-2995DXHP Base Transceiver - Image 17

Videos

.

, , , ,

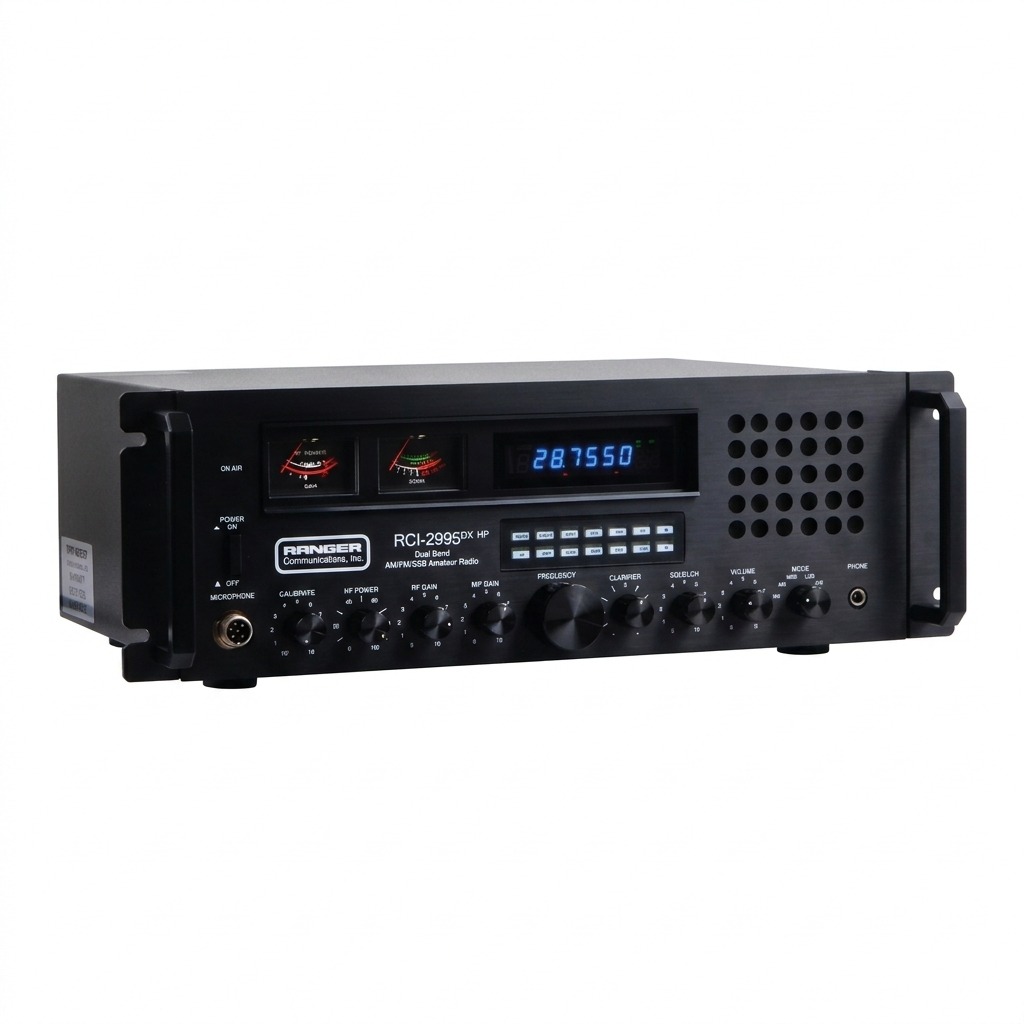

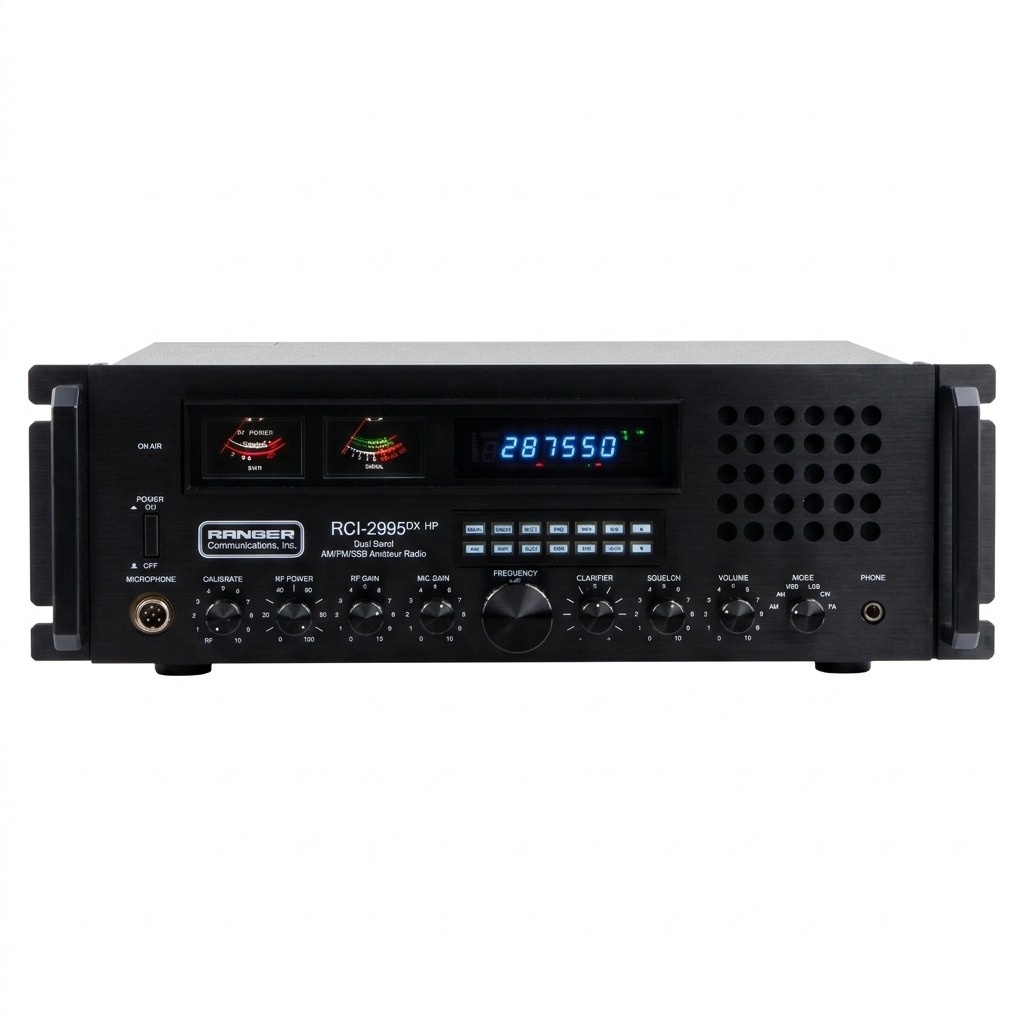

Ranger RCI-2995DXHP Base Transceiver

More information

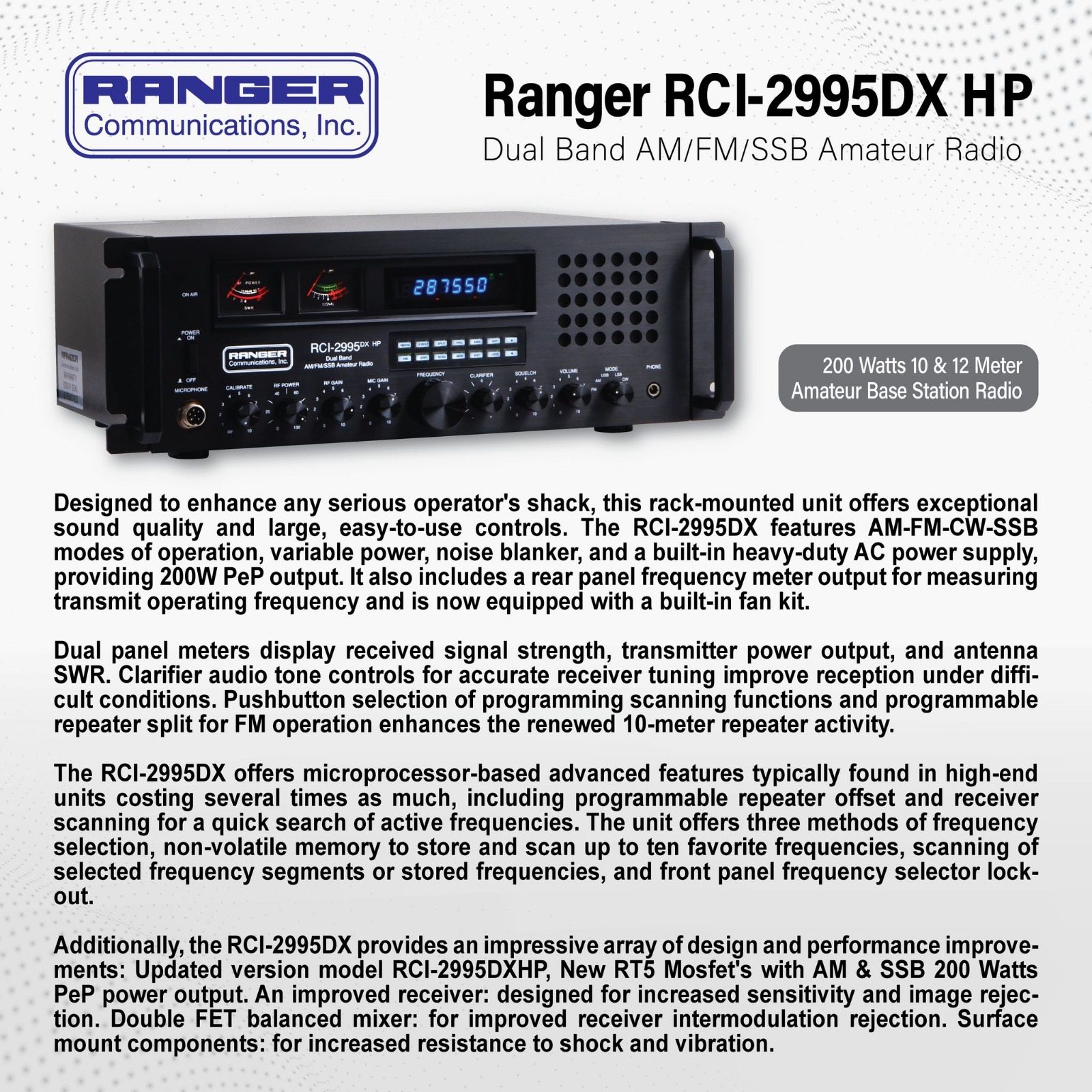

Designed to enhance any serious operator’s shack, this rack-mounted unit offers exceptional sound quality and large, easy-to-use controls. The RCI-2995DX features AM-FM-CW-SSB modes of operation, variable power, noise blanker, and a built-in heavy-duty AC power supply, providing 200W PeP output. It also includes a rear panel frequency meter output for measuring transmit operating frequency and is now equipped with a built-in fan kit. Dual panel meters display received signal strength, transmitter power output, and antenna SWR. Clarifier audio tone controls for accurate receiver tuning improve reception under difficult conditions. Pushbutton selection of programming scanning functions and programmable repeater split for FM operation enhances the renewed 10-meter repeater activity.

The RCI-2995DX offers microprocessor-based advanced features typically found in high-end units costing several times as much, including programmable repeater offset and receiver scanning for a quick search of active frequencies. The unit offers three methods of frequency selection, non volatile memory to store and scan up to ten favorite frequencies, scanning of selected frequency segments or stored frequencies, and front panel frequency selector lockout.

Additionally, the RCI-2995DX provides an impressive array of design and performance improvements: Updated version model RCI-2995DXHP, New RT5 Mosfet’s with AM & SSB 200 Watts PeP power output. An improved receiver: designed for increased sensitivity and image rejection. Double FET balanced mixer: for improved receiver intermodulation rejection. Surface mount components: for increased resistance to shock and vibration.

Contents:
-Ranger RCI-2995DXHP Transceiver
-6 pins Microphone
-Installation Hardward
-User Manual

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it.

In addition, the RCI-2995DX offers an impressive array of design and performance improvements:

  • An improved receiver: designed for increased sensitivity and image rejections.
  • A double FET balanced mixer: for improved receiver inter-modulation rejection.
  • Surface mount components: for increased resistance to shock and vibration.

Features

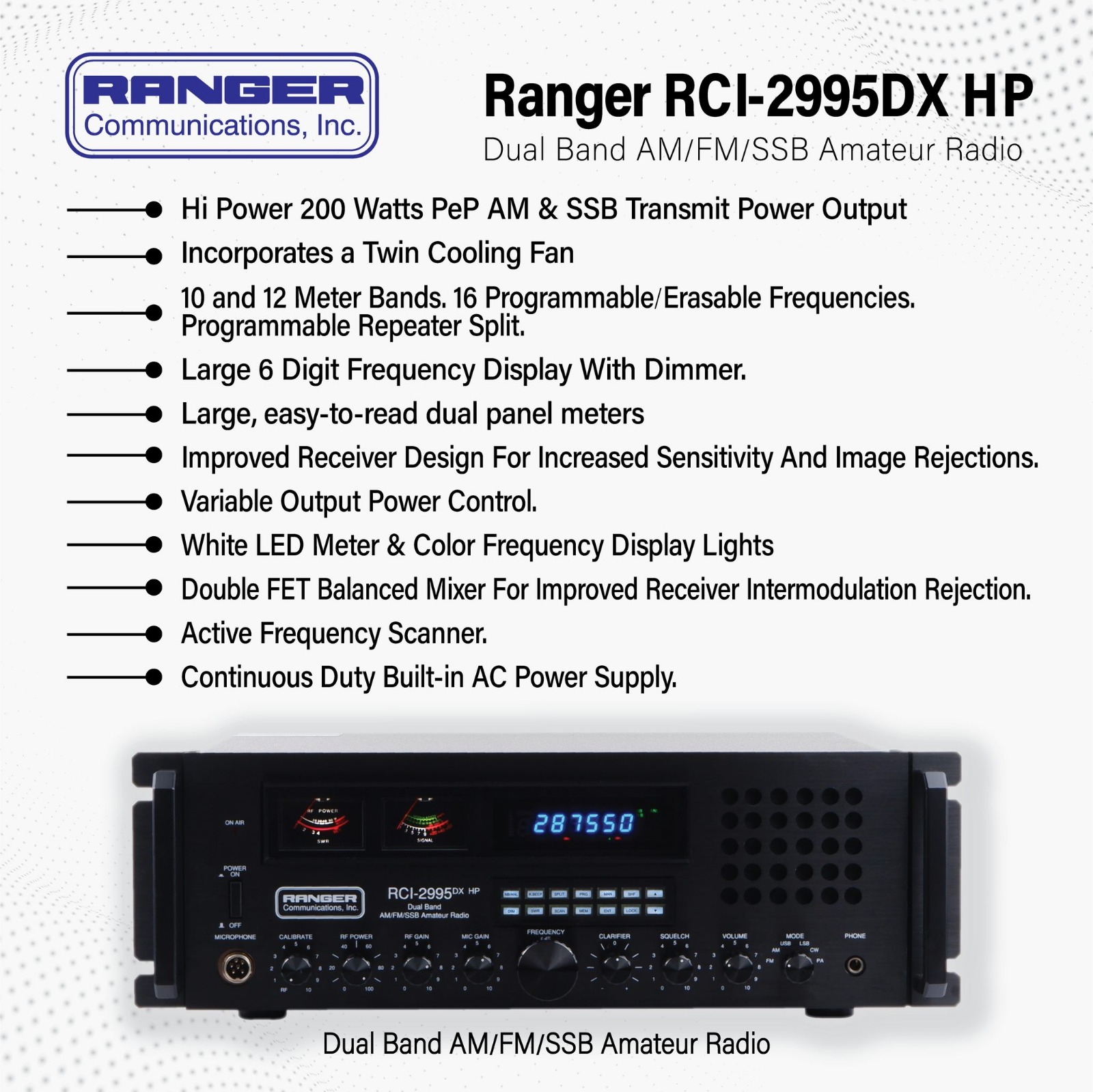

  • Hi Power 200 Watts PeP AM & SSB Transmit Power Output

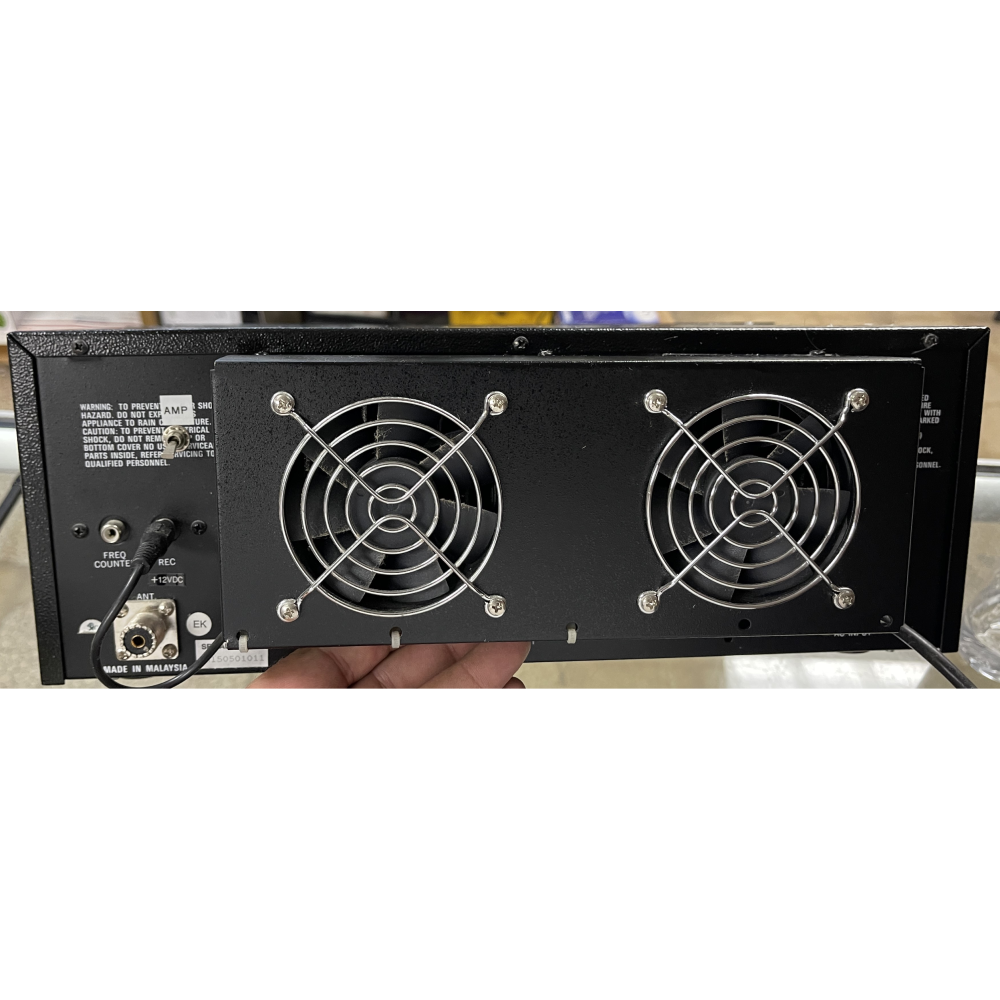

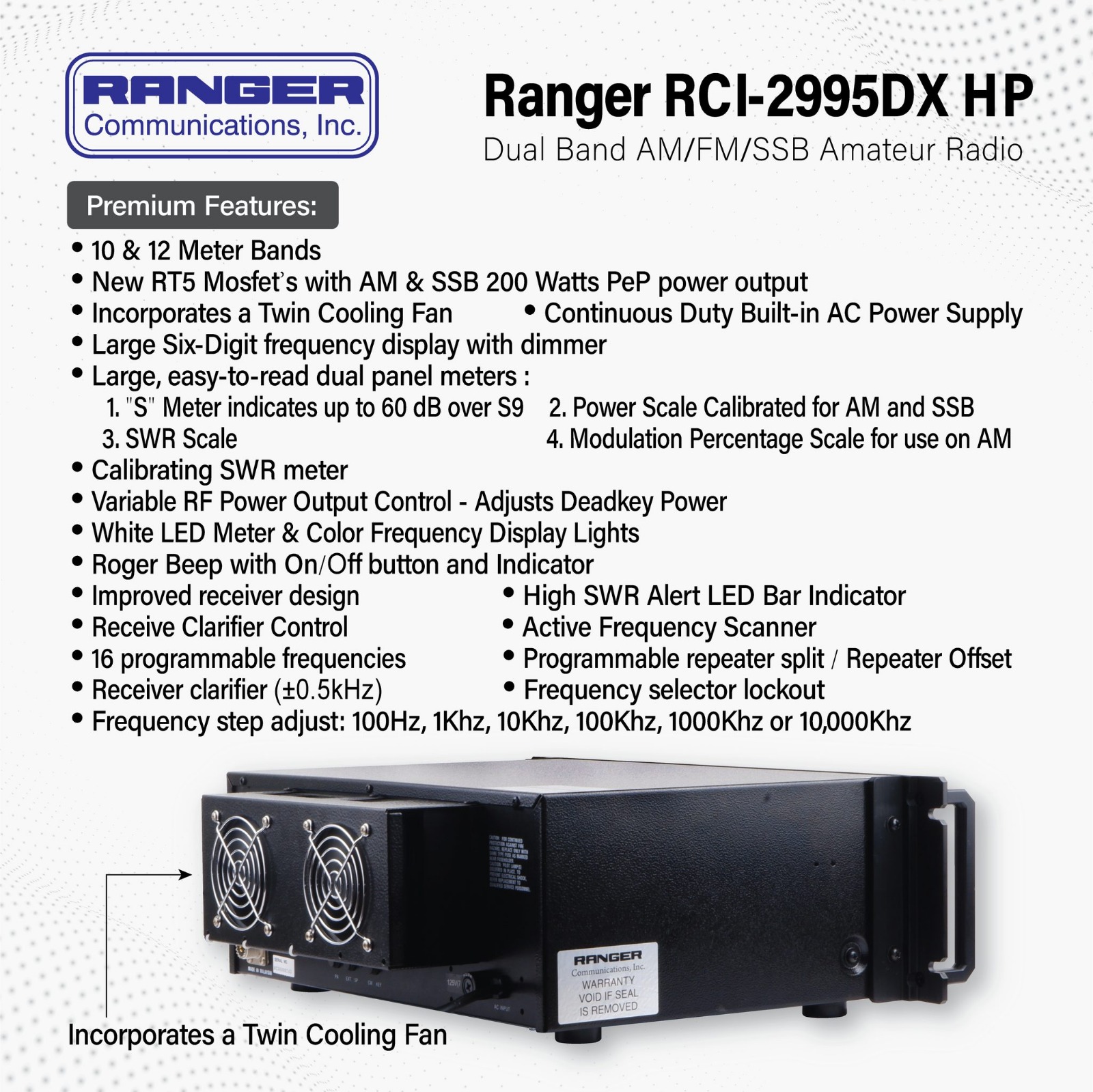

  • Incorporates a Twin Cooling Fan
  • 10 and 12 Meter Bands. 16 Programmable/Erasable Frequencies.
  • Programmable Repeater Split.
  • Large 6 Digit Frequency Display With Dimmer.
  • Large, easy-to-read dual panel meters
  • Improved Receiver Design For Increased Sensitivity And Image Rejections.
  • Variable Output Power Control – Adjusts Deadkey Power
  • White LED Meter & Color Frequency Display Lights
  • Double FET Balanced Mixer For Improved Receiver Intermodulation Rejection.
  • Active Frequency Scanner.
  • Continuous Duty Built-in AC Power Supply.
  • 10 & 12 Meter Bands
  • New RT5 Mosfet’s with AM & SSB 200 Watts PeP power output
  • Large Six-Digit frequency display with dimmer
  • Large, easy-to-read dual panel meters:
    1. “S” Meter indicates up to 60 dB over S9
    2. SWR Scale
    3. Power Scale Calibrated for AM and SSB
    4. Modulation Percentage Scale for use on AM
  • Calibrating SWR meter
  • Roger Beep with On/Off button and Indicator
  • Improved receiver design
  • Receive Clarifier Control
  • 16 programmable frequencies
  • Receiver clarifier (±0.5kHz)
  • High SWR Alert LED Bar Indicator
  • Active Frequency Scanner
  • Programmable repeater split / Repeater Offset
  • Frequency selector lockout
  • Frequency step adjust: 100Hz, 1Khz, 10Khz, 100Khz, 1000Khz or 10,000Khz

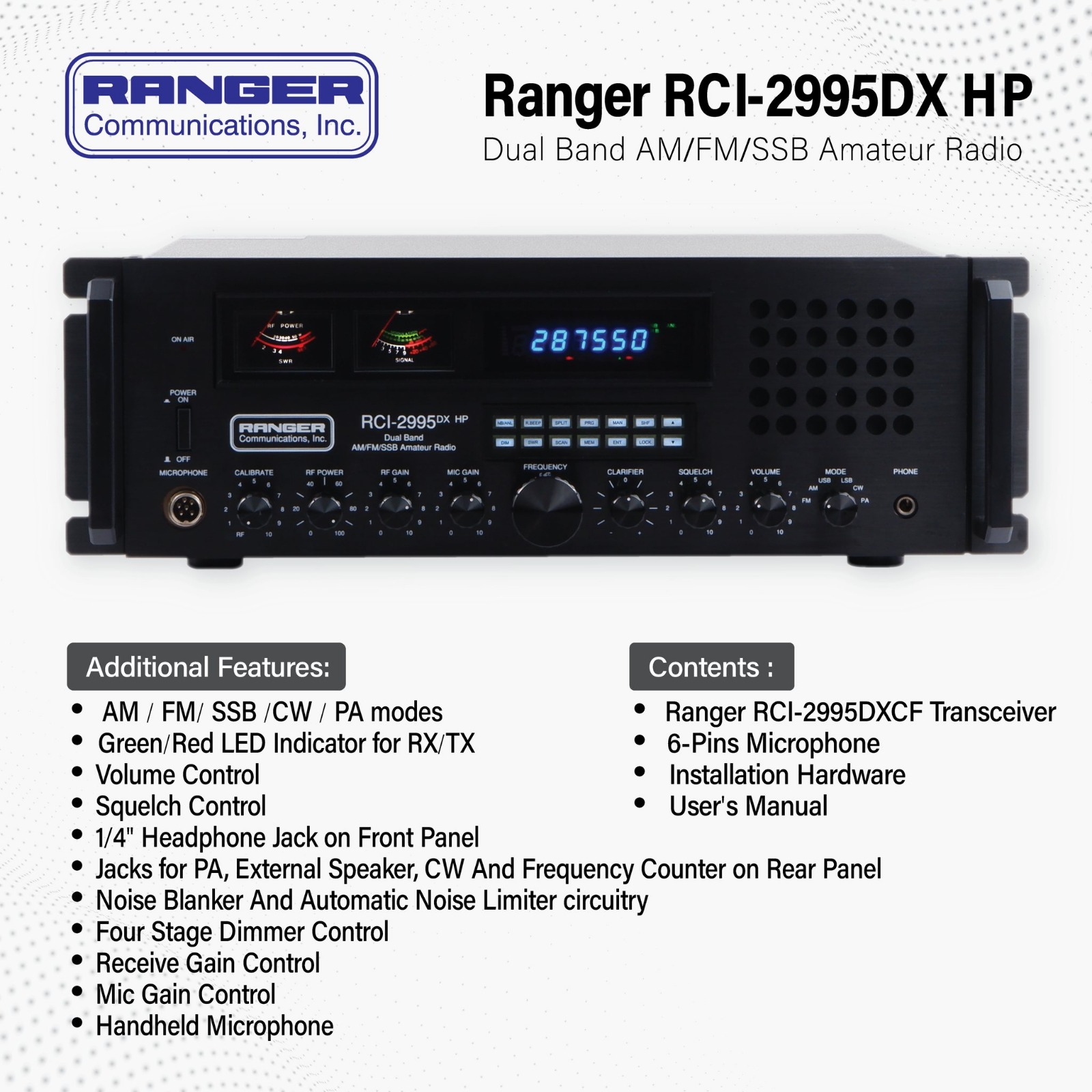

  • AM/FM/ SSB/CW / PA modes
  • Green/Red LED Indicator for RX/TX
  • Volume Control
  • Squelch Control
  • 1/4″ Headphone Jack on Front Panel
  • Jacks for PA, External Speaker, CW And Frequency Counter on Rear Panel
  • Noise Blanker And Automatic Noise Limiter circuitry
  • Four Stage Dimmer Control
  • Receive Gain Control
  • Min Gain Control
  • Handheld Microphone
  • 2 year warranty from RANGER, 90 day warranty with Bells CB
  • Shipping weight and size:
    • 32lbs
    • 22 x 20 x 11
    • Inner Box with Foam inserts.
    • Shipped via UPS or FEDEX Ground with $1000 insurance and Signature required!
click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$955.00

upgrade performance

Tune UP
Tune-up, Alignment and Frequency Conversion
Tune-up, Alignment and expand the frequency range
$59.50
Add a Slider
Add a "Slider" option to your frequency conversion Modified the Clarifier for ability to control frequency on TX as well as RX, requires frequency realignment. (This mod is available to some who want it, but I don't necessarily recommend it)
$25.00
CP-1 Compressor
Install an CP-1 Top Gun Audio Compressor
(on - all the time) Is most noticed on SSB, This amplifies your lower level audio on transmit. NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25.00
Change Keyboard LEDs to BLUE
Change Keyboard LEDs to BLUE
Exchange out the 8 green LED's and install 8 Blue so keyboard is a nice blue color.
$49.00
Install a 4P switch
Install a 4P switch
Install a 4P switch in the back to simultaneously do these 4 things: 1) Turn off the 150w amp. 2) Turn off the Fan kit. 3) Change internal settings when switch is off to give a better power range - in low 4) Change the internal SSB settings so that you can get better SSB performance in low.
$49.50

Install an EXTERNAL PTT keying port.

We use your FREQ Counter output RCA jack. Every time you key it provides a connection between the +/- of the RCA connector. 1) Output RCA completely isolated from the radio. The RCA connects to a relay that isolates it from the radios circuits. 2) Optional BYPASS switch in case your external device does not have one. (turns port off (stays open)) 3) Works all the time in high or low power modes.. 4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.

High Cut Filter Switch

Cut the high frequency (hiss) sound to a lower tone. Much easier to listen to, I wouldn't own a Ranger without this mod.

Install a Noise toy

Wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want.

Install a Record/Playback Module 120 seconds

18 seconds (wired inside the radio with a switch in the rear to record 18 seconds and to play it back on air when you key)

Install an Echo Board

Wired internal to the radio with dual controls on the side or back.

Install Talkback

(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)

Switch Option

Install brighter LED lighting Triple LED's

Behind each of the 2 meters. I like white the best and it's the only color I guarantee you will see bright and nice. The new radios now have pretty decent single LED lights already.

Optional Upgrades

8G Power Wire & DC Power Input Upgrade to Radio
8G Power Wire & DC Power Input Upgrade to Radio
Install DC Power input for Emergency use when power is out. Prepper ready. Comes with 8 Gauge Power Cord (10 foot), AGU Fuse and XT90E-M, DC Jack for high amperage 2 Pin Quick connection.
$99.50
RCI-2995DXCF Dust Cover
RCI-2995DXCF Dust Cover
Add a dust cover to help protect your base station radio. It does say "RCI-2995DXCF" but the radio is a RCI-2995DXHP model. Height = 6.25" Width = 19.25" Depth = 16"
$49.50

Upgrade Microphone

Astatic 636-L wired 6 pin Ranger Noise Canceling Microphone
Astatic 636-L wired 6 pin Ranger Noise Canceling Microphone
Wired for 6 Pin Ranger
$49.50
Turner RK-56B wired 6 pin Ranger Noise Canceling Microphone
Turner RK-56B wired 6 pin Ranger Noise Canceling Microphone
Wired for this radio with a 6 pin plug.
$61.50
Astatic D104-M6 wired for 6pin Ranger Amplified Microphone
Astatic D104-M6 wired for 6pin Ranger Amplified Microphone
Wired for this radio with a 6 pin plug and a battery installed.
$78.50
4 Pin to 6 Pin RCI Adapter
4 Pin to 6 Pin RCI Adapter
Converts 4-Pin Cobra microphone to 6 Pin Ranger  Radios.
$9.99

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)
Order total:

Recommended For You

Related products

Popup code

Scroll to Top

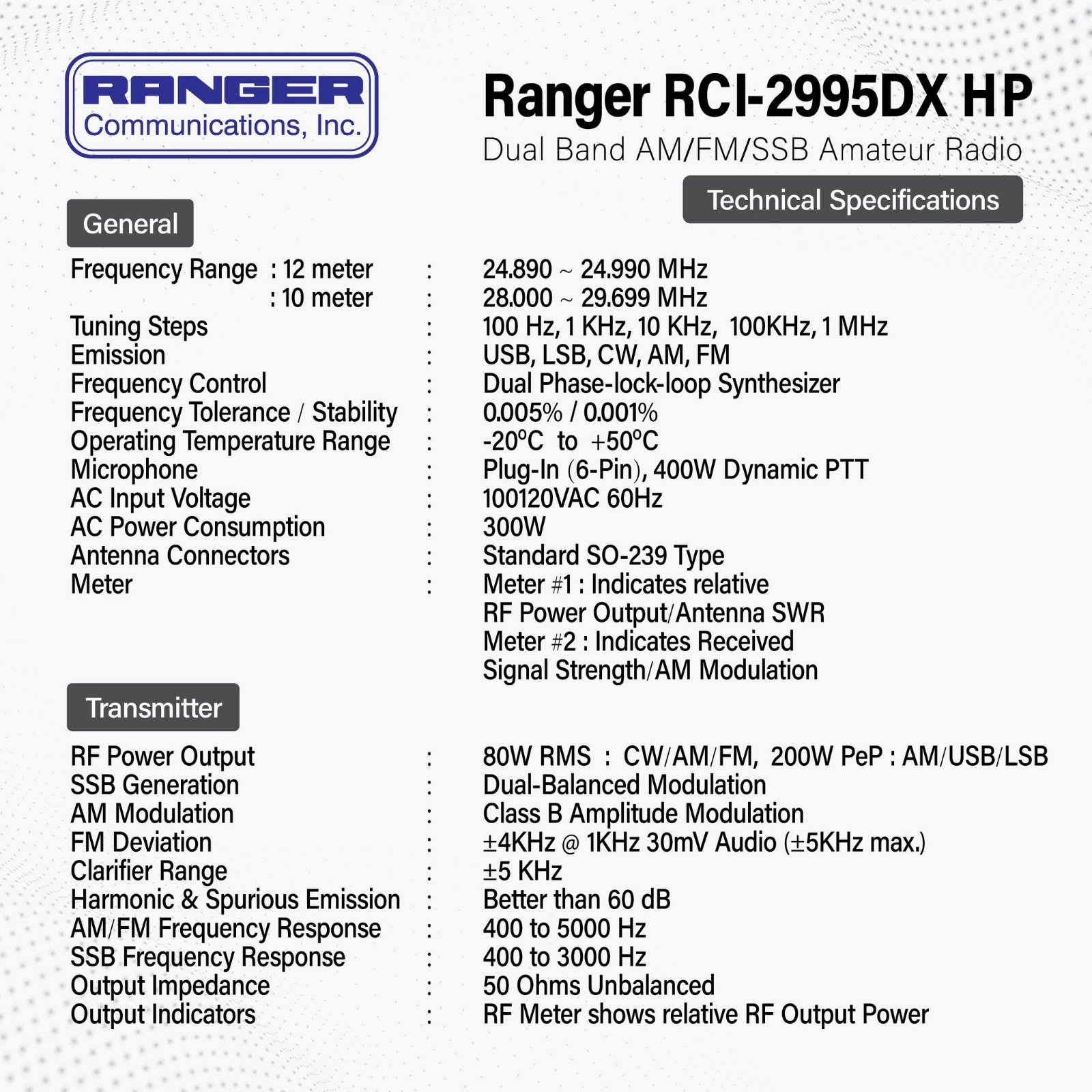

GENERALInformation
Frequency Range
12 Meter24.890~ 24.990 MHz
10 Meter28.000~ 29.699 MHz
Tuning Steps100 Hz, 1 KHz, 10 KHz, 100KHz, 1 MHz
EmissionUSB, LSB, CW, AM, FM
Frequency ControlDual Phase-lock-loop Synthesizer
Frequency Tolerance / Stability0.005% / 0.001%
Operating Temperature Range-20°C to +50°C
MicrophonePlug-In (6-Pin), 400W Dynamic PTT
AC Input Voltage100120VAC 60Hz
AC Power Consumption300W
Antenna ConnectorsStandard SO-239 Type
MeterMeter #1: Indicates relative RF Power Output/Antenna SWR Meter #2: Indicates Received Signal Strength/AM Modulation
TRANSMITTER
RF Power Output80W RMS : CW/AM/FM, 200W PeP: AM/USB/LSB
SSB GenerationDual-Balanced ModulationClass B Amplitude Modulation
AM ModulationClass B Amplitude Modulation
FM Deviation±4KHz @ 1KHz 30mV Audio (±5KHz max.)
Clarifier Range+5 KHz
Harmonic & Spurious EmissionBetter than 60 dB
AM/FM Frequency Response400 to 5000 Hz
SSB Frequency Response400 to 3000 Hz
Output Impedance50 Ohms Unbalanced
Output IndicatorsRF Meter shows relative RF Output Power

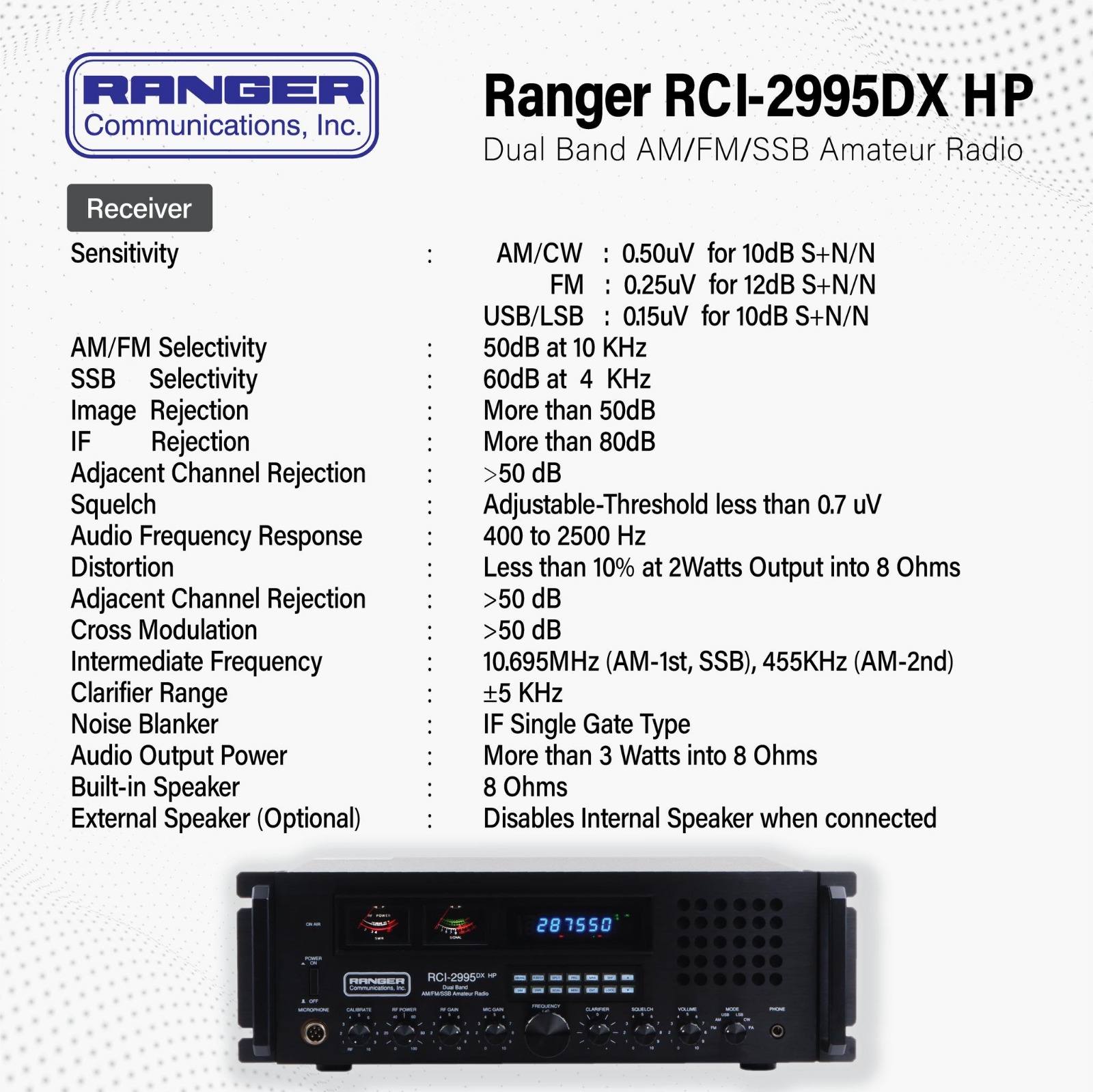

Receiver
SensitivityAM/CW : 0.50uV for 10dB S+N/N FM: 0.25uV for 12dB S+N/N USB/LSB : 0.15uV for 10dB S+N/N
AM/FM Selectivity50dB at 10 KHz
SSB Selectivity60dB at 4 KHz
Image RejectionMore than 50dB
IF RejectionMore than 80dB
Adjacent Channel Rejection>50 dB
SquelchAdjustable-Threshold less than 0.7 uV
Audio Frequency Response400 to 2500 Hz
DistortionLess than 10% at 2Watts Output into 8 Ohms
Adjacent Channel Rejection>50 dB
Cross Modulation>50dB
Intermediate Frequencу10.695MHz (AM-1st, SSB), 455KHz (AM-2nd)
Clarifier Range+5 KHz
Noise BlankerIF Single Gate Type
Audio Output PowerMore than 3 Watts into 8 Ohms
Built-in Speaker8 Ohms
External Speaker (Optional)Disables Internal Speaker when connected
