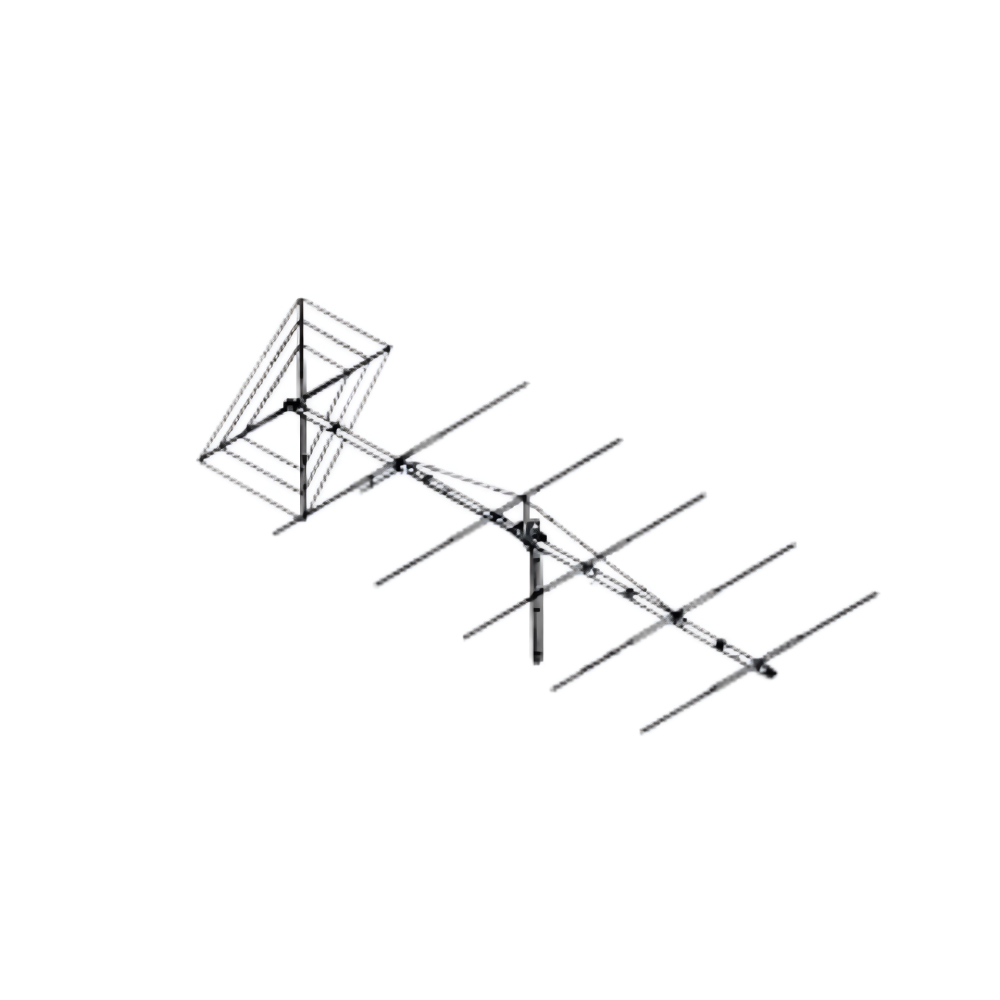

Maco Flat 6 CB Base Station Beam Antenna
More information
The 6 Element Laser is designed to achieve the maximum gain and front to back ratio using a Quad Reflector and Yagi Parasitic elements. There are six elements horizontal OR six elements vertical, scientifically spaced on a 31 ft. boom. This antenna is like the laser 400 with Flat Side only, plus a 5 KW Gamma match
Power handling is 5000W PEP
Made of aircraft alloy 6063-T5 aluminum tubing with .050″ wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.
HIGH PERFORMANCE and MADE IN THE U.S.A.
NOTE: We can NOT ship this antenna to anywhere EXCEPT the USA. We are sorry for the inconvenience.
- Boom Length (feet) – 31
- Boom OD (inches) – 2
- Number of Elements – 8
- Longest Radius (feet) – 18
- Turn Radius (feet) – 17
- Surface Area (sq. ft.) – 9
- Wind Survival (mph) – 90
- Tuning (Meters) – 11
- Gain (db) – 17
- Power Multiplication – 50X
- Front-to-Back Sep. (db) – 40-44
- VSWR (adjustable) – 1.1 or less
- Weight (lbs) – 38
- Shipping Weight (lbs) – 41
- Shipping Dimensions – 81″ x 6″ x 6″
Specifications
