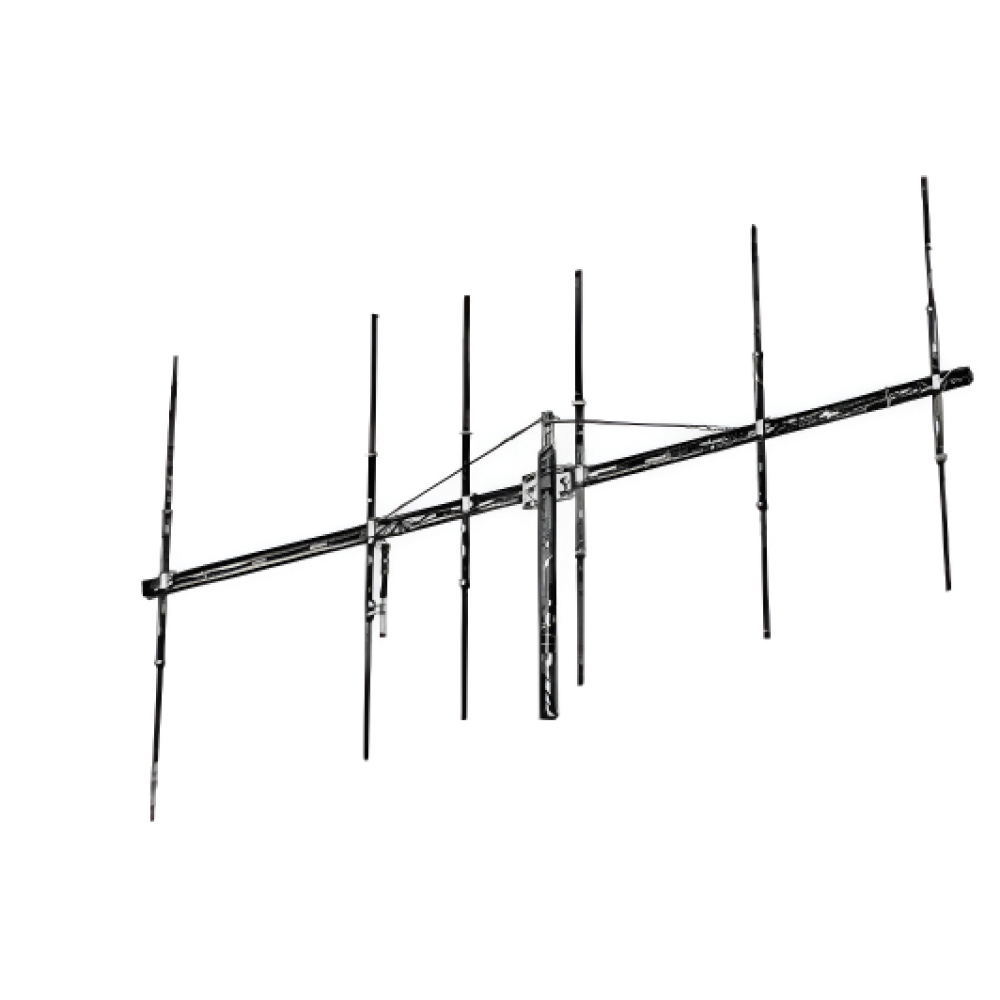

Maco M106C CB Base Station Beam Antenna Dual Polarity
More information
In the classic directional Yagi design, the Dual Maximum Beams line of base station antennas can are vertically or horizontally polarized for best base-to-mobile or base-to-base communications. It is actually 2 beam antennas on one boom.
Most economical antenna of its type on the market today, all Dual Maximum Beams feature MACO adjustable gamma match for high performance. Ruggedly built, swagged slotted tubing for maximum strength with minimum wind loading.
Power handling is 2000W PEP
Made of aircraft alloy 6063-T5 aluminum tubing with .050″ wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.
HIGH PERFORMANCE and MADE IN THE U.S.A.
NOTE: We can NOT ship this antenna to anywhere EXCEPT the USA. We are sorry for the inconvenience.
- Boom Length (feet) – 31
- Boom OD (inches) – 2
- Number of Elements – 6
- Longest Radius (feet) – 19
- Turn Radius (feet) – 17
- Surface Area (sq. ft.) – 10.21
- Wind Survival (mph) – 90
- Tuning (Meters) – 10-11
- Gain (db) – 17
- Power Multiplication – 50X
- Front-to-Back Sep. (db) – 31
- VSWR (adjustable) – 1.5 or less
- Weight (lbs) – 36
- Shipping Weight (lbs) – 39
- Shipping Dimensions – 81″ x 6 ” x 6″
