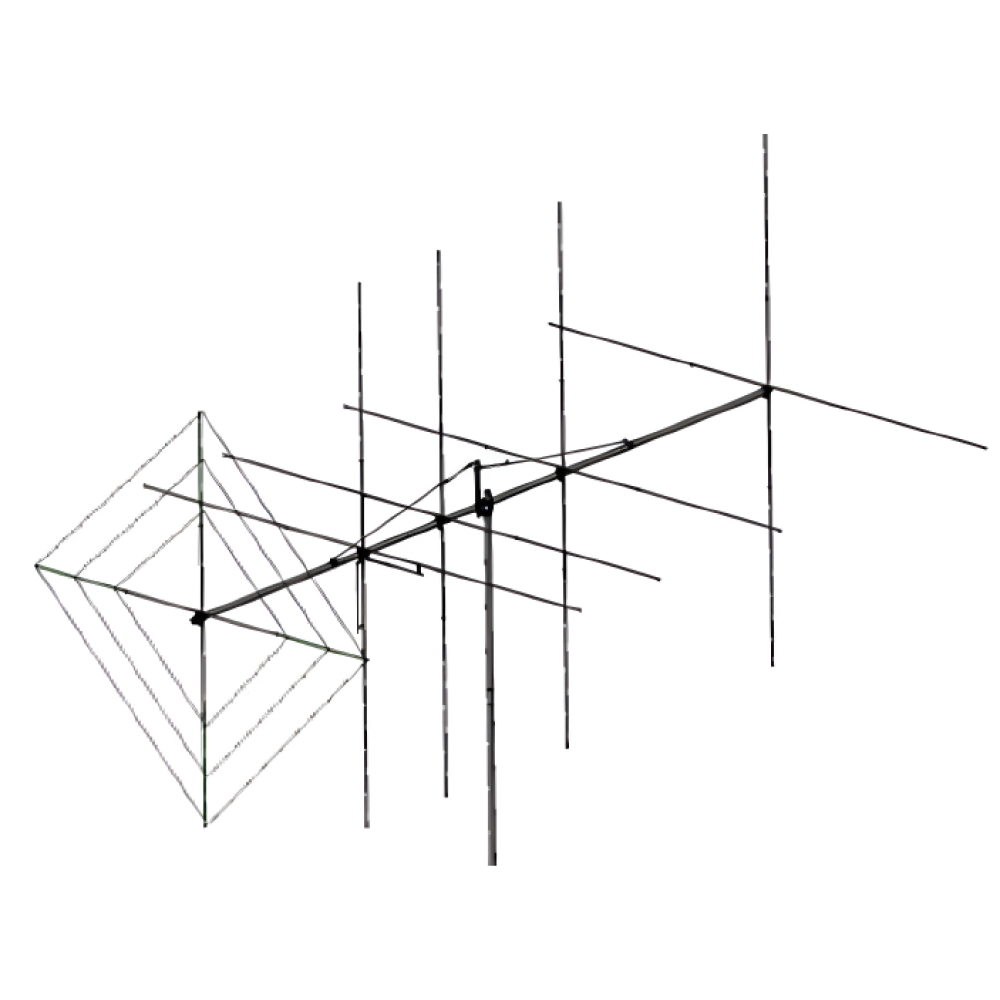

Maco Asteroid CB Base Station Beam Antenna Dual Polarity
More information
This is a high performing, dual polarity beam that is sure to impress. Boasting 10 elements, 5 vertical and 5 horizontal, it is mounted on a 26’ boom. It features a multiscreen reflector and is designed to give you the best combination of gain and front-to-back ratio.
As always, the Maco® gamma matches are fully adjustable to obtain the lowest SWR for both vertical and horizontal polarization. Comes stock with two 2kW gammas, which can be upgraded by the customer to our 5, 10, or 30 kW gammas.
Power handling is 2000W PEP
Made of aircraft alloy 6063-T5 aluminum tubing with .050″ wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.
HIGH PERFORMANCE and MADE IN THE U.S.A.
NOTE: We can NOT ship this antenna to anywhere EXCEPT the USA. We are sorry for the inconvenience.
- Boom Length (feet) – 26
- Boom OD (inches) – 2
- Number of Elements – 5+5
- Longest Radius (feet) – 17.5
- Turn Radius (feet) – 16
- Surface Area (sq. ft.) – 11.84
- Wind Survival (mph) – 90
- Tuning (Meters) – 10-11
- Gain (db) – 15.5
- Power Multiplication – 40X
- Front-to-Back Sep. (db) – 40X
- VSWR (adjustable) – 1.5 or less
- Weight (lbs) – 42
- Shipping Weight (lbs) – 45
- Shipping Dimensions – 81″ x 6″ x 6″
