   Galaxy DX-959B
Click image for a much larger view



DX 959 B

AM/SSB Mobile CB Radio


From Galaxy   " Today, I am happy to announce that our Research & Development Team has come
up with a Deluxe Edition of the DX959 - the DX959B. It is exactly the same
in circuitry, components and operation as the DX959. However, they have
changed the frequency LEDs, channel LEDs, RB LED and RX LED from green to
blue. In addition, they added a "StarLite" faceplate with all lettering
backlit in either blue or red. This does not replace the current DX959. The
old DX959 stays. We now have two versions of the 959."

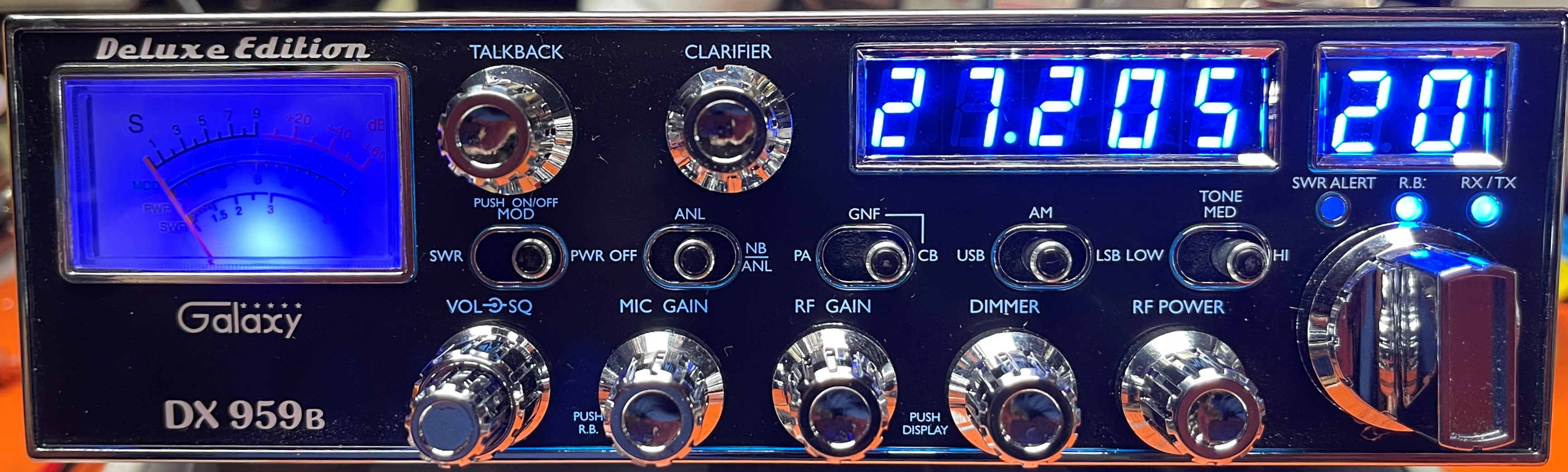

Daytime

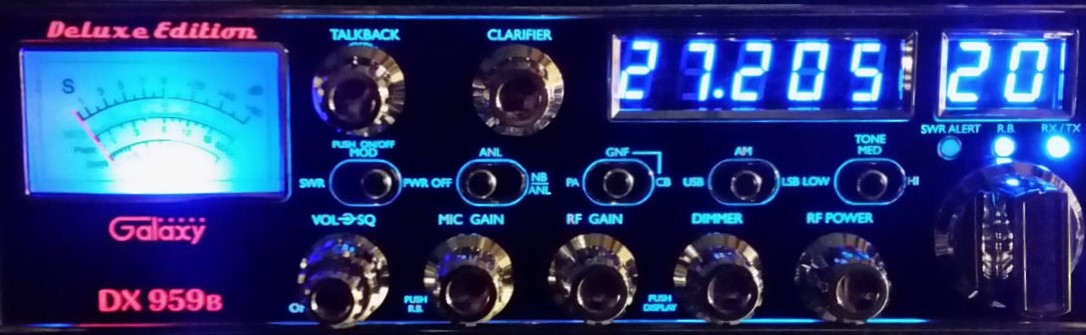

 Galaxy DX-959 at night Nighttime

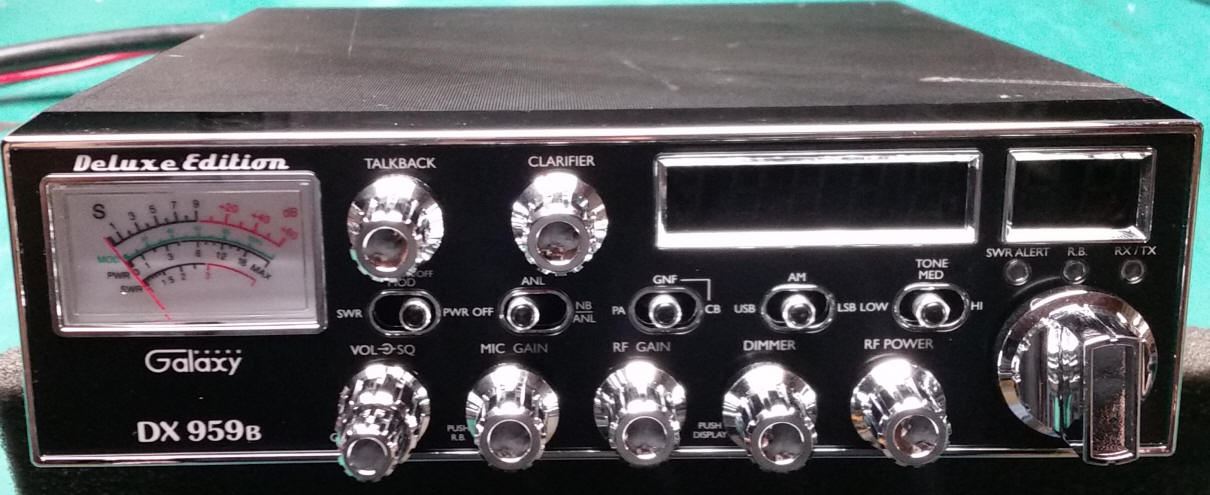

Radio OFF in Daytime









Features

  • Blue Frequency Display
  • Blue Channel Display
  • RB and RX LED's Blue
  • StarLite Faceplate (Glow-in-the-Dark red and blue lettering)
  • Large, easy-to-read meter with 4 scales:
    1. "S" Meter indicates up to 60 dB over S9
    2. Modulation Percentage Scale for use on AM
    3. Power Scale Calibrated for AM and SSB
    4. SWR Scale
  • Automatic SWR Circuit (no complicated calibration procedure)
  • "Talkback" Circuit with On/Off Switch and Volume Control
  • Variable Power Output Control
  • Roger Beep with On/Off switch and LED Indicator
  • Galaxy Noise Filter for use on weak signals
  • High SWR Alert LED Indicator
  • Two Year Warranty as explained below:
  • Five-digit Frequency Display
  • +/- 1.0 kHz Receive Clarifier
  • Noise Blanker and Automatic Noise Limiter
  • AM, SSB and PA Modes
  • 3-Position Tone Control Switch
  • Blue/Red LED Indicator for RX/TX
  • Blue LED Channel Indicator
  • Dimmer Control
  • Receive Gain Control
  • Mic Gain Control
  • The inverter that powers the blue lettering causes a faint high pitched noise to be heard in the receive signal. Galaxy has not come up with a fix for this.  It bothers some people a lot. If you think it might bother you, then you might want to get the regular DX-959 instead.



Please note, the StarLite lettering is always at full brightness because it
is not very intense - even in the dark. It is designed to let you know where
the controls are, but not be too bright. The back lighting may be turned off
using the Display Push switch but the brightness level is not affected by
the Dimmer pot. The StarLite lettering is always at full brightness when it
is on.

The blue digits of the frequency display and channel display can go from
very bright to very dim using our high resolution dimmer circuit. The Dimmer
control pot on the DX959B starts dimming almost immediately when you start
turning it down from maximum. On some radios, the dimming effect is not even
noticeable until you turn the pot a quarter or half turn. This one starts
dimming immediately and dims continuously down to where you can barely
notice the digits are on. This is perfect for night driving. You make the
digits exactly as bright as you like them. Of course, the digits can be shut
off completely with the Display Push switch.





Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)



CB Microphone Wiring (Galaxy)



Galaxy radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Galaxy might though and I cannot control it.
... NEW..Galaxy DX-959 BLUE... $285



Optional Accessories
 Tune-up. Perform a tune-up and alignment to the radio to increase power, audio and Performance $49
Perform Receiver improvement mods.
(These mods replace key RX parts for better sensitivity and selectivity)		 $26
 Install an CP-1 Top Gun Audio Compressor. (on - all the time) Is most noticed on SSB, This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.		 $25
SOLD OUT

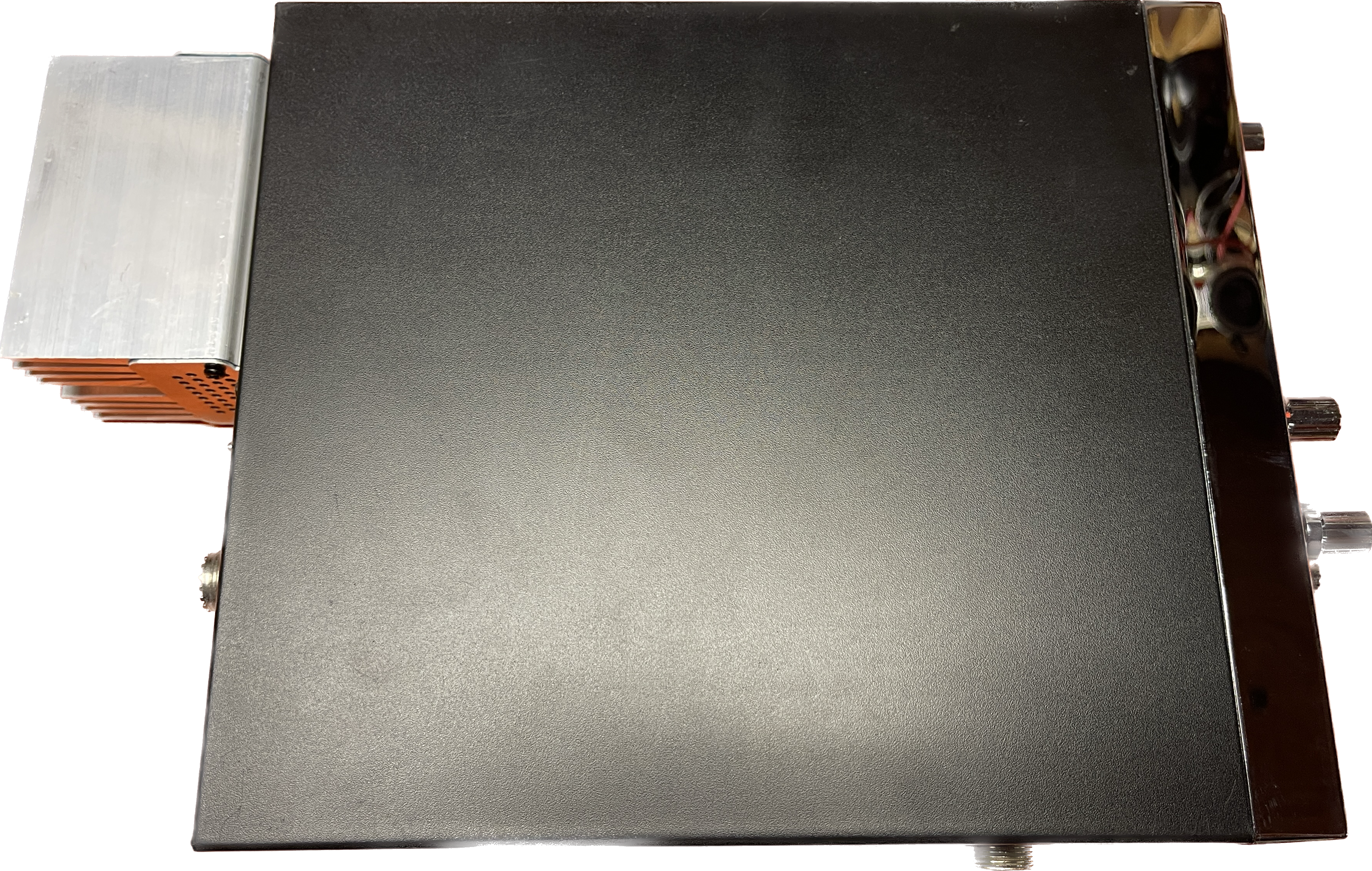

 Galaxy DX-959 with RFX-95HDRFX-95 Final. Install a completely new final section consisting of a high power MOSFET and perform a tune-up to the entire radio to increase power, audio and performance with an AM carrier of 20 watts with 90+ watts peak power. $189
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering. This is only helpful when you have the RFX-95HD2 and is NOT required for a stock radio
 10G power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade		 $59
RFX Fans FAN KIT Installed Install TWO- 40 x 40 x 20mm Black Fans with a switch for on/off combined with the amp on/off switch.I use also a relay isolated low noise power input system. $79
 Tune-up and frequency conversion. OPTION (Install extra channels with switches in back of radio and tune up radios output) $79
Slider Option
  Clarifier "Slider" conversion.
(Modify the Clarifier to control TX and RX frequency. This mod is an add-on to the two frequency conversion mods listed above and if done separately will cost $35)		 $35
or
$15
Switch Location

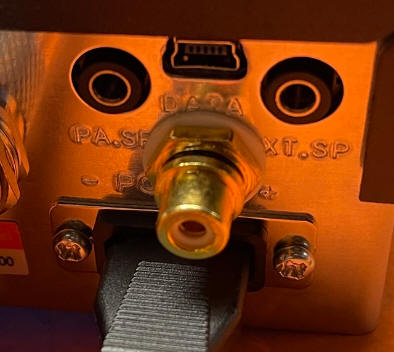

 		  Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
   1) Output RCA completely isolated  from the radio. Both +/-  connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.		 $49
/
$59
/
$69
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)		 $29
RD104E  Astatic RD104-E Amplified microphone.
 (wired for this radio with a 4 pin plug and a battery installed)		 $46
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)		 $65
or
$75
 Install an Echo Board (Front)
 (with dual controls on the front in the Talkback location. Talkback control is cut free of the dimmer board and moved to the side.)		 $80
or
$90
  Install a Record/Playback Module 120 seconds (wired inside the radio with  a switch on the side to record 120 seconds and to play it back) $77

Sound Byte link

  Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)		 $65

Sound Byte link


 SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65
small speaker  Add a Small External Speaker
 (plugs into back of the radio for improved sound)		 $12
Large Speaker  Add a Large External Speaker
 (plugs into back of the radio for improved sound)		 $25
Colors

StarBryte Knobs installedInstall Star-Bryte Knobs with dimmer control integration circuit built so it dims with the factory adjustment. 8 Knob set parts and labor.

 $248
Chrome covers  Exchange the top and bottom covers to Chrome Covers. $32
Diomand plate covers  Exchange the top and bottom covers to Diamond Plate Covers. $22
K-615  Add a table top stand to run this as a Base Station in the house.  $25
PSV-300 Add a power Supply to run this as a Base Station in the house. $89
K-Link K-621 Add a power Supply and speaker and fan to run this as a Base Station in the house. $149

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1~6w 1~6w 1~6w
SSB 9~24w 10~22w 7~27w
PEAK AM 4~18w 2~7w 16~30w
* The most informative meter and the one we use.
04/10/24



Specifications
Warranty Information

GENERAL:
Channels 40
Frequency Range 26.965 - 27.405 MHz
Emission AM/USB/LSB
Frequency Control Phase-Lock-Loop Synthesizer
Frequency Stability 0.001%
Temperature Range -30oC to +50oC
Input Voltage 13.8V DC
Antenna Impedance 50 Ohms
Speaker Impedance 8 Ohms
Size 7-7/8"(W) x 9-1/4"(D) x 2-1/8"(H)
Weight 6 lb.
TRANSMITTER:
RF Power Output Factory settings:
AM .8 - 3.5W 12W peak;
USB/LSB 7-12W PEP

After a Tune-up:
AM 1 - 6W 30+W peak;
USB/LSB 15 - 28W PEP
Frequency Response 300 to 2500 Hz
Frequency Tolerance 0.005%
Spurious Emission Better than -55dB
Unwanted Sideband Better than -55dB
RECEIVER:
Sensitivity for 10dB S+N/N AM: 0.5uV; USB/LSB: 0.25uV
Squelch Sensitivity Less than 0.5uV
Audio Power Output 2W @ 10% distortion
Image Rejection Ratio -65dB
AGC Figure of Merit 100mV for 10dB Change in Audio
Clarifier Range +1.0 KHz
