Base Sation Antenna


Click for Larger Image

CPH-1
Circular Polarization Harness

Download AD Sheet
Download Instructions
Instructi
The Maco Circular Polarization Harness is for users who wish to achieve circular polarization on their dual-polarity beams. The harness feeds both polarizations simultaneously.

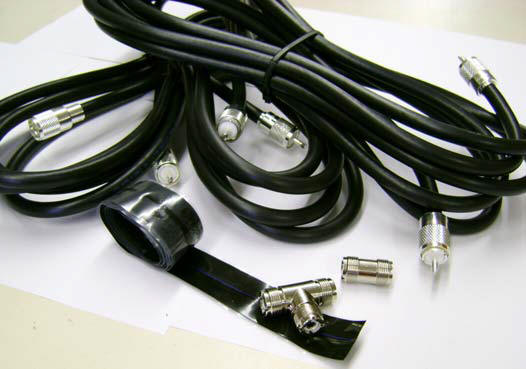

The harness consists of 2 lengths of 75 ohm RG11 coax, 1 length of 50 ohm RG8 coax, hand-soldered PL-259 connectors, T connector, barrel connector, and silicone self-adhering tape. All connectors are
high quality silver/Teflon.


The harness is perfect for Maco dual-polarity beams, Gizmotchy beams, Moonrakers, PDL IIs, and other beams that feature two coax connections.

  • 2 lengths of 75 Ohm RG11 coax.
  • 1 length of RG8 coax.
  • Hand-soldered PL-259 Connectors.
  • T-Connector.
  • Barrel Connector.
  • All connectors are high quality silver/Teflon.
  • Silicone self-adhering tape.
Maco Antennas & Accessories are Proudly Made in the USA


...CPH-1... $142

Below is a list of antenna examples that this harness will work on. It does not matter how many elements the beam has as long as you have vertical and horizontal elements..
Maco SHOOTING STAR
Maco COMET
* Maco ASTEROID
Maco 103C-HV
Maco 105C-HV
Maco 106C-HV
* Maco 108CHV
Maco LASER 400
* Maco LASER500
* Gizmotchy Beams
* Moonrakers
* PDL II
