RCI-2950CDD

More information

Ranger Communications once again sets the performance and reliability standard for entry level amateur mobile transceivers with the latest generation of our popular RCI-2950/70 series of cost effective, multi mode, high performance transceivers.

Introducing the RCI-2950DX & RCI-2970DX. These new DX models feature microprocessor control of not one but two amateur bands. The new RCI-2950DX, rated at 25W PEP and the RCI-2970DX, rated at 150W PEP are perfect for the recent band openings on 10 and 12 meters. Now you can upgrade your mobile Ham capabilities with a radio that is rich in features and reasonable in cost.

The new DX models have retained the operating features of its popular predecessors, including programmable repeater offset and capabilities for a CTCSS tone option — great for increasing repeater activity on 10 meters — and receiver scanning for quick search of active frequencies. The units offer three methods of frequency selection, non-volatile memory to store and scan up to ten favorite frequencies, and front panel frequency selector lockout.

In addition, the DX Series offers an impressive array of design and performance improvements.

What’s different in the 2950DX from older 2950?

ALL NEW LED display replaces the old LCD display. This display will be easier to read from various angles.
An improved receiver: designed for increased sensitivity and image rejections.
A double FET balanced mixer: for improved receiver inter-modulation rejection.
New power supply protection: and temperature compensation for improved stability and reliability over wide temperature ranges.
Surface mount components: for increased resistance to shock and vibration.
Improved display lighting: for easy reading in a wide range of light conditions.
Green backlit display (Now Black)
Frequency range now 12-10 meters.

Features

-ALL NEW LED display replaces the old LCD display. This display will be easier to read from various angles.
-An improved receiver: designed for increased sensitivity and image rejections.
-A double FET balanced mixer: for improved receiver inter-modulation rejection.
-New power supply protection: and temperature compensation for improved stability and reliability over wide temperature ranges.
-Surface mount components: for increased resistance to shock and vibration.
-Improved display lighting: for easy reading in a wide range of light conditions.
-Variable Power Output – great for PSK-31 operation.

-10 & 12 Meter Bands
-Large Frequency Display with Dimmer
-Improved Receiver Design
-Variable Output Power Control
-Active Frequency Scanner
-Receiver Clarifier (±0.5kHz)
-Ten Programmable Frequencies
-Noise Blanker/ANL Circuitry
-Frequency Selector Lockout
-Programmable Repeater Offset
-Public Address Feature

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$339.50

Out of stock

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

General
Frequency Range10 Mtr: 28.000 - 29.6999 MHz 12 Mtr: 24.8900 - 24.9900 MHz
Tuning Steps1 MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz
EmissionUSB, LSB, CW, AM, FM
Frequency Tolerance0.005%
Frequency ControlMicroprocessor / Phase-Locked-Loop Synthesizer
Frequency Stability0.001%
Operating Temperature Range-10 ºC to + 50 ºC
Meter Function RF Output, RX Signal Strength, Modulation, SWR (LCD Display Indicates Relative Values)
Antenna Impedance50 W
Input Voltage13.8 Vdc

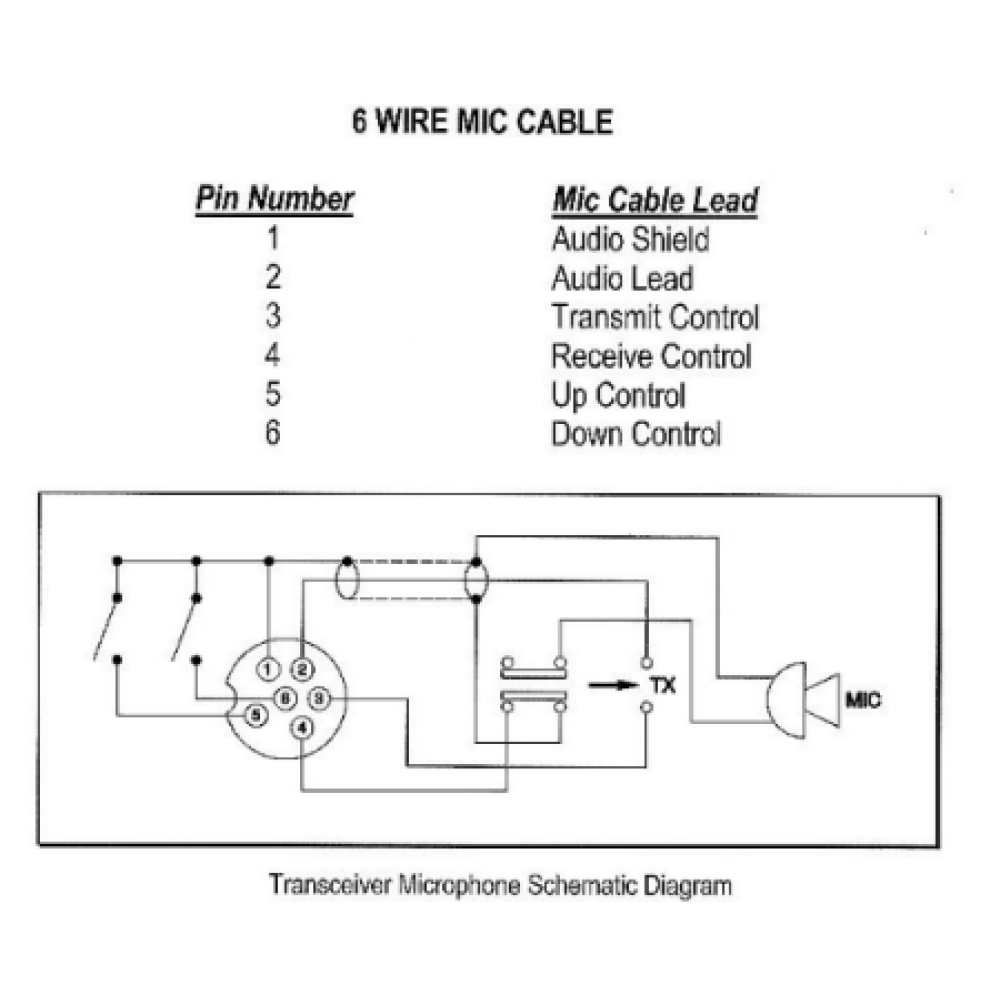

Microphone400 W Dynamic PTT - 6 Pin
Size (W x D x H) 7-7/8" x 11" x 2-3/8"
Weight 4 lb 3 oz
Shipping Weight10 lb.
Transmitter
RF Power Output (Factory OEM)CW / AM / FM: variable 2-10 Watts RMS Peak AM: 25-28 Watts Peak power SSB: 25 Watts (PEP)
RF Power Output (Tuned-Up)CW / AM / FM: variable 1-10 Watts RMS Peak AM: 36-40 Watts Peak power SSB: 35 Watts (PEP)
Current Draw @ Full Power4.8 Amps
ModesUSB, LSB, CW, AM, FM, PA
CW KeyingSemi break-in
Carrier Suppression- 50 dB
Spurious Emission- 50 dB
Antenna ConnectorUHF Type, 50 W
Receiver
SensitivityAM / CW: 0.5 µV for 10 db SINAD FM: 0.25 µV for 12 db SINAD SSB: 0.15 µV for 10 db SINAD
Selectivity- 55db
Image Rejection Ratio- 65 db
Audio Output Power2.5 Watts @ 10% THD into 8 W
