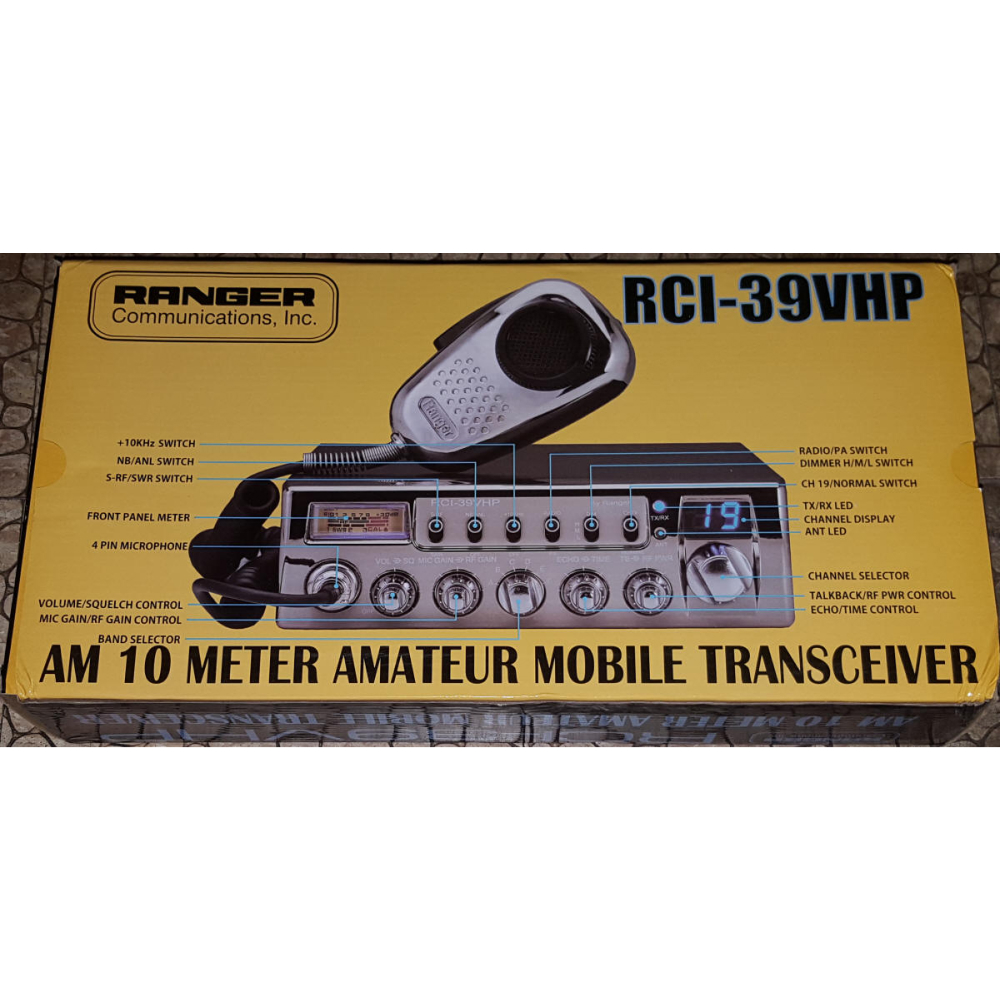

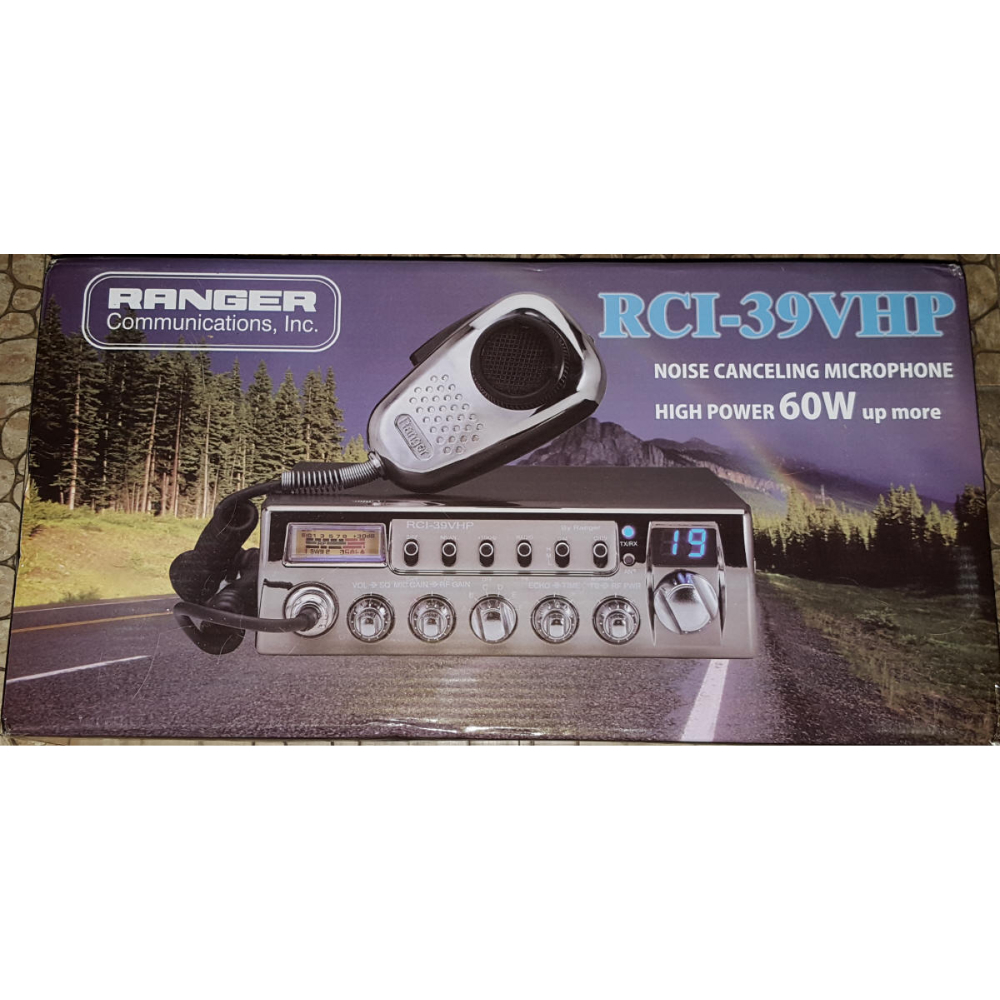

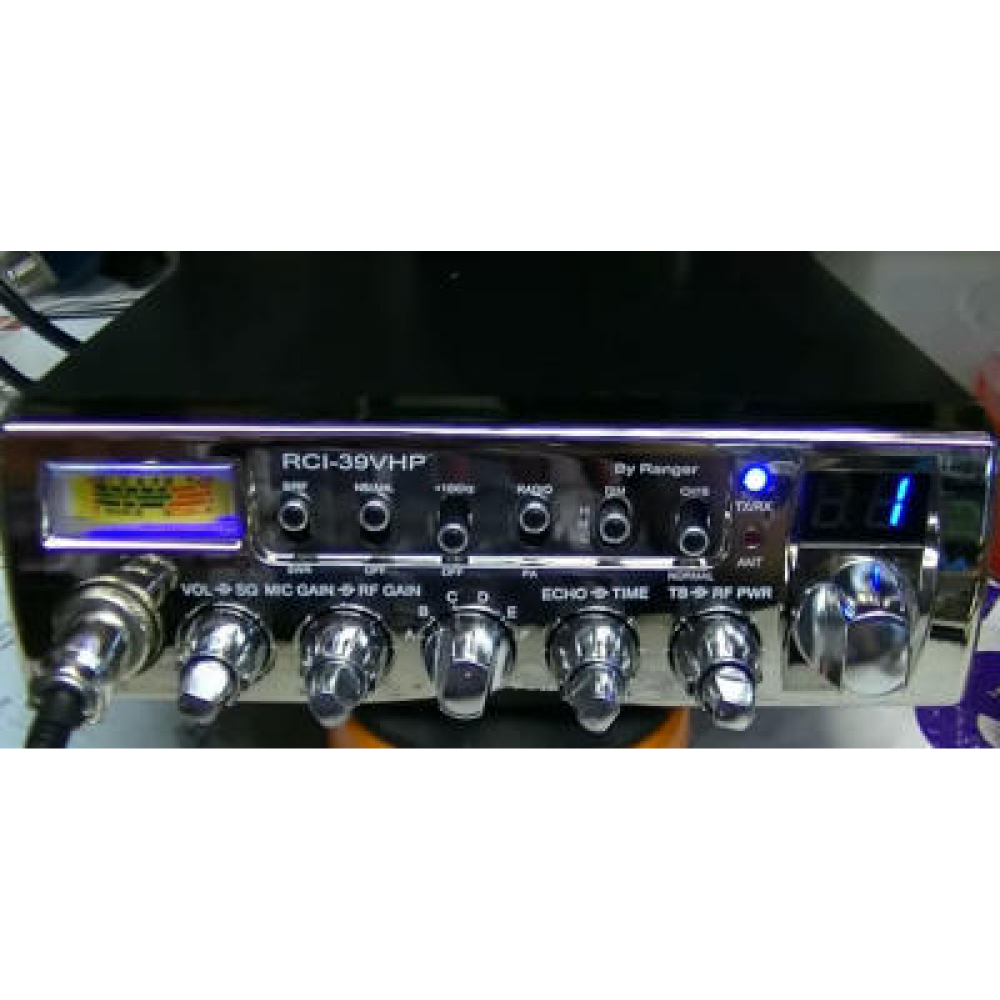

Ranger RCI-39VHP AM 10M Mobile Radio

More information

New April 2018
Smaller size chassis the same size as a Cobra 29 Cb radio. This radio packs a lot of power in a smaller size radio with 80 watts. So this is a DX radio that will now fit in the Cobra 29LTD size holes. Very nice for those with a spot just right for a 29LTD (many standard holes in tractors are made for the Cobra 29 size).

Features

-Cobra 29 Size Chassis.
-Heavy-Duty Back Panel Heatsink, New Design
-Frequency Range:
-28.000 ~ 29.699 MHz (10 Meter Amateur Band)
-RF Output Power:
-80 Watts Peak
-New Smoke Chrome Front Panel
-4pin Front Panel Mic Jack.
-Blue LED Channel Display
-Real Channel Selector Control
-SRA-198 Chrome Noise Cancelling Mic Included
-This is a great mic, no need to upgrade.
-Variable Echo and Talk Back
-3 Stage Dimmer Switch
-Operation Mode:
-AM / PA

Specifications

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it. As a matter of fact the radios chrome face plate is of poor quality and can scratch off and leave white. Some units have even come that way.

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$389.50

Out of stock

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

General
Frequency Range 28.145 - 29.655 MHz
Modes AM
Frequency Control PLL Synthesizer
Frequency Stability 0.001%
Operating Temp. Range - 30 ºC to + 50 ºC
Input Voltage 13.8 Vdc
Antenna Impedance 50 Ohms
Size (W x D x H) 7.25" x 9"x 2.25"
Weight 3.5 Lbs.
Shipping Weight 6 Lbs.
Transmitter
RF Power Output AM: 10W 25W PEAK
Spurious Emission Better than -50 dB
Audio Distortion 10 %
Frequency Response 300 to 2500 Hz
Microphone Noise Cancelling
Receiver
AM Sensitivity for 10 dB SINAD0.5 µV
Squelch Sensitivity 0.5 µV
Image Rejection - 50 dB
Hum and Noise - 40 dB
Audio Output Power 2.5W @ 10% THD
AGC Figure of Merit 80dB for 50mV for 10dB change in audio
Audio Response 300 to 2500 Hz
