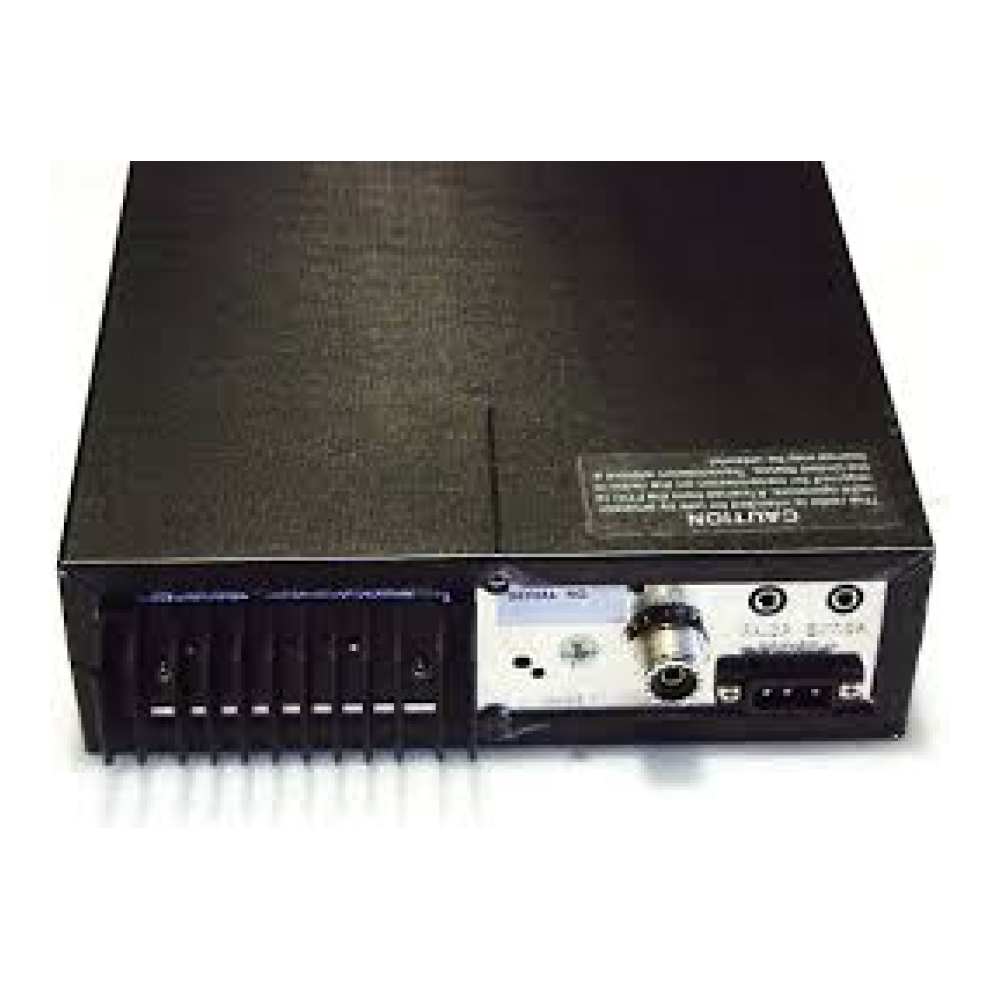

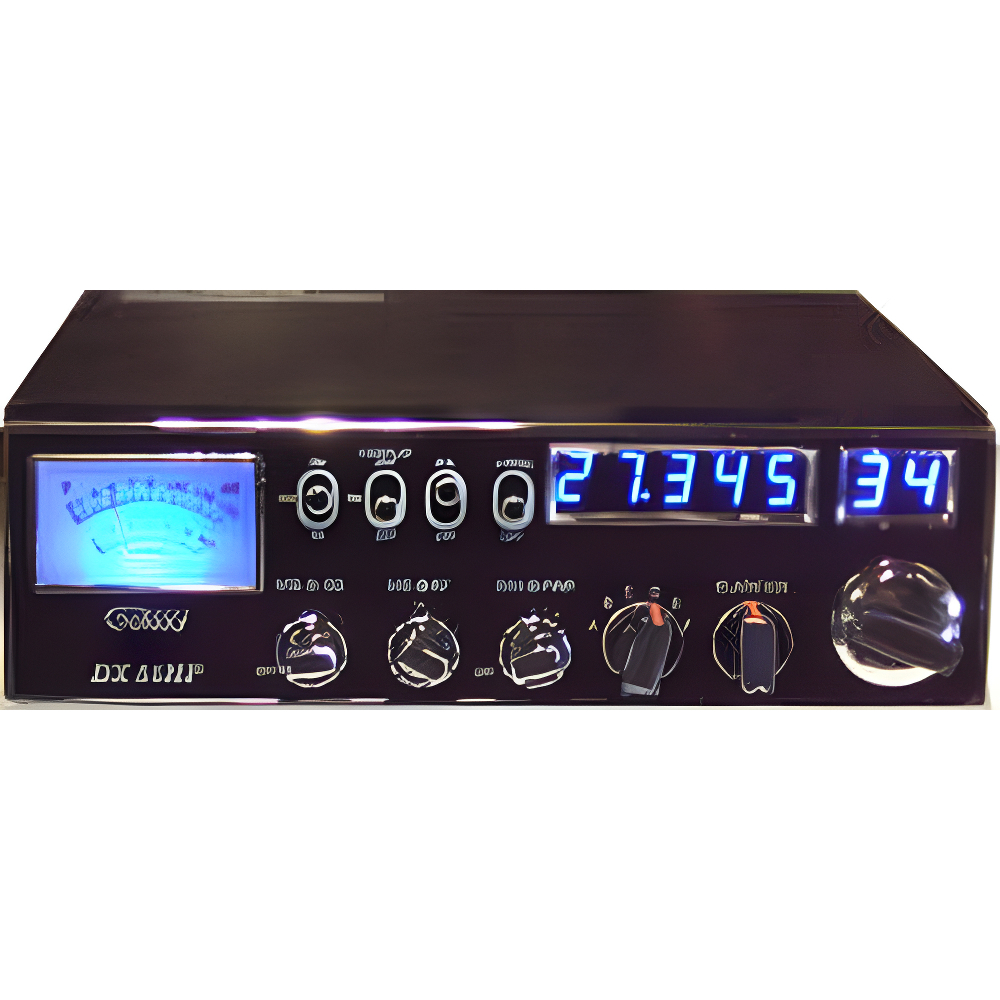

DX 55HP AM/FM 10 Meter Radio

More information

Download Manual

Features

-Frequency Counter (with “ON/OFF” switch)
-Variable Dimmer Control for Meter Lamp, Frequency Display and Channel Readout
-Large Meter with Scales for Signal Strength and Power Output
-Meter glows Red during Transmit
-Roger Beep (with “ON/OFF” switch)
-Noise Blanker/ Automatic Noise Limiter
-+/-10 KHz Switch
-Variable Power Output
-8 Watts Maximum Power Output – AM
-5.0 KHz Clarifier for Receive and Transmit

Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$199.50

Out of stock

Optional Accessories

Recommended For You

Related products

Popup code

Instagram Facebook Youtube Ebay

The world’s leading CB radio store. Hands-on experience. Get talkin’, we’ll help!

Copyright © 2023 All rights reserved

Scroll to Top

Specifications

GENERAL
Channels 40 CH
Frequency Range 28.065 to 28.505 MHz
Frequency Control Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature Range-30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and coiled cord.
Input Voltage13.8V DC nominal, 15.9V max, 11.7V min. (Positive or negative ground). Transmit: AM full mod., 4.5A. Receiver: Squelched, 0.3A. Maximum Audio output, 0.7A
Size 2-3/8” (H) x 7-7/8” (W) x 9-1/4” (D).
Weight 5 bs.
Antenna Connector UHF, SO239
Meter (2-in-1) Illuminated; indicates relative output power and received signal strength.
TRANSMITTER
Power output AM/FM, HIGH 10 watts, LOW 2 watts
Modulation High-and low-level Class B, Amplitude Modulation: AM. Variable capacitance Frequency Modulation: FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators Meter shows relative RF output power. Transmit LED glows red when transmitter is in operation.
RECEIVER
Sensitivity AM: 1.0 mV for 10 dB (S+N)/N at greater than ½ -watt of audio output. FM: 1.0 mV for 20 dB (S+N)/N at greater than ½-watt of audio output.
Selectivity AM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel Rejection60 dB AM
RF Gain Control 45 dB adjustable for optimum signal reception.
Automatic Gain Control (AGC)Less than 10 dB change in audio output for inputs from 10 to 100,000 microvolt's.
Squelch Adjustable; threshold less than 0.5 mV.
ANL Switchable
Noise Blanker RF type
Audio Output Power 4 watts into 8 ohms.
Frequency Response 300 to 2800 Hz.
Built-in Speaker 8 ohms, round.
External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
