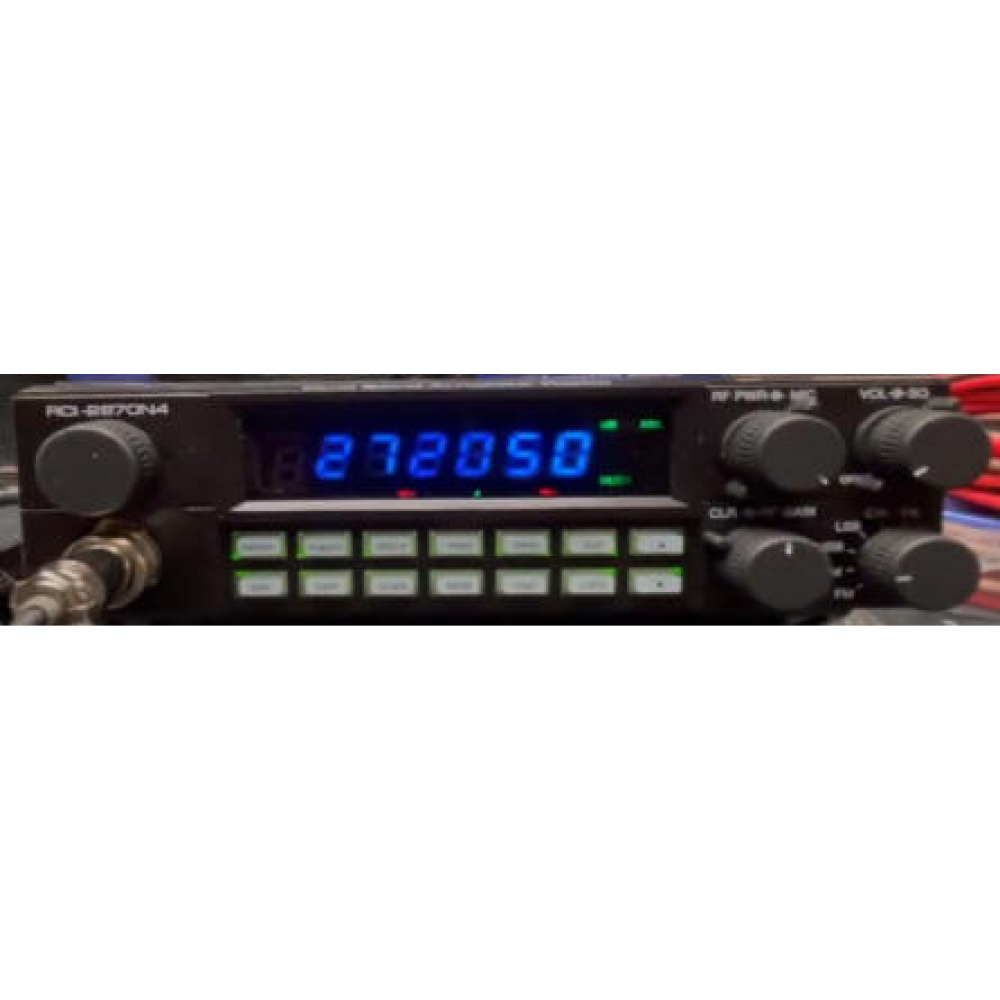

Ranger RCI-2970N4(CD) AM/FM/SSB/CW 10 Meter Radio
More information
Ranger Communications once again sets the performance and reliability standard for entry level amateur mobile transceivers with the latest generation of their popular RCI-2970N4.
Introducing the new RCI-2970N4: This new model feature microprocessor control of not one but two amateur bands. The new RCI-2970N4, rated at 400W PEP, is perfect for the recent band openings on 10 and 12 meters. Now you can upgrade your mobile Ham capabilities with a radio that is rich in features and reasonable in cost.
The new model has retained the operating features of its popular predecessor, including programmable repeater offset and capabilities for a CTCSS tone option — great for increasing repeater activity on 10 meters — and receiver scanning for quick search of active frequencies. The unit offers three methods of frequency selection, non-volatile memory to store and scan up to ten favorite frequencies, and front panel frequency selector lockout.
Warranty and support is provided by Ranger USA at https://rangerusa.com/warranty or by phone at 619-271-4035. All support requests, defects and warranty concerns need to go through Ranger directly.
- 4x 2SC2879 Transistor Amplifier Board for 400W+ output.
- An improved receiver: designed for increased sensitivity and image rejections.
- Double FET balanced mixer: for improved receiver inter-modulation rejection.
- Surface mount components: for increased resistance to shock and vibration.
- Improved display lighting: for easy reading in a wide range of light conditions.
- Variable Power Output
Features
Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Ranger might though and I cannot control it.
- 10 & 12 Meter Mobile Amateur Radio
- AM/FM/USB/LSB/CW/PA
- 400+ watts
- Improved Receiver Design
- Variable Output Power Control
- Receiver Clarifier (+/-0.5kHz)
- Noise Blanker/ANL Circuitry
- Programmable Repeater Offset
- Large Frequency Display with Dimmer
- New Backlite Display
- Active Frequency Scanner
- 16 Programmable/Erasable Frequencies
- Frequency Selector Lockout
- Public Address Feature
- Model: RCI-2970N4
- Frequency Range: 12 Meter: 24.8900 – 24.9900 MHz
- Frequency Range: 10 Meter: 28.0000 – 29.6999 MHz
- Tuning Steps: 100 Hz, 1 KHz, 10 KHz, 100 KHz, 1 MHz
- Emission: AM/FM/USB/LSB/CW
- Frequency Control: Phase-Lock-Loop (PLL) Synthesizer
- Frequency Tolerance: 0.005%
- Frequency Stability: 0.001%
- Temperature Range: -10C to +50C
- Antenna Impedance: 50 Ohm
- Input Voltage: 13.8V DC Normal @ 50 AMP
- Size: 7 7/8″ (W) x 11 1/8″ (D) x 3 1/4″ (H)Weight: 8 lb. 3 oz.
- RF Transmit Modes: AM/FM/USB/LSB/CW
- Antenna Connectors: Standard SO-239 type, 50 Ohms
- Modulation: 16F3, A3E, J3E, A1A
- Spurious Emission: > 60 dB
- Carrier Suppression: -50 dB
- Microphone: Plug-in (6-Pin) 400 Ohm dynamic; with push-to-talk switch and coiled cord
- Meter: RF Output, RX Receive Signal Strength, SWR
Transmitter: - RF Power Output: AM/FM/CW: 200 watts; USB/LSB: 400 watts Peak Power
- Receiver:
- Sensitivity: AM/CW: 0.5 uV for 10dB Sinad;
- Sensitivity: FM: 0.25 uV for 12dB Sinad
- Sensitivity: USB/LSB: 0.15 uV for 10dB Sinad
- Image Rejection: -65 dB
- AGC Figure of Merit: SSB/CW/AM : 80dB at 50mV for a 10dB change in Audio Output
- Audio Power Output: 2.5W
- Contents:
- 10 & 12 Meter RCI-2970N4 Radio
- 6 Pin Stock Microphone
- DC Power Cord
- Mounting Bracket with Hardware
- User’s Manual
- UPC
- Color: Black
- Manufacturer’s Limited Warranty – 2 Year(s)
Radios requiring technical services may be delayed 3 to 7 days
