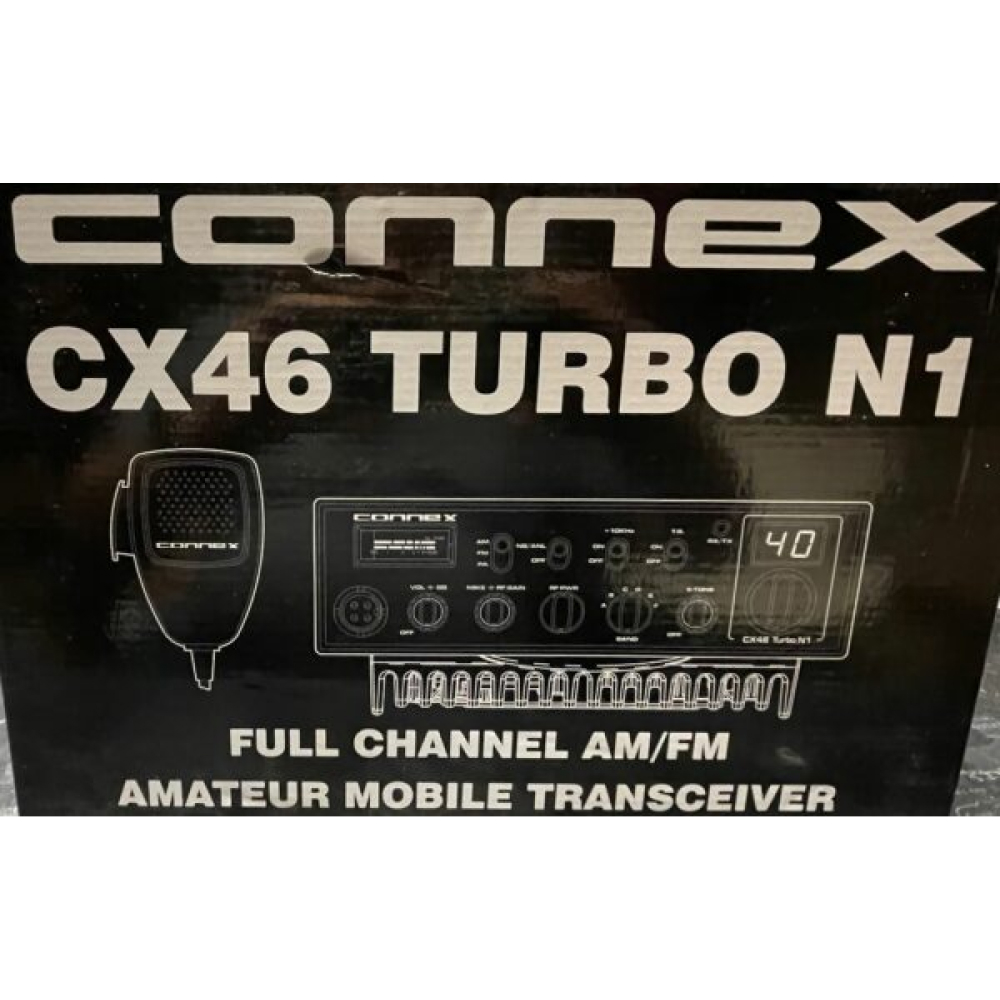

Connex CX-46TurboN1 AM/FM 10 Meter Radio
Connex CX-46TurboN1 AM/FM 10 Meter Radio - Image 2
Connex CX-46TurboN1 AM/FM 10 Meter Radio - Image 3
Connex CX-46TurboN1 AM/FM 10 Meter Radio - Image 4
Connex CX-46TurboN1 AM/FM 10 Meter Radio - Image 5
Connex CX-46TurboN1 AM/FM 10 Meter Radio - Image 6

Videos

.

, ,

Connex CX-46TurboN1 AM/FM 10 Meter Radio

More information

The Connex CX46 Turbo N1 is a high-performance 10-meter amateur radio designed for enthusiasts who require significant signal reach and clear communication. It is essentially a modernized, high-power version of the classic Connex 3300, delivering roughly five times the power of its predecessor.

Key Features and Performance

This radio is built for power and ease of use, making it a popular choice for mobile installations in trucks or as a base station.

  • Exceptional Power Output: It delivers over 200 watts of peak power (often reaching 250+ watts after professional tuning), ensuring your signal remains strong over long distances.

  • Audio Enhancements: Includes a built-in echo board with dual controls for volume and delay, along with a switchable talkback feature to monitor your own audio.

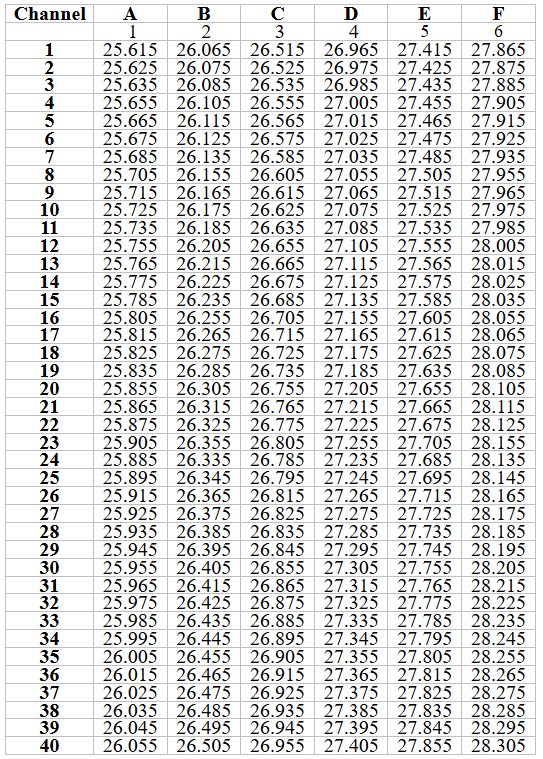

  • Operating Modes: Supports both AM and FM modes across six frequency bands (28.000MHz – 29.700MHz).

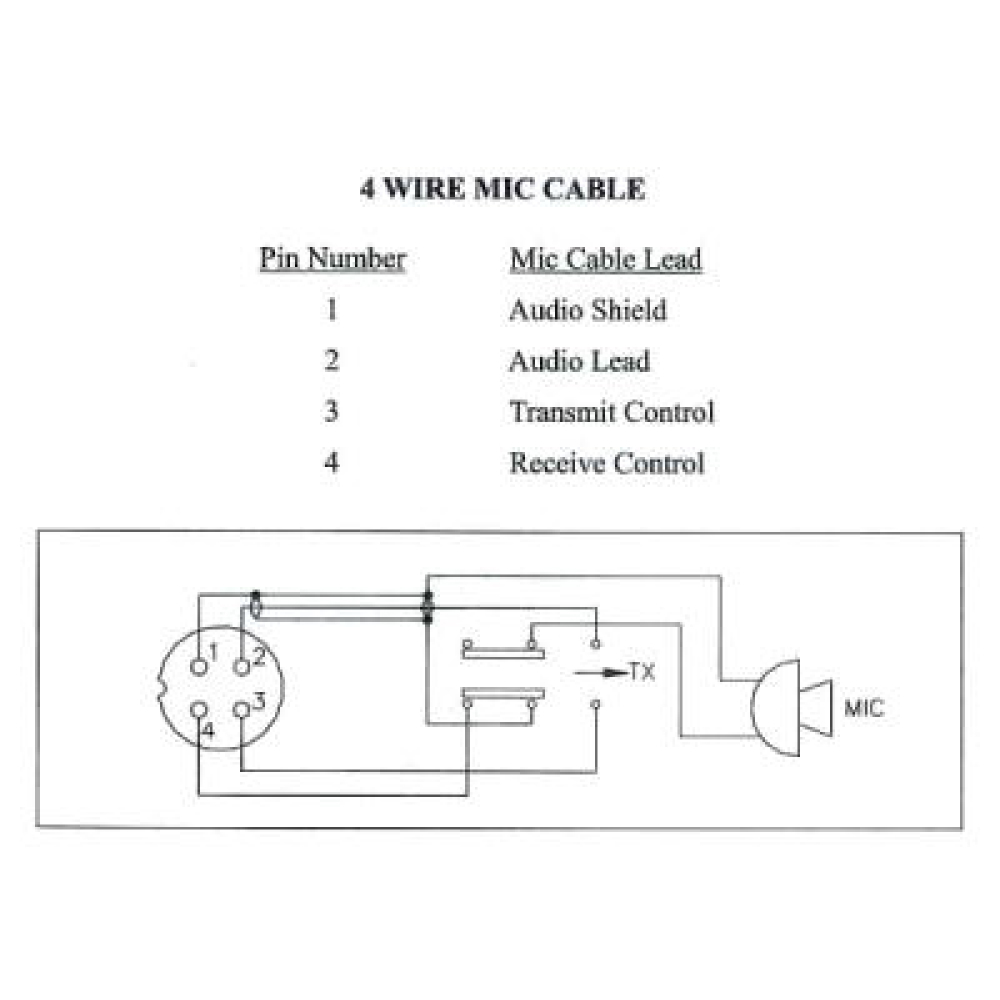

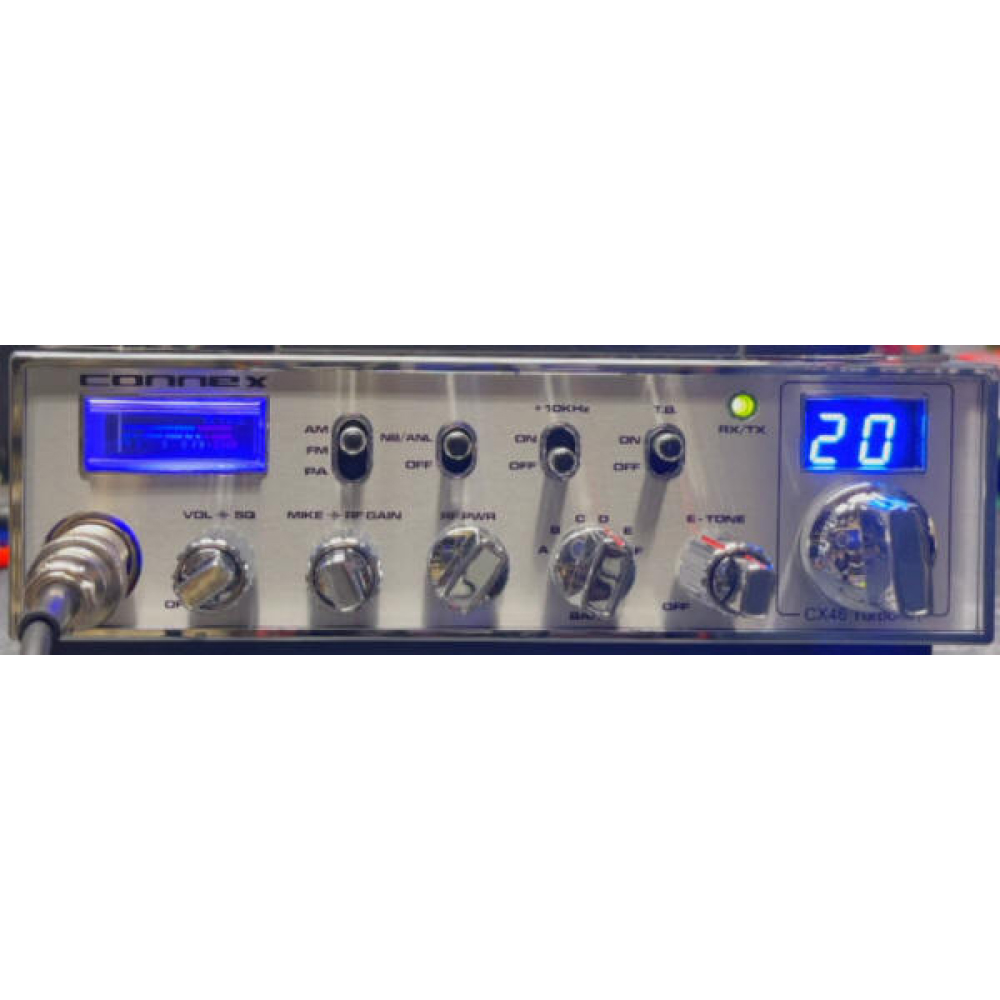

  • User Interface: Features a classic layout with blue LED channel and meter lighting, a front-mounted 4-pin microphone jack, and a variable RF power control.

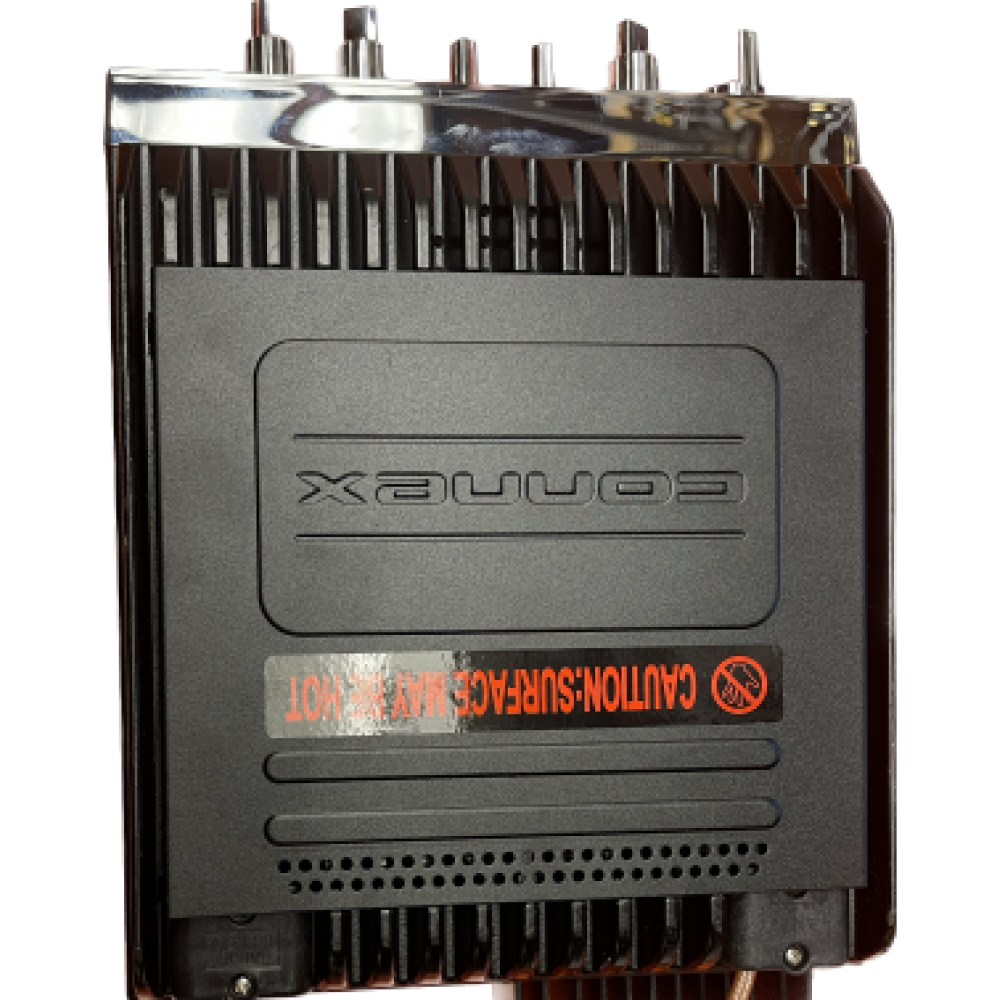

  • Heavy-Duty Build: Designed with a bottom-facing heatsink and a 2-pin heavy-duty power connection to handle the high current draw (typically 25–45 Amps).

The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.

Features

  • Frequency Range: 28.000MHz to 29.700MHz

  • Power Output: 200W+ PEP

  • Dimensions: 11 1/8″ (D) x 7 7/8″ (W) x 3 1/4″ (H)

  • Controls: Mic Gain, RF Gain, Volume, Squelch, Band Selector, Echo/Talkback

  • Features: +10 kHz switch, NB/ANL static reduction, and RX/TX indicator LEDs

  • 30 Watts FM /AM carrier power

  • 150+W AM peak power

  • BLUE meter light

  • BLUE Channel LED

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • PA

  • Echo Board with Two Controls

  • Talk Back “ON” during Echo

  • Two Power Output Levels High / Low

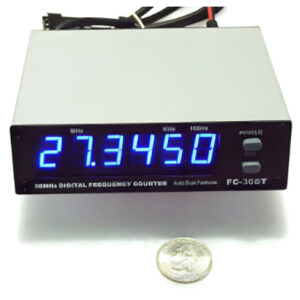

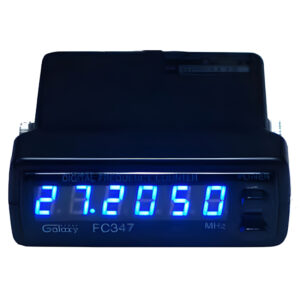

  • Pre-wired for FC 347 or FC-30 Frequency Counter

  • Length 11 1/8″ (from SO-239 to control knobs) Width 7 7/8″ Height 2 7/8″

Radio Specifications

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$599.50

Upgrade Performance

Tune UP
Tune-up and frequency conversion
(Tune-up, Alignment and expanded frequency coverage)
$39.50
Perform Receiver Improvement Modification
Perform Receiver Improvement Modification
These mods replace key RX parts for better sensitivity.
$26.00

other upgrades

10ft 8G Power Wire Extension & Assemble
10ft 8G Power Wire Extension & Assemble
We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord. *** THIS IS SOLD WITH RADIO ONLY ***
$25.00
Install a Record/Playback Module
Install a Record/Playback Module
Wired inside the radio with two push buttons on the side to record 120 seconds and to play it back.
$77.50

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Install amp switch

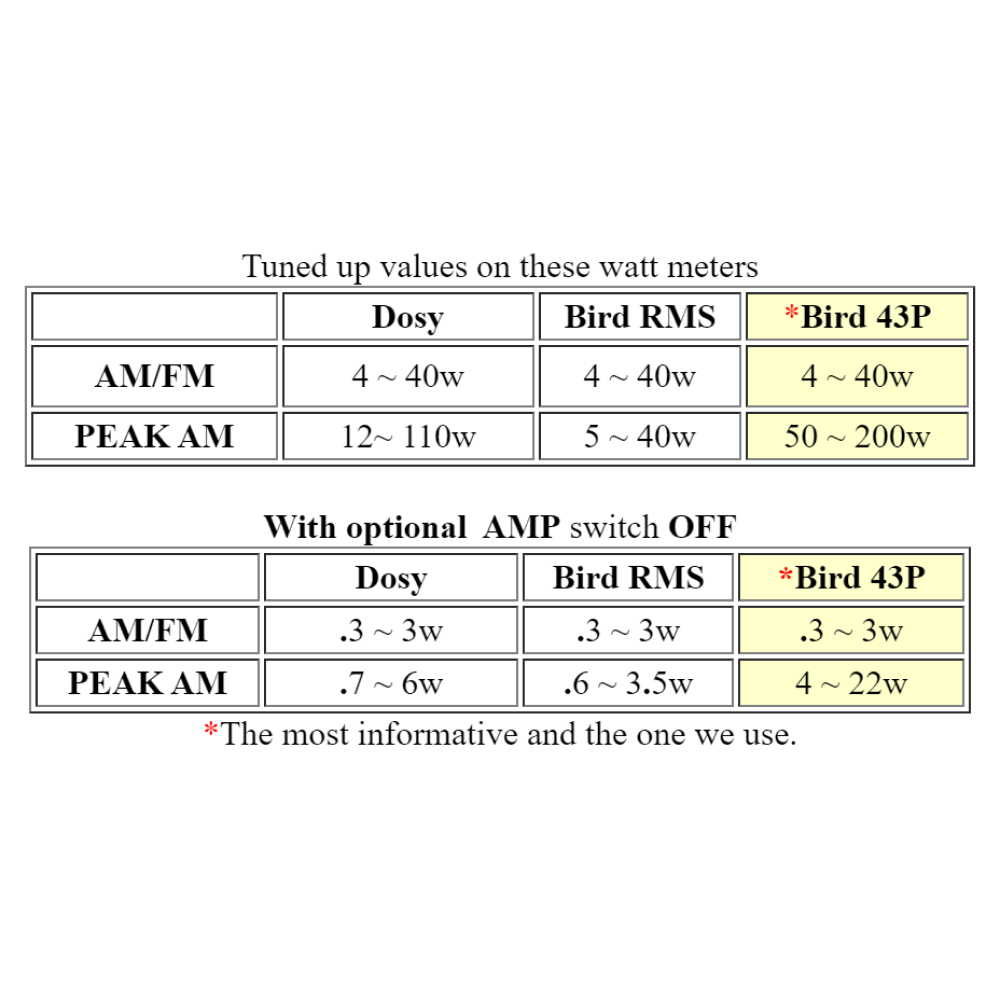

Install a switch to turn off the 175+w amp. In front in the NB location or the side or the back.

Сhange The Appearance

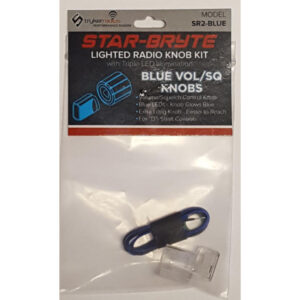

Install Starbryte Knobs & Rings

Install Star-Bryte Knobs with dimmer control circuit integrated into the radios dimmer. Includes a 6 Knob set, parts and labor. (The picture will show a BLUE color but we will install the color you choose. It is just for an example.)

Install Starbryte Rings ONLY

Install Starbryte Rings ONLY (NO KNOBS) behind the factory knobs with dimmer control circuit integrated into the radios dimmer. Includes 6 LED Rings ONLY, parts and labor. (The picture will show a BLUE color but we will install the color you choose. It is just for an example.)

Upgrade Microphone

Astatic 636L Noise Canceling microphone
Astatic 636L Noise Canceling microphone
$34.50
RK-56B Microphone
Turner RK-56B Noise Canceling microphone
Pre-wired with high quality 4 pin Plug for Cobra / Uniden / President / Galaxy / Radio Shack / Ranger
$46.50
D104-M6 Amplified Microphone
D104-M6 Amplified Microphone
Amplified microphone (wired 4-pin and a Duracell battery added)
$59.50

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00

Add a power Supply

PSV-300
PSV-300
to run this as a Base Station in the house.
(+$109.00)
Order total:

Recommended For You

Related products

Popup code

Scroll to Top

Radio Specifications

GENERAL
Frequency Range 28.065 to 28.505 MHz
Frequency Control Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance 0.005%
Frequency Stability 0.001%
Operating Temperature -30 °C to +50 °C.
Microphone Plug-in dynamic; with push-to-talk switch and coiled cord.
Input power13.8V DC nominal, 15.9V max, 11.7V min.(Positive or negative ground).
Transmit:AM/FM Hi Power 25A.
Receiver:Squelched, 0.3A. Maximum Audio output, _ 0.7A.
Size Size 7 3/4" x 2 7/8" x 10 1/4"
Weight 12.0 1bs.
Antenna Connector UHF, SO239
MeterIlluminated; indicates relative output power, received signal strength.
Transmitter
Power output AM/FM, - Selectable 40W/4W
AM Peak Power 150+ Watts.
Modulation High-and low-level Class B, AM Variable capacitance FM.
Spurious Emissions 60 dB
Frequency Response AM and FM: 450 to 2500 Hz.
Output Impedance 50 ohms, unbalanced
Output Indicators Meter- shows relative RF output power. Transmit LED glows red when transmitter is in operation.
Receiver
SensitivityAM: 0.5 mV for 10 dB (S+N)/N at greater than ½ -watt of audio output. FM: 1.0 mV for 20 dB (S+N)/N at greater than ½-watt of audio output.
SelectivityAM/FM: 6 dB @ 3 KHz, 50 dB @ 9 KHz.
Image Rejection More than 65 dB.
IF Frequency AM/FM: 10.695 MHz 1st IF, 455 KHz 2nd IF
Adjacent-Channel Rejection60 dB AM
RF Gain Control45 dB adjustable for optimum signal reception.
Automatic Gain Control (AGC)Less than 10 dB change in audio output for inputs from 10 to 100,000mV.
SquelchAdjustable; threshold less than 0.5 mV.
ANLSwitch-able
Noise Blanker RF type
Audio Output Power4 watts into 8 ohms.
Frequency Response300 to 2800 Hz.
Built-in Speaker8 ohms, round. or External Speaker (Not Supplied) 8 ohms; disables internal speaker when connected.
