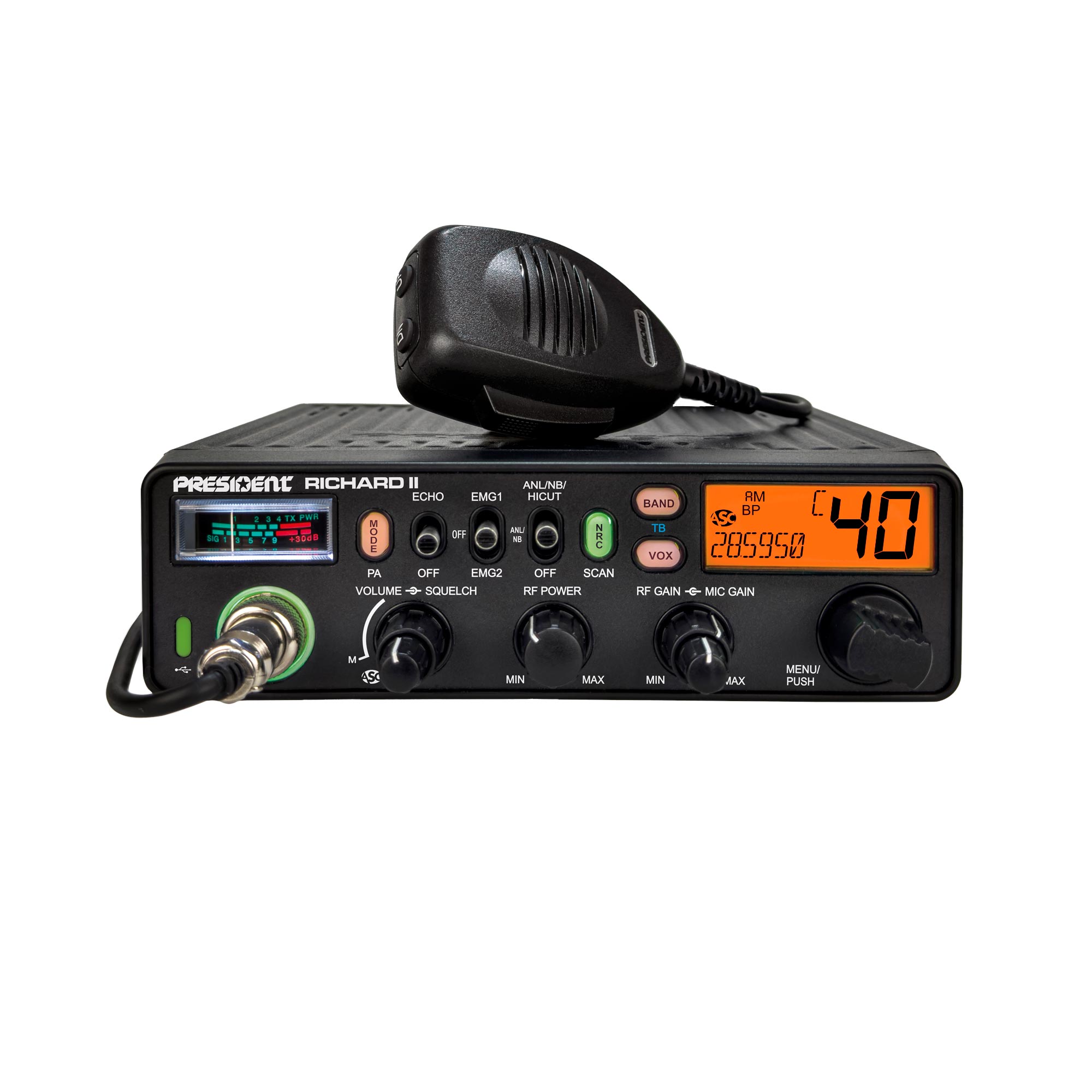

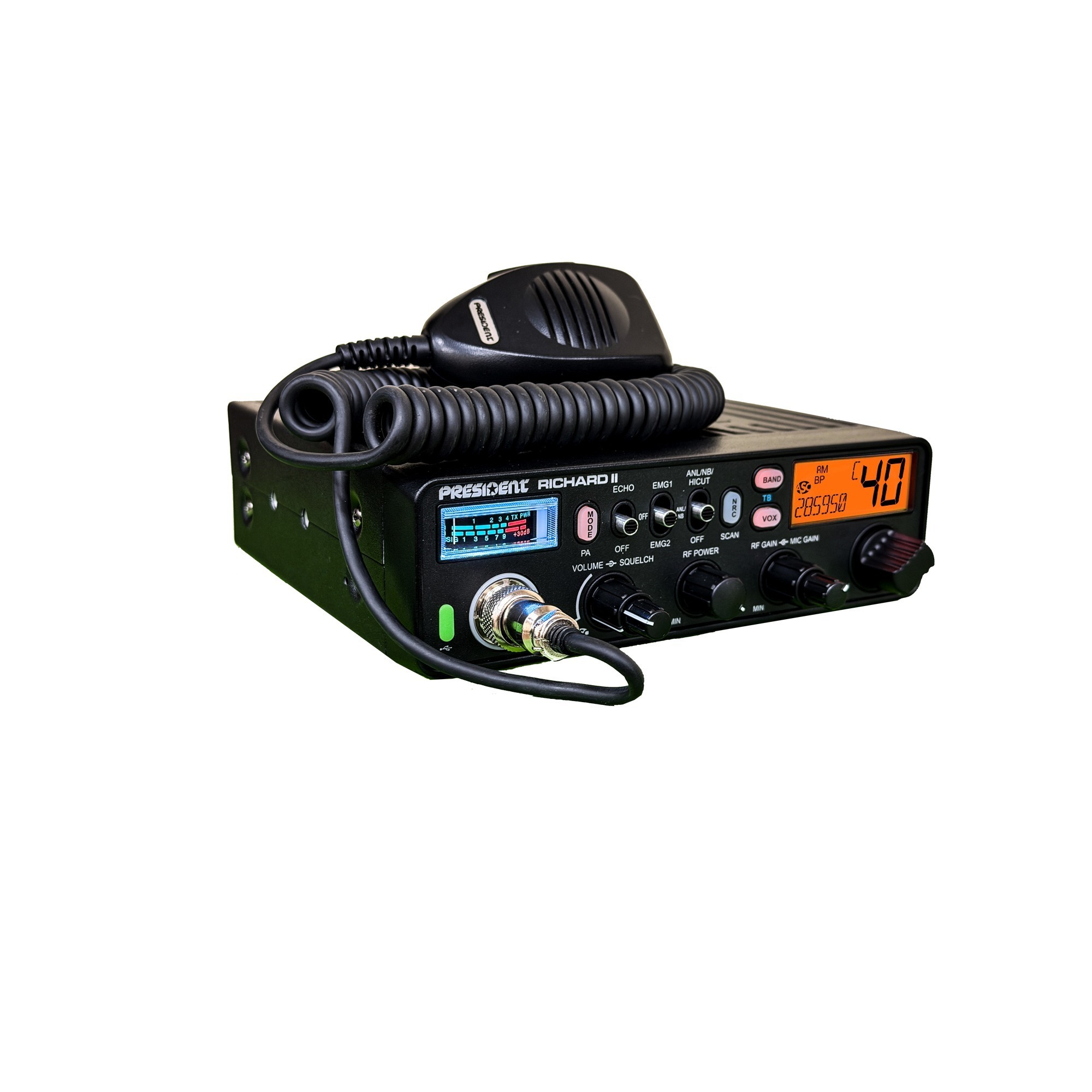

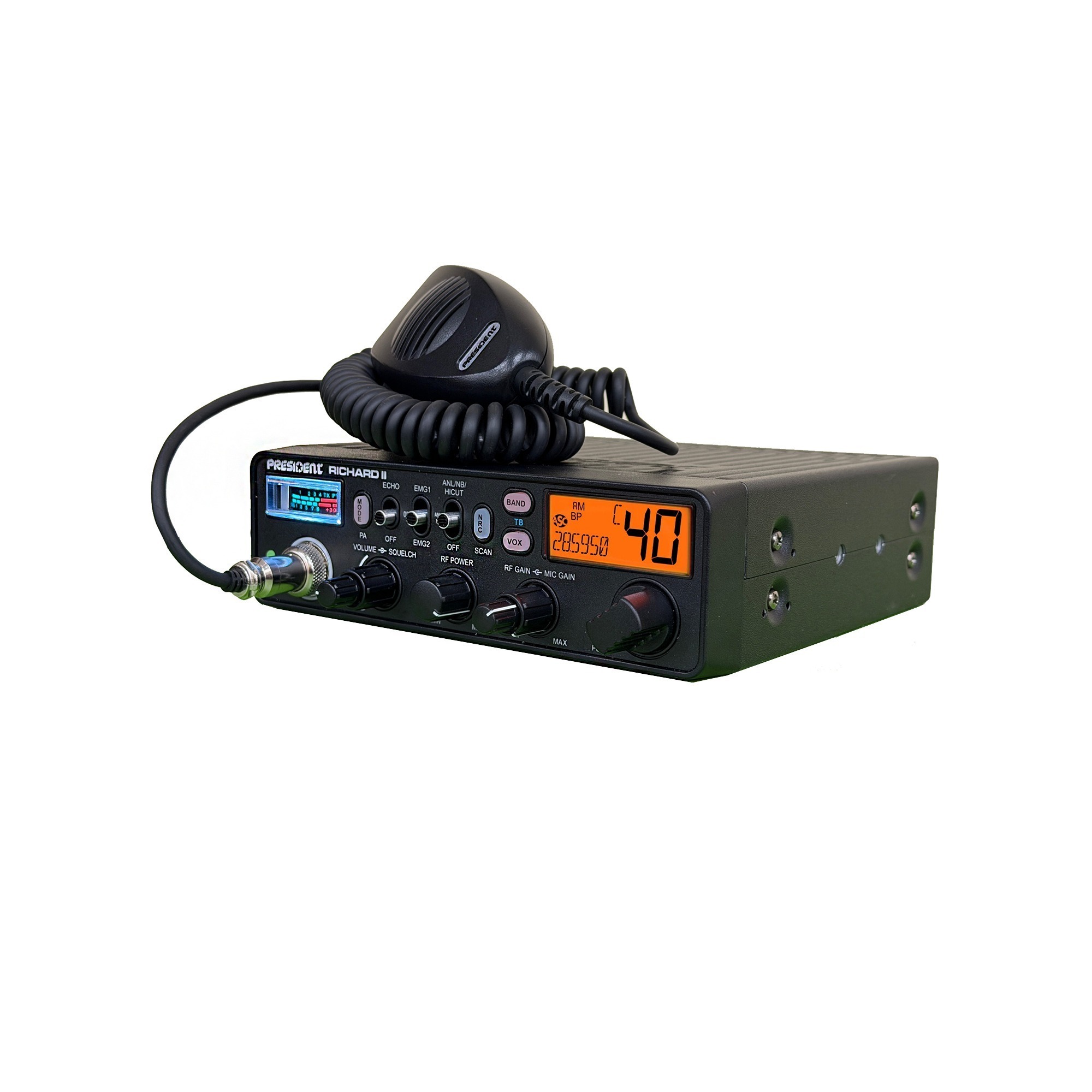

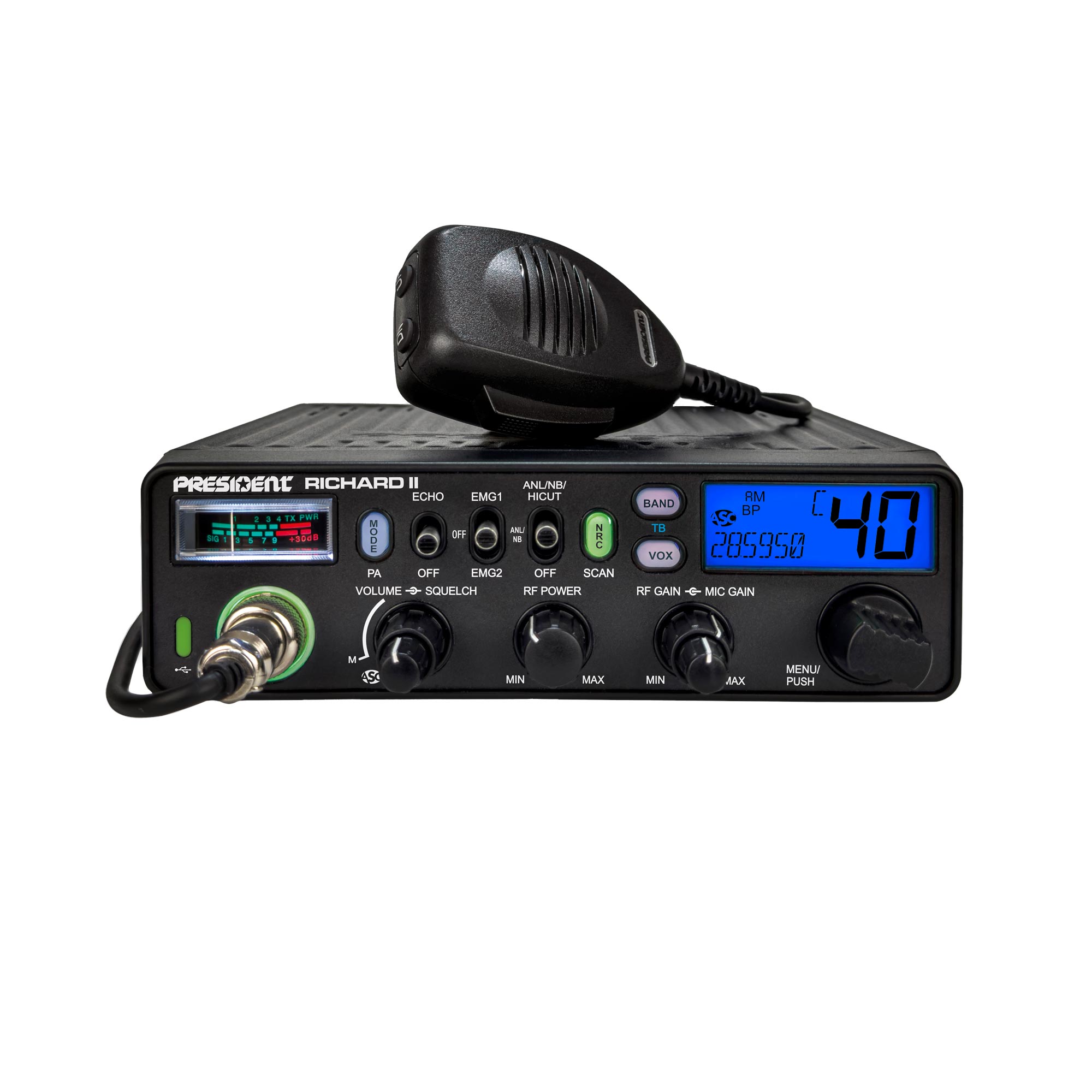

President Richard II AM/FM 10 Meter Radio

More information

Step into the next era of amateur radio with the President Richard II. This isn’t just another transceiver; it’s a precision-engineered leap forward in personal communication. By leveraging the latest technology, They have ensured a level of build quality and signal performance that satisfies even the most meticulous operators. To truly unlock the full potential of this rig, we recommend a quick deep dive into the manual before you begin your installation.

The Richard II adds premium features with Noise Reduction Circuit (NRC), Voltage Protection, SWR protection and more. The increased size of the front panel (OEM Truck Size) enhances ease of use for drivers while maintaining the popular classic style of the original version.

Warranty: President radios are backed with a 2-year warranty. When purchased with an external President antenna, the radio warranty increases to 5 years under our 2+3 program.

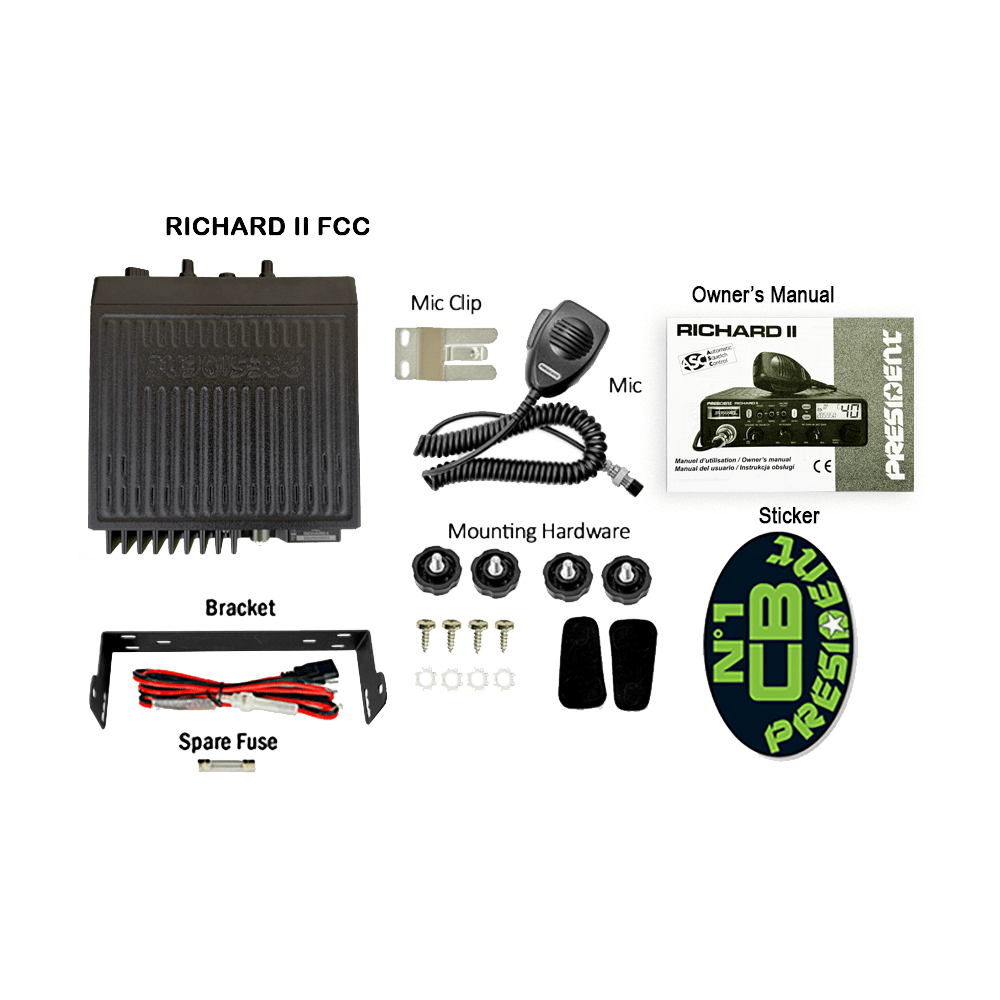

What’s in the box: Transceiver, electret UP/DOWN microphone with support, support, mounting cradle, screws, fused power cord and manual.

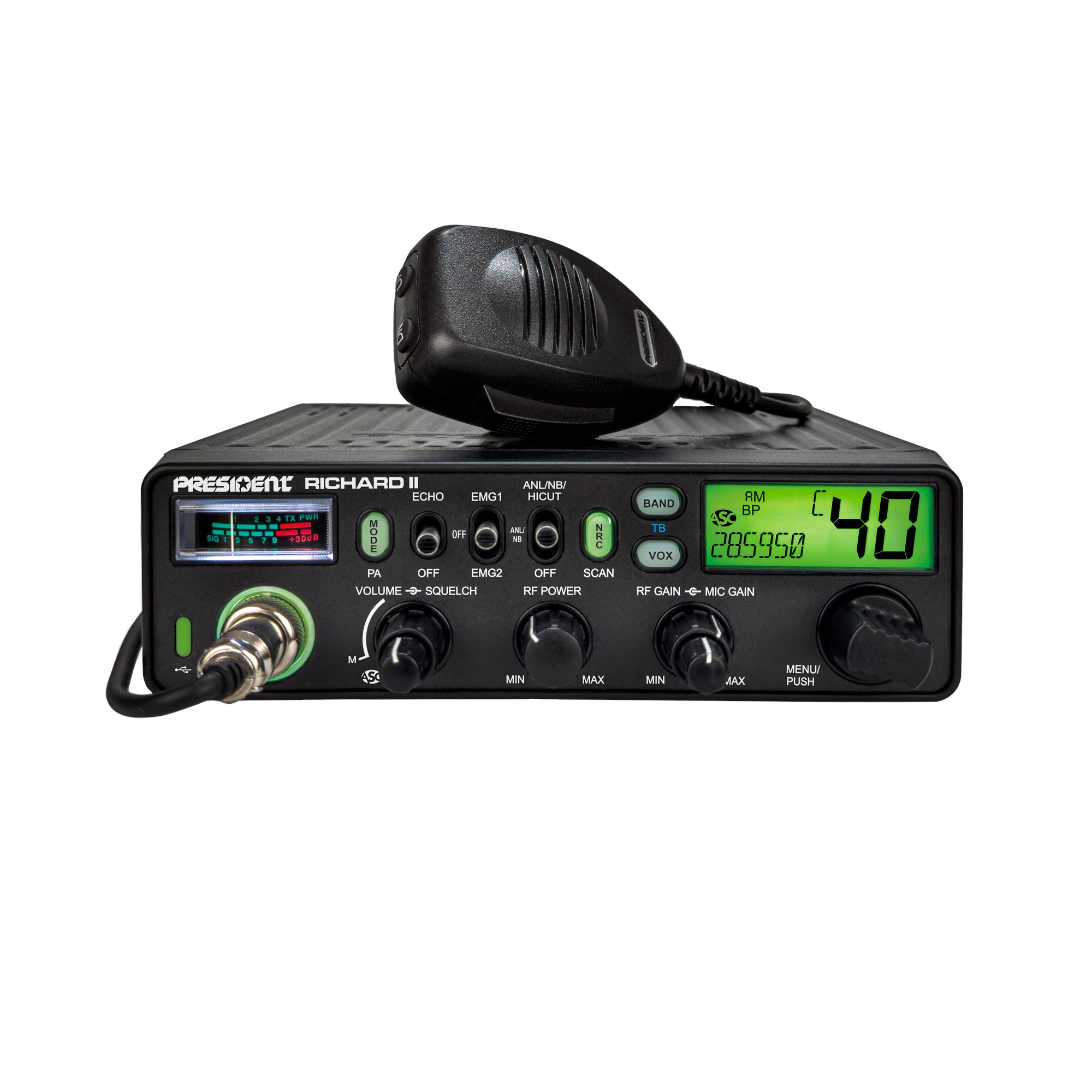

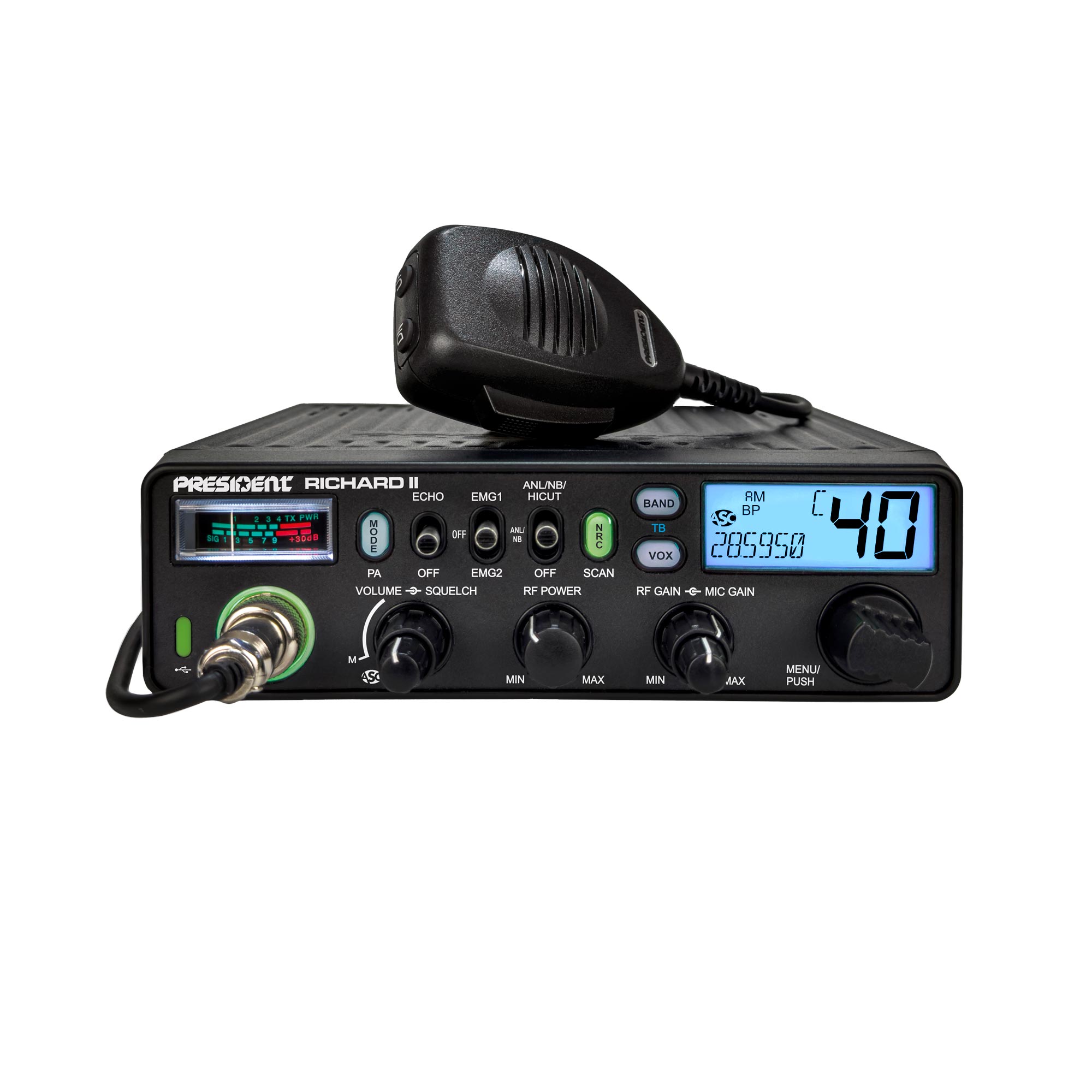

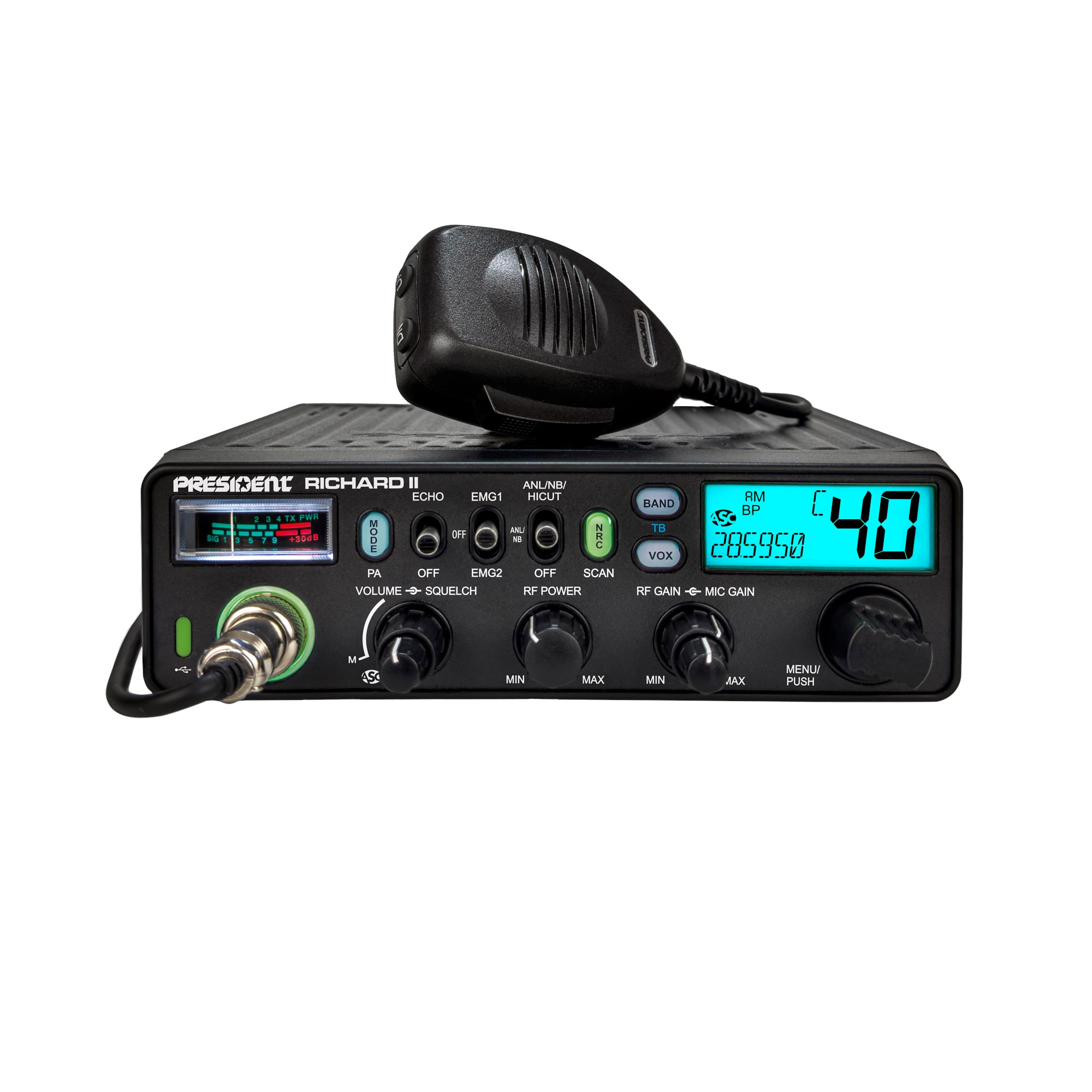

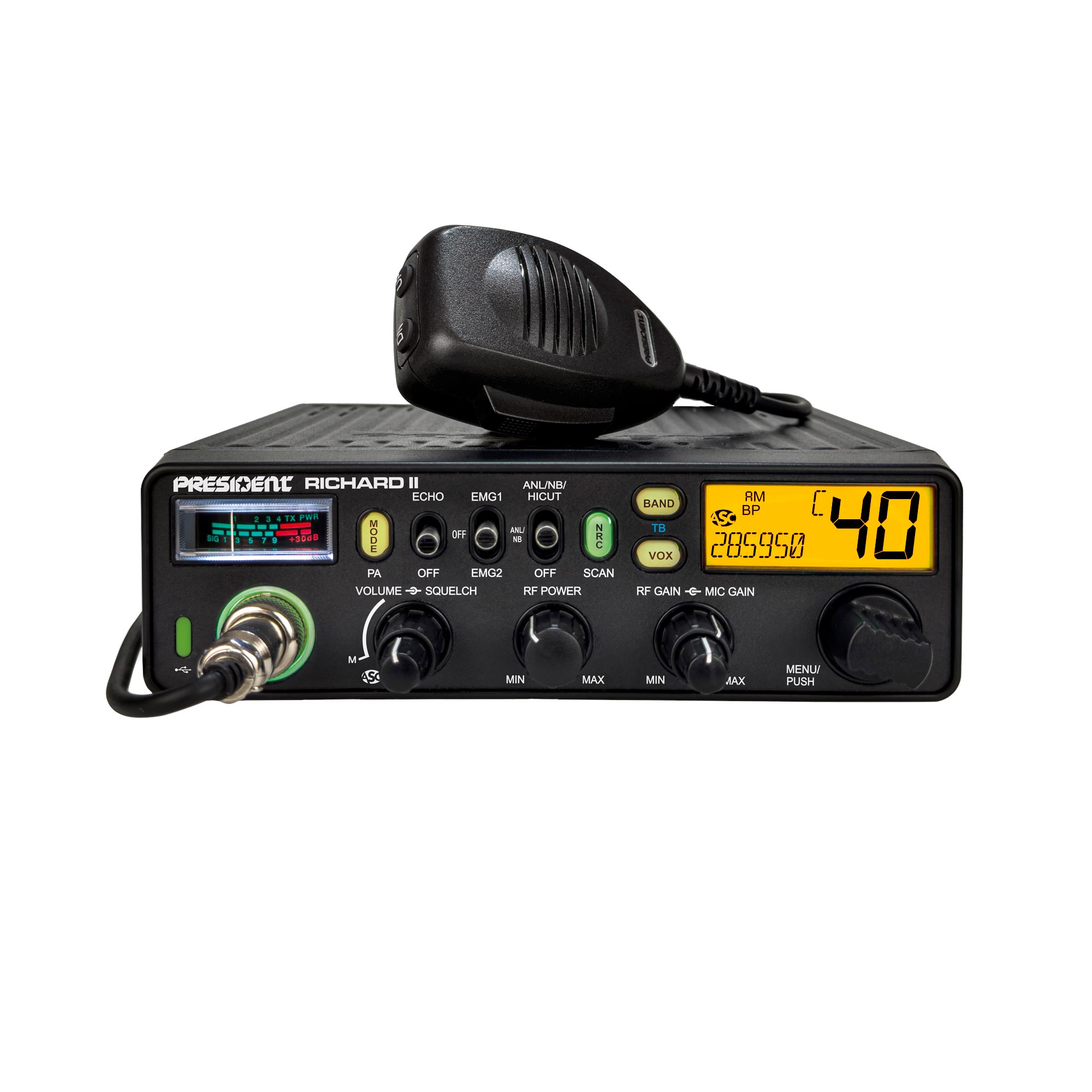

Back light color:

Features

Size : 7.283″ (W) x 7.480″ (D) x 2.165″ (H)
OEM Truck Size :  ✔
Power Supply : 12 V
AM :
FM :
Channel Scan :
Scan Skip :
SWR Meter :
SWR Protection :
Voltage Protection :
Filter ANL :
Filter NB :
Filter HI-CUT :
NRC :

Radio Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services take 7-14 business days from date of order.

$199.50

Upgrade Performance

Tune UP
Frequency Conversion and Simple Tune-Up
Frequency Conversion ONLY and SIMPLE Tune-up
$25.00

other upgrades

Install a Record/Playback Module
Install a Record/Playback Module
Wired inside the radio with two push buttons on the side to record 120 seconds and to play it back.
$77.50

Install a Noise toy

(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)

Upgrade Microphone

DIGIMIKE Noise Cancelling Microphone
DIGIMIKE Noise Cancelling Microphone
Pre-wired with high quality 6 pin Plug.
$47.00
Astatic 636-L wired 6 pin President/Magnum Noise Canceling Microphone
Astatic 636-L wired 6 pin President/Magnum Noise Canceling Microphone
$49.50
President Remote BT Microphone
President Remote BT Microphone
$54.50
Turner RK-56B wired 6 pin President Noise Canceling Microphone
Turner RK-56B wired 6 pin President Noise Canceling Microphone
Wired for this radio with a 6 pin plug.
$61.50
Astatic D104-M6 wired for 6pin President Amplified Microphone
Astatic D104-M6 wired for 6pin President Amplified Microphone
Wired for this radio with a 6 pin plug and a battery installed.
$78.50

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00
Order total:

Recommended For You

Popup code

Scroll to Top

Radio Specifications

General👇
Size7.283" (W) x 7.480" (D) x 2.165" (H)
OEM Truck Size
Weight2.43 lbs
Antenna socketS-20
Antenna impedance50 ohms
Frequency rangesfrom 24.890 Mhz to 24.990 Mhz and from 28.000 Mhz to 29.700 Mhz (continuous scanning)
Power supply (Input Voltage)13.8 V
Microphone Up/DownActivate / Deactivate
Microphone plugfront (6 pins)
Compatible microphone typeElectret , Dynamic
External Vox microphone jack
External loudspeaker jack
Public address
External HP PA socket
USB socket (front)5 V / 2,1 A , USB-C
DisplayLCD multifunction
Dimmer
Channel display
Frequencies display
VFO mode
S-meterVu-meter
Modulation modesAM / FM
Volume adjustment and ON/OFF
SquelchManual squelch
Automatic Squelch Control (ASC)
Channel selectorRotary
F / Menu function key
Key Beep
Roger beepv
Tone
Channel Shortcuts2 , emergency channel (EMG) programmable
Span
Channel Scan
Scan Skip
RF Power
RF Gain
RF Gain
Talkback
Hands Free (Vox)
Automatic SWR meter
SWR Meter
SWR Protection
Voltage Protection
Echo
TOT
Filter ANL
Filter NB
Filter HI-CUT
NRC
Transmission👇
Frequency allowance± 300 Hz
Carrier power13 W AM (~50 W PEP) / 40 W FM
Power limitation4/10W
Transmission interference < -50 dBm
Audio response300 Hz to 3 kHz
Emitted power in the adj. channel< 20 μW
Microphone sensitivity3 mV
Drain7 Amp
Modulated signal distortion2%
Reception👇
Max. sensitivity at 20 dB sinad0.7 μV - 110 dBm (AM) / 0.35 μV - 116 dBm (FM)
Frequency response300 Hz to 3 kHz
Adjacent channel selectivity60 dB
Maximum audio power3 W
Squelch sensitivitymin. 0.2 μV - 120 dBm / max. 1 mV - 47 dBm
Frequency image rejection rate60 dB
Intermediate frequency rej. rate70 dB
Drain500 mA maximum
