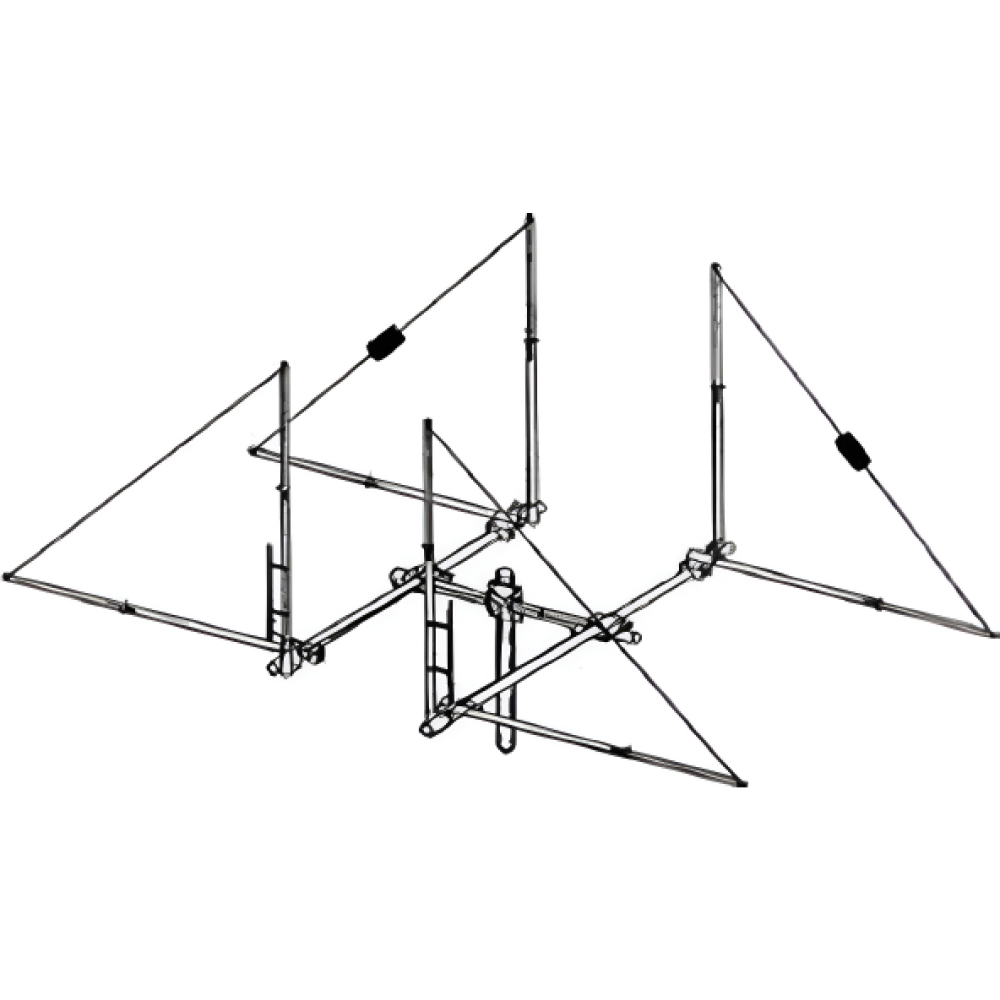

Maco V-QUAD Stacking Kit
More information
The Maco VQSK (V-Quad Stacking Kit) is a specialized accessory designed to combine two beam antennas into a single high-performance array. Below is the detailed product listing.
Maco VQSK V-Quad & M103 Stacking Kit
The Maco VQSK is engineered for radio operators looking to maximize their range and signal strength. By stacking two identical antennas, you increase the effective gain and narrow the beam width for superior long-distance (DX) communication.
-
Dual Compatibility: Specifically designed to stack either two Maco V-Quad beams or two Maco M103C (3-element) beam antennas.
-
Performance Boost: Adds a significant 3 dB of gain over a single antenna installation. For a V-Quad setup, this brings the total array gain to approximately 14 dB.
-
Focus & Rejection: Enhances the front-to-back ratio (up to 40 dB) and side rejection, allowing for better-focused signals and reduced interference from other directions.
-
Rugged Construction: Built with aircraft-alloy 6063-T6 aluminum tubing for high strength and durability against the elements.
-
Mast Compatibility: Lightweight design (8 lbs) makes it suitable for mounting on most standard push-up masts or towers.
Technical Specifications:
-
Frequency Range: 10 / 11 Meters (26–30 MHz)
-
Stacking Boom Length: 10 feet (305 cm)
-
Weight: 8 lbs (3.6 kg)
-
Wind Survival: 90 mph
-
Included Components: 10′ cross boom, stacking mounting hardware, and a specialized coaxial stacking harness.
Radios requiring technical services may be delayed 3 to 7 days
Optional accessories
Select all the accessories you would like added to this product, then select add to cart.
Choose from the many upgrades below BEFORE clicking add to cart
Radios requiring technical services take 7-14 business days from date of order.
$199.00
