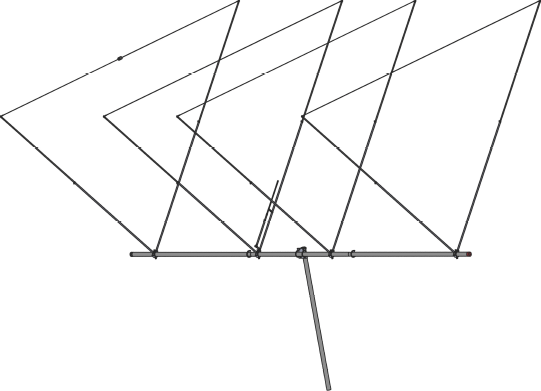

Maco VQ4-VQuad Base Station Beam Antenna
Maco introduces the new VQ4 V-Quad Antenna that has been designed and tested by MaCo Engineering Department. The VQ4 is a 4 element full wave antenna that is great for DXing. It is directional and can be used on horizontal and vertical polarization with one feed line. The VQ4 is tune-able for 10 or 11 meters. As always the MaCo gamma match is fully adjustable to obtain the lowest SWR.
Made of aircraft alloy 6063-T5 aluminum tubing with .050″ wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.
HIGH PERFORMANCE and MADE IN THE U.S.A.
NOTE: We can NOT ship this antenna to anywhere EXCEPT the USA. We are sorry for the inconvenience.
- Boom Length (feet) – 17′
- Boom OD (inches) – 2
- Number of Elements – 4
- Turn Radius (feet) – 16.5′
- Surface Area (sq. ft.) – 8.7
- Wind Survival (mph) – 90
- Tuning (Meters) – 10-11
- Gain (db) – 15.81
- Power Handling – 2KW
- Power Multiplication – 39.5X
- Front-to-Back Sep. (db) – 23
- VSWR (adjustable) – 1.2:1
- Weight (lbs) – 26
- Shipping Dimensions – 82″ x 6″ x 6″
Specifications
