Maco Laser 400 CB Base Station Beam Antenna Dual Polarity
More information

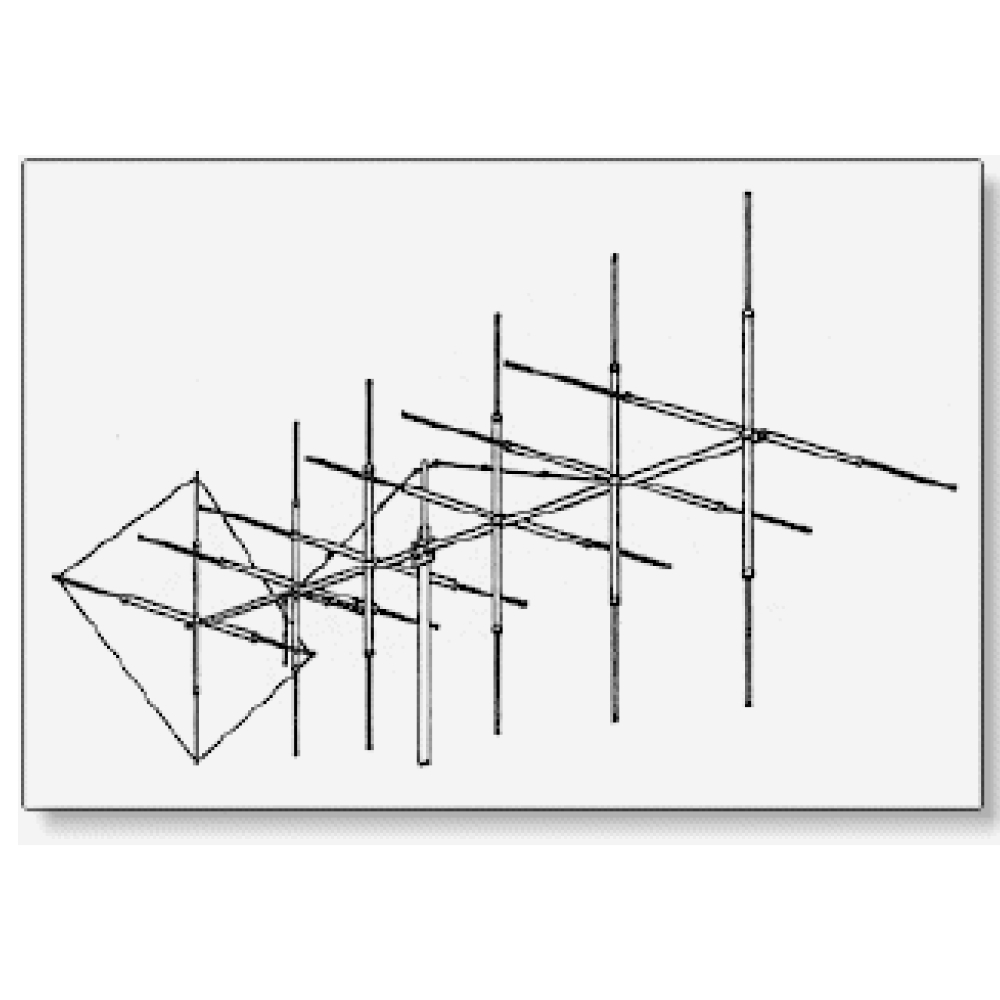

The 12 Element Laser is designed to achieve the maximum gain and front to back ratio using a Quad Reflector and Yagi Parasitic elements. There are six elements horizontal and six elements vertical, scientifically spaced on a 31 ft. boom. The 12 Element Laser is second only to the Super Laser 500. It uses the same top quality aircraft aluminum the larger Laser 500 uses, except uses a 2″ boom.
Made of aircraft alloy 6063-T5 aluminum tubing with .050″ wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.
Power handling is 2000W PEP
HIGH PERFORMANCE and MADE IN THE U.S.A.
NOTE: We can NOT ship this antenna to anywhere EXCEPT the USA. We are sorry for the inconvenience.
- Boom Length (feet) – 31
- Boom OD (inches) – 2
- Number of Elements – 6+6
- Longest Radius (feet) – 18
- Turn Radius (feet) – 17
- Surface Area (sq. ft.) – 10.5
- Wind Survival (mph) – 90
- Tuning (Meters) – 11
- Gain (db) – 17
- Power Multiplication – 50X
- Front-to-Back Sep. (db) – 40-44
- VSWR (adjustable) – 1.1 or less
- Weight (lbs) – 46
- Shipping Weight (lbs) – 50
- Shipping Dimensions – 81″ x 6″ x 6″
Specifications
