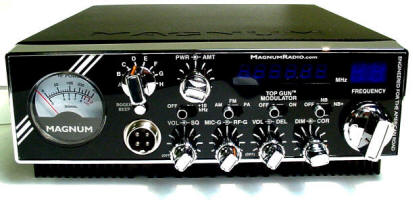

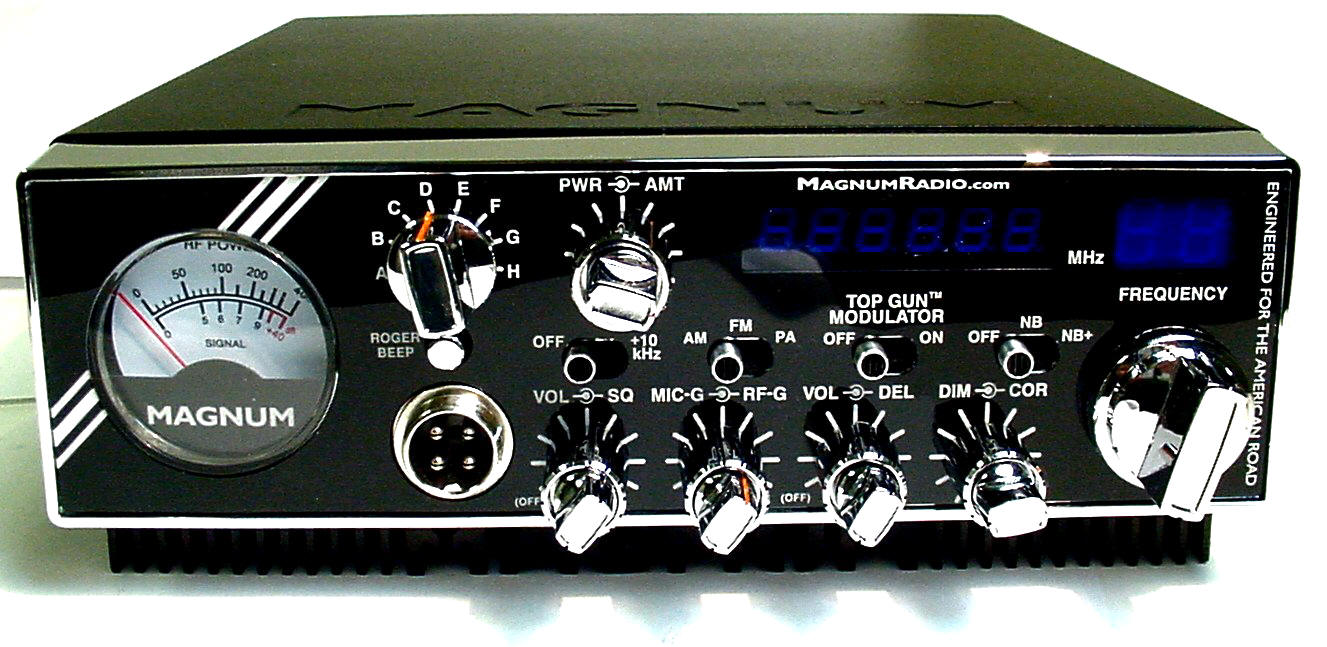

Magnum S-6-350



	Orders with radio work are delayed 7 - 14 days

Features

300+ Watts Peak power
AM/FM/PA
Blue LED Channel and Frequency Counter Displays
Large Round Meter with Blue(RX) and Red(TX) Backlight
3 Stage Dimmer - Controls All Front Panel Lighting
Double-Barrel™ Microphone Jacks - Magnum Exclusive!
The S-6 Features TWO 4-Pin Microphone Jacks - In Parallel!
One on the Left Side and the other on the Right Side
Run Two Different Microphones, or Give a Mic to Your Co-Pilot!
Variable Power Output Control - Operates in ALL Modes
TURBO™ Digital Echo with Dual Controls
AMT - All Mode Talkback with Volume Control on Front Panel
TOP GUN™ Modulator - A Magnum Exclusive!
Turns the S-9's transmitter section into a modulator
low carrier - swing to max watts!
100% modulation for unbelievable power
Modulator On/Off Control on Front Panel
TOP GUN™ Compressor - A Magnum Exclusive!
Compressor Improves Transmitted Audio
Helps Punch Through Crowded Airwaves
Front Panel Band Switch
High SWR Warning Light with On/Off Control
Roger Beep with On/Off Control
+10kHz Switch
Microphone and RF Gain
Noise Blanker / ANL
1 Year Warranty
Shipping: Double Boxed in a 14lb , 21x 14 x 15 box.

Included:

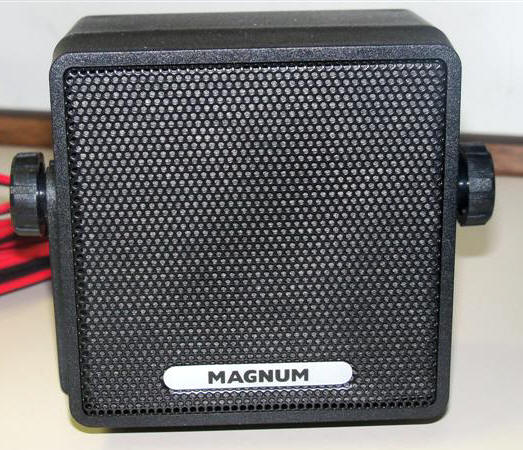

External Speaker.
4 Pin Dynamic Microphone
Short Power Cord
Mounting Bracket and Knobs
Owner's Manual

Magnum S9-350 High Output All Mode10 Meter Radio

Magnum radios sometimes have a small scratch or ding that the factory covers with black touch up. We cannot effect this and do not guarantee your radio to be cosmetically perfect. Bells CB will make no marks or scratches on your radio ourselves. Magnum might though and I cannot control it.

Optional Accessories

Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage)

$39

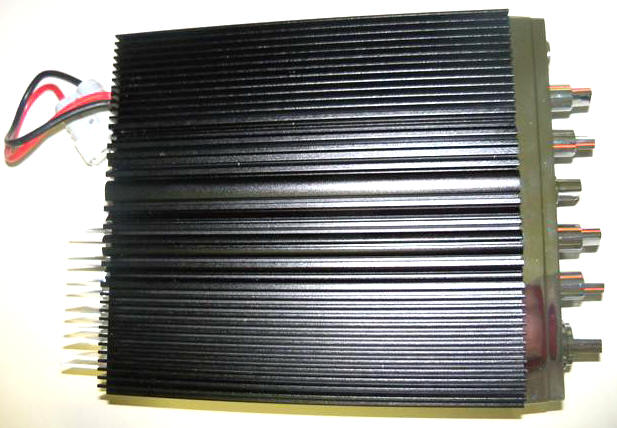

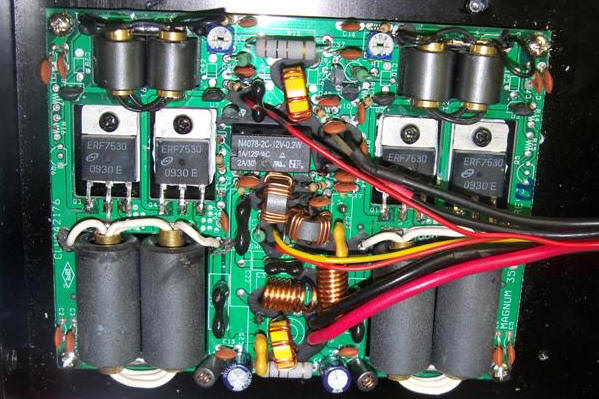

Install a switch in the back to turn off the 350w amp. (wired behind the radio with a switch for on/off)

$13

Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air)

$77

Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)

$65

Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)

$65

Add a Small External Speaker
(plugs into back of the radio for improved sound)

$12

Add a Large External Speaker
(plugs into back of the radio for improved sound)

$25

Install Nitro Knobs with dimmer control. Includes a 7 Knob set , parts and labor.

$165

8 gauge DC Cord Dual 30A Fused 8 gauge wire (14 feet)

$38^.⁵⁰

GENERAL SPECIFICATIONS

Antenna Impedance : 50 ohm, unbalanced
Frequency Control : Digital Phase-Lock Loop (PLL) Synthesizer
Frequency Accuracy : Better than +10 ppm from 0 - 40 0C after 15 min. warm up
Power Requirement : 12 - 13.8 V DC, negative ground
Current Consumption : 7 amps maximum
Dimensions : 7.75 x 3.75 x 10.75 in (W x H x D) (unconfirmed)
Weight : 4 lbs

TRANSMITTER SPECIFICATIONS

Power Output :
Final Transistors :
Spurious Emissions :
Carrier Suppression :
Unwanted Sideband :
FM Deviation : +/- 2 kHz maximum
Audio Response : More than 30dB below peak output
Frequency Response : 400 to 2800 Hz
Microphone Impedance : ECM, 600 to 1K ohms

RECEIVER SPECIFICATIONS

Circuit Type : Dual-Conversion Super heterodyne
Intermediate Frequencies :
                                  1st IF 10.695 MHz
                                   2nd IF 455 kHz
Sensitivity :
   AM:......... 1.0 μV at 10 dB S + N/N
   FM:......... 0.3 μV at 12 dB SINAD
Selectivity :
   ... 6.0 kHz (-6 dB) / 18 kHz (-60 dB)
Clarifier Range : +/- 1.5 kHz (Fine), +/-5.0 kHz (Course)
Adjacent Channel Rejection : Better than 70 dB
IF Rejection :      Better than 80 dB for all frequencies
Frequency Response : 250 to 3000 Hz
Audio Output Power : 2 watts minimum at 10% THD with an 8 ohm load
Audio Output Impedance : 8 ohms
