Texas Ranger TR-696FD1

Mobile CB Radio

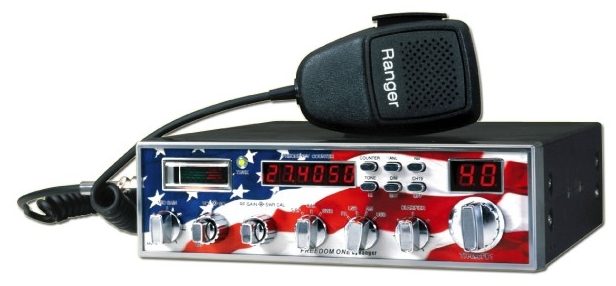

Click image for larger view

TR-696FD1
AM/SSB Mobile CB Radio

The Texas Ranger TR-696FD1 is the latest in the line of "new circuit design" products by Ranger Communications, Inc. Built with ruggedness, durability and reliability in mind, this model will answer your needs for a high performance radio with both AM and SSB operation.

The TR-696F features a new Advanced Noise Filter Circuit for improved signal to noise ratio, providing high noise rejection capability that others just claim they have. This one works! You will instantly notice marginal signals pop in better when you turn on the switch and listen to your reception with a quieter signal. The Advanced Noise Filter circuit de-emphasizes the audio high frequency response in order to increase the signal-to-noise ratio of weak signals. This provides you with the ability to receive those marginal signals with much more clarity and understandability. Combined with the Noise Blanker and the Automatic Noise Limiter, this has to be the quietest mobile stations ever manufactured.

AM, USB, LSB Mode
Switch for Instant Access to Channel 19
Built-in 6 Digit Frequency Counter
Frequency Display On/Off Switch
2 Digit Channel Indicator
Dimmer Switch
PA/CB Switch
2 Color Xmit/Rcv Indicator
Advanced Noise Filter Circuit Switch
Automatic Noise Limiter Switch
Illuminated S/RF/SWR Meter
S/RF/SWR Switch
Noise Blanker Switch
Adjustable Volume/Squelch Control
External PA Jack
External Speaker Jack
RF Gain/SWR/Cal Switch
RF Gain Control
Tone Switch
Clarifier Control
Mic Gain Control
Dynamic Mike Included
Built in Voltage Overload Protection
2 Year Warranty

... Mobile CB Radio ...

$158^.50

*Optional Accessories*
	Tune-up. (perform a tune-up to radio to increase power, audio and performance)	$25
	Tune-up and frequency conversion. (Some radios have internal factory options for expanded frequency coverage / more channels)	$50
	Add a "Slider" option to your frequency conversion (Modified the Clarifier for ability to control frequency, requires complete frequency realignment)	$25
	Turner RK-56 Noise Canceling microphone. (wired for this radio with a 4 pin plug)	$65
	Astatic 636L Noise Canceling microphone. (wired for this radio with a 4 pin plug)	$54
	Astatic D104-M6b Amplified microphone. (wired for this radio with a four pin plug and a battery installed)	$65
	DM-452 Echo Amplified microphone (wired for this radio with a 4 pin plug)	$30
	Install an Echo board. (wired internal to the radio with dual controls on the outside to control speed and echo effects)	$65
	Install a Roger Beep tone board. (wired inside the radio with a switch for on/off)	$55
	Install a Roger Fart board. (wired inside the radio with a switch for on/off)	$55
	Install a 5-tone Roger Beep board. (wired inside the radio with a switch for on/off)	$65
	Install a Noise toy (wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)	$65
	Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)	$65
	Install Talkback (wired inside the radio so that when you talk you can hear yourself)	$10
	Add a Small External Speaker (plugs into back of the radio for improved sound)	$12
	Add a Large External Speaker (plugs into back of the radio for improved sound)	$18

TR-696F Specifications

General	TR-696 F
Frequency Range	26.965 - 27.405 MHz
Emission	AM - USB - LSB
Channels	40 CB
Frequency Control	Phase-Locked-Loop Synthesizer
Frequency Stability	0.001%
Operating Temperature Range	-30º C to + 50º C
Input Voltage	13.8 Vdc
Antenna Impedance	50 W
Speaker Impedance	8 W
Size (W x D x H)	7-7/8" x 9-1/4" x 2-1/8"
Weight	5 lb
Shipping Weight	6 lb. 5 oz
Transmitter
RF Power Output	4 Watts AM; 12 Watts PEP U/L SB
Carrier Emission	Better than -55 db
Spurious Emission	Better than -55 db
Audio Distortion	10%
Frequency Response	300 to 2500 Hz
Microphone	Dynamic
Receiver
Sensitivity for 10 dB SINAD	0.5 µV AM;7nbsp; 0.25 µV SSB
Squelch Sensitivity	Adjustable (threshold less than 0.5 µV )
Image Rejection	-65 dB
Audio Power Output	2 Watts @ 10% Distortion
AGC Figure of Merit	100 mV for 10 dB Change in Audio Output
Audio Response	300 to 2500 Hz
Clarifier Range	1.5 KHz ± 0.5 Hz

To read the review by Popular Communications Magazine, click here: TR-696F Review
