TR-696F
|
|
 Download Manual |

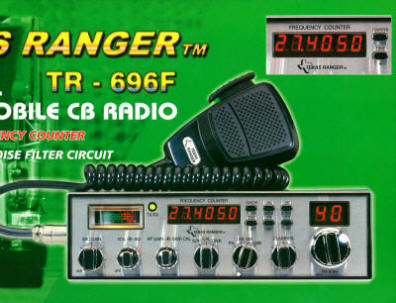

The Texas Ranger TR-696F
is the latest in the line of "new circuit design" products by Ranger
Communications, Inc. Built with ruggedness, durability and reliability
in mind, this model will answer your needs for a high performance radio
with both AM and SSB operation.
The TR-696F features a new Advanced Noise Filter Circuit for improved
signal to noise ratio, providing high noise rejection capability that
others just claim they have. This one works! You will instantly notice
marginal signals pop in better when you turn on the switch and listen to
your reception with a quieter signal. The Advanced Noise Filter circuit
de-emphasizes the audio high frequency response in order to increase the
signal-to-noise ratio of weak signals. This provides you with the
ability to receive those marginal signals with much more clarity and
understandability. Combined with the Noise Blanker and the Automatic
Noise Limiter, this has to be the quietest mobile stations ever
manufactured.
- AM, USB, LSB Mode
-
Switch for Instant Access to Channel 19
-
Built-in 6 Digit Frequency Counter
-
Frequency Display On/Off Switch
- 2 Digit Channel
Indicator
- Dimmer Switch
- PA/CB Switch
- 2 Color Xmit/Rcv
Indicator
-
Advanced Noise Filter Circuit Switch
-
Automatic Noise Limiter Switch
-
Illuminated S/RF/SWR Meter
-
S/RF/SWR Switch
- Noise Blanker
Switch
-
Adjustable Volume/Squelch Control
-
External PA Jack
-
External Speaker Jack
- RF Gain/SWR/Cal
Switch
- RF Gain Control
- Tone Switch
-
Clarifier Control
- Mic Gain Control
-
Dynamic Mike Included
- Built in Voltage
Overload Protection
- 2 Year Warranty
|
 |
|
......DISCONTINUED...... |
|
|
General |
TR-696 F |
|
Frequency Range |
26.965
- 27.405 MHz |
|
Emission |
AM -
USB - LSB |
|
Channels |
40 CB
|
|
Frequency Control |
Phase-Locked-Loop Synthesizer |
|
Frequency Stability |
0.001%
|
|
Operating Temperature Range |
-30º C
to + 50º C |
|
Input
Voltage |
13.8
Vdc |
|
Antenna Impedance |
50
W |
|
Speaker Impedance |
8
W |
|
Size
(W x D x H) |
7-7/8"
x 9-1/4" x 2-1/8" |
|
Weight |
5 lb |
|
Shipping Weight |
6 lb. 5
oz |
|
Transmitter |
|
|
RF
Power Output |
4 Watts
AM; 12 Watts PEP U/L SB |
|
Carrier Emission |
Better
than -55 db |
|
Spurious Emission |
Better
than -55 db |
|
Audio
Distortion |
10% |
|
Frequency Response |
300 to
2500 Hz |
|
Microphone |
Dynamic |
|
Receiver |
|
|
Sensitivity for 10 dB SINAD |
0.5 µV
AM;7nbsp; 0.25 µV SSB |
|
Squelch Sensitivity |
Adjustable (threshold less than 0.5 µV ) |
|
Rejection |
-65 dB |
|
Audio
Power Output |
2 Watts
@ 10% Distortion |
|
AGC
Figure of Merit |
100 mV
for 10 dB Change in Audio Output |
|
Audio
Response |
300 to
2500 Hz |
|
Clarifier Range |
1.5 KHz
± 0.5 Hz |
