Ranger Logo     10 Meter Mobile Radio

2970n4 COLOR

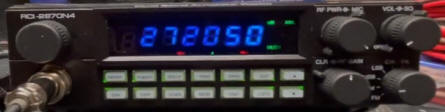

Now with color display

2970N4CD
AM/FM/SSB/CW 10 Meter Radio



Download Manual

  • 4x 2SC2879 Transistor Amplifier Board for 400W+ output.
  • An improved receiver: designed for increased sensitivity and image rejections.
  • Double FET balanced mixer: for improved receiver inter-modulation rejection.
  • Surface mount components: for increased resistance to shock and vibration.
  • Improved display lighting: for easy reading in a wide range of light conditions.
  • Variable Power Output


More features:


  • 10 & 12 Meter Bands
  • Large Frequency Display with Dimmer
  • Improved Receiver Design
  • New Green Back-light Display
  • Variable Output Power Control
  • Active Frequency Scanner
  • Receiver Clarifier (0.5kHz)
  • The new improved 2970N4 has 16 Programmable/Erasable Memory Channels
  • Noise Blanker/ANL Circuitry
  • Frequency Selector Lockout
  • Programmable Repeater Offset
  • Public Address Feature

Ranger radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Ranger might though and I cannot control it.

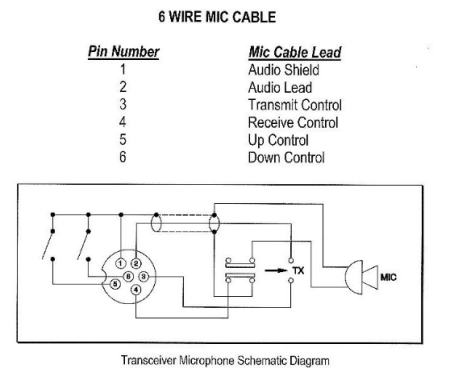

Mic wiring diagram









We ask that if you may need Warranty service on this radio to please send directly to Ranger.  See Ranger warranty info HERE first.<---

















The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites are the
Astatic 636L and RD104E.



Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca



SOLD OUT

Pre-order
Now !!!
...RCI-2970N4...
Arriving here 11-??-21
 $799.50

We highly recommend one of these microphones wired 6-pin because the stock mic sounds like a dixie cup.
Astatic 636L + RD104E.

Optional Accessories
SOLD OUT
 Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage)(AM/FM: 10-100w, Peak AM: 150-425+w,  SSB PEP 300-400+w) $49
 Add a "Slider" option to your frequency conversion Modified the Clarifier for ability to control frequency on TX as well as RX, requires frequency realignment This mod is available to some who want it, but I don't necessarily recommend it) $25
 Install a switch in the back to turn off the 400w amp.
(wired behind the radio with a switch for on/off) (AM/FM: 1-5w, Peak AM: 10-44w,  SSB PEP 20-40w)
$15
 install a CP-1 Top Gun Audio Compressor. (on - all the time) This amplifies your lower level audio on transmit.
NOTE: It becomes difficult to use the Talkback even at low volume with this mod.
$25
Switch Option
 Install Talkback
(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)
$15
or
$20
 Install an Echo Board.  (SIDE)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)
$65
or
$75
 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 6 pin plug)
$44
SOLD OUT
 Astatic D104-M6b Amplified microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$54
Up/Down Buttons?
 Astatic RD104-E Amplified microphone.
(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.
$57
or
$99
SOLD OUT
EC2018XTR Xtreme Echo microphone.
(wired for this radio with a six pin plug and a battery installed)
$86
SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address


 SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger
 any 18 second sound byte you want)
$65

Sound Byte link address


SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background
 music at very low volume so you can talk over it.)
$65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

We will extend the short power cord (1 foot) to a full 10 feet with HQ 8 Gauge Power wire. Assemble the OEM Anderson connector and fuse holder to make a complete power cord (with ends).*** THIS IS SOLD WITH RADIO ONLY *** $25

COMPLETE Power cord for second vehicle or location. $38

Your Email

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $19

4 Pin to 6 Pin microphone adapter $8

Change out the 8 green LED's and install 8 Blue so keyboard is a nice blue color. $39

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $29


Tuned up values on these watt meters
Dosy Bird RMS * Bird Peak
AM / FM 10 ~ 100w 10 ~ 100w 10 ~ 100w
Peak AM 85 ~ 295w 17 ~ 100w 200 ~ 440w
SSB 250 ~ 300w 110 ~ 260w 300 ~ 420w



Tuned up values on these watt meters
With optional  AMP switch OFF
Dosy Bird RMS * Bird Peak
AM / FM .5 ~ 3.5w .5 ~ 3.5w .5 ~ 3.5w
Peak AM 2 ~ 9w 1 ~ 4w 10 ~ 34w
SSB 9 ~ 20w  6w ~ 15w 15 ~ 28w
* The most informative and the one we use.























If you ever need Warranty service;
 We ask that you please send directly to Ranger.
Fill out
this form first.



If you place an order from outside the continental USA, we will calculate your actual shipping and send you a PayPal payment request.  We do NOT export Antennas or Base station radios.
