  Orders with radio work are delayed 3 - 10 days


     10 Meter Mobile Radio

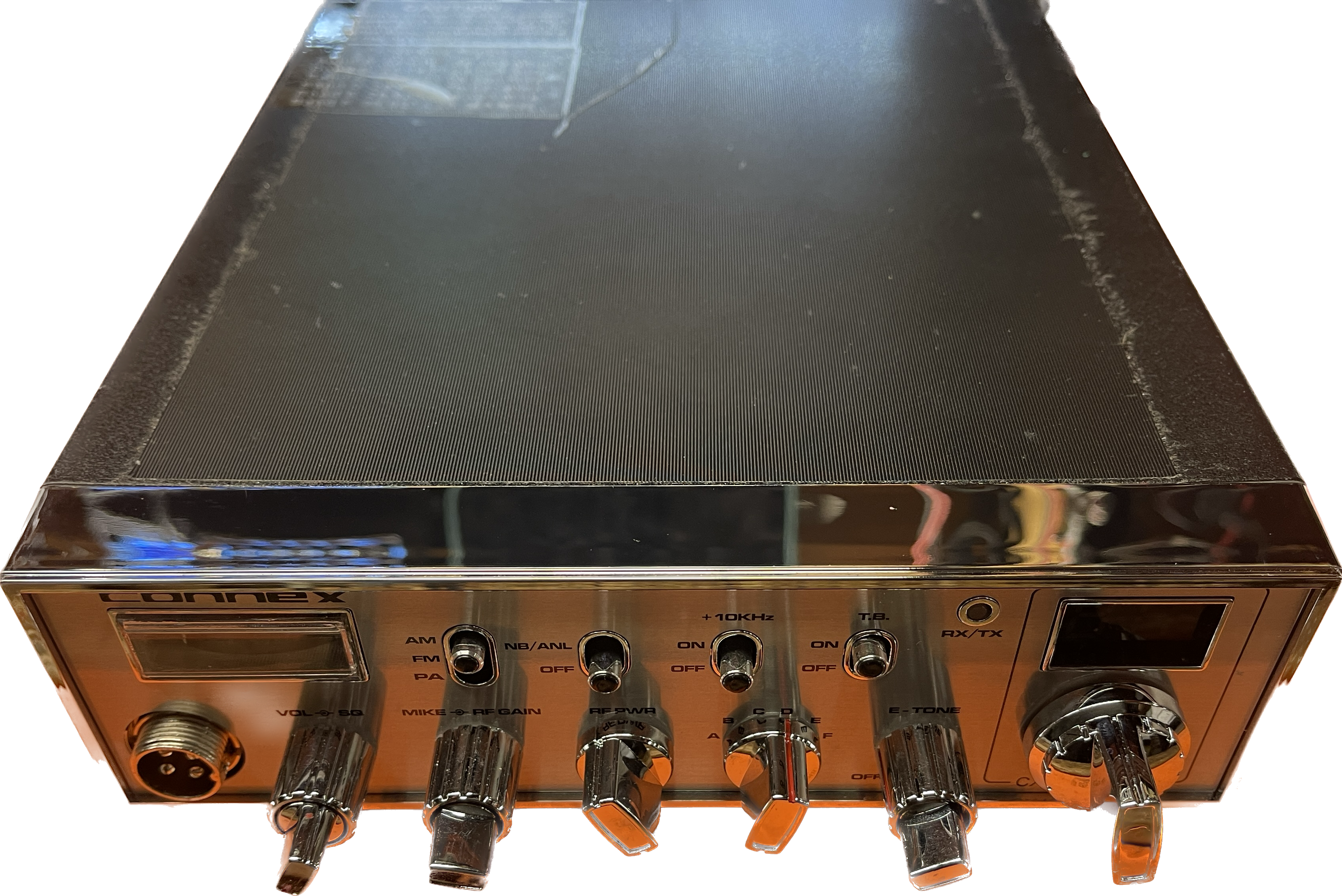

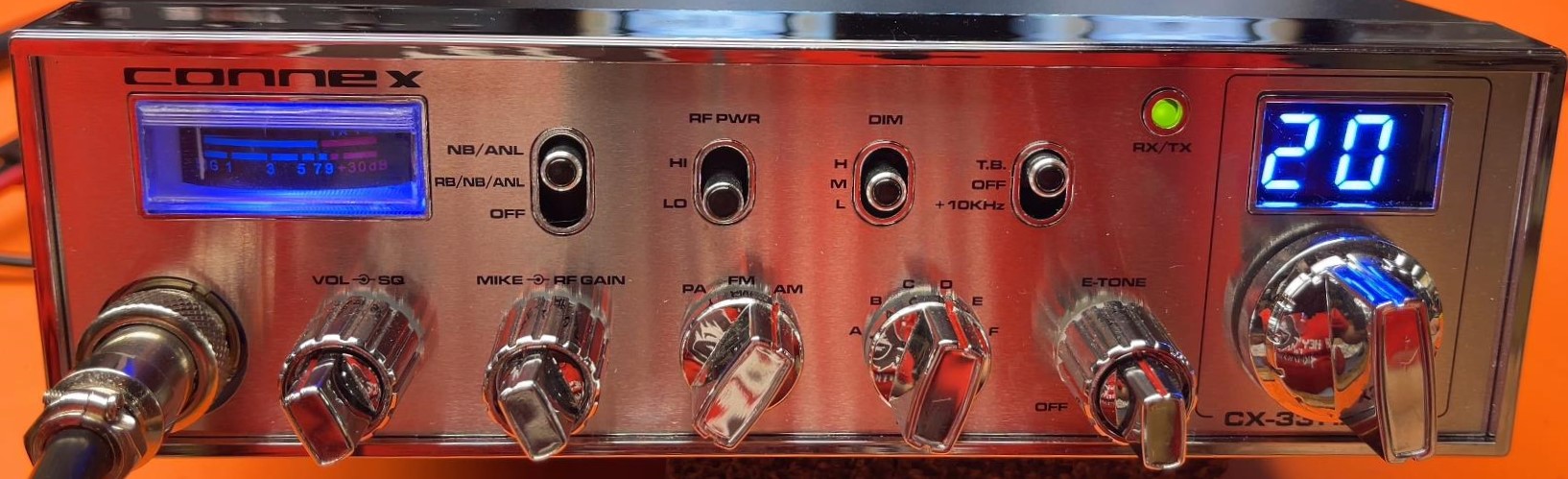

33 HP Max Face

33HP Max
AM/FM 10 Meter Radio









Features
  •  Watts FM /AM carrier power

  • W AM peak power

  • BLUE meter light

  • BLUE Channel LED

  • Red/Green Transmit LED

  • Noise Blanker

  • Automatic Noise Limiter

  • PA

  • Echo Board with Two Controls

  • Talk Back "ON" switch

  • Two Power Output Levels High / Low

  • Pre-wired for FC 347 or FC-30 Frequency Counter

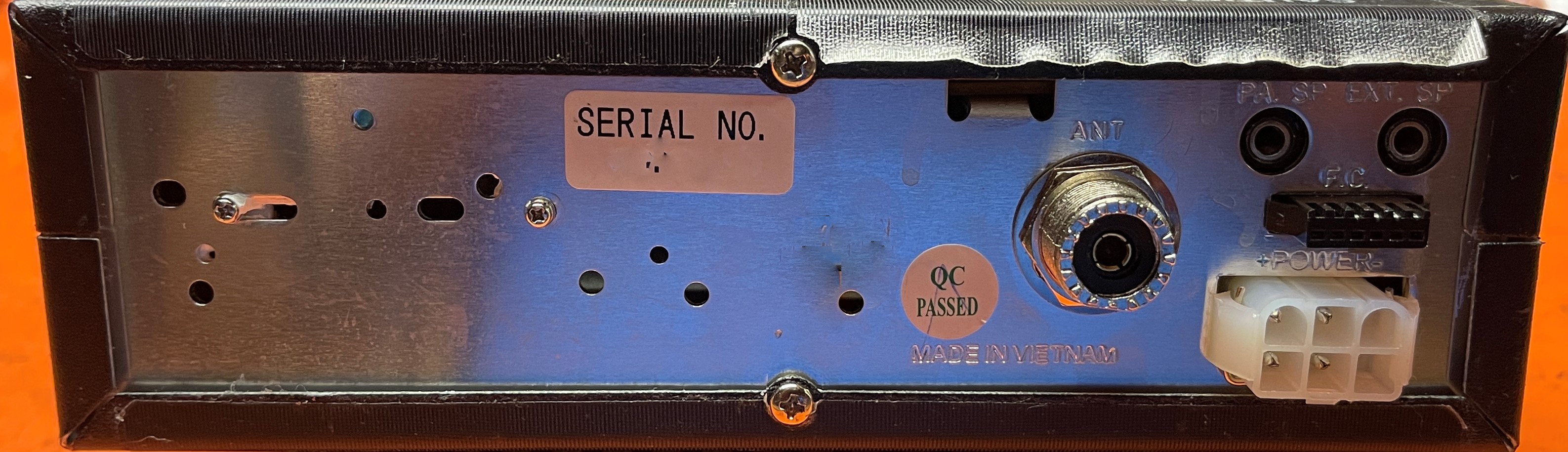

Connex CX-33Max Rear view




VIDEOS






Tune-up Reports and Custom work done here at BellsCB:
This is a playlist and has multiple videos
 (notice the   button to change to the next video)





Connex radios sometimes have a small scratch or ding that the factory covers with black touch up.  We cannot effect this and do not guarantee your radio to be cosmetically perfect.  Bells CB will make no marks or scratches on your radio ourselves.  Connex radio might though and I cannot control it.



The item most overlooked when ordering a custom radio is the microphone.  Your new radio will NOT sound great with a stock mic on it even if you have it tuned.  If your CB is more than a tool for work, you NEED to upgrade your microphone.
My personal favorites for this radio are the
Turner RK-56 and RD104E.




 CB Microphone Wiring (Galaxy)

Comply with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Further information can be found at the FCC website http://fcc.gov or the ARRL website http://arrl.org.

Transmitting using this radio requires an Amateur Radio License. Licensing information can be obtained by visiting www.fcc.gov or http://arrl.org. In Canada, visit http://strategis.ic.gc.ca or http://www.rac.ca

Convert and Tune-up
...Connex CX-33HP Max...
Sale price



Optional Accessories
Select Above  Tune-up and frequency conversion. (Tune-up, Alignment and expanded frequency coverage) $40
 Install a switch to turn off the 150w amp. $15
Perform Receiver improvement mod.
(These mods replace key RX parts for better sensitivity and selectivity)
$26
RK-56  Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46
636L Mic  Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
RD104E  Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46
SOLD OUT
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

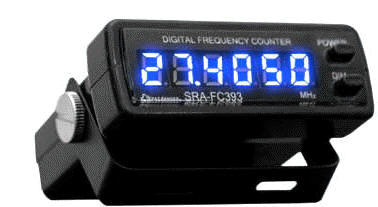

SRA-FC393  The  SRA-FC393 is a small frequency counter which indicates the frequency of the selected channel. This plugs directly into the freq counter jack in the back of the radio. $69
freq counter  FC-30 Frequency Counter large face and dual input type, a plug  for this radio and external input for other radio types that have no plug in the back. $69
Colors

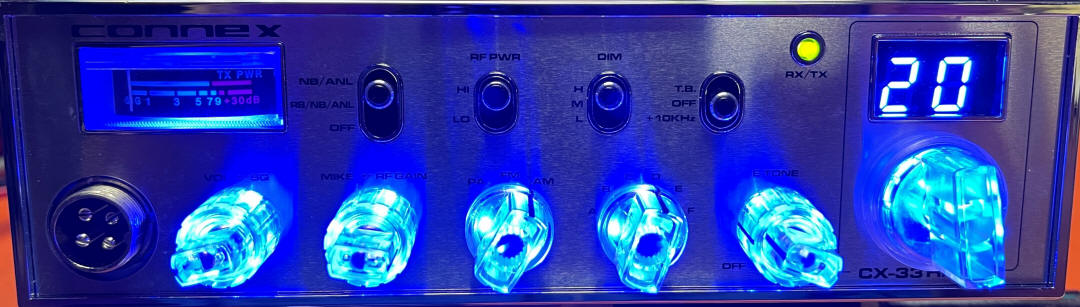

StarbryteInstall Star-Bryte Knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 Knob set , parts and labor. $202
Colors
Rings OnlyInstall Star-Bryte Rings behind the factory knobs with dimmer control circuit  integrated into the radios dimmer. Includes a 6 LED Rings , parts and labor. $154
 Change factory power cord to a 8 Gauge Power Cord (10 foot) with AGU Fuse holder and change the DC Jack to a XT90E-M for high amperage 2 Pin Quick connector. Install 3300uF filter Cap inside.
Pwr Cord UpgradePwr Cord UpgradePwr Cord Upgrade8G power CordXT90 plug
$99
K-615  Add a table top stand to run this as a Base Station in the house.  $25
PSV-300 Add a power Supply to run this as a Base Station in the house. $89
K-621v3 Add a power Supply and speaker and fan to run this as a Base Station in the house. $149

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM/FM 4w,40w 4w,40w 4w,40w
PEAK AM 26w,70w 9w,41w 65w,195w
4/2/24
With optional
AMP switch OFF
Dosy Bird RMS *Bird 43P
AM/FM .4, 2.3 .4, 2.3 .4, 2.3
PEAK AM 1.5, 8 1, 4 4, 27
*The most informative and the one we use.
4-2-24

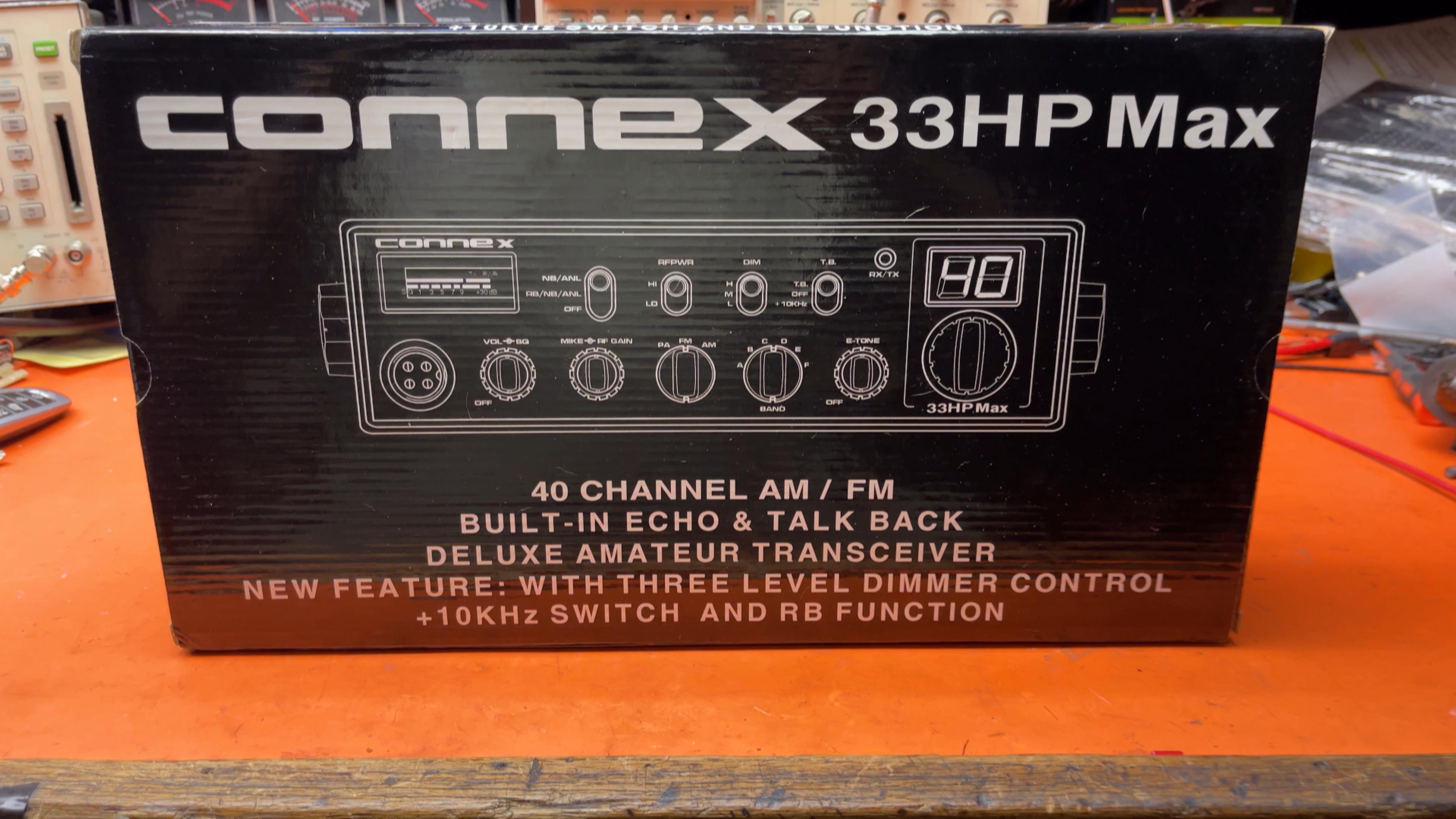

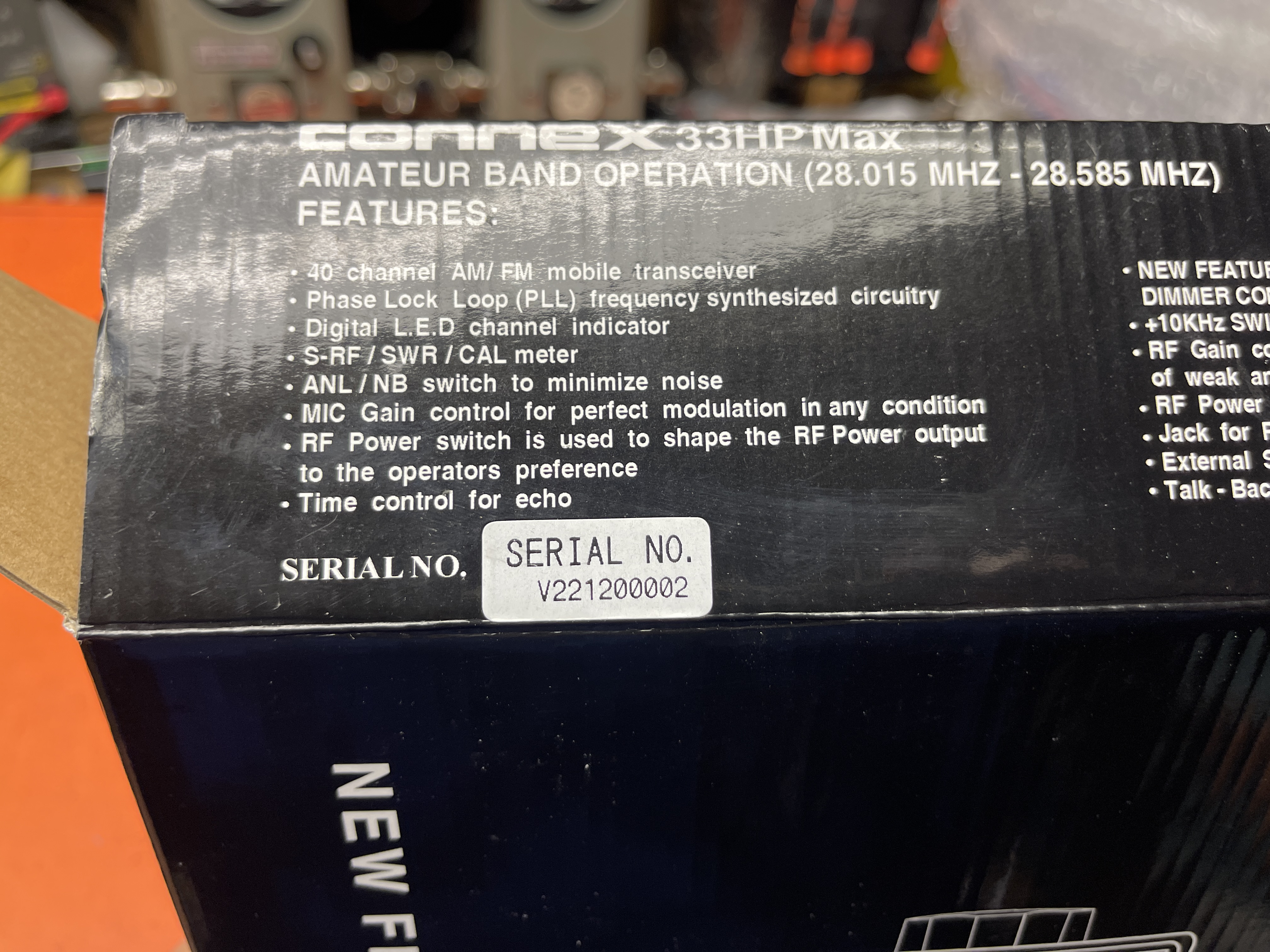

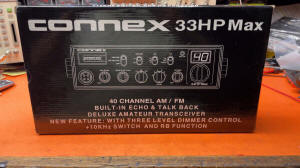

 CX-33HP Max BoxCX-33HP Max

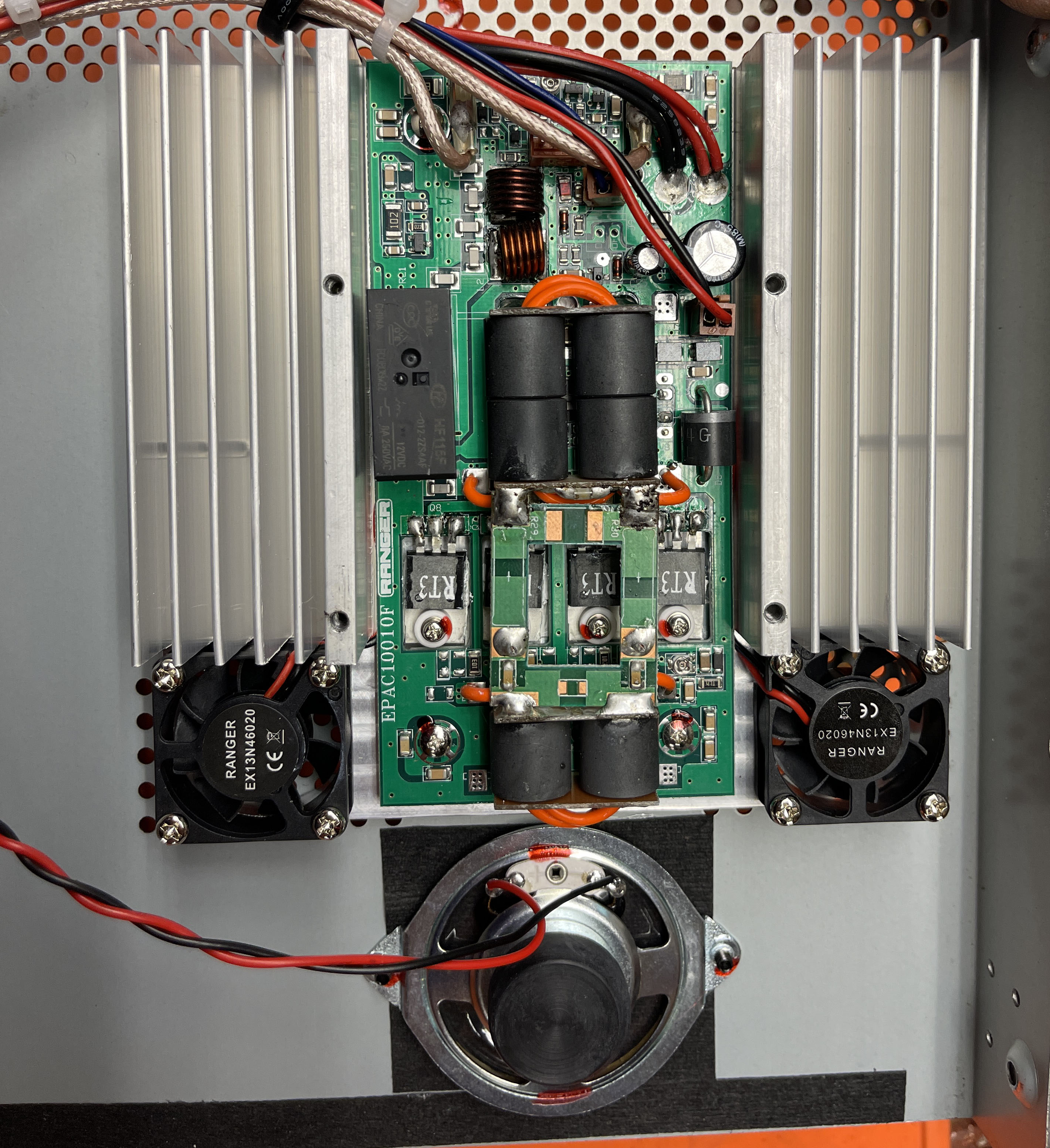

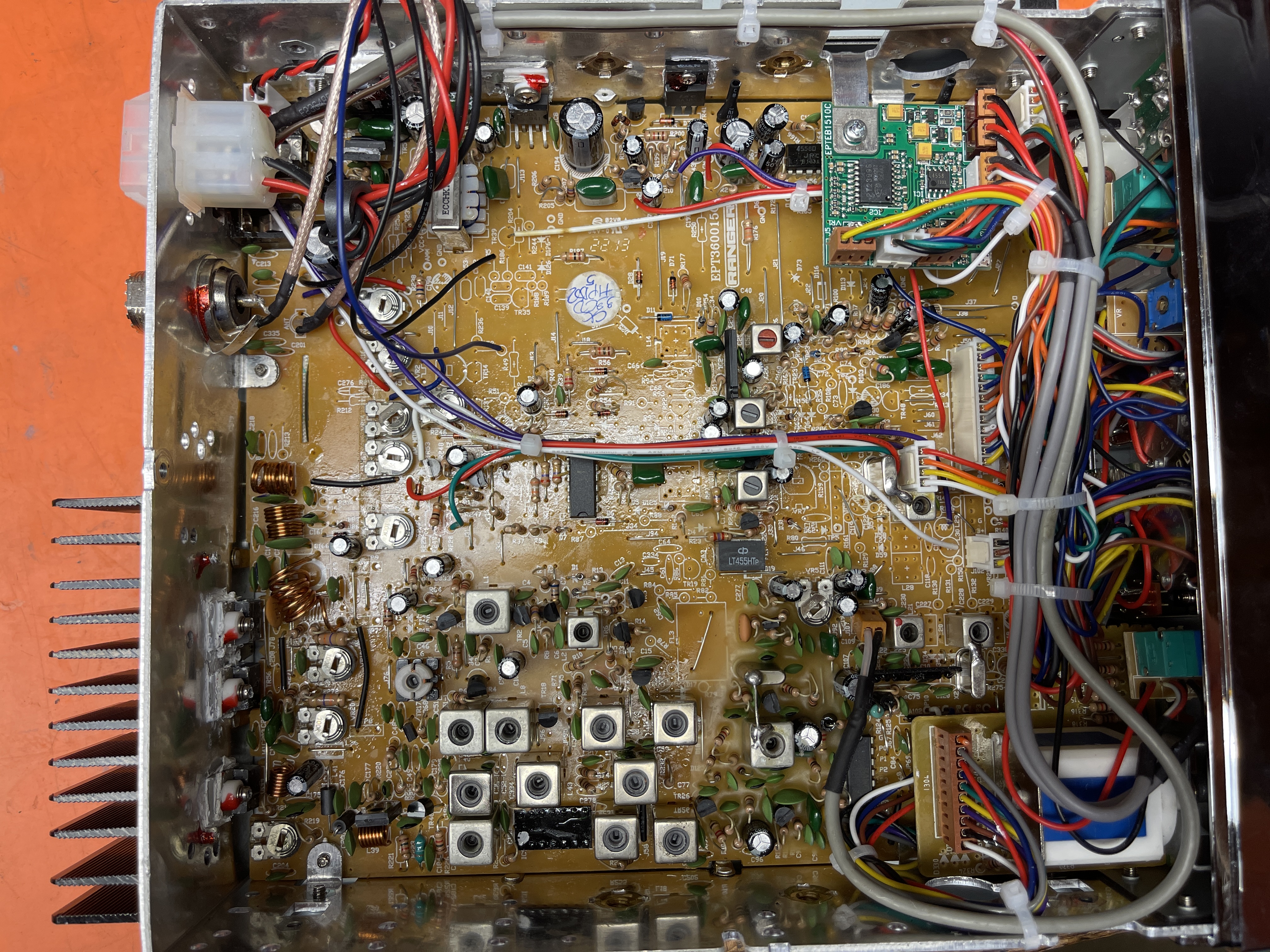

CX-33HP Max Inside-33HP Max Amp inside
