  Orders with radio work are delayed 3 - 10 days



Ares II


Ares II title

Download Manual

Multi Band - AM / FM/ USB/LSB/PA

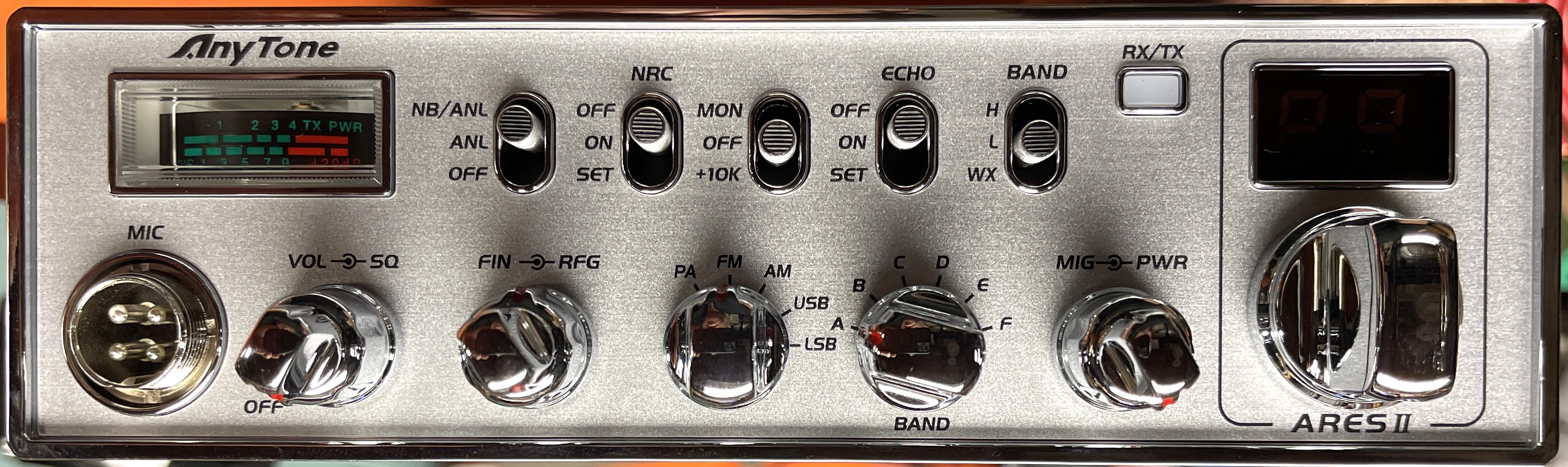

Some guys want the new technology performance but like the old school look in front.

That's what we have here.

Features

  •  FM/AM/SSB mode

  • Weather Channel 150-170MHz programmable(Optional)

  • CTCSS/DCS Code(Optional)

  • PWR, RX RSSI S-Meter

  • PC programmable

  • Echo Function

  • SQ, ASQ Function

  • RF Gain Adjustment

  • Mike Gain Adjustment

  •  H/L power

  • Programmable RB

  • NB/ANL Function

  • Offset Function

  • Beep Voice Prompt

  • +10KHz Function

  • TOT Function

  • HI-CUT Function

  • Busy channel lock

  • Monitor

  • LED Brightness Adjustment

  • SWR Protection

  • Voltage Protection




Tuned and Converted?

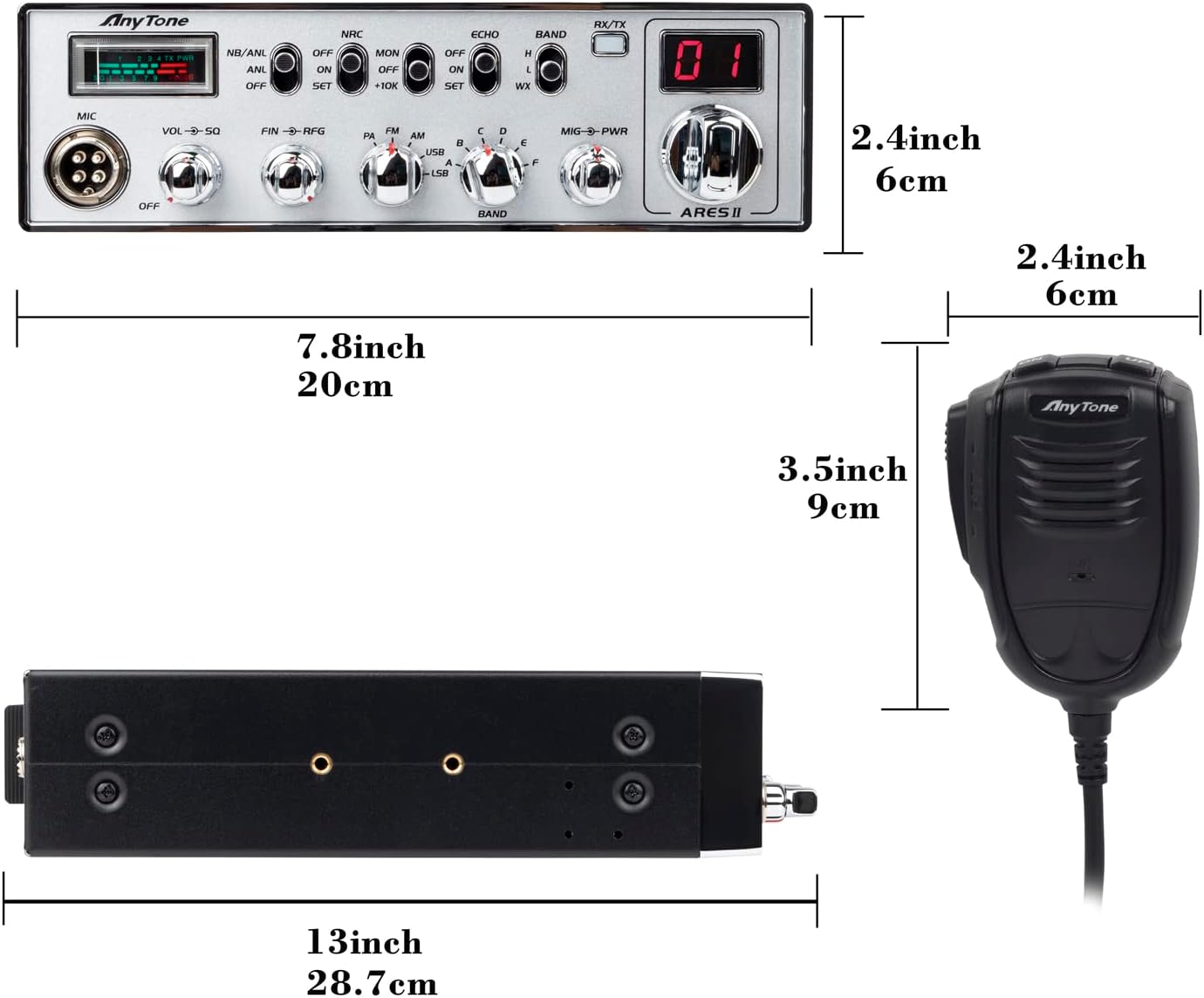

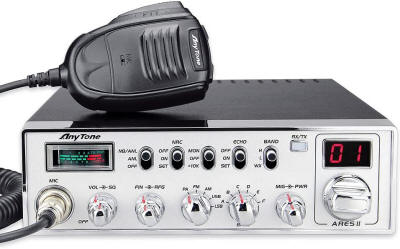

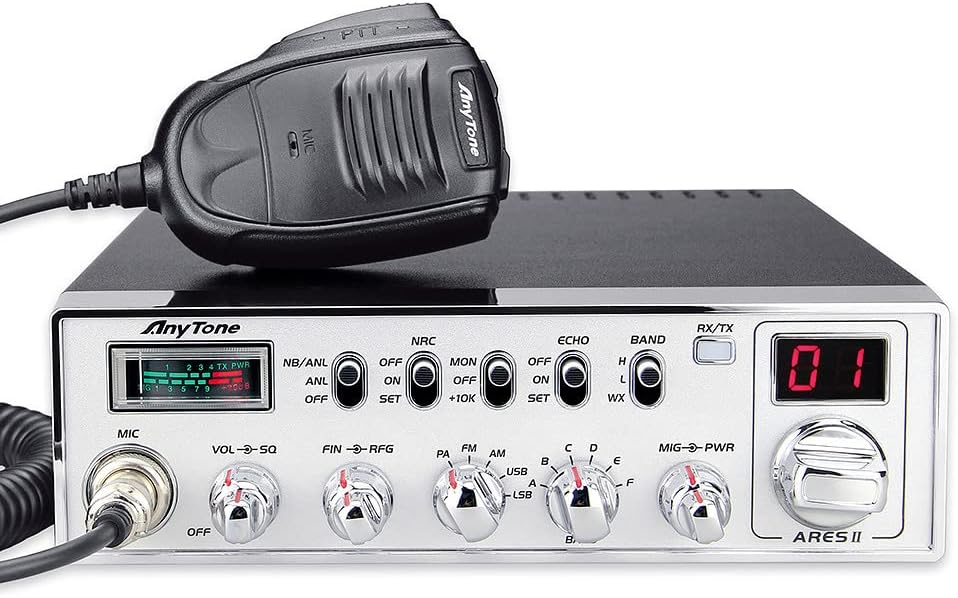

Anytone Ares II 10-Meter Radio
$179

  Download Software

Optional Accessories
Select Above  Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency)
$30
Switch Location

 Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.

1) Output RCA completely isolated  from the radio. Both +/-  connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit.
$49
/
$59
/
$69
 Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
Power cordStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord UpgradeStryker SR-955 Power Cord Upgrade
$59
Programming Cable Programming Cable
For Software programming via computer. We don't know anything about programming these units and we can provide no assistance with it.
$18
 Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.)
$65
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 1~12w 1~12w 1~12w
FM 1~40w 1~40w 1~40w
SSB 3~36w 3~33w 8~49w
PEAK AM 2~29w 1.5~13w 5~51w
*Most informative and the one we use
6/06/24

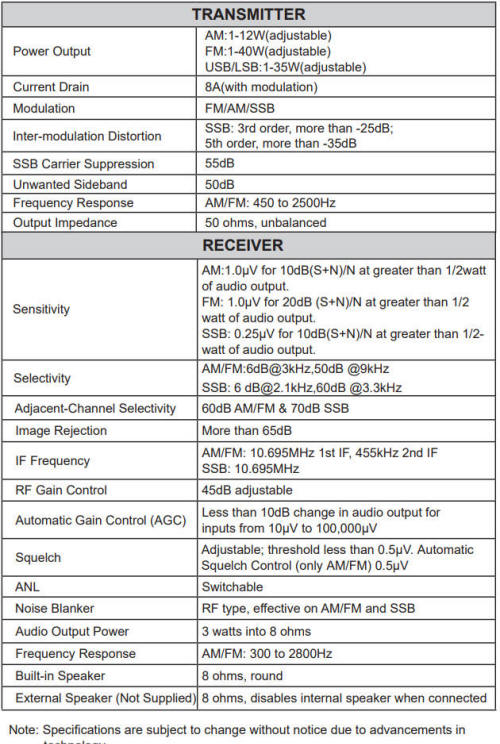

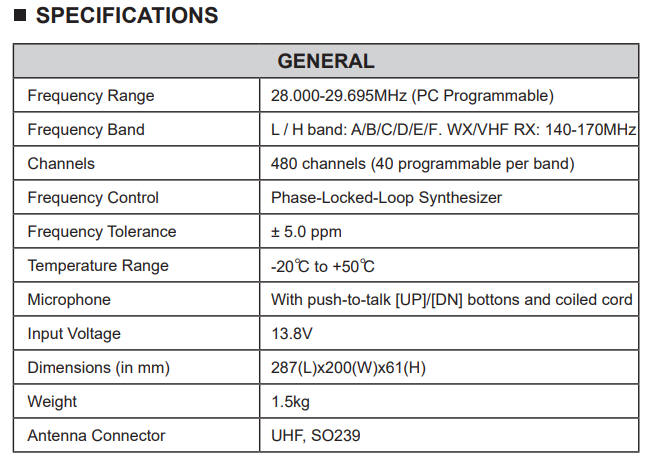

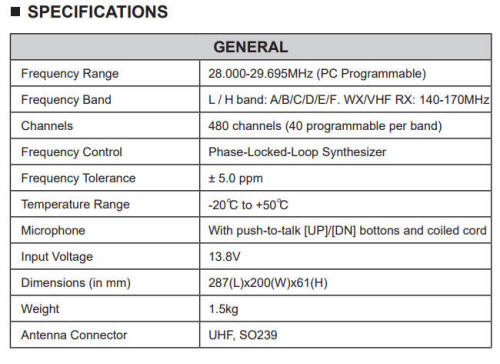

Aries Specifications

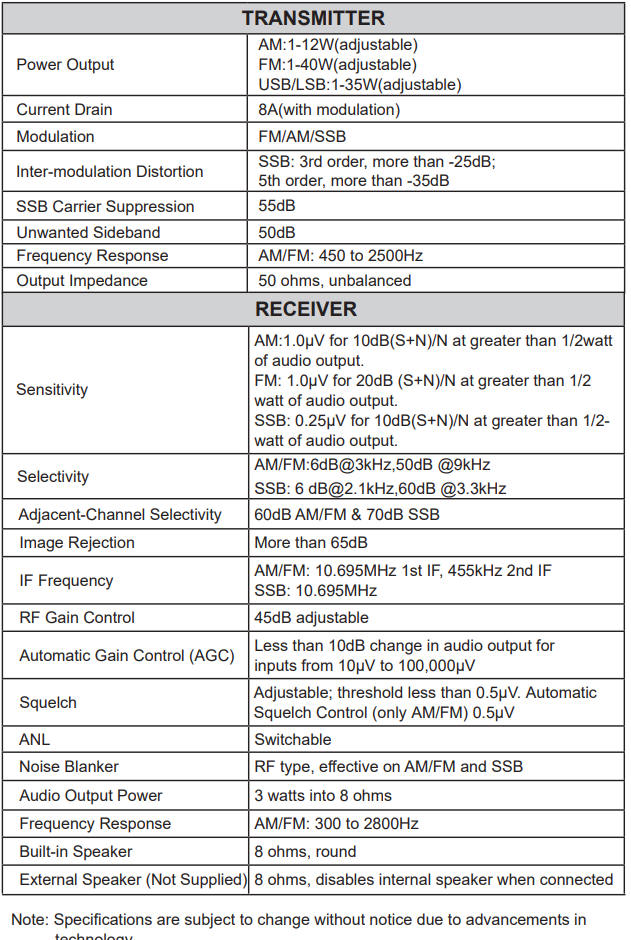

 Arie Specifications 2



MICROPHONE
DIAGRAM
