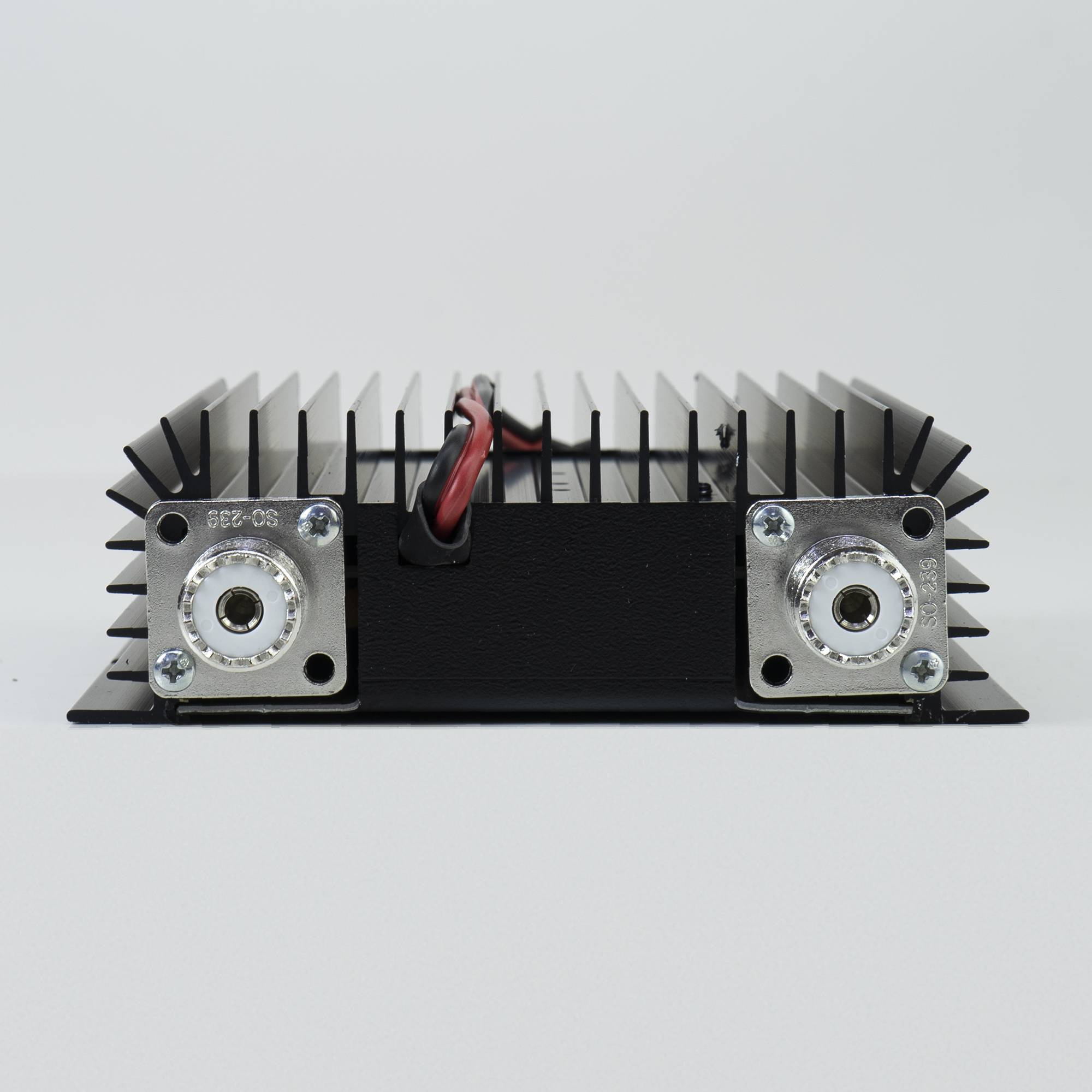

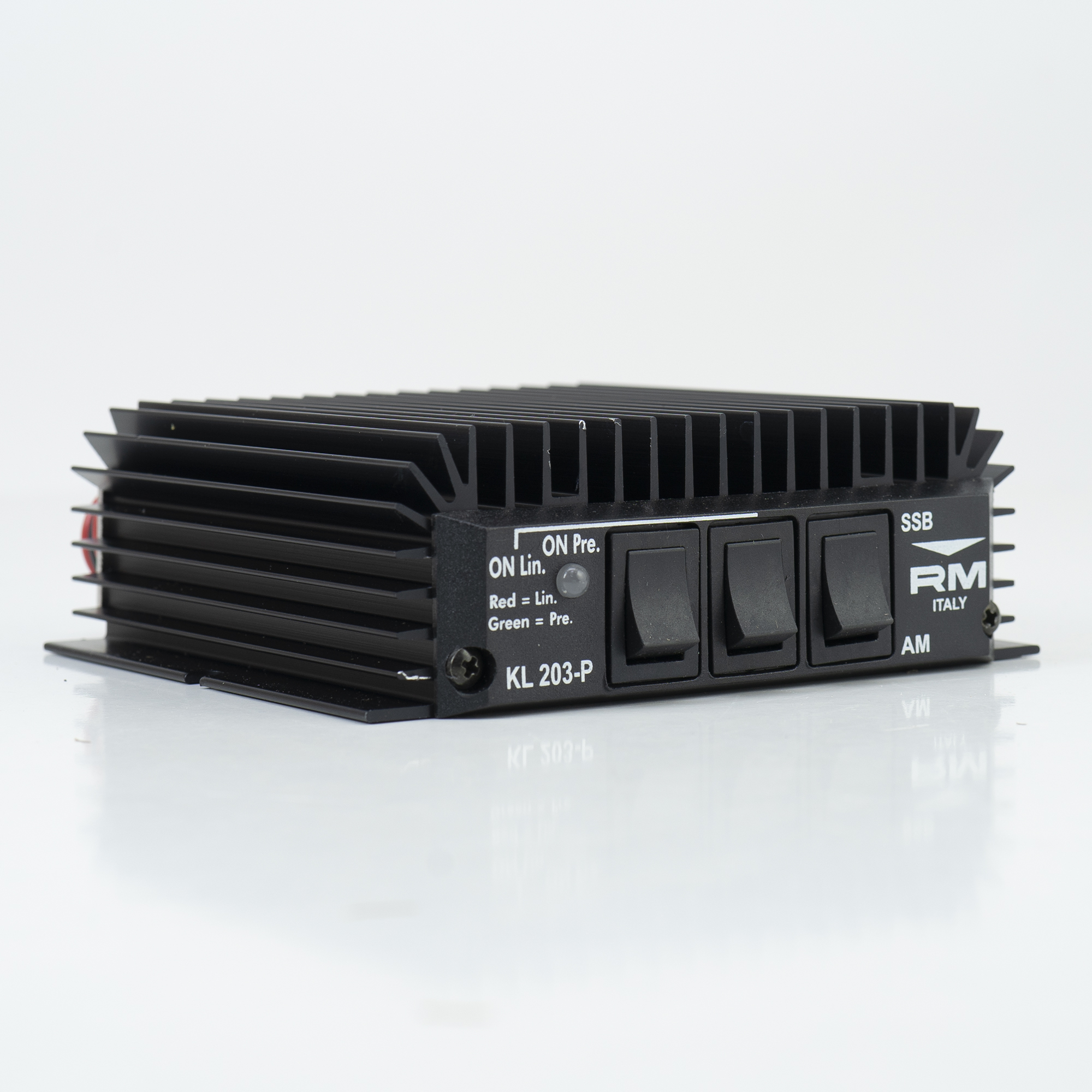

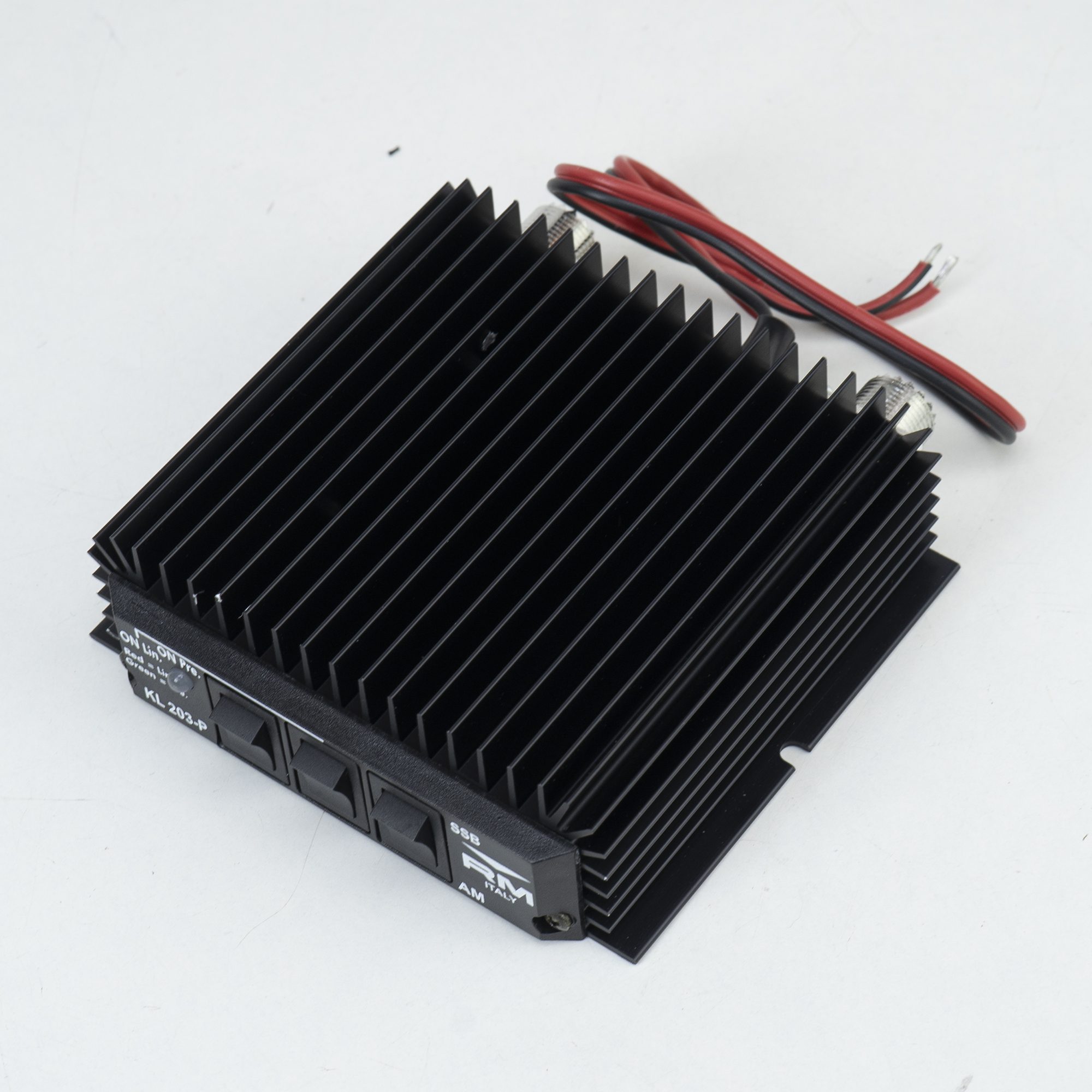

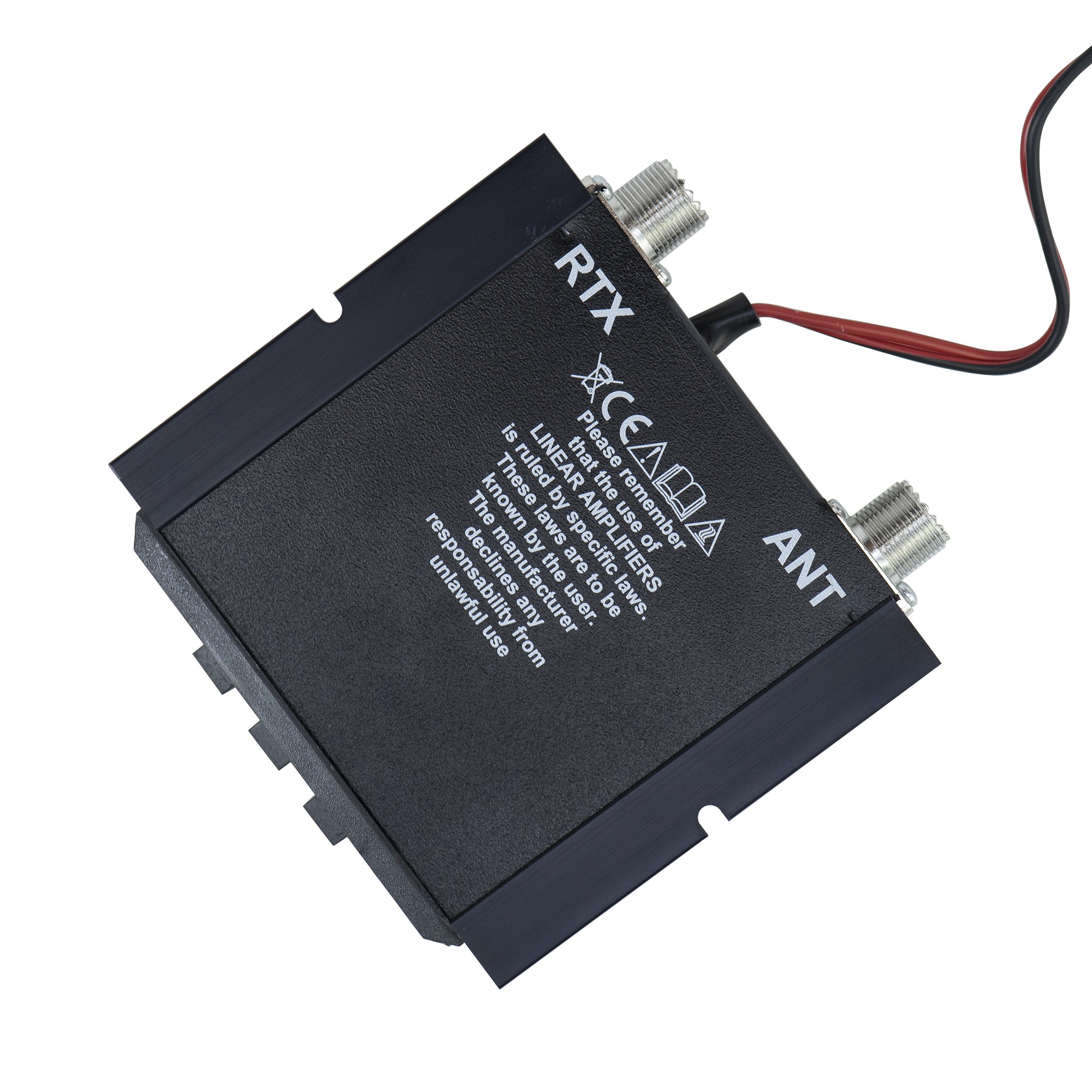

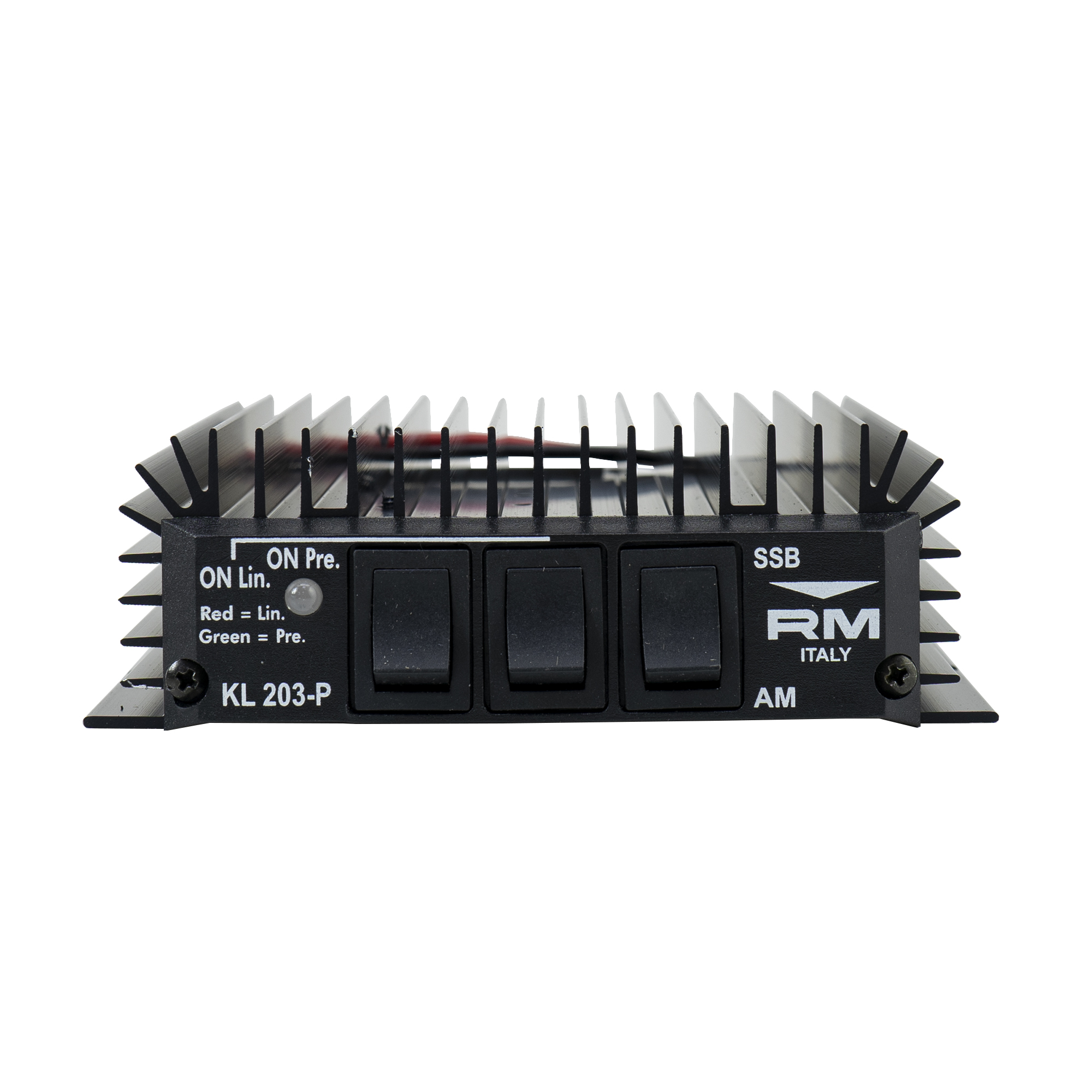

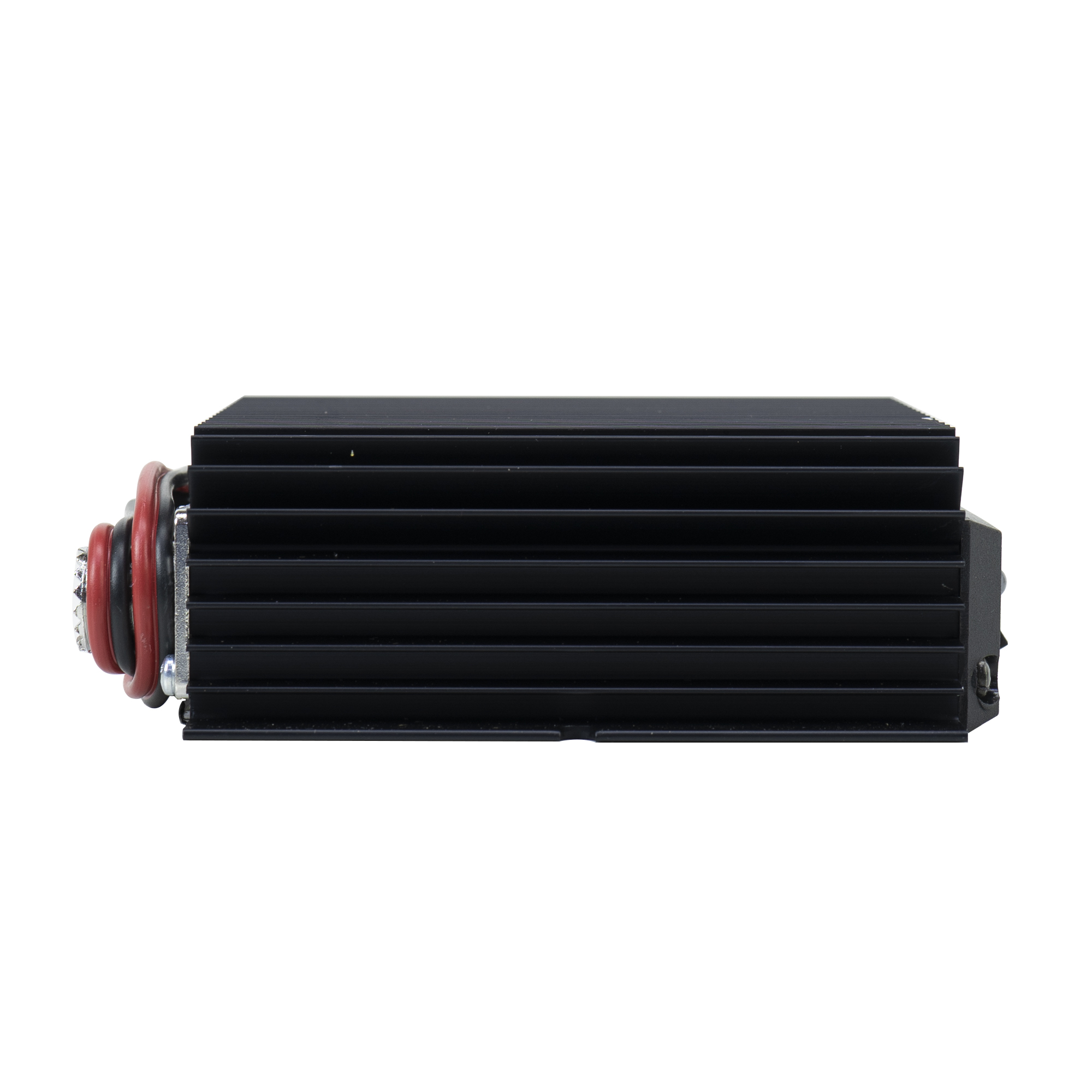

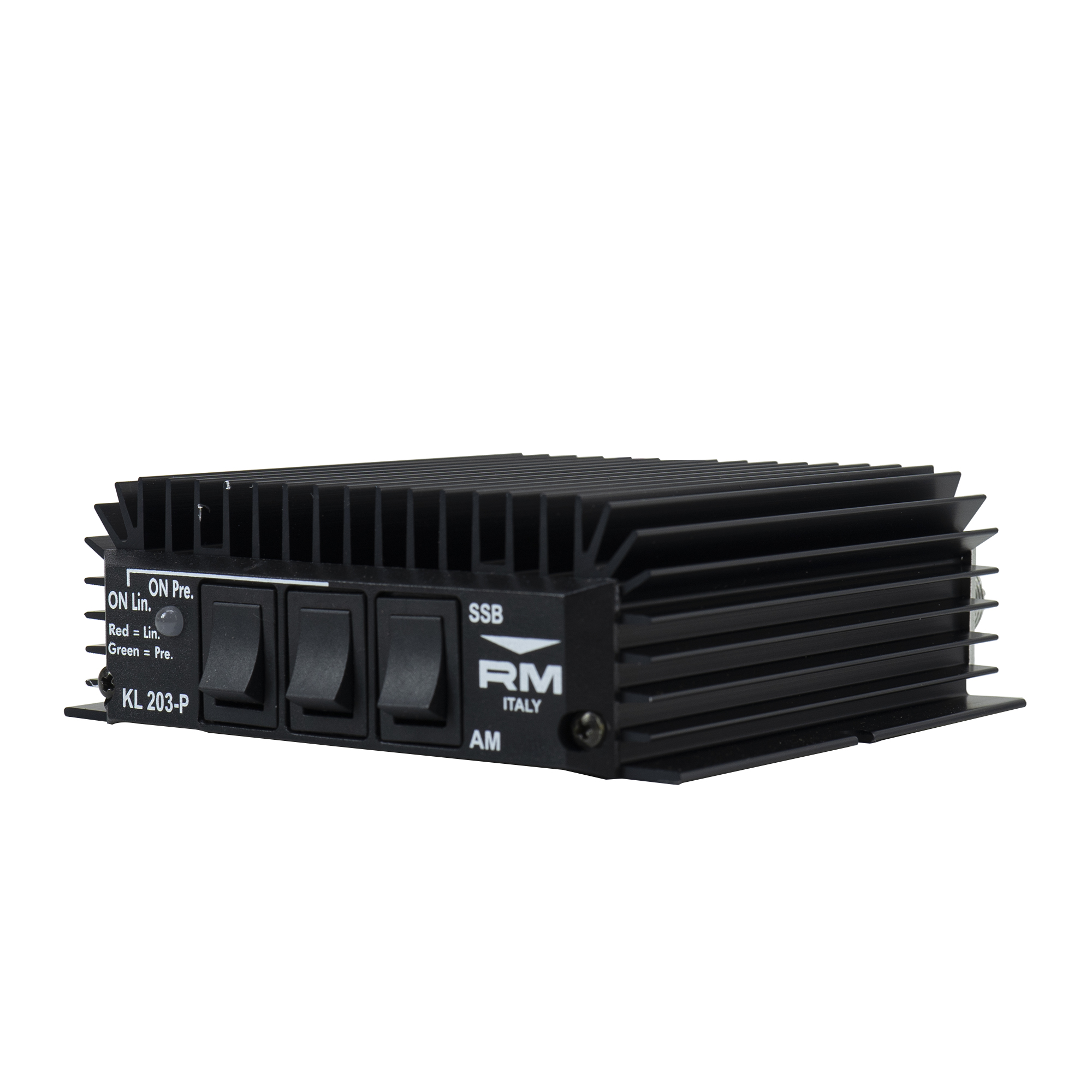

KL-203P

• Frequency 28 - 29.7 MHz

•  4x  RM3 Mosfets

•  Supply voltage 12-14 Vdc

• Current input 10A

• max Input 0.5 - 10 W

• Output power 100 W

• Preamplifier 26 dB

• SWR at the entrance 1.1 - 1.5

• AM-FM-SSB

• 120 X 110 X 40 mm

• Weight 478 g

• Manual page #1 and page#2

• Schematic diagram

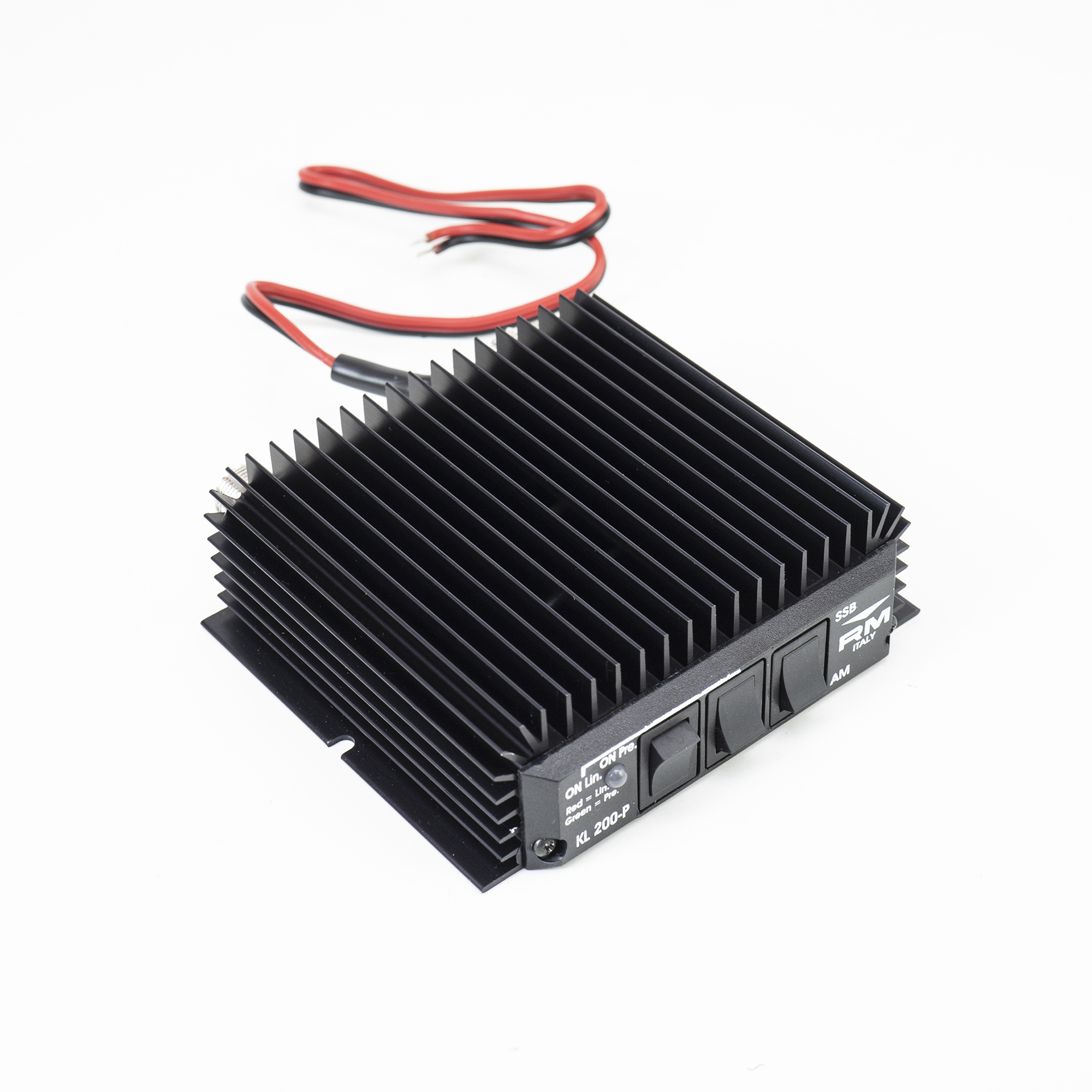

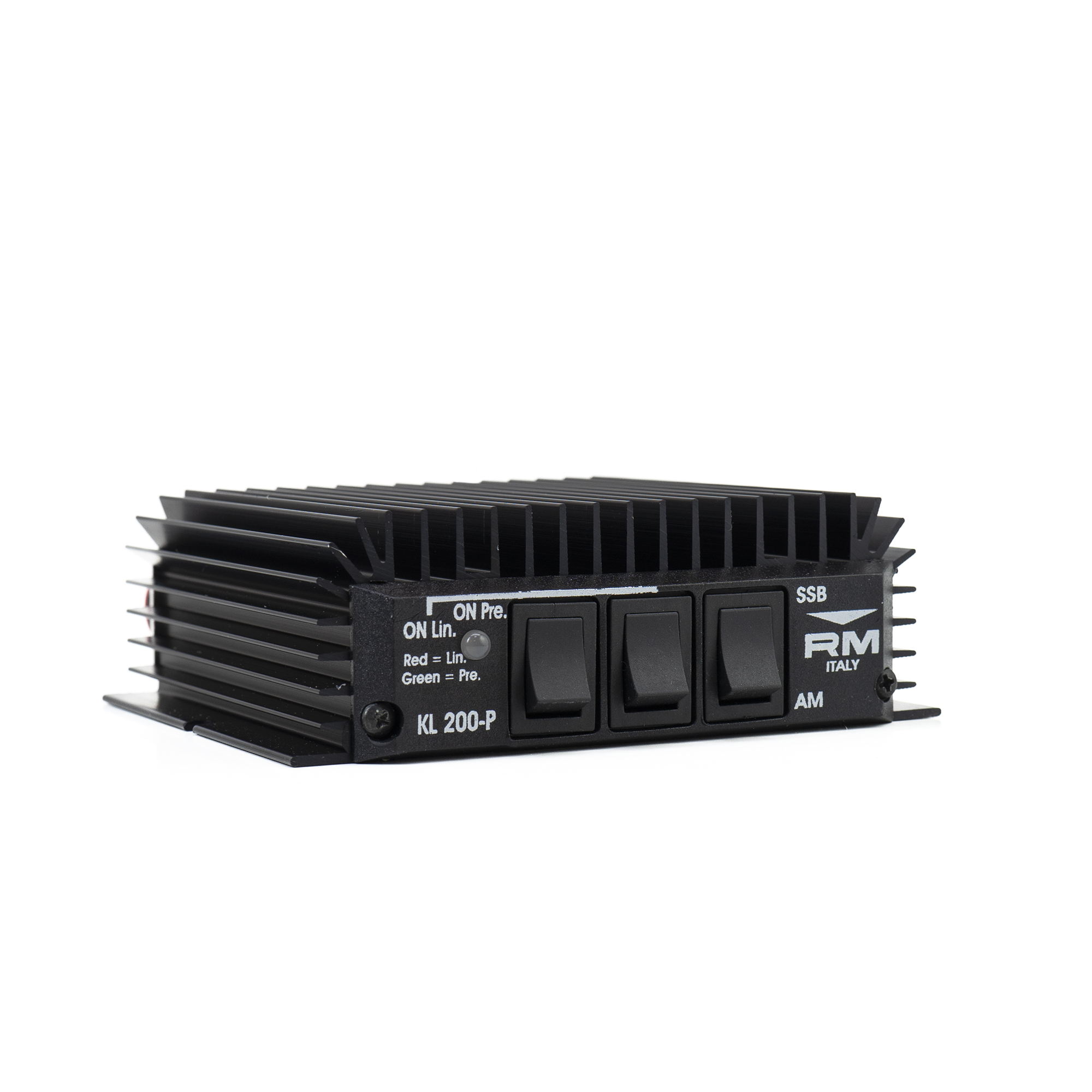

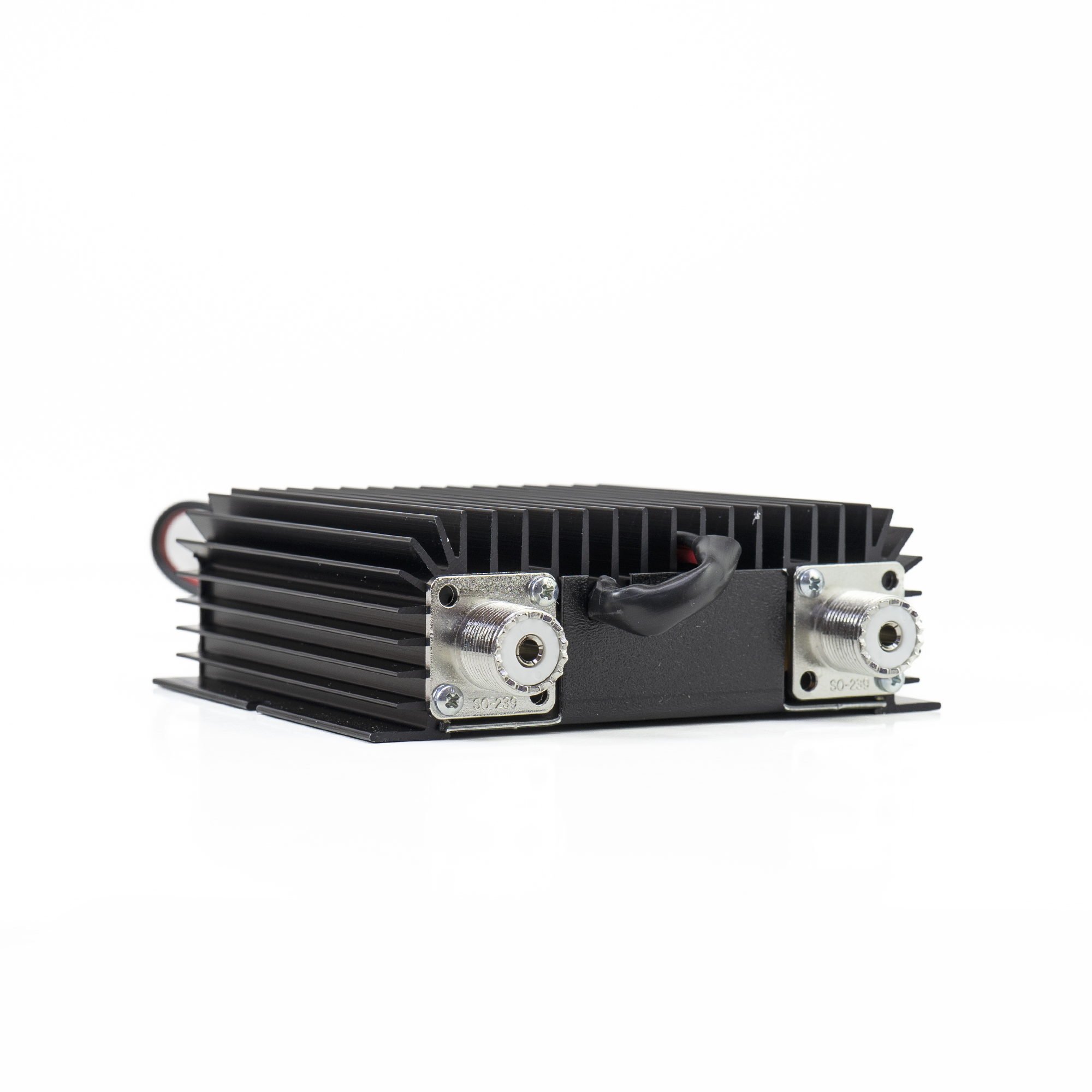

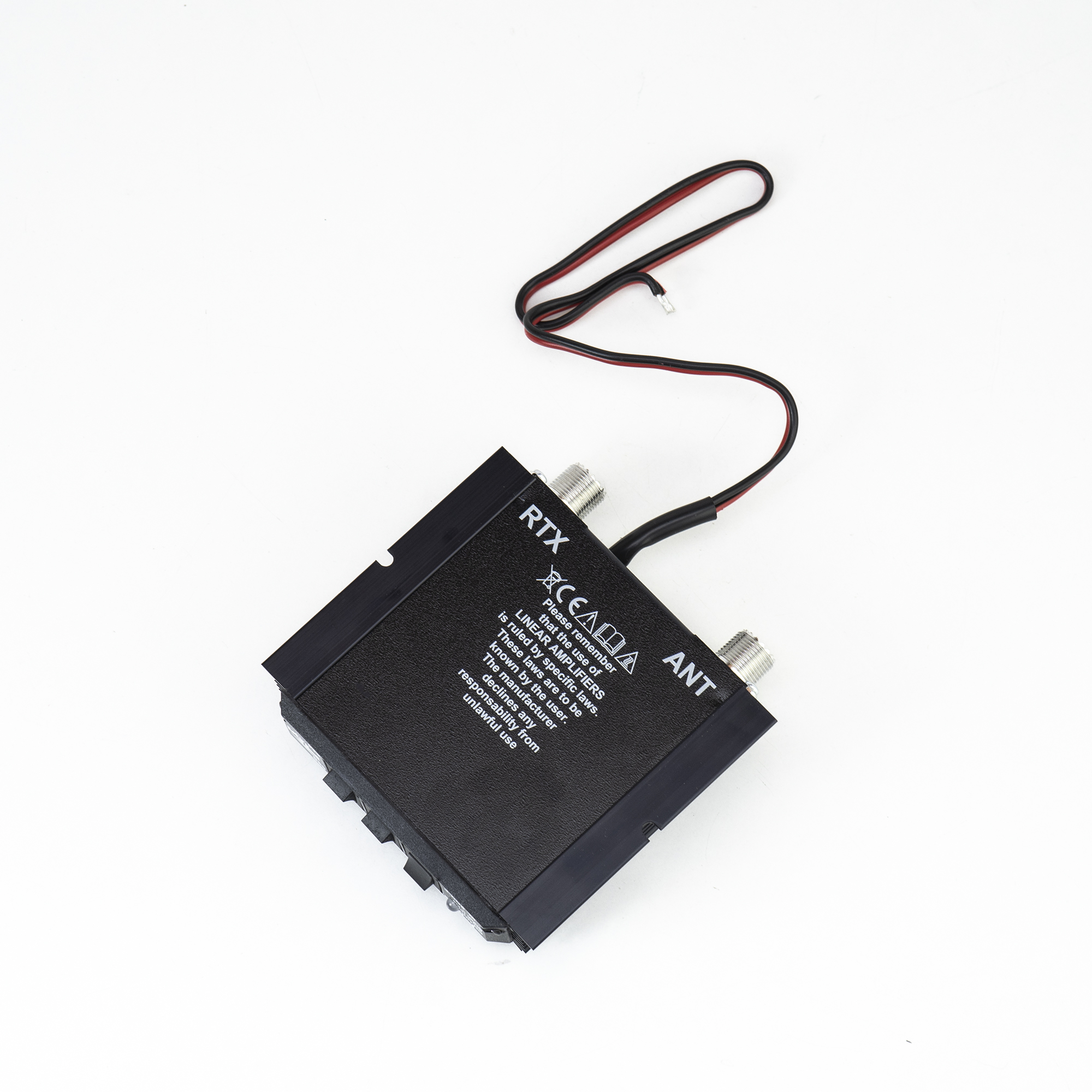

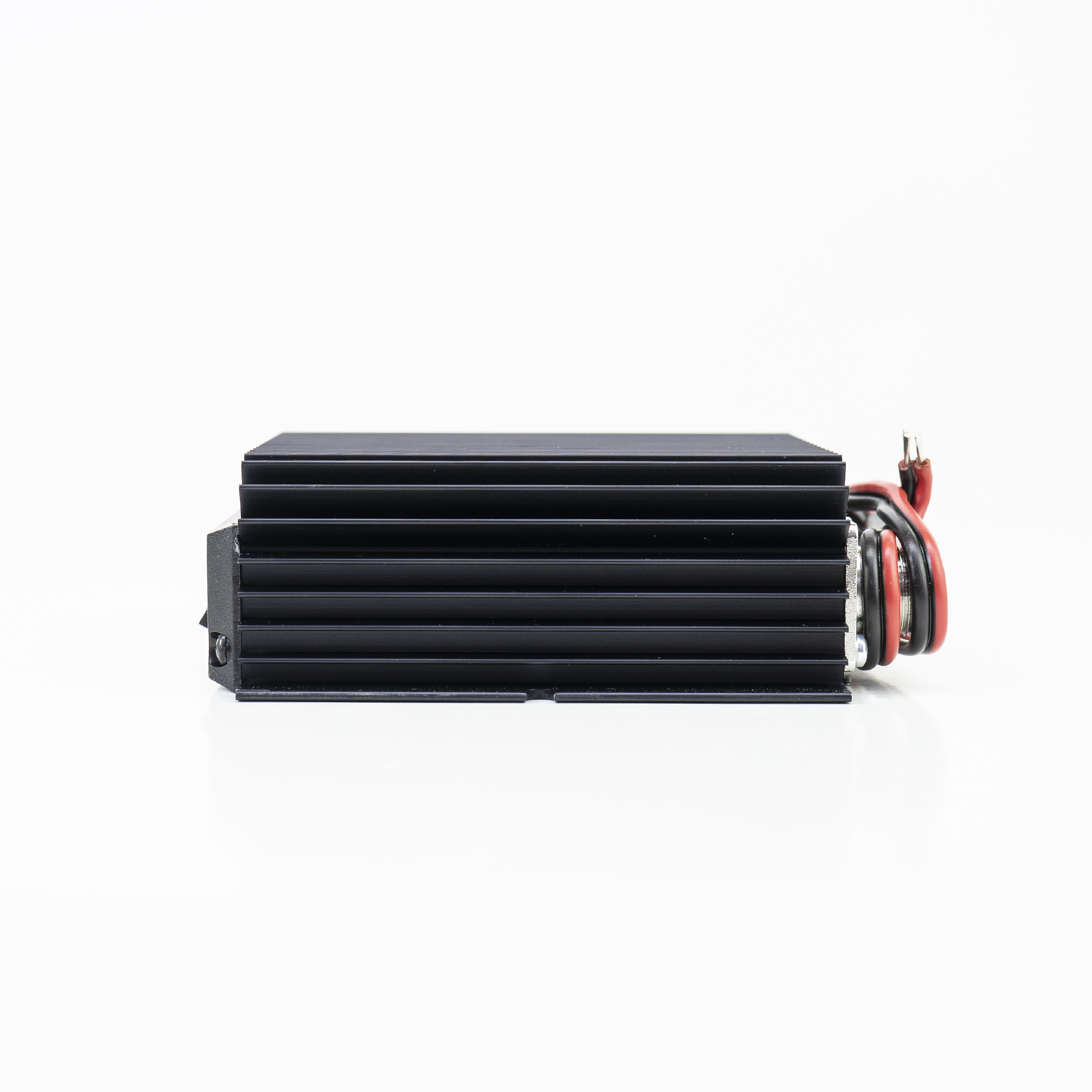

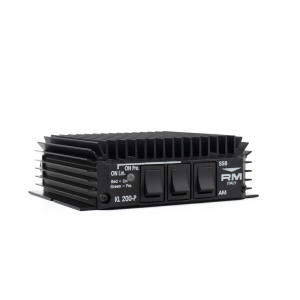

KL-200

• Frequency 28 - 29 MHz \

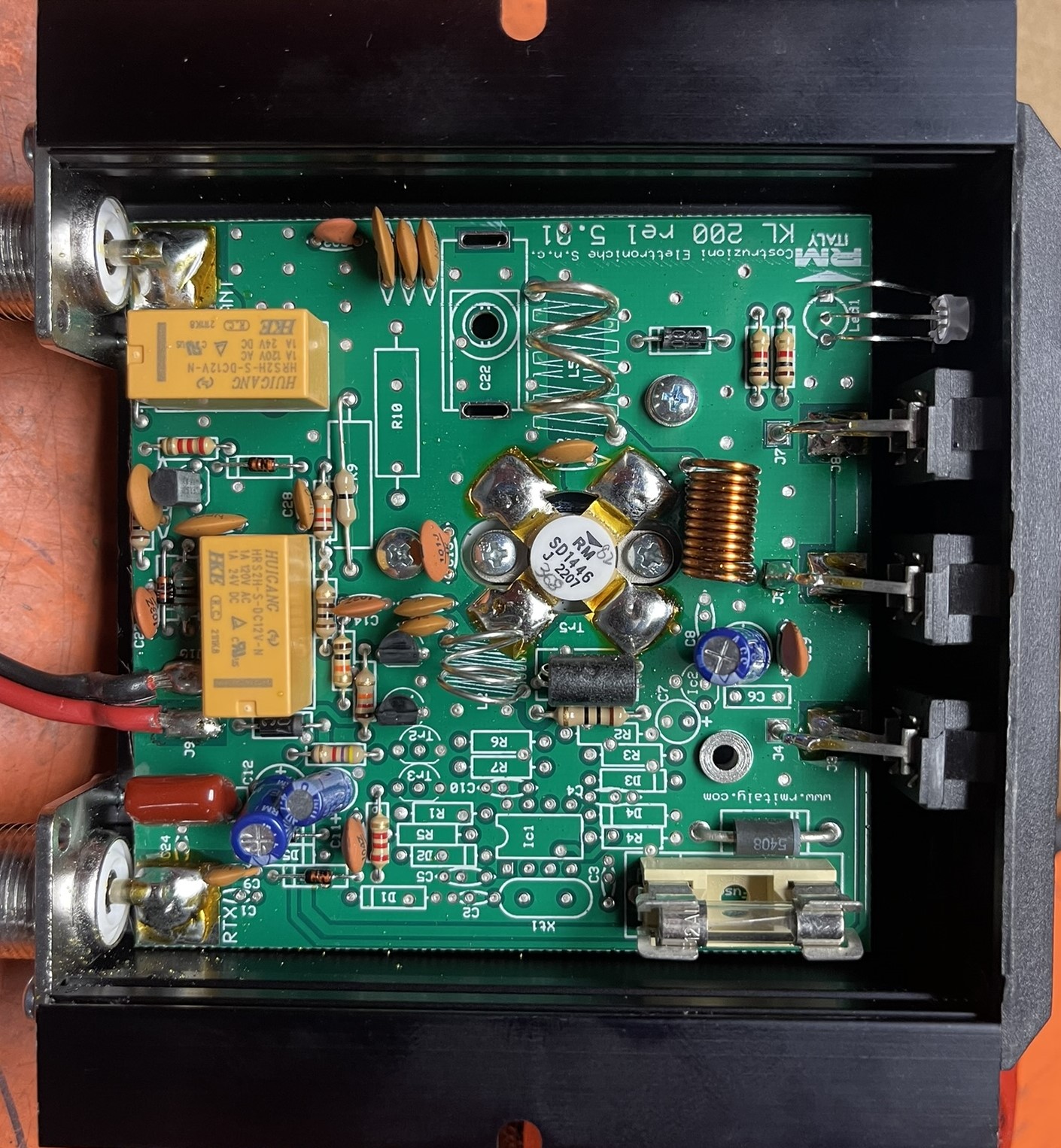

• 1x SRF-1446 Bipolar Transistor

• Supply voltage 12-14 Vdc

• Current input 8 - 11 A

• Input to amplifier 1 - 10W AM / FM

• Input to amplifier 1 - 10W SSB

• Output power 100W+ AM / FM / SSB

• SWR at the entrance 1.1 - 1.5

•  AM-FM-SSB

• size 120 X 40 X 125 mm

• Weight 439 g

• Tested with 2w carrier and 25w peak
  Output: 30W carrier and 130w peak.
