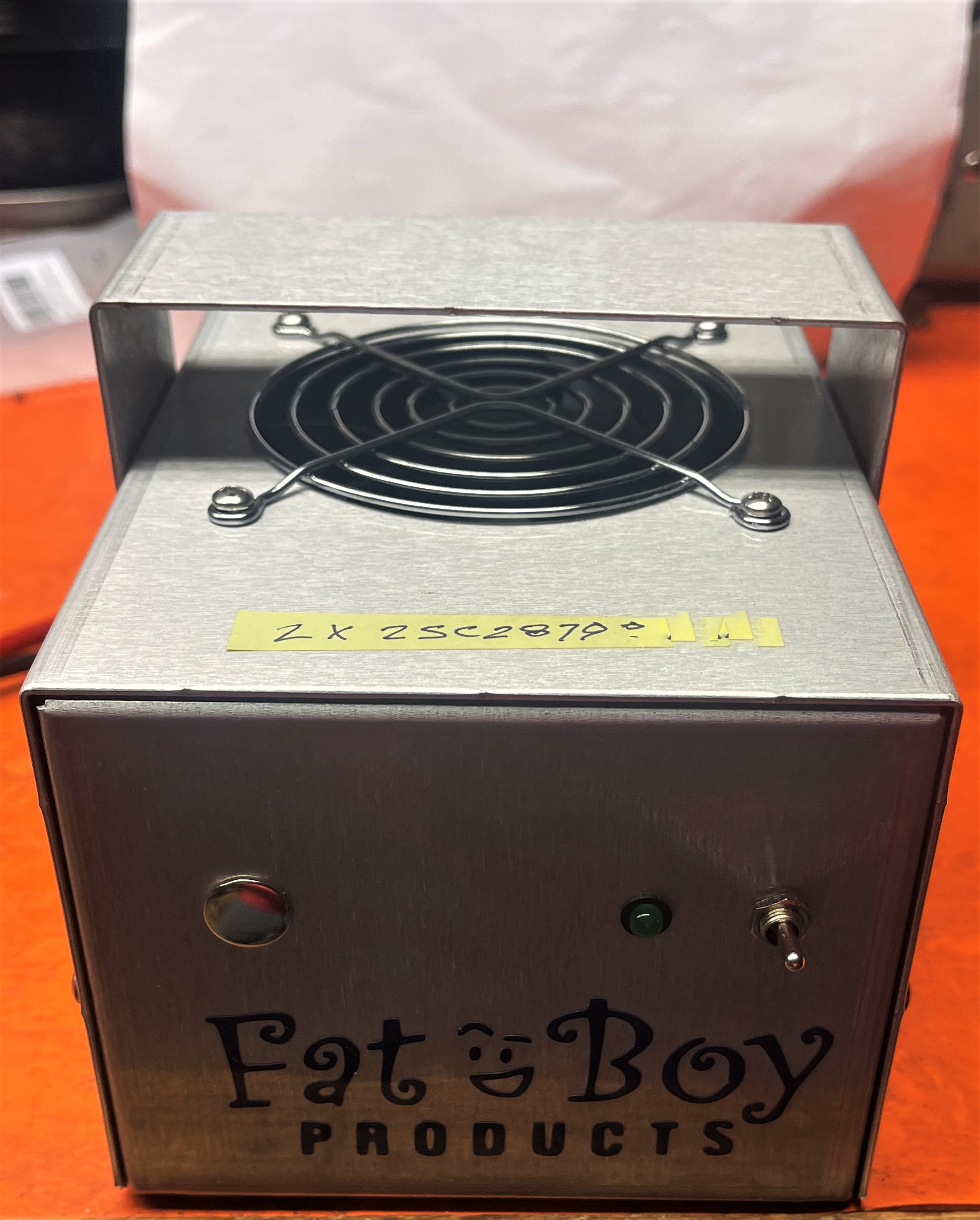

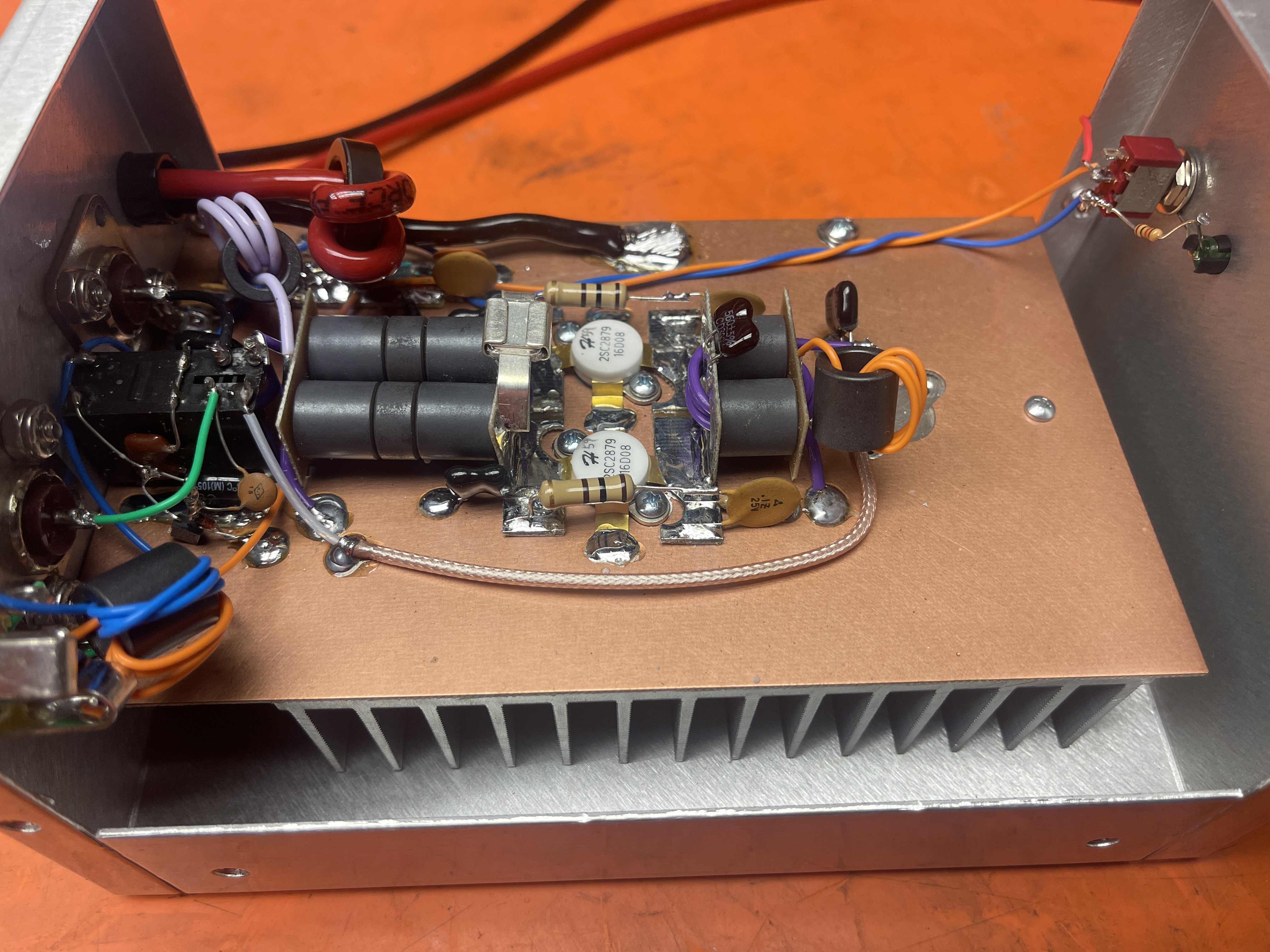

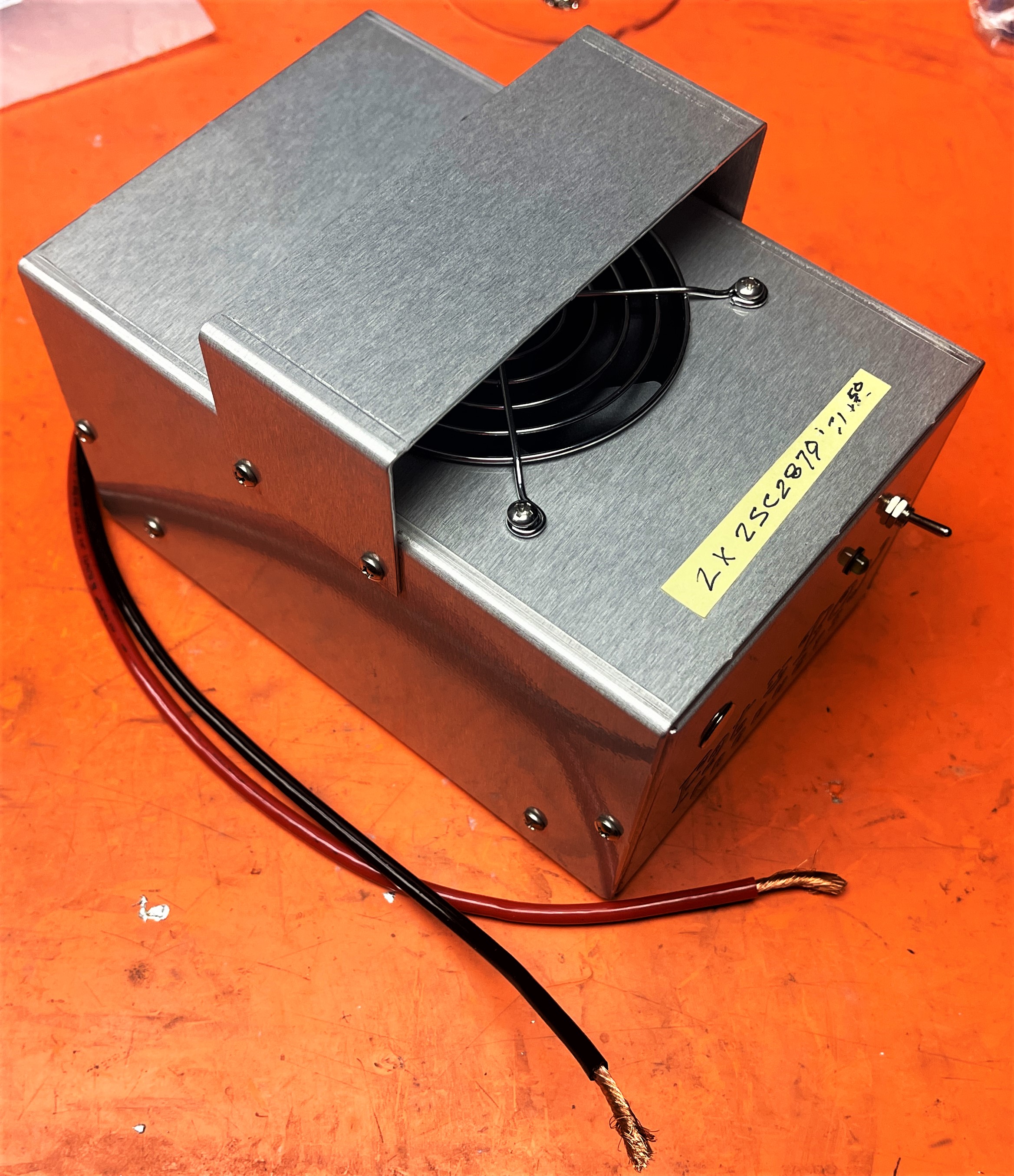

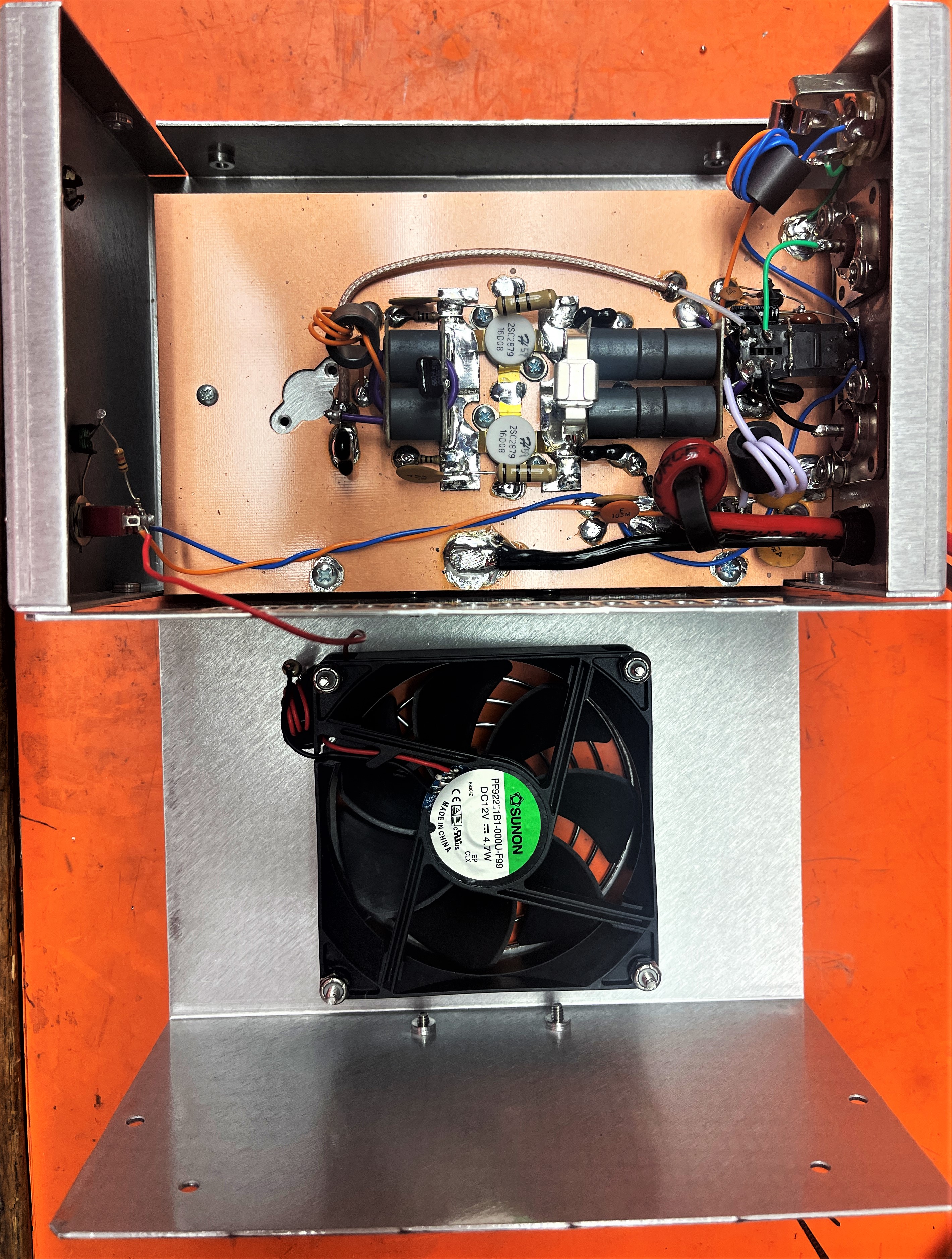

2-Pill
AM
 |
-
2 Pill
2x HG 2SC2879
-
AM/FM/CW
ONLY
-
Class
C
-
Max input power 60w Peak power
-
12-16 VDC
-
Test
results on 18-JAN-23 at 14VDC
Input radio:
4w carrier 23w peak AM
OUTPUT: 50w
carrier
, 240w peak
Input radio 4w carrier 60w
peak AM
OUTPUT: 50w carrier 330w peak AM

|
$335
|

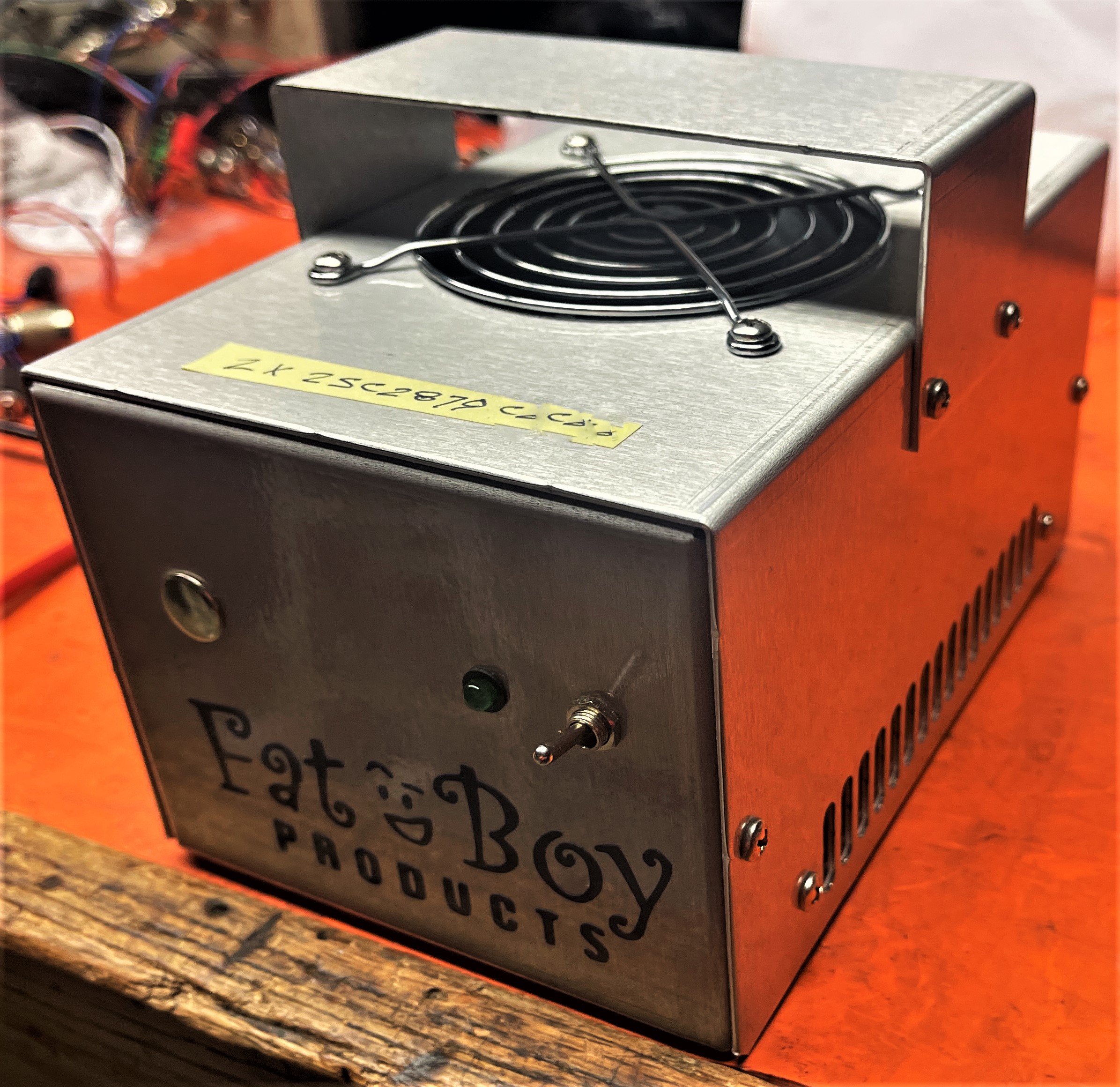

2-Pill
AM
"C" BOX
|
-
2 Pill
2x
HG 2SC2879C
-
AM/FM/CW
ONLY
-
Class
C
-
Max input power 150w Peak power
-
12-16 VDC
-
Test
results on 29DEC23 at 14VDC
-
Input radio#1:
7w carrier 80w peak AM
OUTPUT:
100w carrier
, 425w peak AM
Input radio #2: 7w carrier
150w
peak AM
OUTPUT:
100w carrier 500w peak AM
|
$369
|
|

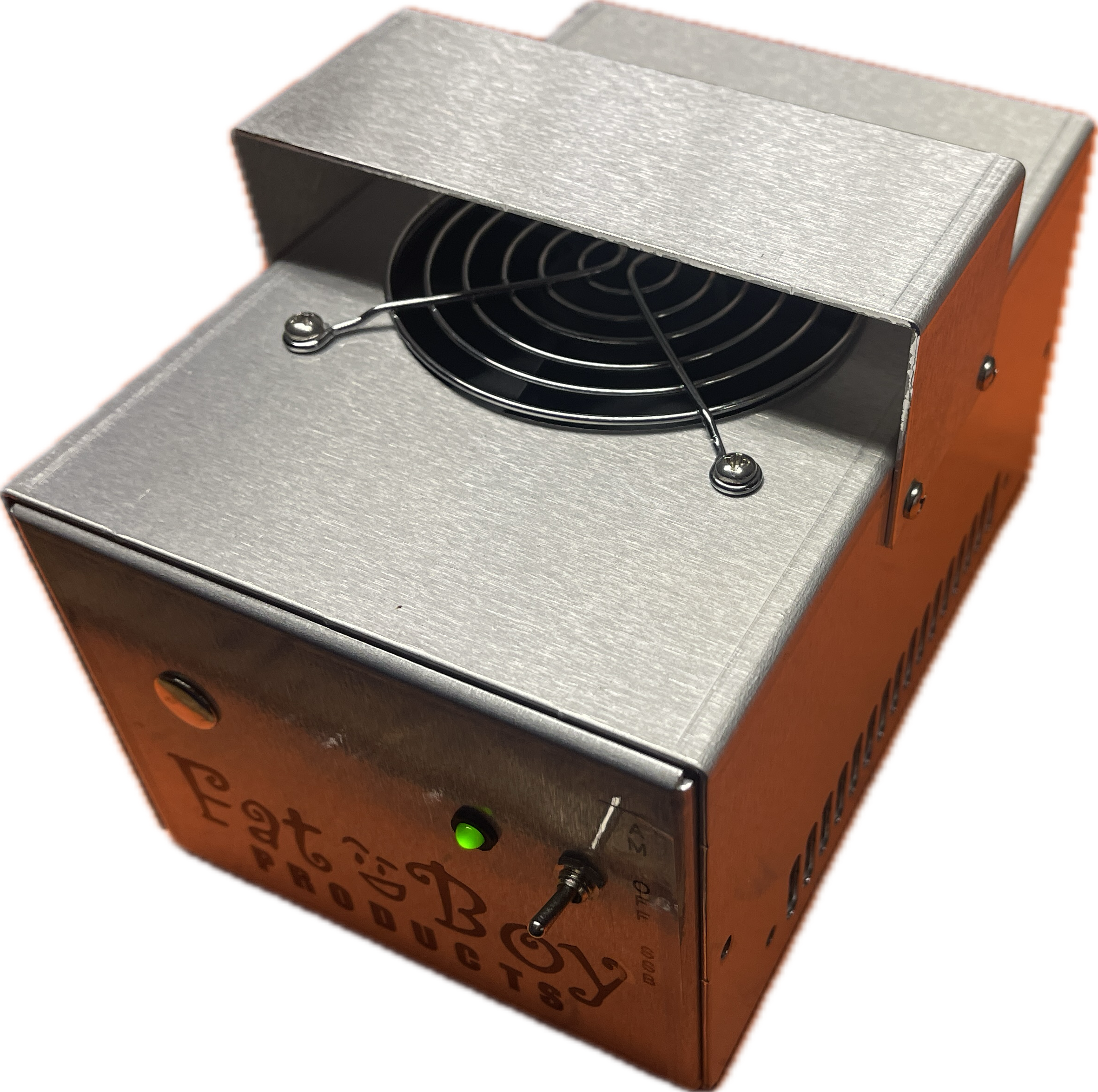

2-Pill
SSB
|
-
2 Pill
2x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
AM/FM/SSB/CW
-
Max input power 40w PEP
-
12-14 VDC
-
Test
results on 7APRIL24 at 14VDC
Input radio: AM:
6w carrier 60w peak power
SSB: 55w PEP
-
AMP OUTPUT: AM: 60w carrier
, 275w peak power
SSB: 300W PEP
|
$384
|

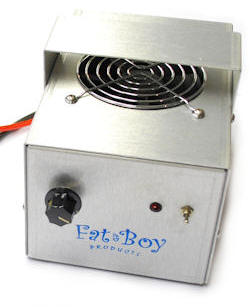

3-Pill AM
 |
|
$395
|
3-Pill SSB
|
-
3 Pill
1x HG 2SC2290
2x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
7-3/8" x 6-1/2" x 4-1/4"AM/FM/SSB/CW
-
Max input power 30w Peak power
-
12-14 VDC
|
|

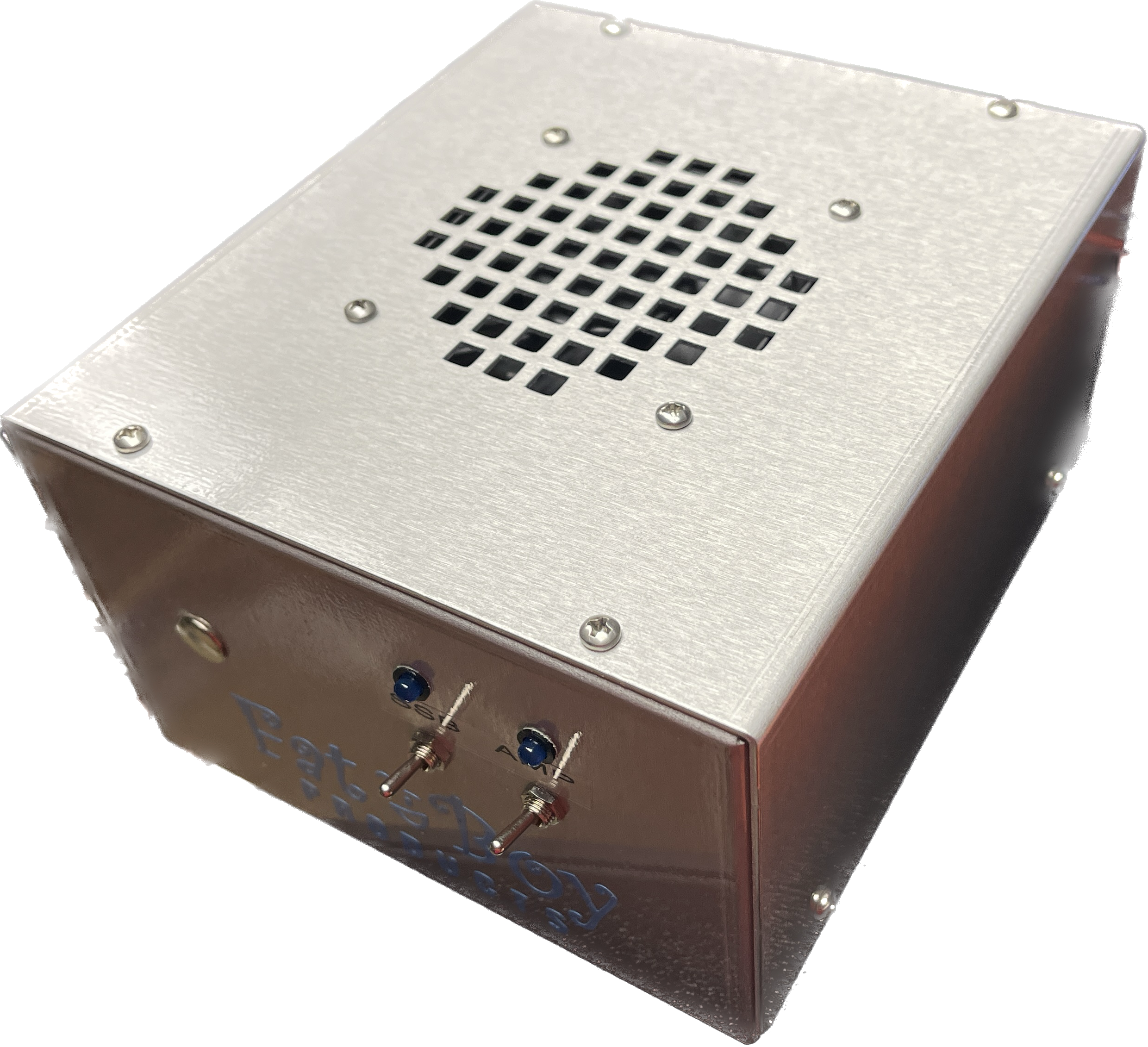

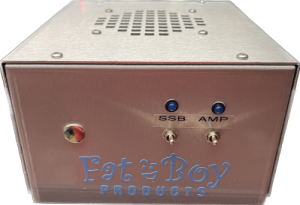

4-Pill AM
|
-
4 Pill
4x HG 2SC2879 -
Class C
AM/FM/CW
ONLY
-
These can handle high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)
-
Max input power 120w Peak power
-
Output 100w carrier and 500W peak
with a
5w
carrier and 80W peak driver.
tested at (13.5VDC)
2/24/24
-
7-3/8" x 6-1/2" x 4-1/4"
-
12-16 VDC
|
$459
|

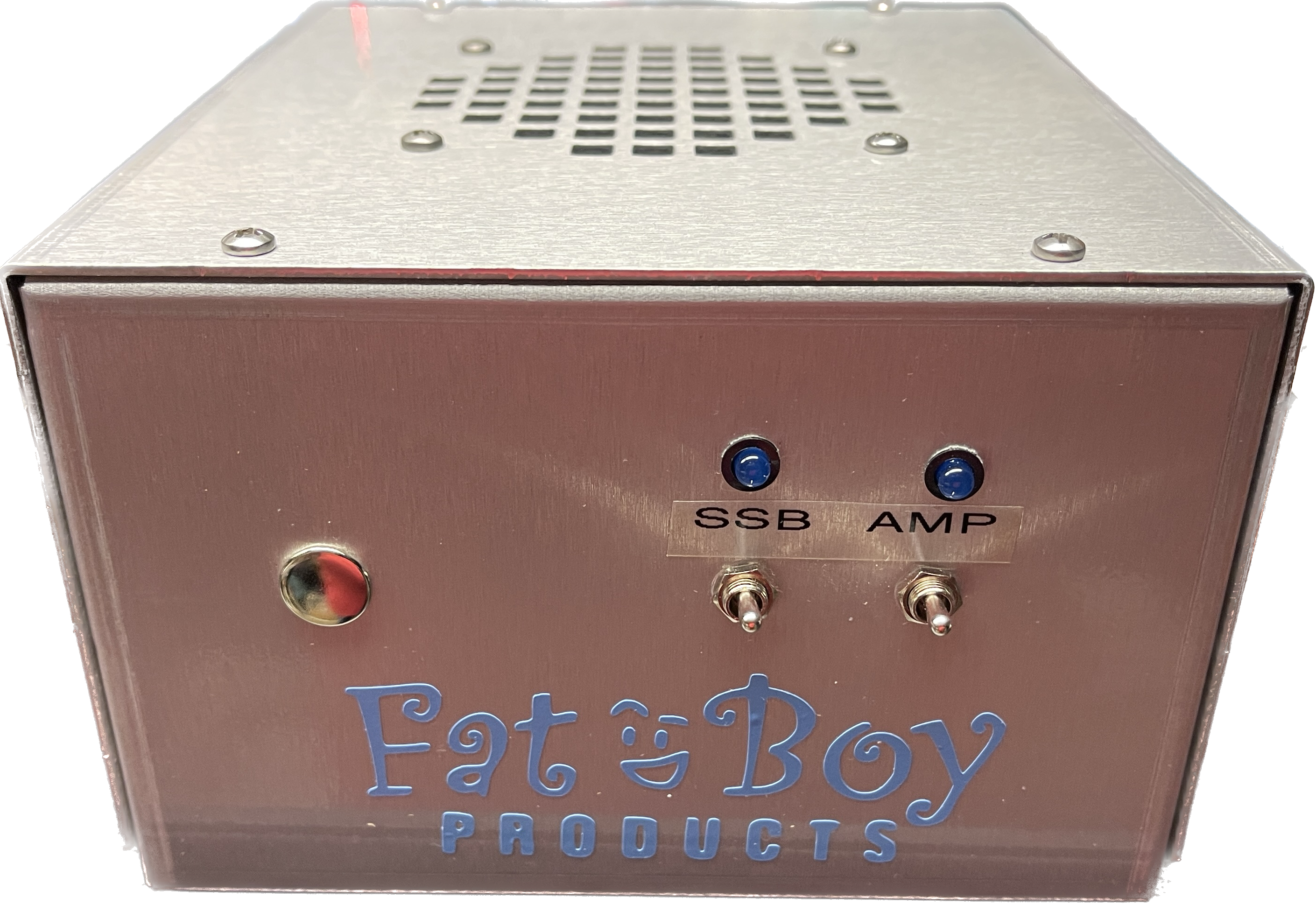

4-Pill SSB |
-
4 Pill
4x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
These can handle high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)
-
AM/FM/SSB/CW
-
7-3/8" x 6-1/2" x 4-1/4"
-
Max input power 120w Peak power
-
Output 100w carrier and 500W peak
with a
5w
carrier and 80W peak driver.
tested at (13.5VDC)
2/24/24
-
12-14 VDC
|
$509
|
4-Pill AM
C-BOX |
-
4 Pill
4x HG
2SC2879C -
Class C
AM/FM/CW
ONLY
-
These can handle
VERY high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)
-
Max input power 250w Peak power
-
11" x 6-1/2" x 4-1/4"
-
12-16 VDC
-
Output 100w carrier and 900W peak
with a 12w carrier and 220W peak driver.
tested at (14VDC) 1/20/24
|
$599
|

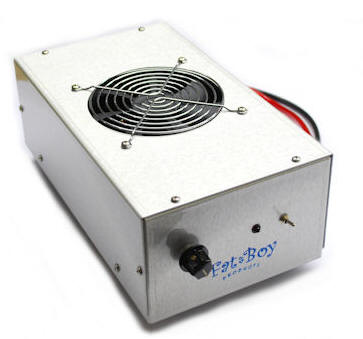

5-Pill AM
|
-
5 Pill
1x HG 2SC2290
4x HG 2SC2879
-
Variable output power knob.
-
Class
C
-
AM/FM/CW
ONLY\
-
This does the same amount of
power as a 4-pill, it has a driver so that
small output
older radios can get same output
from the amp.
-
Max input power 30w Peak power
-
11" x 6-1/2" x 4-1/4"
-
12-16 VDC
|
$575
|
5-Pill SSB
|
-
5 Pill
1x HG-454
4x HG 2SC2879
-
Variable output power knob.
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
AM/FM/SSB
-
This does the
same amount of
power as a 4-pill, it has a driver so that
small output older radios can get same output
from the amp.
-
Max input power 30w Peak power
-
11" x 6-1/2" x 4-1/4"
-
12-14 VDC
|
$629
|

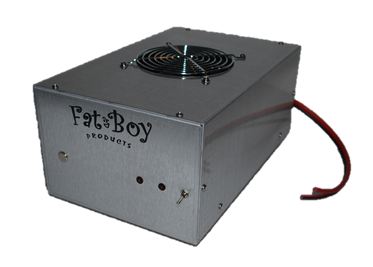

6-Pill SSB
 |
-
6 Pill
6x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
These can handle high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)
-
AM/FM/SSB/CW
-
Max input power 150w Peak power
-
Output
200w carrier and 780W peak
with a
13w
carrier and 150W peak driver.
tested at (13.5VDC)
2/24/24
|
$849
|

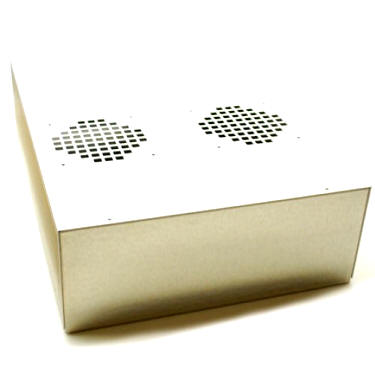

8-Pill SSB
 |
-
8 Pill
8x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
These can handle high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)AM/FM/SSB/CW
-
Max input power 175w Peak power
|
$999
|
10-Pill SSB
|
-
10 Pill
2x HG-454
8x HG 2SC2879
-
Class
AB with true SSB biasing circuit, not just a relay
delay.
-
These can handle high peak power
input so there is NO variable power option
(the
variable would just burn out at higher input
levels.)
-
AM/FM/SSB/CW
-
This does the same amount of
power as a 8-pill, it has a driver so that
small output
older radios can get same output
from the amp.
-
Max input power 40w Peak power
|
$1199
|
|
|
|
|
|
|
|
|
|
|
2
3
4
5
6
8
10
16
20
|

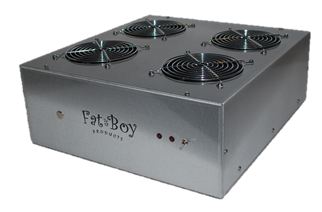

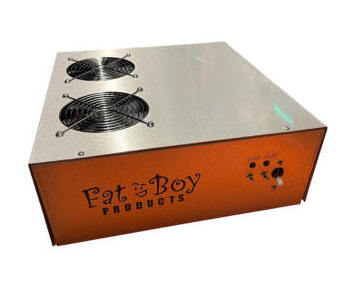

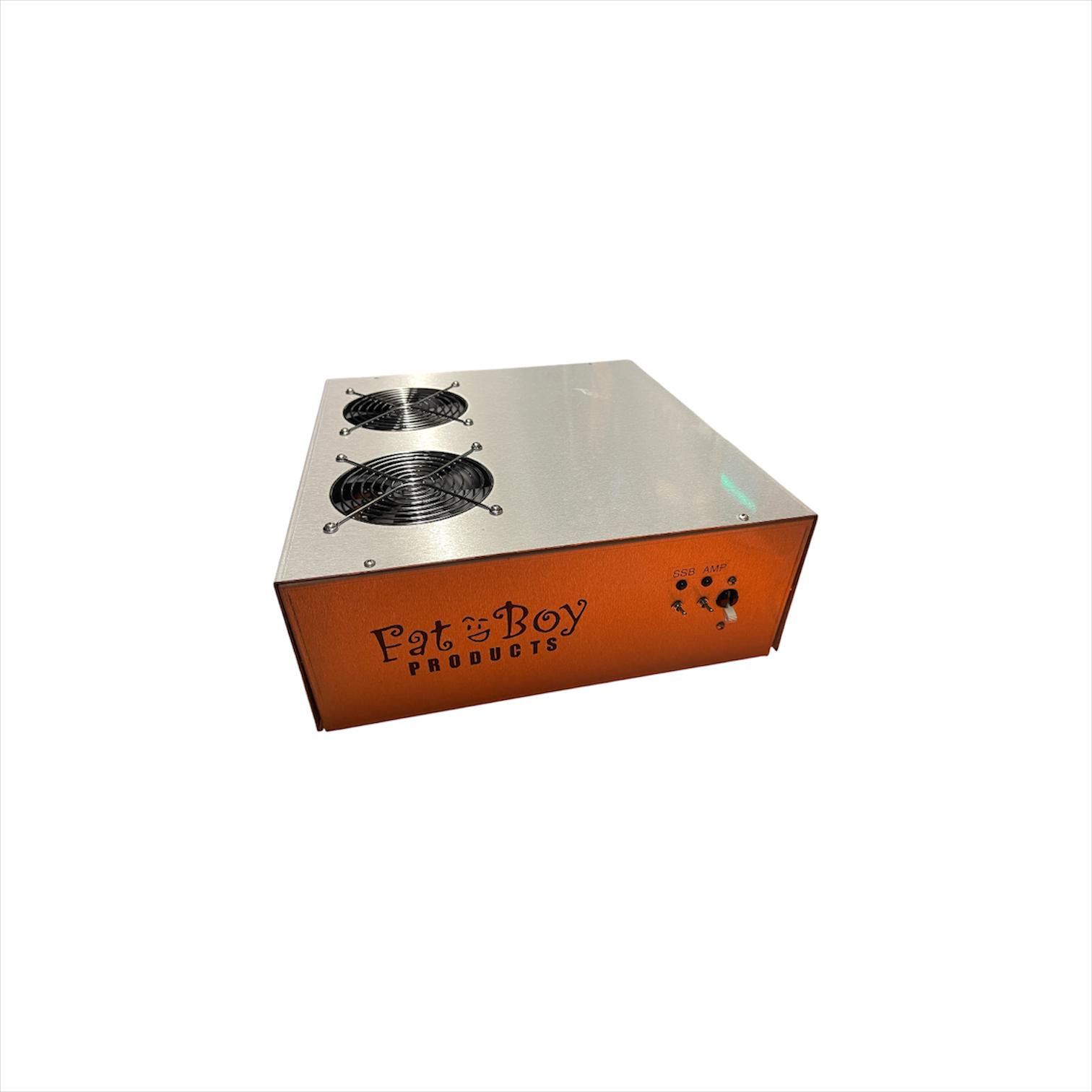

BASE STATION
There are many Base options and sizes,
smaller ones all in one box and
larger ones with
seperate power supply like the one shown in the picture.
There are too many different ways people want it .
Please email
your requirement and we will get back
with you with a price.
Send these requirements when you email.
-
How many Pills?
-
Any drive pills?
-
Built in
Internal Normal Duty
power supply (2pill through
6-pill) AC Only
-
Otional External Heavy Duty Power supply (6 pill through
16 pill)
DC Box on top of an AC power supply
(amp can go mobile later if you wish)
-
AM Only (Class C) or
AM and SSB
(Class C and AB)
-
Include what radio you will driving it
with.
-
If you don't answer all these
questions in your email,
we will have to email you
back and the process will take longer.
|
To get price, send your Shipping address and amp type and
features desired.
|
|
|
