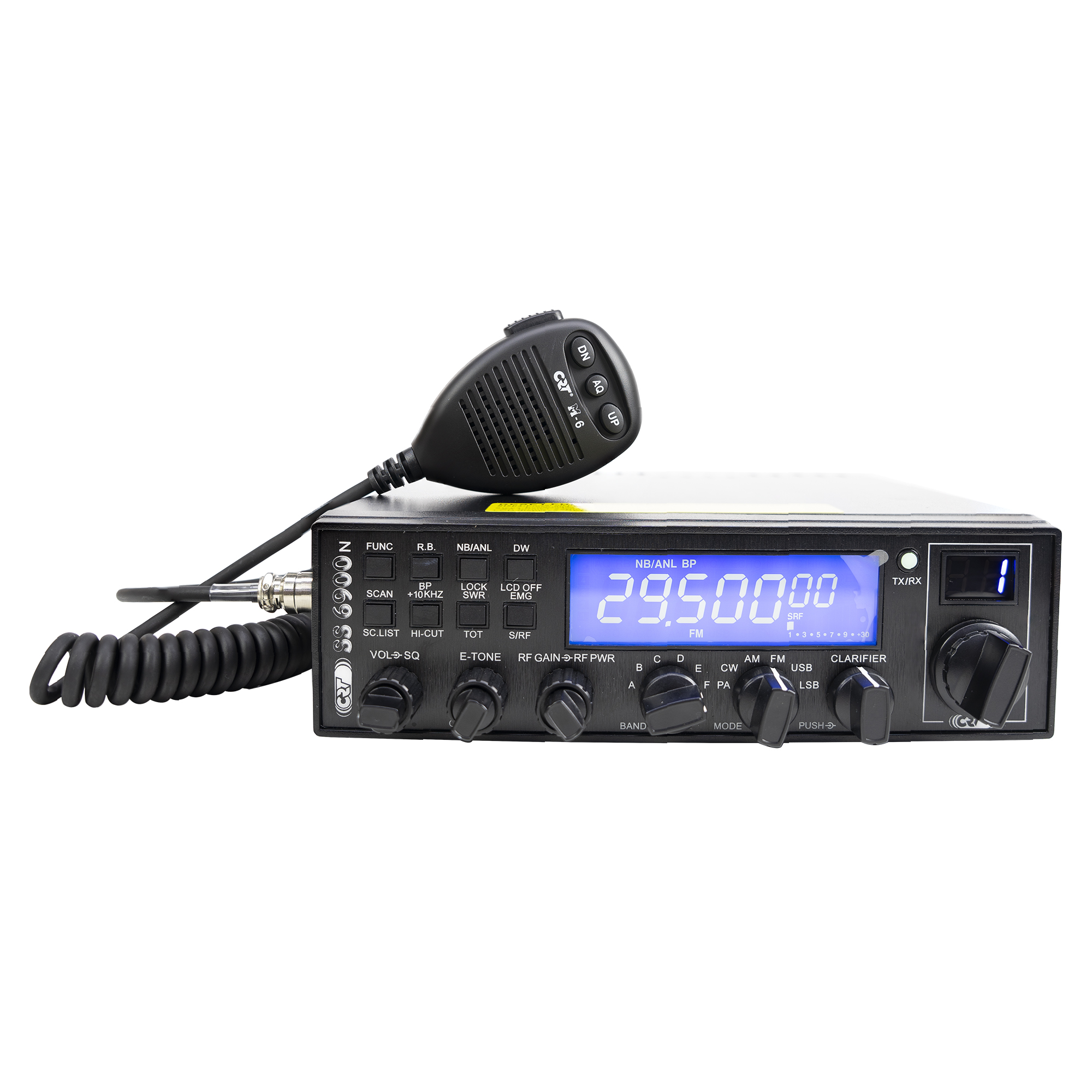

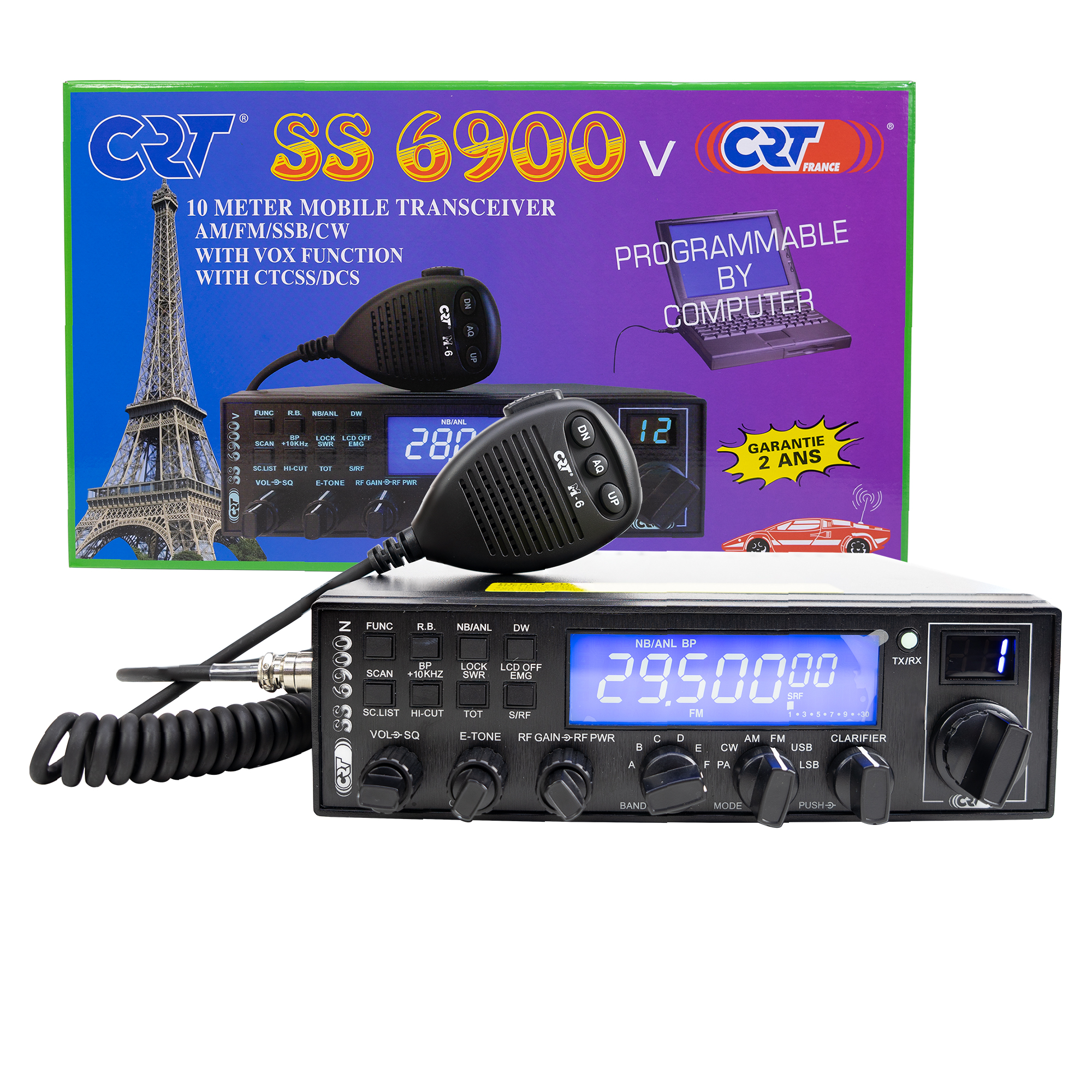

CRT SS-6900V AM/FM/SSB/CW Transceiver

NEW :

Multi Band - AM / FM / USB / LSB / CW / PA

Download Manual

Radio amateur station CRT SS 6900 VOX CB, AM, FM, USB, SSB, CW, PA, 28-29.7Mhz, ASQ, RF Gain, Roger Beep, 12V, programmable

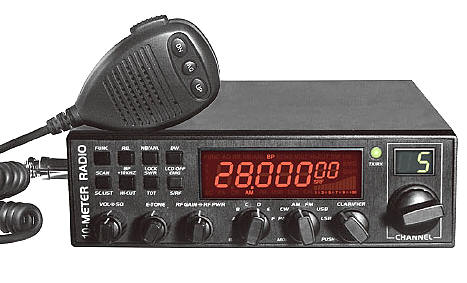

Similar to the Anytone AT-5555-Plus

Features

- Dual Watch: Yes
- Channel scan: Yes
- RF Gain: Yes
- ASQ - Automatic Squelch: Yes
- Keyboard lock: Yes
- Noise filter: NB (Noise Blanker), ANL (Automatic Noise Limiter), HI-CUT
- Roger Beep: Yes
- Clarifier: Yes
- Step frequency adjustment: Yes
- Emergency channel button 9/19: Yes
- RF power control: Yes
- Programmable: Yes
- SQ - Squelch: Yes
- RF PWR: Yes
- SWR meter: Yes
- VOX: Yes
- And meter: Yes
- Operating temperature: -30�C ~ +50�C
- Key sound: Yes
- Aryl: Yes
- Security codes: Yes, CTCSS/DCS

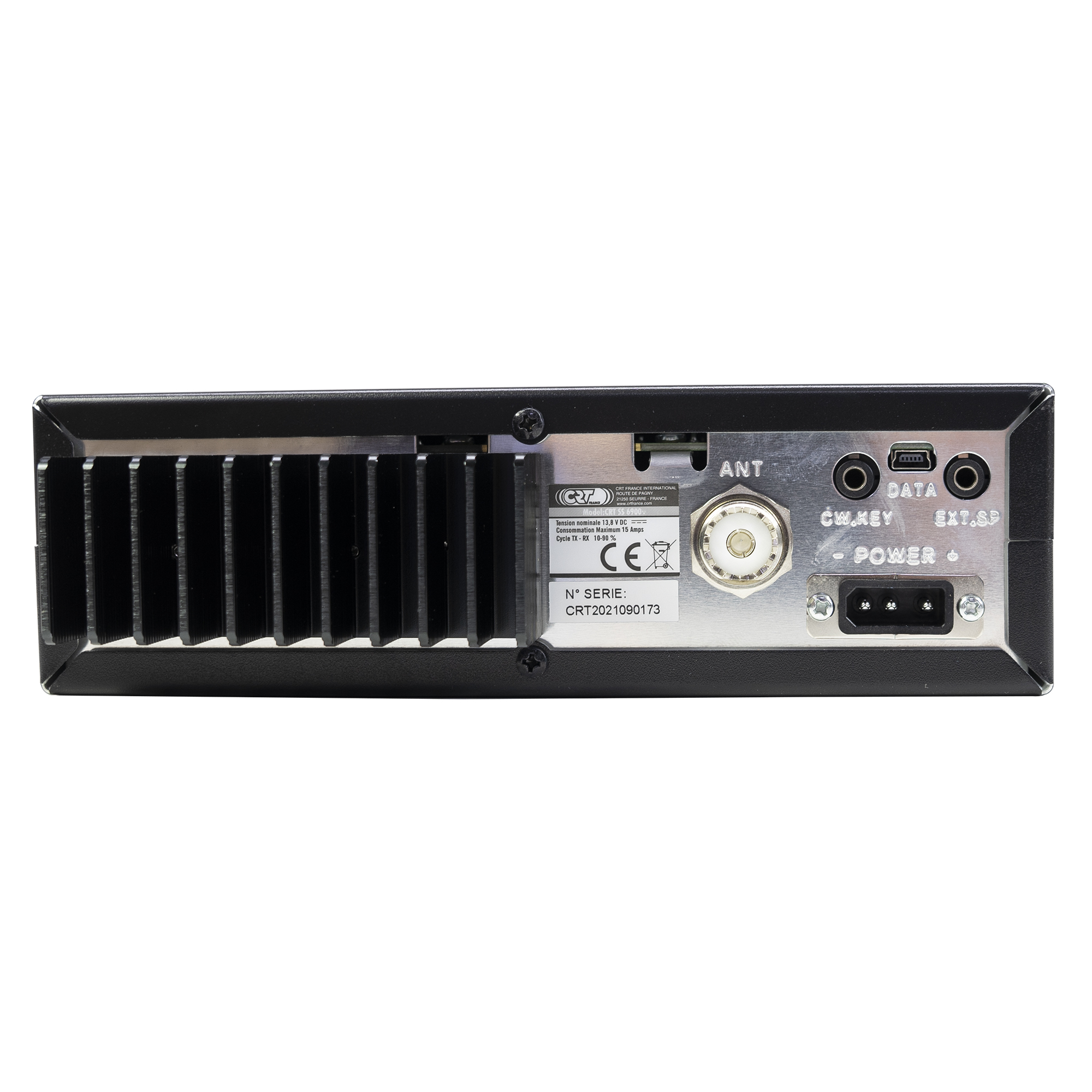

Rear panel connections:
- Additional speaker connection: Yes
- CW (morse) connection: Yes
- Programming connection: Yes

Orders with radio work are delayed 3 - 10 days

- VOX function
- CTCSS/DCS codes
- RX Compander
- TX Noise Gate
- RX Noise Gate (NRC board included)
- Microphone type selection :
electret or dynamic
- Program cable connector on the back

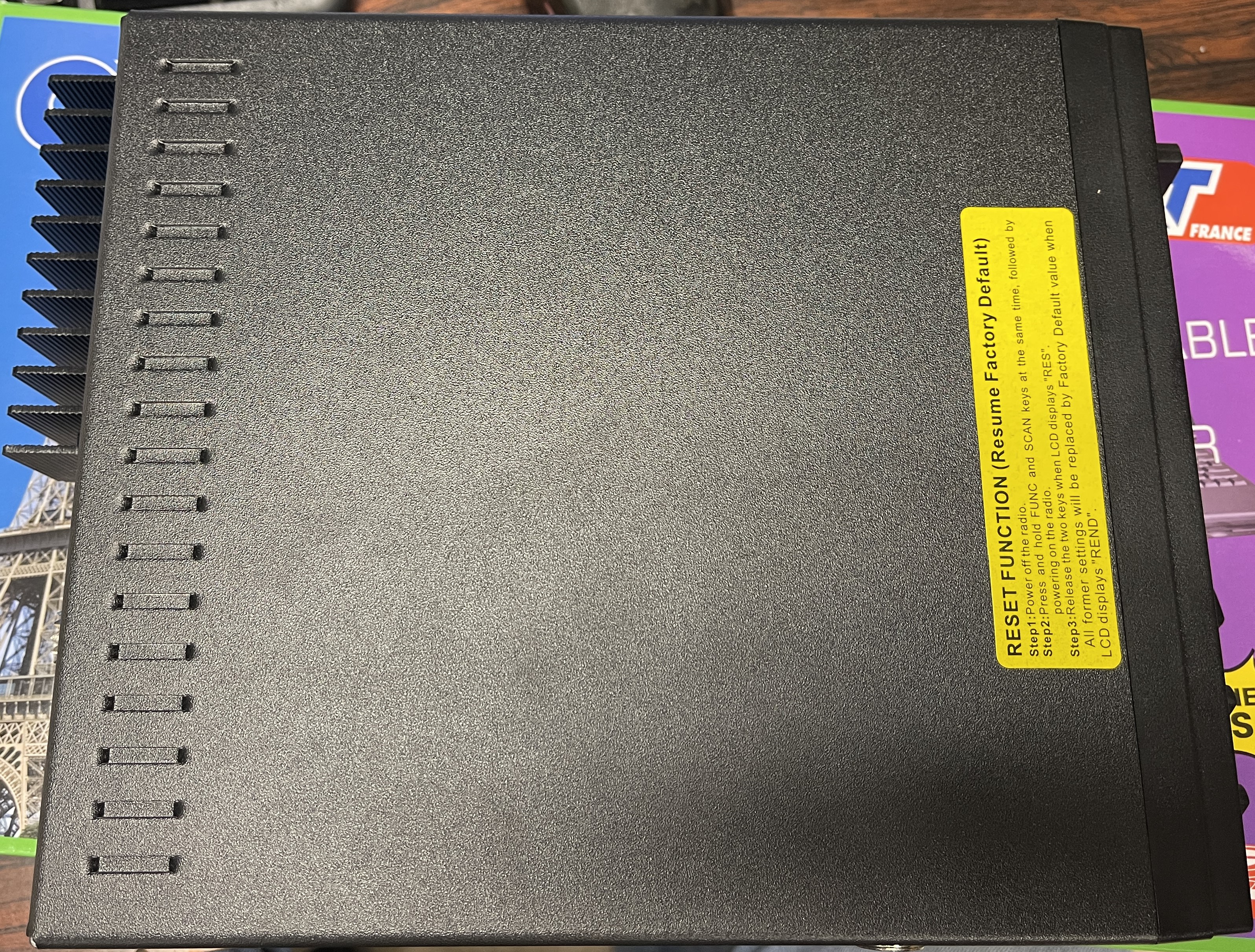

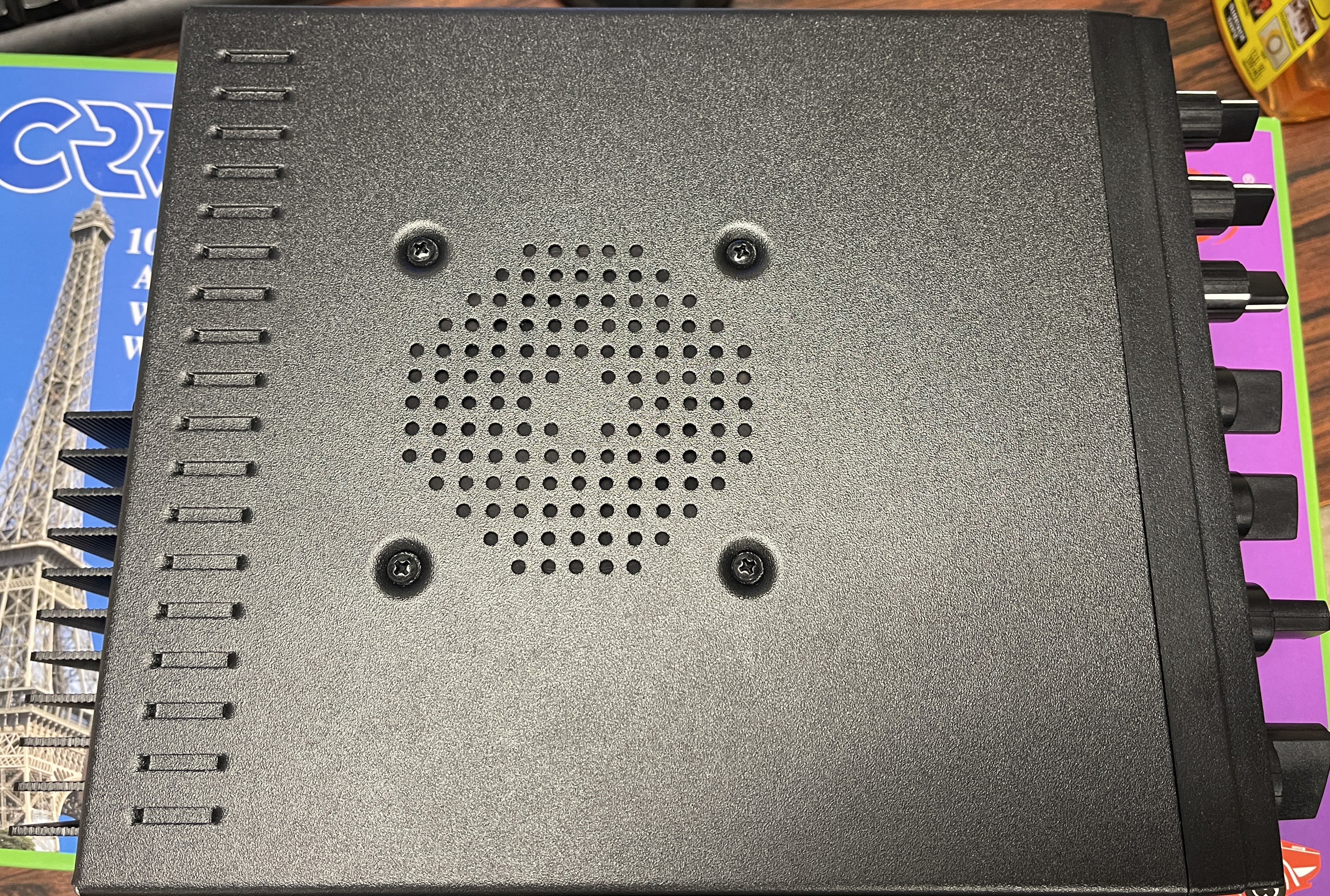

- Extra vent holes on the top and bottom cover
- With step 5kHz

SOLD OUT

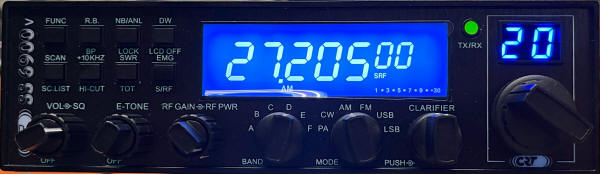

CRT SS-6900V (V7) All Mode
10 Meter transceiver

$250

Download Software

Optional Accessories

Tune-up and frequency conversion.
(Tune-up, Alignment and expanded frequency
25.615 - 30.105 MHz) $49

Switch Location

Install an EXTERNAL PTT keying port. We use an RCA jack for a TX output PORT to your external device. Every time you key it provides a connection between the +/- of the RCA connector.
   1) Output RCA completely isolated from the radio. Both +/- connect to a relay that isolates it from the radios circuits.
   2) Optional BYPASS switch in case your external device does not have a standby (turns port off (stays open))
     4) Heavy duty relay can handle any keying circuit voltage, even the SB-220's - 120VDC circuit. $49
/
$59
/
$69

Change factory power cord to a 10 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
$59

Change factory power cord to a 8 Gauge Power Cord (14 foot) and modify the DC Jack for high amperage 2 Pin Quick connector. A 3300uF Capacitor is also added for additional DC filtering.
$99

Programming Cable
For Software programming via computer. We don't know anything about programming these units and we can provide no assistance with it. $18

Install a Record/Playback Module 120 seconds (wired inside the radio with a switch on the side to record 120 seconds and to play it back over the air) $77

Sound Byte link

SOLD OUT
Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 30 second sound byte you want) $65

Sound Byte link

SOLD OUT
Install a Noise toy as a background theme music
(wired inside the radio with a switch to play any background music at very low volume so you can talk over it.) $65

small speaker Add a Small External Speaker
(plugs into back of the radio for improved sound) $12

Large Speaker Add a Large External Speaker
(plugs into back of the radio for improved sound) $25

Tuned up values on these watt meters

	Dosy	Bird RMS	*Bird 43P
AM	1~15w	1~15w	1~15w
FM	1~30w	1~30w	1~30w
SSB	9~33w	7~23w	13~53w
PEAK AM	4~36w	2~17w	15~60w

* The most informative meter and the one we use. 9/4/24

General characteristics
Model
Broadband type	AM / FM/SSB/CW
channels	60 channels in each band (6-bands)
Frequency	28,000-29,700 MHz (and more)
Sensitivity (20dB SINAD)	1.0 �V AM / FM; 0.25 �V SSB
Sensitivity (10dB)	1 uV
Security codes	CTCSS / DCS
Microphone type (pins)	4 pin
Power speaker audio	4W
Emission power	AM / CW: 1-12W (adj); FM: 2-40W (adj); USB / LSB: 0-30W (adj)
Power source	13.8 VDC + / -15%
Current absorbed
Dimensions (W x H x H )	200 X 60 X 240 millimeter 7-7/8 x 2-23/64 x 9-29/64 inches
Frequency control	PLL synthesized

MICROPHONE
DIAGRAM

These radios are made in China and
sold under the following brands.

Alpha 10 Max (USA)
Anytone AT-5555 (Europe)
Comtex SC-1000 DX (Europe)
Hannover BR-9000 (South America)
K-PO DX-5000 (Netherlands)
Maas DX-5000 (Germany)
Superstar SS6900 (France)
