UNIDEN

Mobile CB Radio

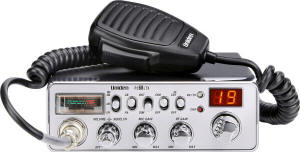

PC68 LTX
...Limited Edition...



Owners Manual - English  - Spanish - French

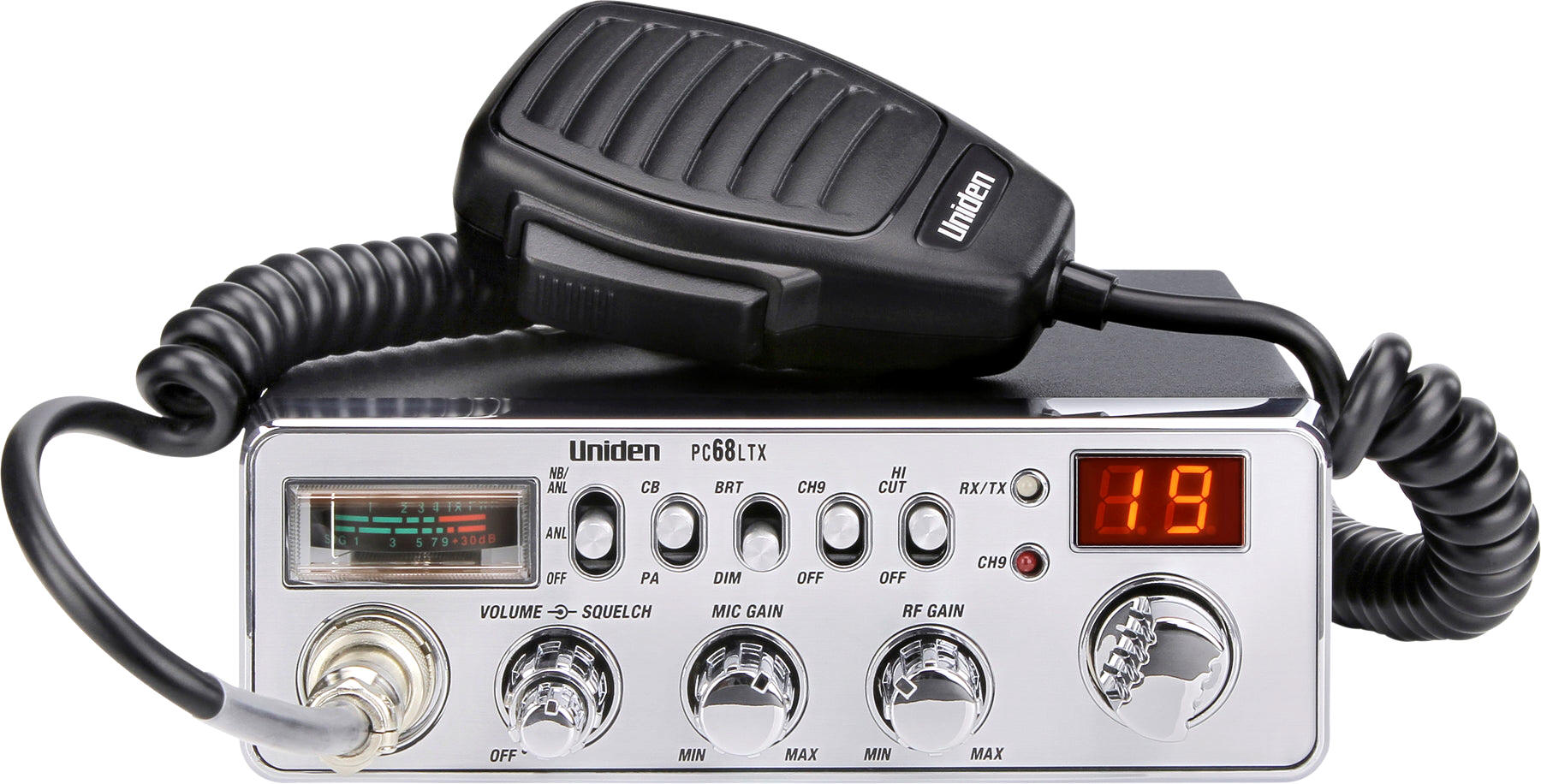

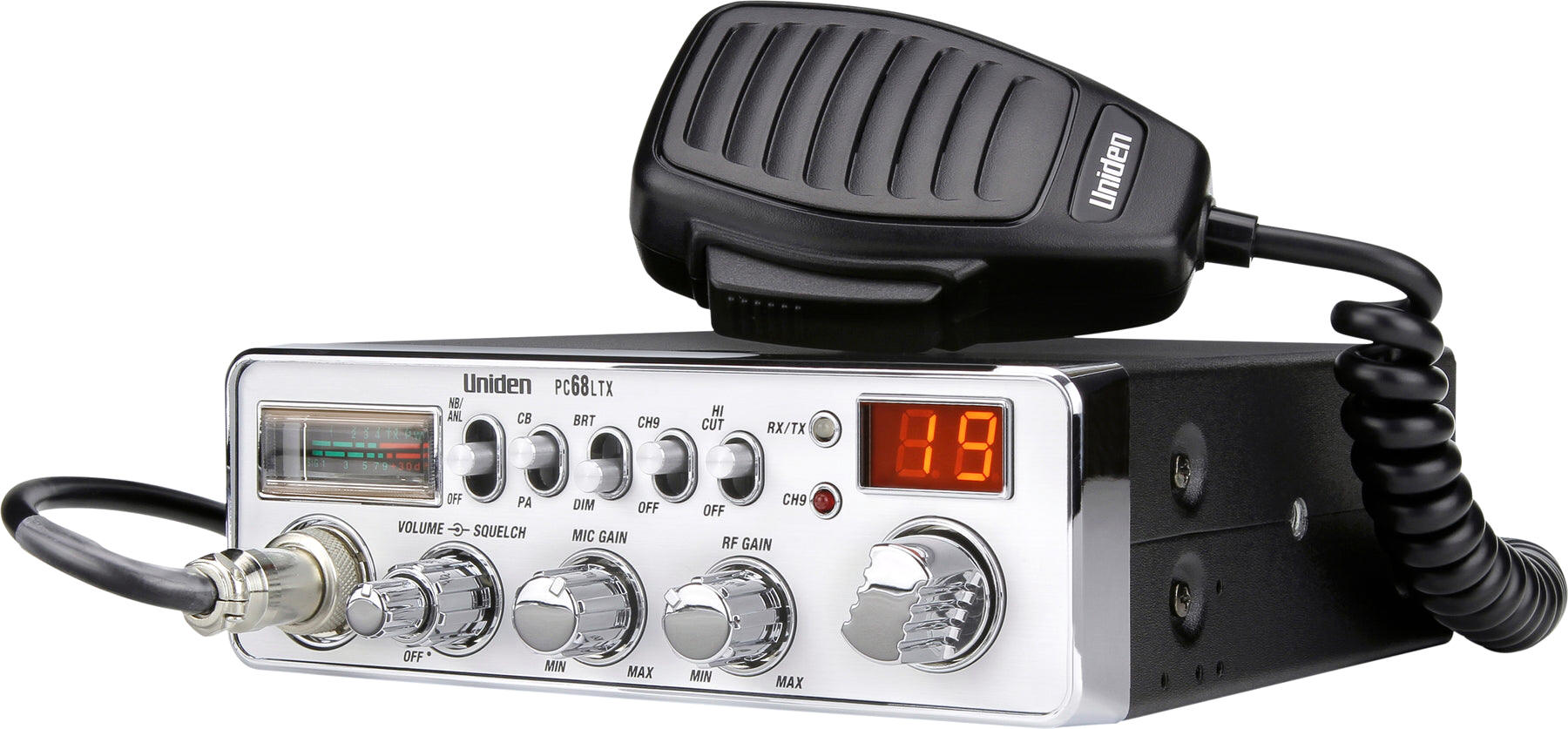

Uniden PC68LTX represents the highest quality communications device designed for use in the Citizens Band Radio Service. It will operate on any of the 40 AM frequencies authorized by the Federal Communications Commission (FCC). Classic CB style with solid performance. This CB Radio offers multiple adjustments to allow for fine tuning the signal and sound. Squelch control settings as well as the ANL / Noise Blanker option reduce static for better clarity. Microphone adjustments to the gain allows for better control over the mic sensitivity.

  • High quality circuitry.
  • Uniden has reintroduced the high-cut audio.
  •  Styled and packed with the most popular 2-way radio features in a user friendly package.

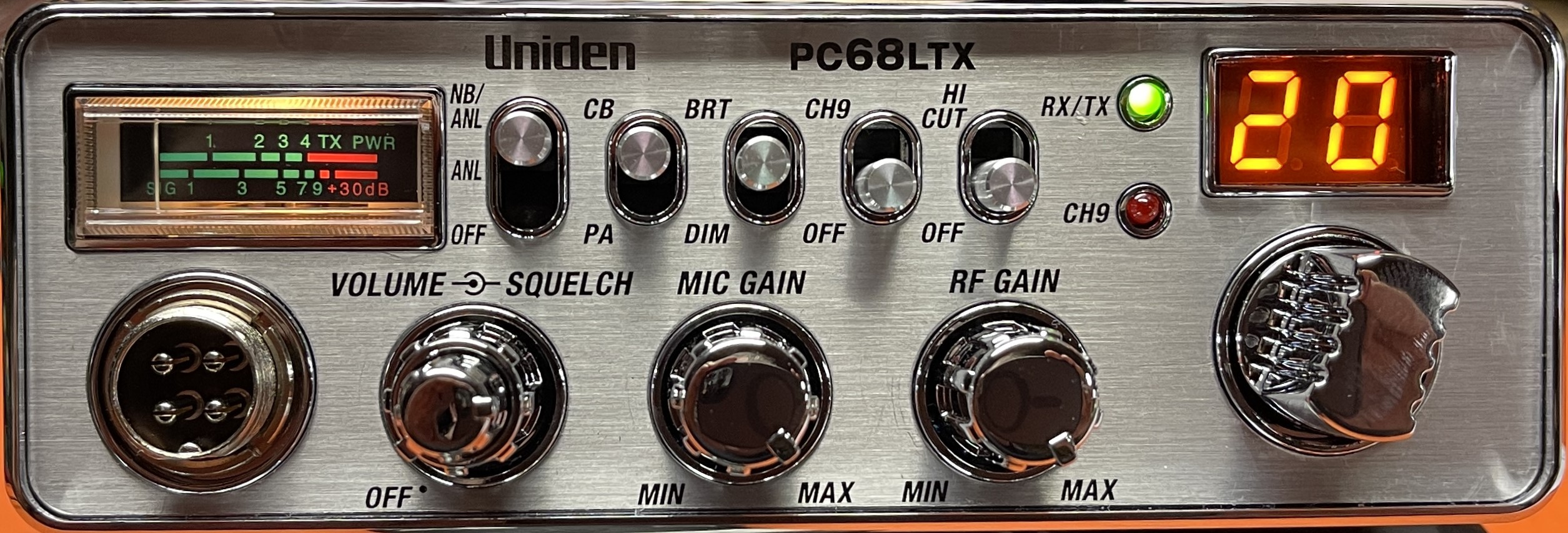

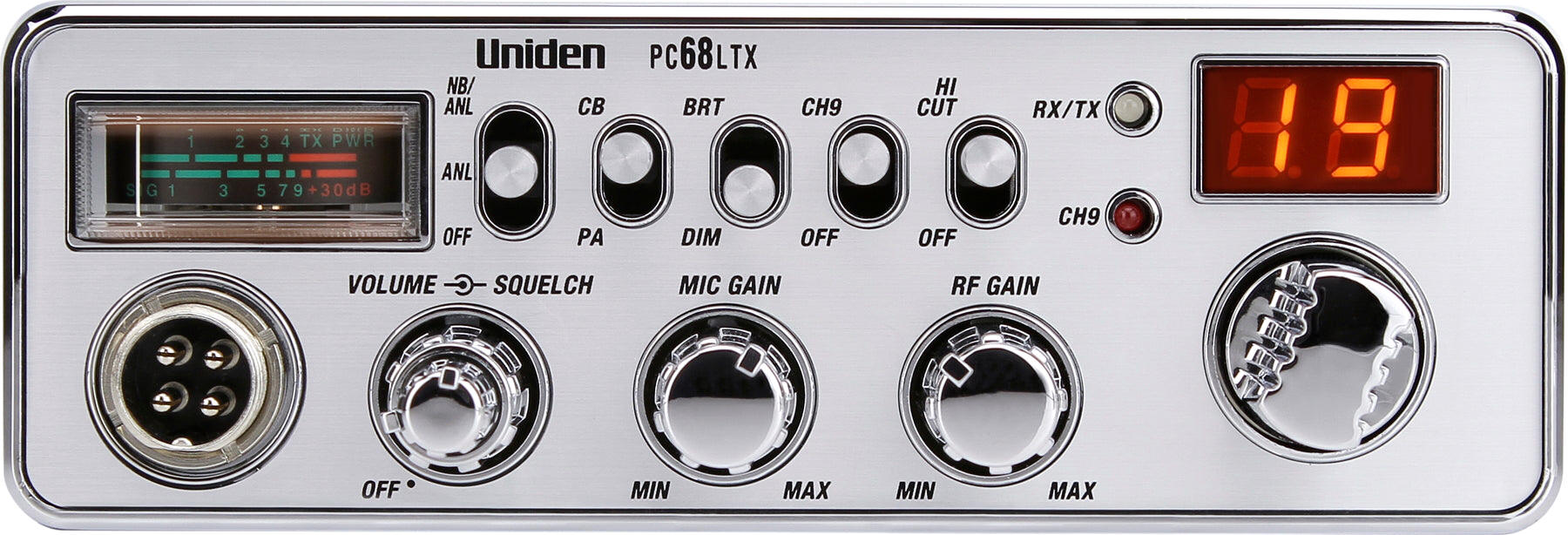

  • Bright LED channel indicator, easy to read meter, front panel Mic connector, and enhanced channel selector that offers more positive channel selection and reduced drift.
  • Extra-long mic cord for operator convenience.
  • RF gain control,
  • Mic gain control,
  • PA/CB switch,
  • Analog S/RF meter,
  • instant access to channel 9,
  • Sturdy mic with left side positive push to talk.

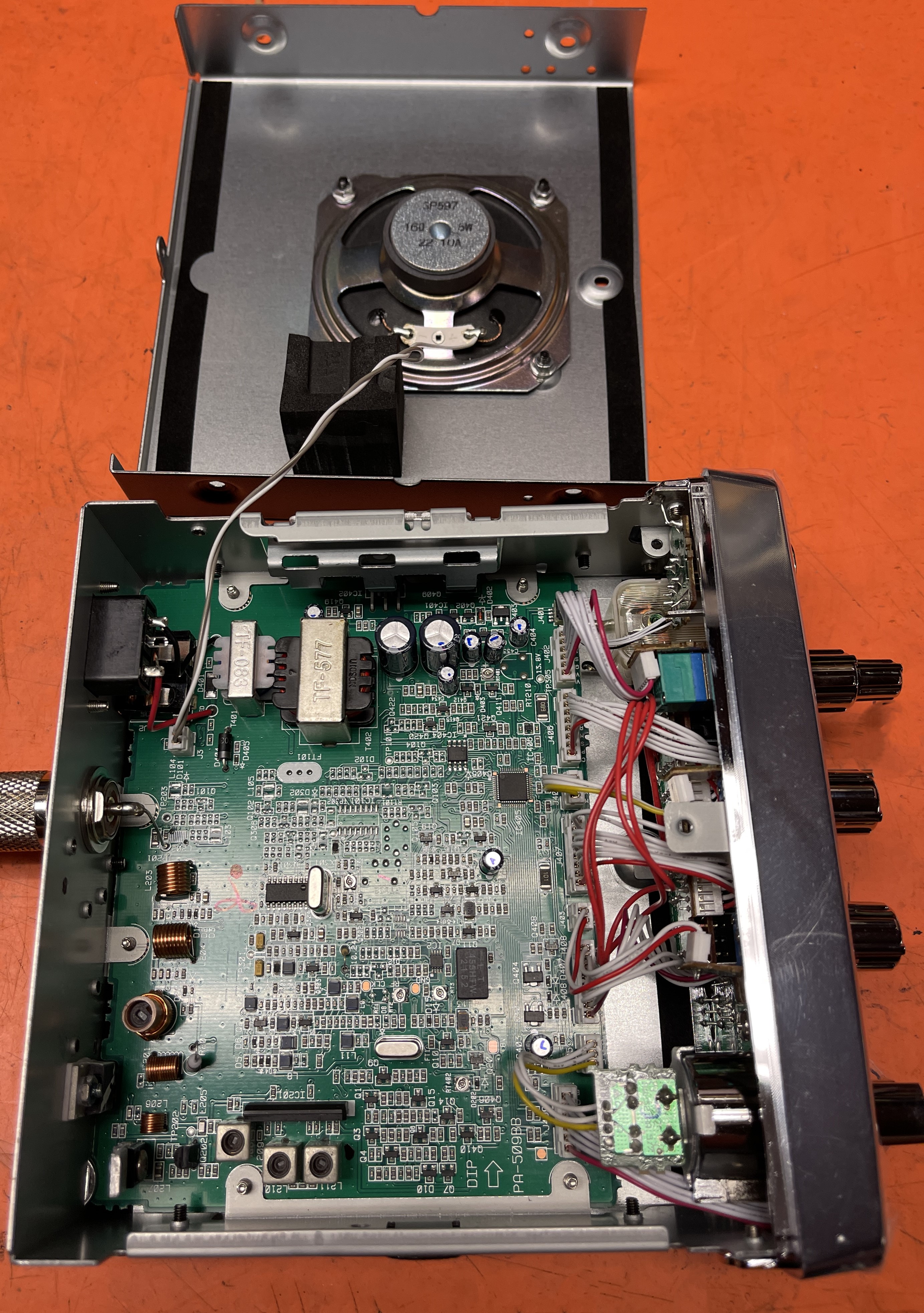

  • NEW SURFACE MOUNT DESIGN
    This is not a release of the old version, it is all new with micro surface mount technology.






PC-68LTX


PC-68LTX   PC-68LTX
PC-68LTX   PC-68LTX'

PC-68LTX














CB Microphone Wiring (Galaxy)








...Mobile CB radio... $119.50

Optional Accessories

 Tune-up. Perform a tune-up to radio to increase power, audio and performance.  $29
Switch Option
Dead Key
 Low Dead Key (carrier). (perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types. $49
or
$59
VARIABLE POWER Install a power regulator / super modulator circuit and a new variable rear control. Perform a tune-up to the radio. Increased peak power  and audio  performance. Smooth Variable AM carrier from 1/2w to 6 watts. $79

 Turner RK-56 Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$46

 Astatic 636L Noise Canceling microphone.
(wired for this radio with a 4 pin plug)
$29
 Install an Echo Board (Side)
(wired internal to the radio with dual controls on the left side to control speed and echo effects)
$65
or
$75
 Astatic RD104-E Amplified microphone.
(wired for this radio with a 4 pin plug and a battery installed)
$46

Sound Byte link


SOLD OUT
 Install a Noise toy
(wired inside the radio with CH-9 witch to trigger any 30 second sound byte you want)
$65

Sound Byte link


SOLD OUT
 Install a Noise toy as a background theme music
(wired inside the radio with CH-9 witch to play any background music at very low volume so you can talk over it.)
$65

SOLD OUT
  Install a Record/Playback Module
W
ired inside the radio with  two pushbuttons on the side to record 120 seconds and to play it back.
$77
small speaker  Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12
Large Speaker  Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

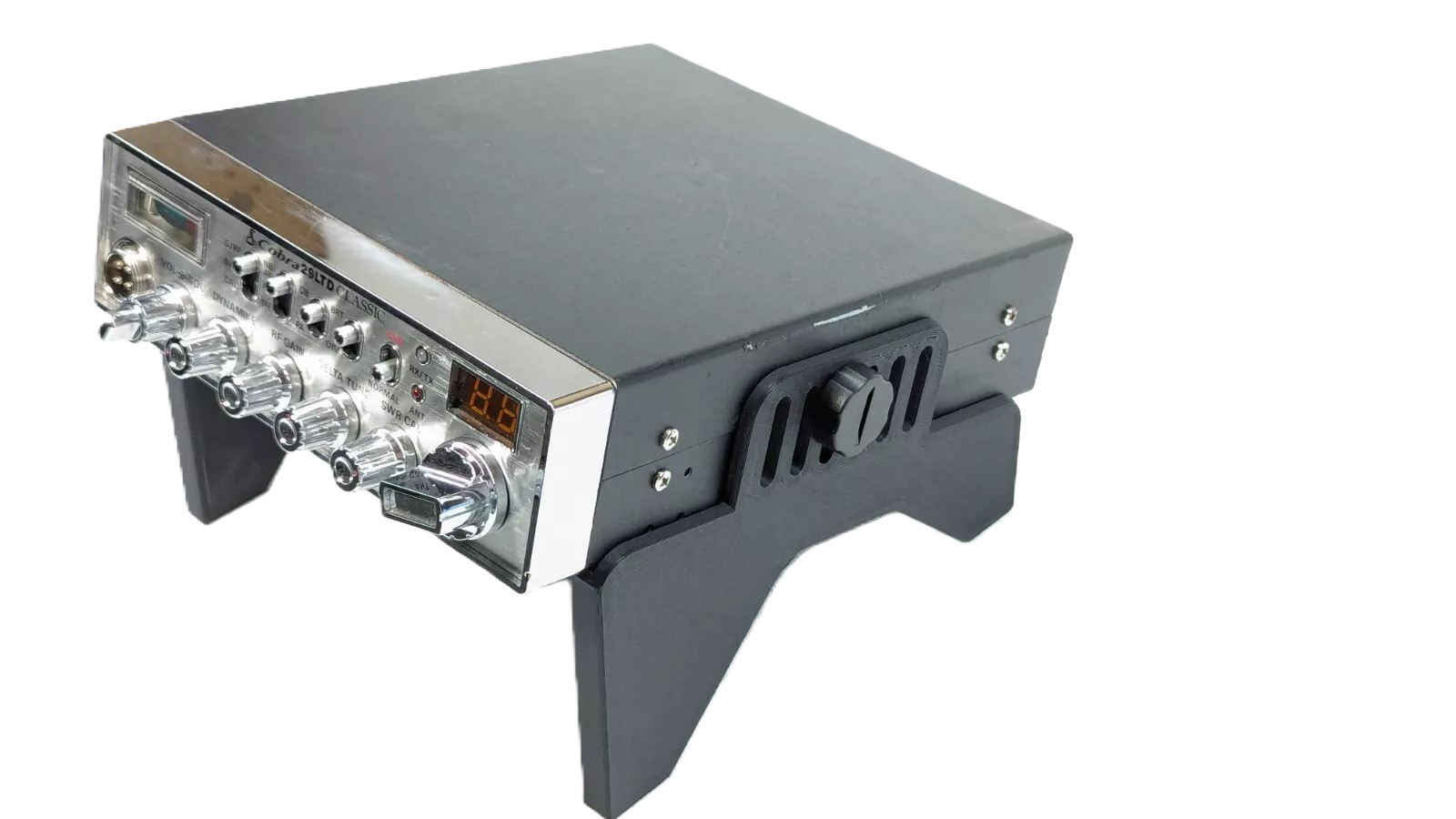

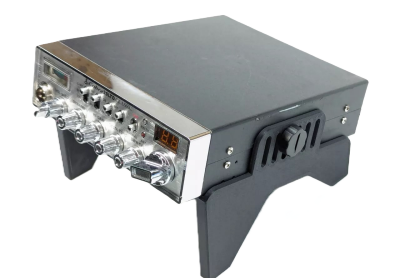

Klink Bracket K-Link Radio Supports makes for a great Table top base station $25

Tuned up values on these watt meters
Dosy Bird RMS *Bird 43P
AM 6w 6w 6w
PEAK AM 18w 8w 32w
*The most informative and the one we use. 8/13/24

GENERAL
Channel: 40
Frequency Range: 26.965 - 27.405 MHz
Weather Frequencies:  162.400 MHz (WX CH1)
162.425 MHz (WX CH2)
162.450 MHz (WX CH3)
162.475 MHz (WX CH4)
162.500 MHz (WX CH5)
162.525 MHz (WX CH6)
162.550 MHz (WX CH7)
Frequency Control: PLL Synthesizer
Antenna Impedance: 50 ohms
Power lnput: 13.8 VDC
Current Drain TX: AM Full Modulation 2.2 A max)
RX: Squelch 0.4 A (NOMINAL)
Operating Temperature: -30°C to 50°C (CB)
-10°C to 50°C (WX)
-10°C to +50°C (DSC on)
Accessories: DC Power Cord
Microphone
Microphone Hanger
Mounting Bracket
Size (W x D x H): 160mm x 217mm x 55mm
(6.3"x8.49"x2.17")
Weight: 1.7 kg
TRANSMITTER
Output Power: 4 watts
Emission Type: 6A3
Hum and Noise: Better than 40 dB
Frequency Tolerance:  ±0.002%
Modulation Percentage (Peak): 100%
Spurious Rejection: -70 dB
Output Impedance:  50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB S+N/N: 0.5 μV
Sensitivity at 500 mW Audio Output: 0.5 μV
Squelch Threshold: 0.5 μV
Antenna Impedance: 50 ohms
Squelch Tight: 1000 μV
Signal Meter S-9: 100 μV
Audio Output Power (max.): 5 watts
Audio Output (10% Dist.): 4 watts
Selectivity @ 6 dB Down: 7 kHz
Adjacent Channel Rejection: 70 dB
Image Rejection: 90 dB
Internal Speaker Impedance: 16 ohms
External Speaker Impedance: 8 ohms
PUBLIC ADDRESS
Output Power at 10% Distortion: 4 watts
Specifications shown are typical and subject to change without notice.
