Mobile CB Radio



Click for larger image

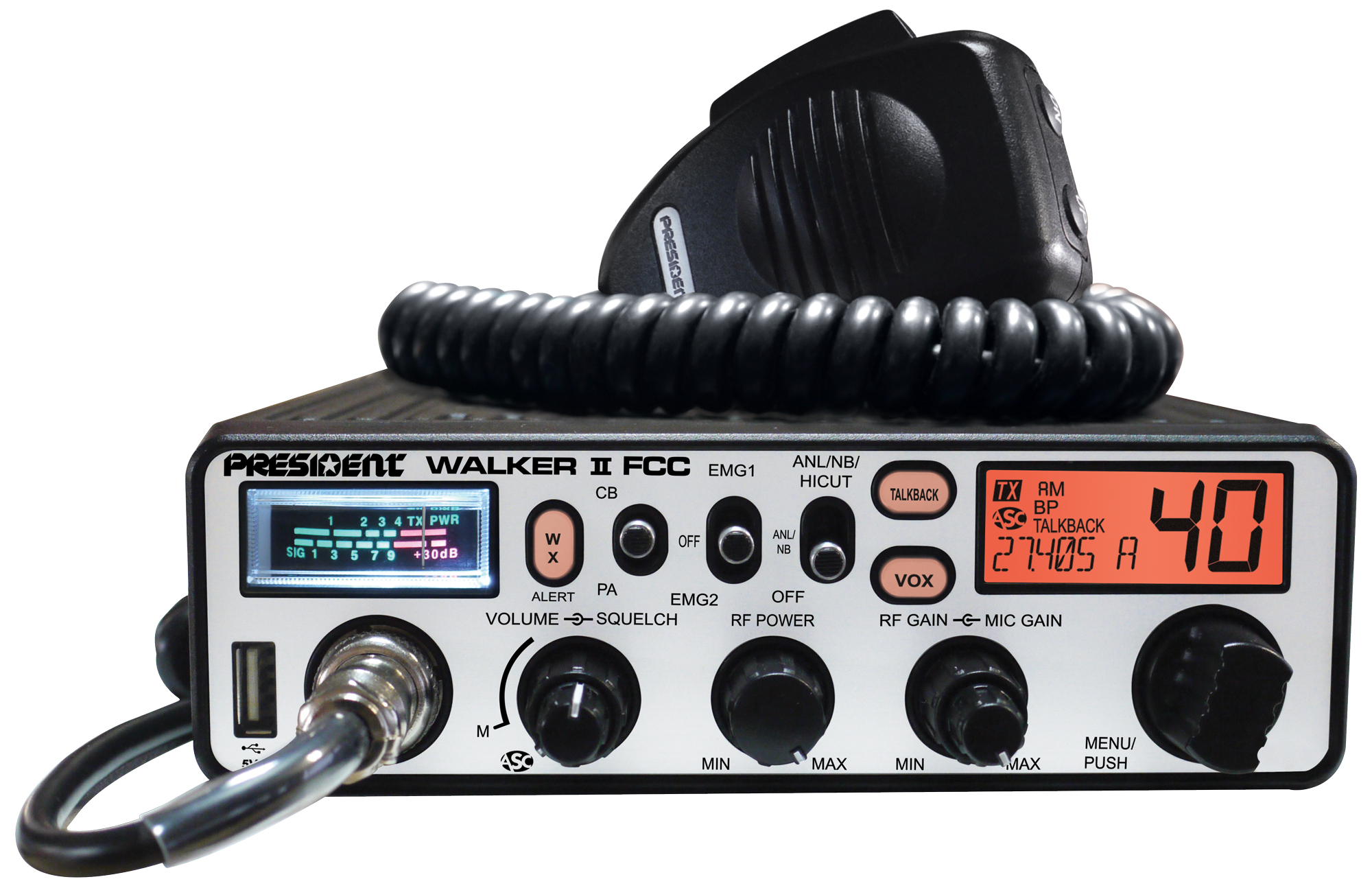

Walker II FCC
AM  CB Radio

  Download Manual


Features
-->INFORMATION SHEET DOWNLOAD HERE<---



- 40 channels AM
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S/RF vu-meter
- Public Address
- Scan
- Talkback
- Beep Function
- Roger Beep
- Tone
- ANL filter, NB, HI-CUT
- RF Gain / Mike gain
- RF Power
- Mic type electret / dynamic
- F function key
- VOX
- Mode switch AM / WX
- Preset emergency (EMG 1/2)
- SWR (Power Reading /SWR)
- Weather channel with Alert
- Front microphone plug
- External loudspeaker jack
- USB 5V 2.1A

- Front panel : brushed aluminium finish

Back light color :Red Green Blue Cyan Yellow Magenta light blue



 Walker-II-FCC-1-Orange-rE.jpgWalker-II-FCC-2-Vert-gr.jpgWalker-II-FCC-3-Bleu-bL.jpgWalker-II-FCC-4-Cyan-Cy.jpgWalker-II-FCC-6-Violet-PU.jpg









ASC2+3 years warrantyRoHS - Lead Free

President extends the warranty to 5 years, when a consumer buys a President radio and antenna together.

WARRANTY SERVICE IN USA FOR 1 to 5 YEARs:


KDC SALES
17294 FM 3083
CONROE TX. 77302
936-231-3753




Mic wiring diagram:





... Walker II ...
... On Sale NOW !!! ...
$159.99
$149.99
Warranty Duration 2 + 3 years.

Optional Accessories

With buttons?

 Astatic RD104-E Amplified microphone.
(wired with a 6 pin plug and a battery installed). Choose if you want Channel Up and Down buttons installed in the microphone.
$57
or
$99
SOLD OUT
EC2018XTR Xtreme Echo microphone.
(wired for this radio with a 6 pin plug and a battery installed)
$86

SOLD OUT
  Install a Record/Playback Module 18 seconds (wired inside the radio with  two pushbuttons on the side to record 18 seconds and to play it back) $77

Sound Byte link address

SOLD OUT
 Install a Noise toy
(wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want)
$65

Sound Byte link address

SOLD OUT
 Install a Noise toy as a background theme music (wired inside the radio with a switch to play any background music at very low volume so you can talk ver it.) $65

 Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12

 Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25

Your Gmail

Tune-up VIDEO. Make a completion video to show tune-up levels and modifications. To be posted on YouTube, Subscribe to my YouTube Channel for notice. $29



General
Number of channels : 40
Number of weather channels : 7
Weather alert :
Modulation modes : AM
Frequency ranges : from 26.965 MHz to 27.405 MHz
Weather channels : from 162.400 MHz to 162.550 MHz
Antenna impedance : 50 ohms
Power supply : 13.8 V
Size (W x D x H) : 6.69 (W) x 6.29 (D) x 2.04 (H) inches , 170 (W) x 160 (D) x 52 (H) mm
DIN Size :
Weight : 2.43 lbs / 1.1 kg
Accessories supplied : power cord with fuse, 1 mounting bracket with fixing screws, Ultra light electret microphone with support
Transmission
Frequency allowance : +/- 200 Hz
Carrier power : 4 W
Transmission interference : inferior to 4 nW (- 54 dBm)
Audio response : 300 Hz to 3 KHz
Emitted power in the adj. channel : inferior to 20 μW
Microphone sensitivity : 3.0 mV
Drain : <2 A max. (with modulation)
Modulated signal distortion : 1.8%
Reception
Maxi. sensitivity at 20 dB sinad : 0.5 μV - 113 dBm
Frequency response : 300 Hz to 3 kHz
Adjacent channel selectivity : 60 dB
Maximum audio power : 3 W
Squelch sensitivity : minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm
Frequency image rejection rate : 60 dB
Intermediate frequency rej. rate : 70 dB
Drain : 180 ~ 500 mA maximum

Warranty Duration 2 + 3 years.
