Base Station CB Antenna

MaCo VQ-3
VQ3 V-QUAD
CB Radio Base Station,
Beam Antenna

Dual Polarity




Download Manual

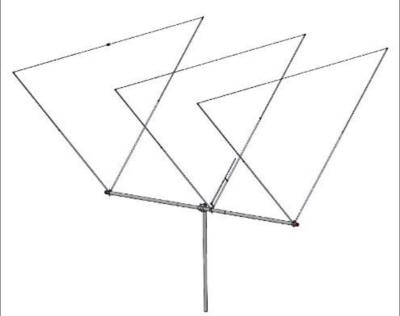

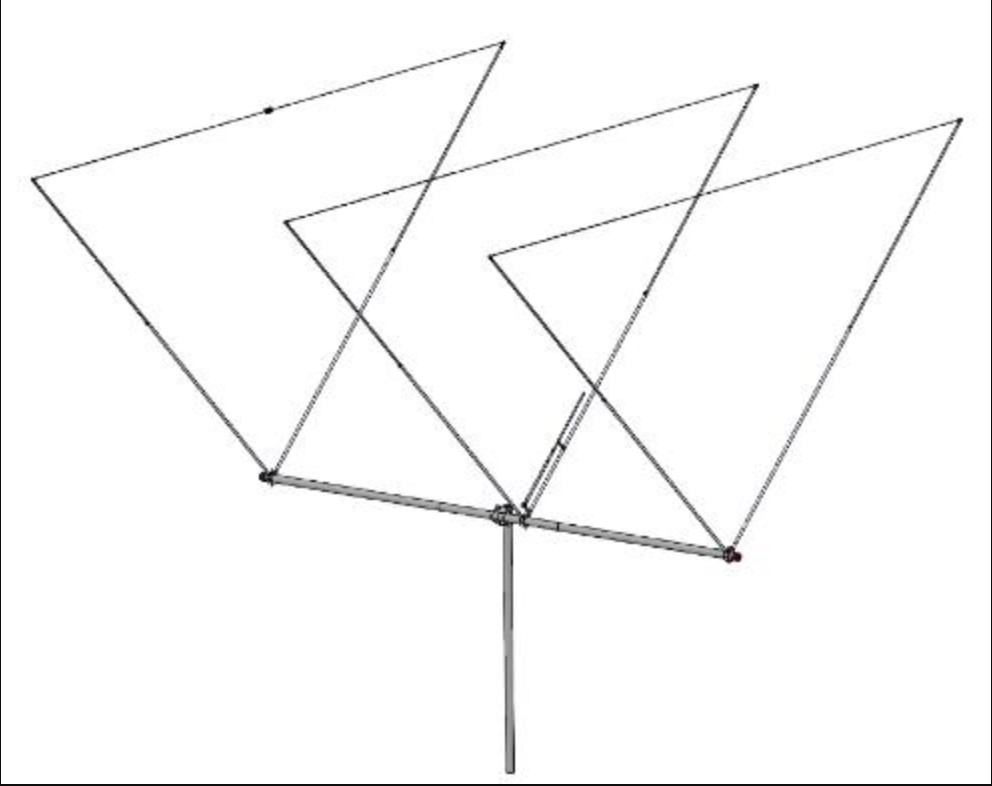

Maco introduces the new VQ3 V-Quad Antenna that has been designed and tested by MaCo Engineering Department over the last 18 Months. The VQ3 is a 3 element full wave antenna that is great for DXing. It is directional and can be used on horizontal and vertical polarization with one feed line. The VQ3 is tune-able for 10 or 11 meters.  As always the MaCo gamma match is fully adjustable to obtain the lowest SWR.









Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness,
additionally elements are made from 6006 an even tougher alloy. To prevent
fatigue failure, no holes are made in any boom or element.




HIGH PERFORMANCE and MADE IN THE U.S.A.





Free Shipping
...VQ3 V-QUAD... $399
SOLD OUT
5KW Gamma match $71

Free Shipping

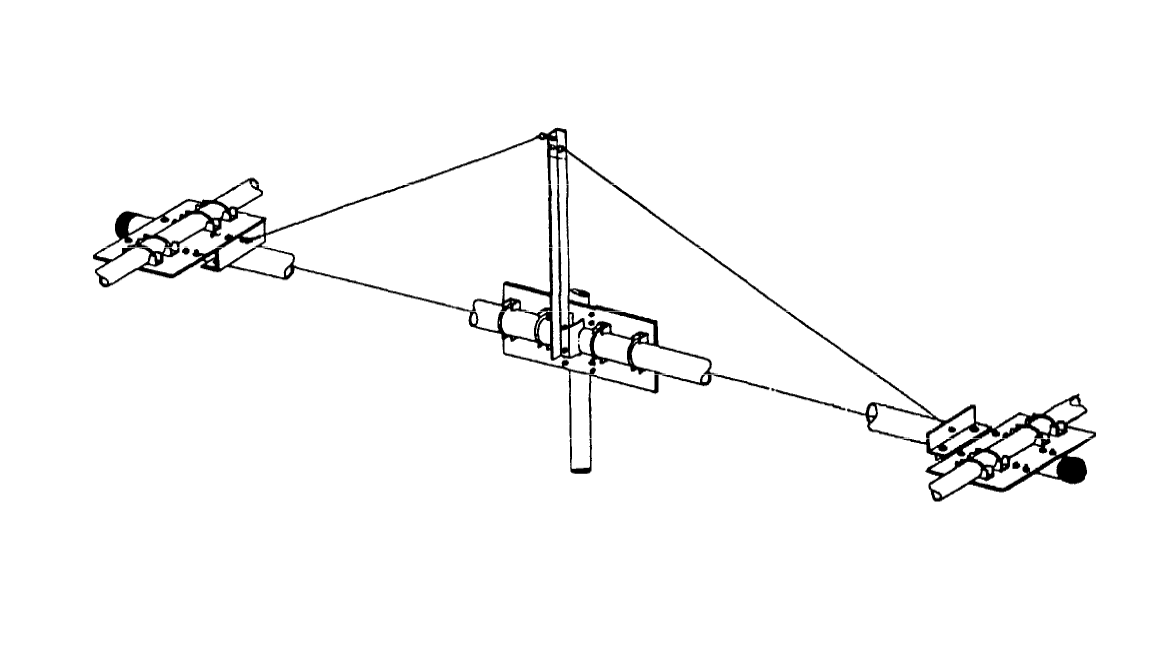

VQ3 Stacking Kit
VQ3 Stacking Kit
Download Manual
$394


New 2022 Shipping Rate

Boom Length (feet) 13'4"
Boom OD (inches) 2
Number of Elements 3
Turn Radius (feet) 13'6"
Surface Area (sq. ft.) 7
Wind Survival (mph) 90
Tuning (Meters) 10-11
Gain (db) 14.5
Power Handling 2KW
Power Multiplication 27X
Front-to-Back Sep. (db) 30.5
VSWR (adjustable) 1.2:1
Weight (lbs) 22
Ship by: 81" x 6" x 6" Calculate shipping for UPS or Priority Mail  Our ZIP is 33334
