 Base
Station Antenna
|
Click for Larger Image |
V-5000
CB Radio Base Station,
Omni-directional
|
 Download Manual |

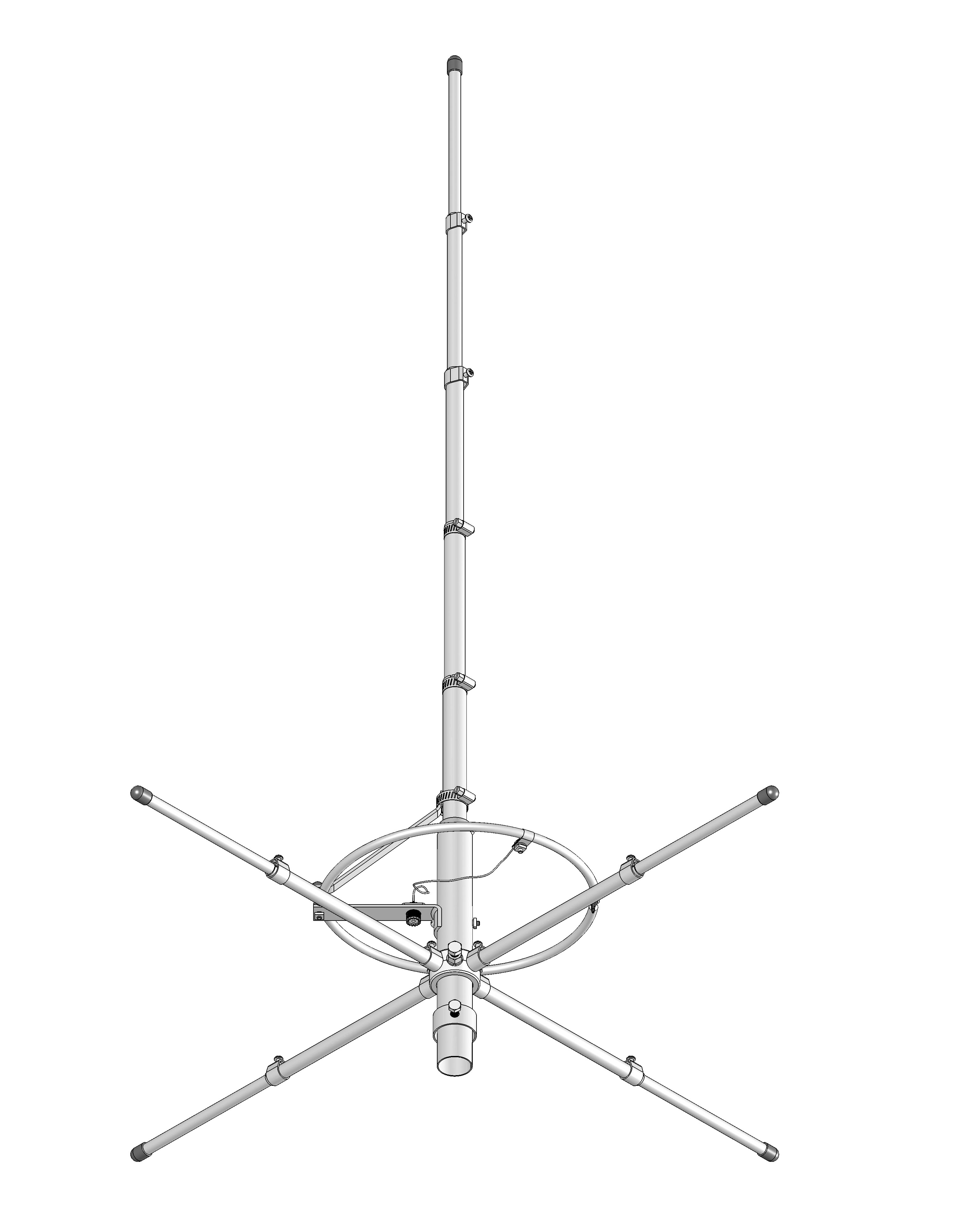

| The V5000 is a highly efficient 5/8 wave
commercial antenna with outstanding base station performance. It
is field tune-able to cover from 26-33 MHz.
This antenna has a Gamma match rated at 5000 watts. |
|
|
|
| Length (feet) |
21 |
| Longest Radius (feet) |
9 |
| Surface Area (sq. ft.) |
4.5 |
| Wind Survival (mph) |
90 |
| Tuning (Meters) |
10-11 |
| VSWR (adjustable) |
1.5 or less |
| Weight (lbs) |
|
| Shipping Weight (lbs) |
10 |
Ship by:
75" x 7" x 3" Calculate shipping
for UPS or
Priority Mail Our ZIP is 33334 |
|
