Base Station Antenna

Maco M107C

M107C
CB Radio Base Station,
Beam Antenna

Dual Polarity

Download Manual

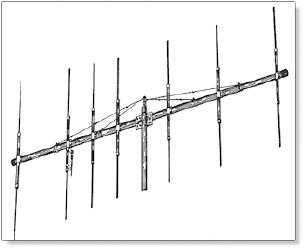

    In the classic directional Yagi design, the Dual Maximum Beams line of base station antennas can are  vertically or horizontally polarized for best base-to-mobile or base-to-base communications. It is actually 2 beam antennas on one boom.

     Most economical antenna of its type on the market today, all Dual Maximum Beams feature MACO adjustable gamma match for high performance. Ruggedly built, swagged slotted tubing for maximum strength with minimum wind loading.


Power handling is 2000W PEP


Need Higher power?
Upgrade your gamma match to:







Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.




HIGH PERFORMANCE and MADE IN THE U.S.A.

 SOLD OUT
...M107C... $710
New 2022 Shipping Rate

Boom Length (feet) 37.5
Boom OD (inches) 2
Number of Elements 7
Longest Radius (feet) 19
Turn Radius (feet) 22
Surface Area (sq. ft.) 11.03
Wind Survival (mph) 90
Tuning (Meters) 10-11
Gain (db) 17.5
Power Multiplication 55X
Front-to-Back Sep. (db) 36
VSWR (adjustable) 1.5 or less
Weight (lbs)
Shipping Weight (lbs) 44
Ship by: 81" x 6" x 6" Calculate shipping
for UPS or Priority Mail
  Our ZIP is 33334
