Base Station Antenna

Asteroid Antenna

Asteroid
CB Radio Base Station,
Beam Antenna

Dual Polarity

Download Manual

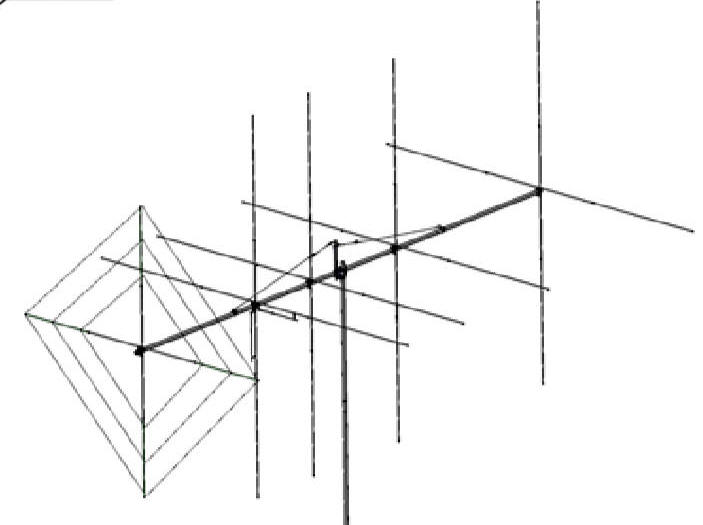

      This is a high performing, dual polarity beam that is sure to impress. Boasting 10 elements, 5 vertical and 5 horizontal, it is mounted on a 26’ boom. It features a multiscreen reflector and is designed to give you the best combination of gain and front-to-back ratio.

     As always, the Maco® gamma matches are fully adjustable to obtain the lowest SWR for both vertical and horizontal polarization. Comes stock with two 2kW gammas, which can be upgraded by the customer to our 5, 10, or 30 kW gammas.


Power handling is 2000W PEP


Need Higher power?
Upgrade your gamma match to:

Boom Length: 26’ Boom OD: 2” Elements: 10 Longest Element: 17.5’ Turn Radius: 16’ Wind Load: 11.84 sq ft Wind Survival: 90 mph Gain: 15.5 dB Front to Back Separation: up to 40 dB Power Multiplication: 40X Tuning: 10/11 Meters Power Handling: 2kW stock (upgradable to 5,10,30 kW) Weight: 45 lbs Shipping Dimensions: 82” x 6” x 6” Ships By: UPS









Made of aircraft alloy 6063-T5 aluminum tubing with .050" wall thickness, additionally elements are made from 6006 an even tougher alloy. To prevent fatigue failure, no holes are made in any boom or element.




HIGH PERFORMANCE and MADE IN THE U.S.A.



SOLD OUT
...Asteroid... $786

New 2022 Shipping Rate
Boom Length (feet) 26
Boom OD (inches) 2
Number of Elements 5+5
Longest Radius (feet) 17.5
Turn Radius (feet) 16
Surface Area (sq. ft.) 11.84
Wind Survival (mph) 90
Tuning (Meters) 10-11
Gain (db) 15.5
Power Multiplication 40X
Front-to-Back Sep. (db) 40
VSWR (adjustable) 1.5 or less
Weight (lbs)
Shipping Weight (lbs) 45
Ship by: 82" x 6" x 6" Calculate shipping for UPS or Priority Mail  Our ZIP is 33334
