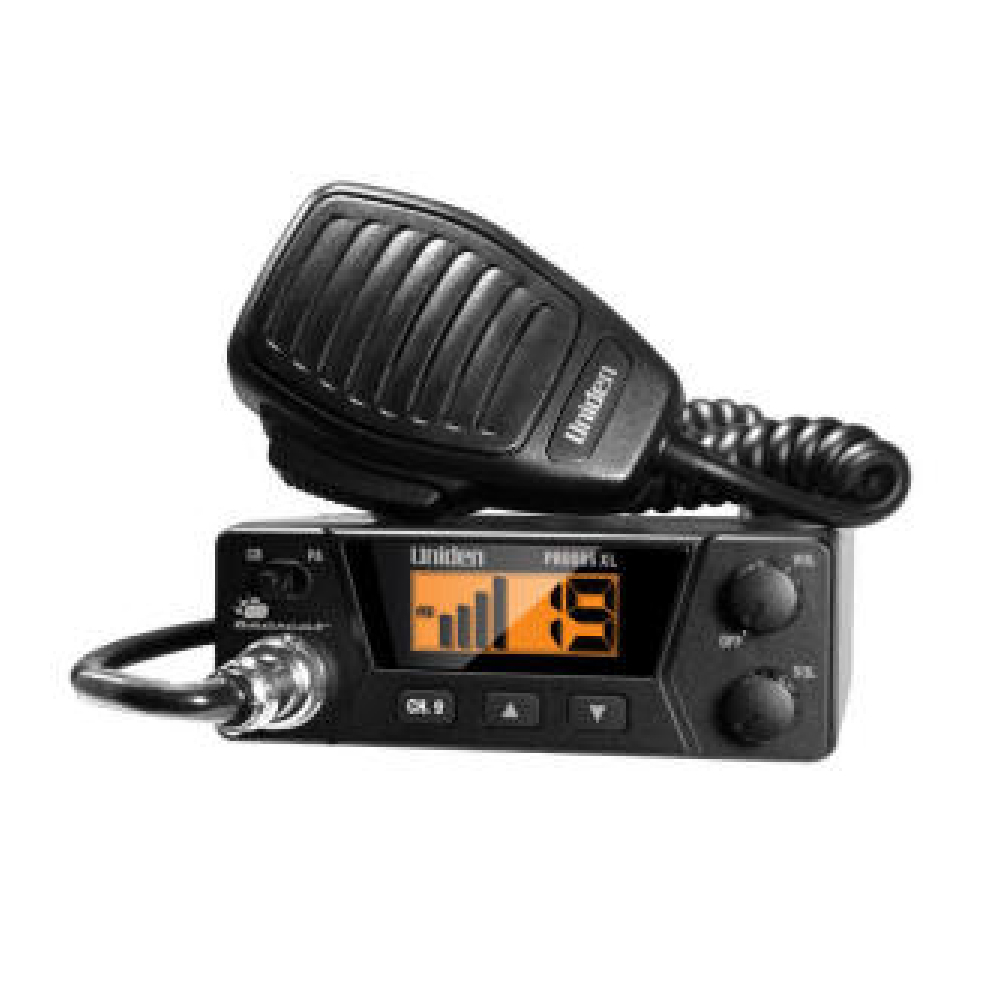

PRO505XL Mobile CB Radio

More information

This compact CB transceiver incorporates state-of-the-art microelectronics into a sophisticated Euro-styled 2-way radio. The superior engineering of the PRO505XL will treat your ears to professional 2-way radio communications as you’ve never heard it before.

Features

-Compact Size
-Full 40 Channel Operation
-Backlit LCD Display
-Channel Up/Down Buttons
-Instant Channel 9
-PA output
-S/RF Meter
-Includes Microphone Hook, Mounting Bracket, Knobs and Mounting Hardware
-Supports Two External Speakers (Sold Separately)
-2 Year limited Warranty

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$39.50

Out of stock

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

Channels:40 AM
Frequency Range: 26.965 to 27.405 MHz
Frequency Control:Phase Locked Loop (PLL) synthesizer
Frequency Tolerance:±0.005%
Operating Temperature:-30ºC to +50ºC
Microphone:Plug in type: dynamic
Input Voltage:13.8 V DC nom. (+ or - ground)
Current Drain:TX: full mod., 1.7A RX: with max. audio output, 1.7A
Size:13 D X 6 W X 3 H
Weight: 3 lb
Antenna Connector:UHF, SO-239
Transmitter
Power Output:4 Watts
Modulation:Class B amplitude modulation
Freq. Response:300-2500 Hz
Output Impedance:50 ohms, unbalanced
RECEIVER
Sensitivity:0.5μV for 10 dB; (S + N) /N typical (limit: 1.0μV)
Selectivity: 6 dB @ 7kHz, 70 dB @ 10kHz typical
Image Rejection:80 dB typical
I.F. FrequencyDouble Conversion Superheterodyne 1st 10.692 MHz 2nd 450 kHz
Automatic Gain Control (AGC):less than 10dB change in audio output for inputs from 10 to 50,000 microvolts
Squelch:Adjustable; threshold less than1μV
Audio Output Power:5 watts max. into 8 ohms
Freq. Response:300 to 2000 Hz
Distortion:less than 10% at 4 watts, 1000Hz
Internal Speaker:16 ohms, 3 watts round
