PC68 LTX Limited Edition
PC68 LTX Limited Edition - Image 2
PC68 LTX Limited Edition - Image 3
PC68 LTX Limited Edition - Image 4
PC68 LTX Limited Edition - Image 5

Videos

,

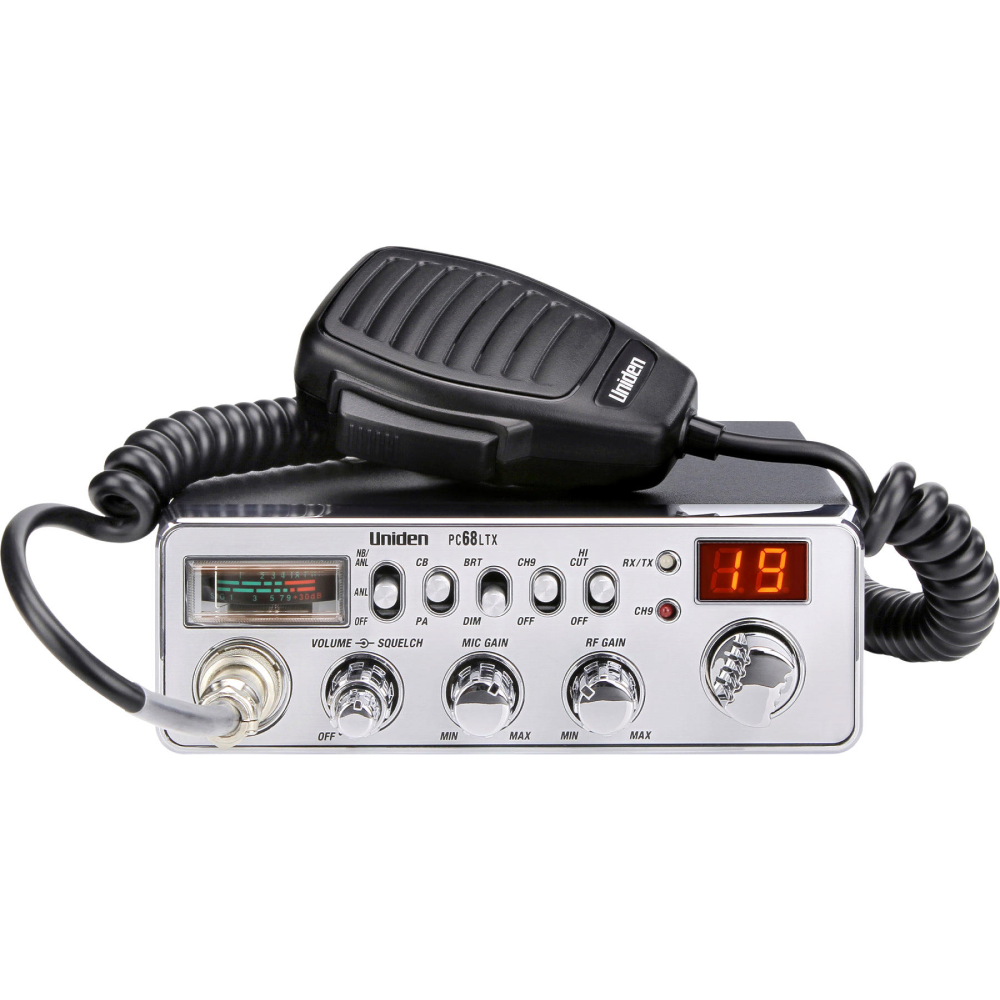

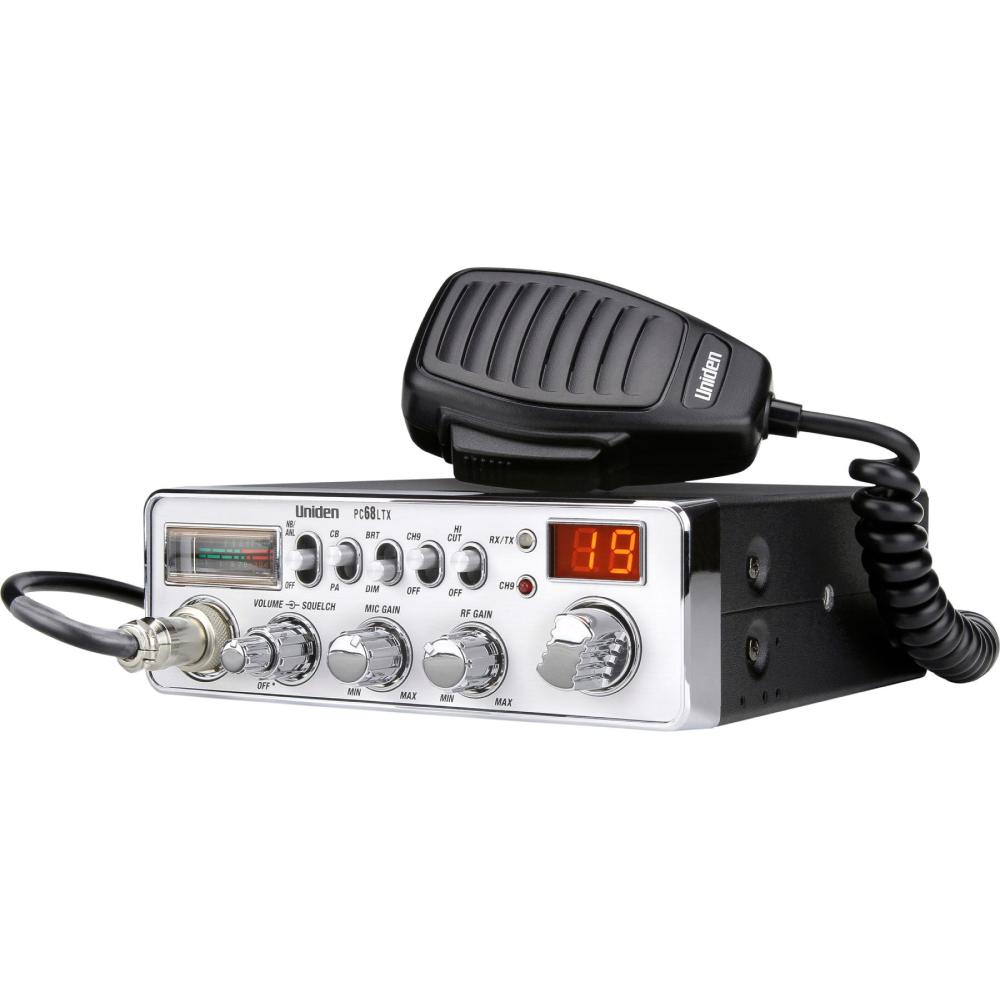

PC68 LTX Limited Edition

More information

Download Manual

Uniden PC68LTX represents the highest quality communications device designed for use in the Citizens Band Radio Service. It will operate on any of the 40 AM frequencies authorized by the Federal Communications Commission (FCC). Classic CB style with solid performance. This CB Radio offers multiple adjustments to allow for fine tuning the signal and sound. Squelch control settings as well as the ANL / Noise Blanker option reduce static for better clarity. Microphone adjustments to the gain allows for better control over the mic sensitivity.

Features

-High quality circuitry.
-Uniden has reintroduced the high-cut audio.
-Styled and packed with the most popular 2-way radio features in a user friendly package.

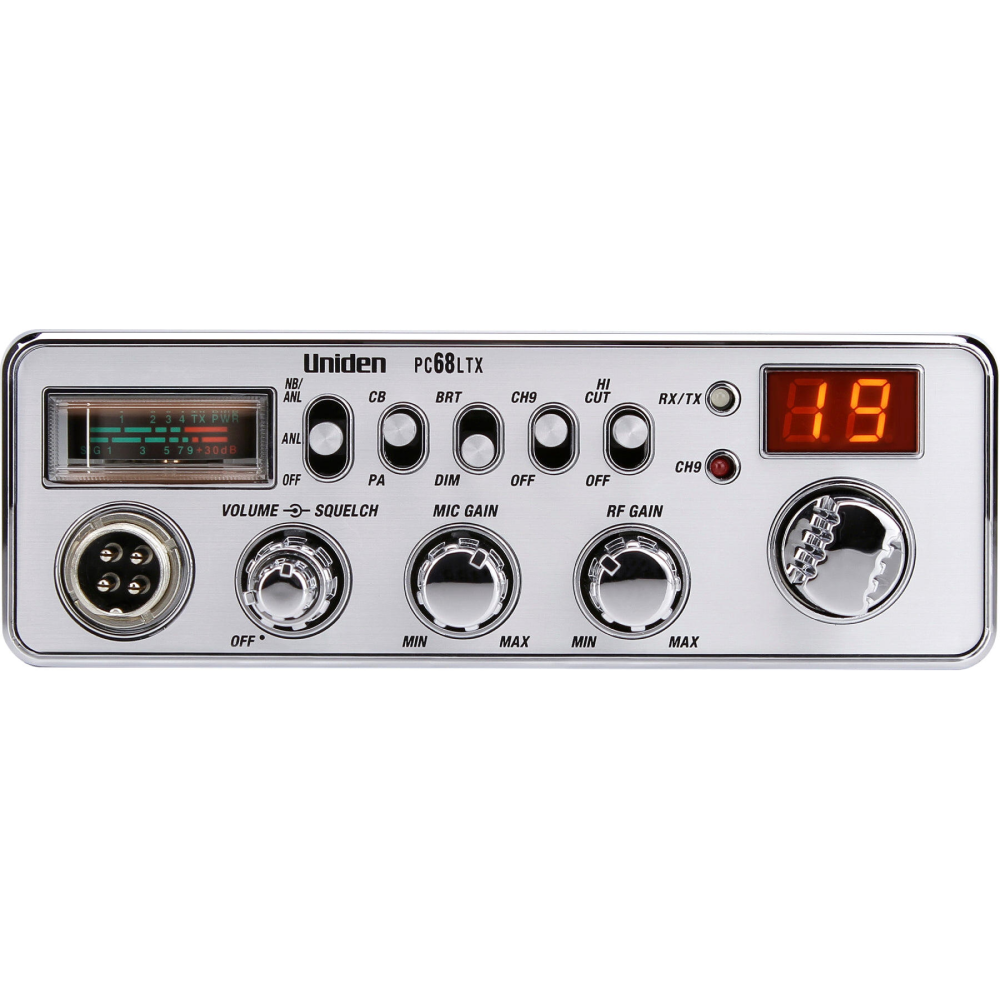

-Bright LED channel indicator, easy to read meter, front panel Mic connector, and enhanced channel selector that offers more positive channel selection and reduced drift.
-Extra-long mic cord for operator convenience.
-RF gain control,
-Mic gain control,
-PA/CB switch,
-Analog S/RF meter,
-instant access to channel 9,
-Sturdy mic with left side positive push to talk.
-NEW SURFACE MOUNT DESIGN
This is not a release of the old version, it is all new with micro surface mount technology.

GENERAL

click to review tech spec's

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$109.50

upgrade performance

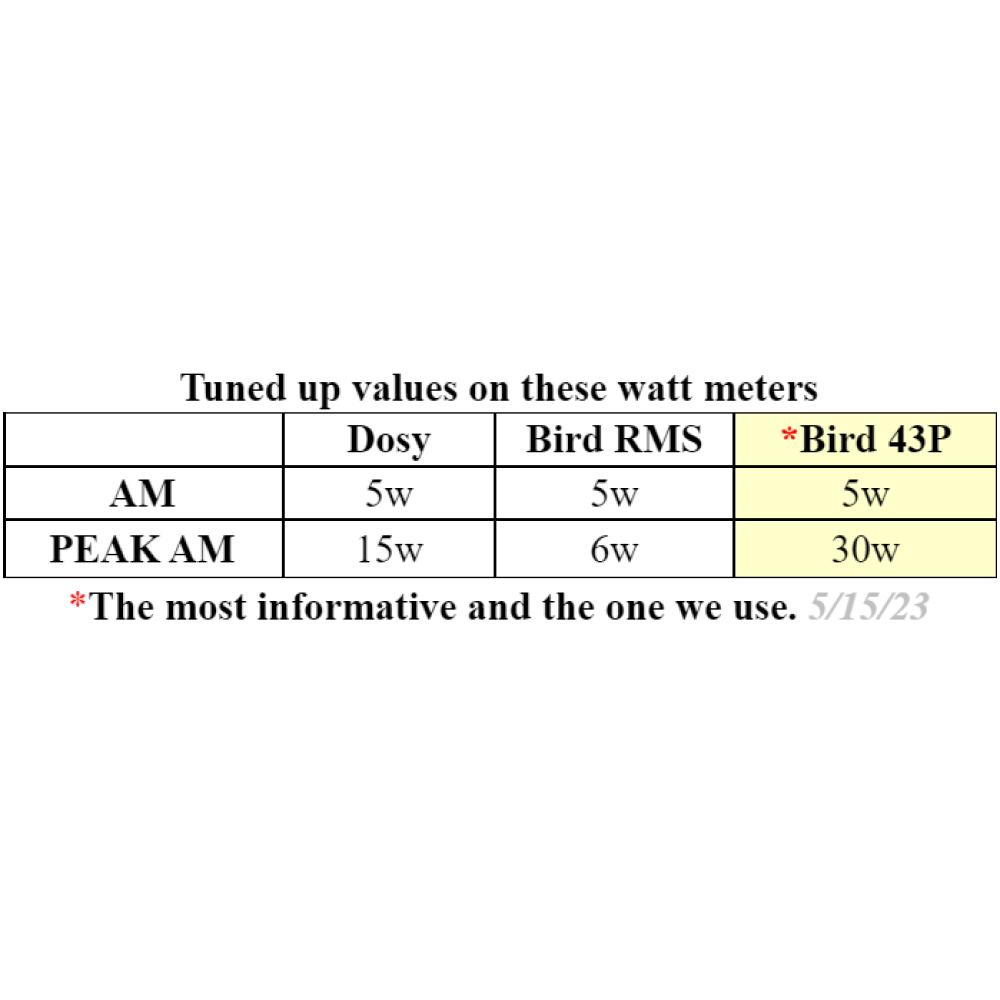

Tune UP
Tune-up
(perform a tune-up to radio to increase power, audio and performance)
(+$29.00)
VARIABLE POWER
VARIABLE POWER
Install a power regulator / super modulator circuit and a front panel control installed in the delta tune location. Smooth Variable AM carrier from 1/2w to 5 watts. Includes a full Tune and Alignment to the radio.
$79.00

upgrade Microphone

RK-56B Microphone
Turner RK-56 Noise Canceling microphone
(+$46.00)
636L Noise Canceling Microphone
636L Noise Canceling Microphone
(wired for this radio with a 4 pin plug)
(+$29.00)

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
(+$12.00)
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
(+$25.00)

Other upgrades

Low Dead Key (Carrier)

(perform a tune-up to radio to increase peak power with loud audio a lower carrier (dead key). This is perfect to match many amplifier types.

Switch Option

Install an Echo Board (SIDE)

(Wired internal to the radio with dual controls in the front to control speed and echo effects)

Install Talkback

(wired inside the radio so that when you talk you can hear yourself. If you chose an Echo or a Recorder mod, I highly suggest this as well)

Install a Noise toy

Wired inside the radio with a switch or pushbutton to trigger any 18 second sound byte you want.

Install a Noise toy as a background theme music

Wired inside the radio with a switch to play any background music at very low volume so you can talk over it.

Order total:

Optional Accessories

Recommended For You

Related products

Popup code

Scroll to Top

GENERAL

Channel:40
Frequency Range:26.965 - 27.405 MHz
Weather Frequencies:162.400 MHz (WX CH1) 162.425 MHz (WX CH2) 162.450 MHz (WX CH3) 162.475 MHz (WX CH4) 162.500 MHz (WX CH5) 162.525 MHz (WX CH6) 162.550 MHz (WX CH7)
Frequency Control:PLL Synthesizer
Antenna Impedance:50 ohms
Power lnput:13.8 VDC
Current DrainTX: AM Full Modulation 2.2 A max) RX: Squelch 0.4 A (NOMINAL)
Operating Temperature:-30°C to 50°C (CB) -10°C to 50°C (WX) -10°C to +50°C (DSC on)
Accessories:DC Power Cord Microphone Microphone Hanger Mounting Bracket
Size (W x D x H):160mm x 217mm x 55mm (6.3"x8.49"x2.17")
Weight:1.7 kg
TRANSMITTER
Output Power:4 watts
Emission Type:6A3
Hum and Noise:Better than 40 dB
Frequency Tolerance:±0.002%
Modulation Percentage (Peak):100%
Spurious Rejection:-70 dB
Output Impedance:50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB S+N/N:0.5 μV
Sensitivity at 500 mW Audio Output: 0.5 μV
Squelch Threshold:0.5 μV
Antenna Impedance:50 ohms
Squelch Tight:1000 μV
Signal Meter S-9:100 μV
Audio Output Power (max.):5 watts
Audio Output (10% Dist.):4 watts
Selectivity @ 6 dB Down:7 kHz
Adjacent Channel Rejection:70 dB
Image Rejection:90 dB
Internal Speaker Impedance16 ohms
External Speaker Impedance:8 ohms
PUBLIC ADDRESS
Output Power at 10% Distortion:4 watts
