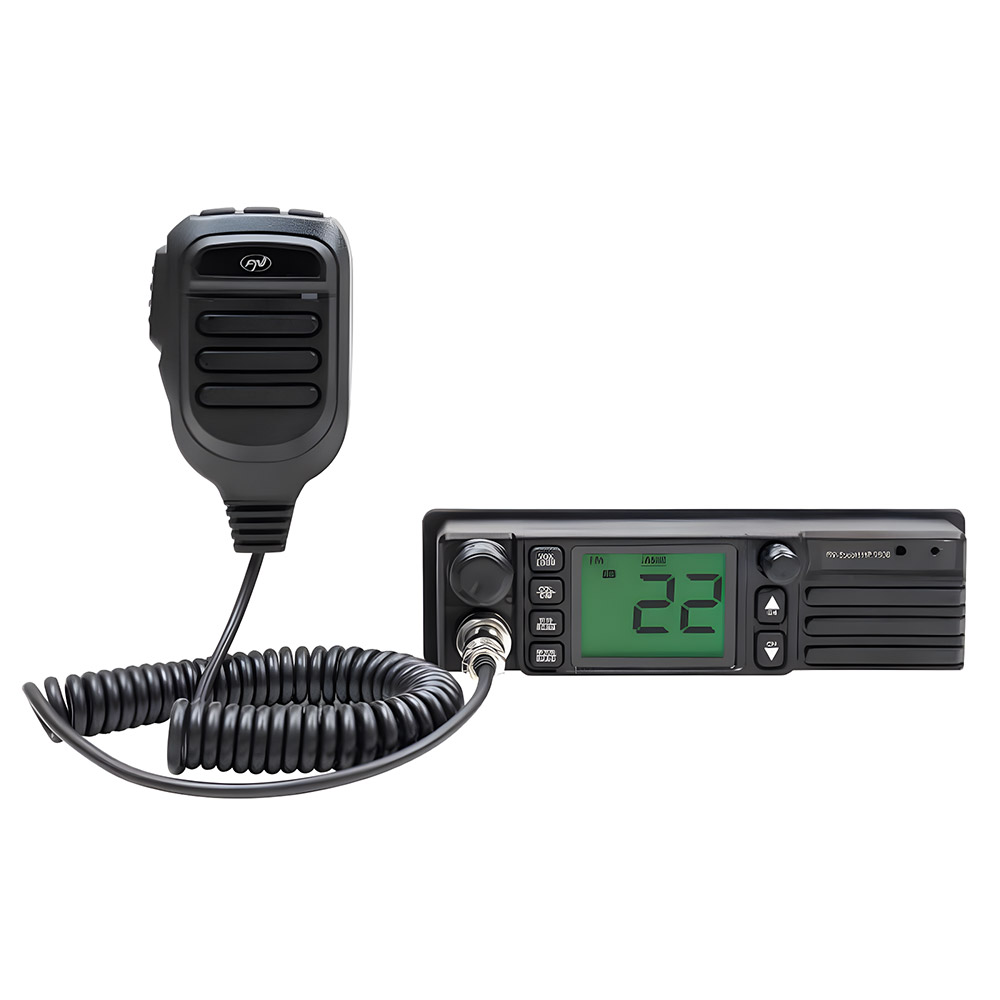

Escort HP9500 Pro Radio

More information

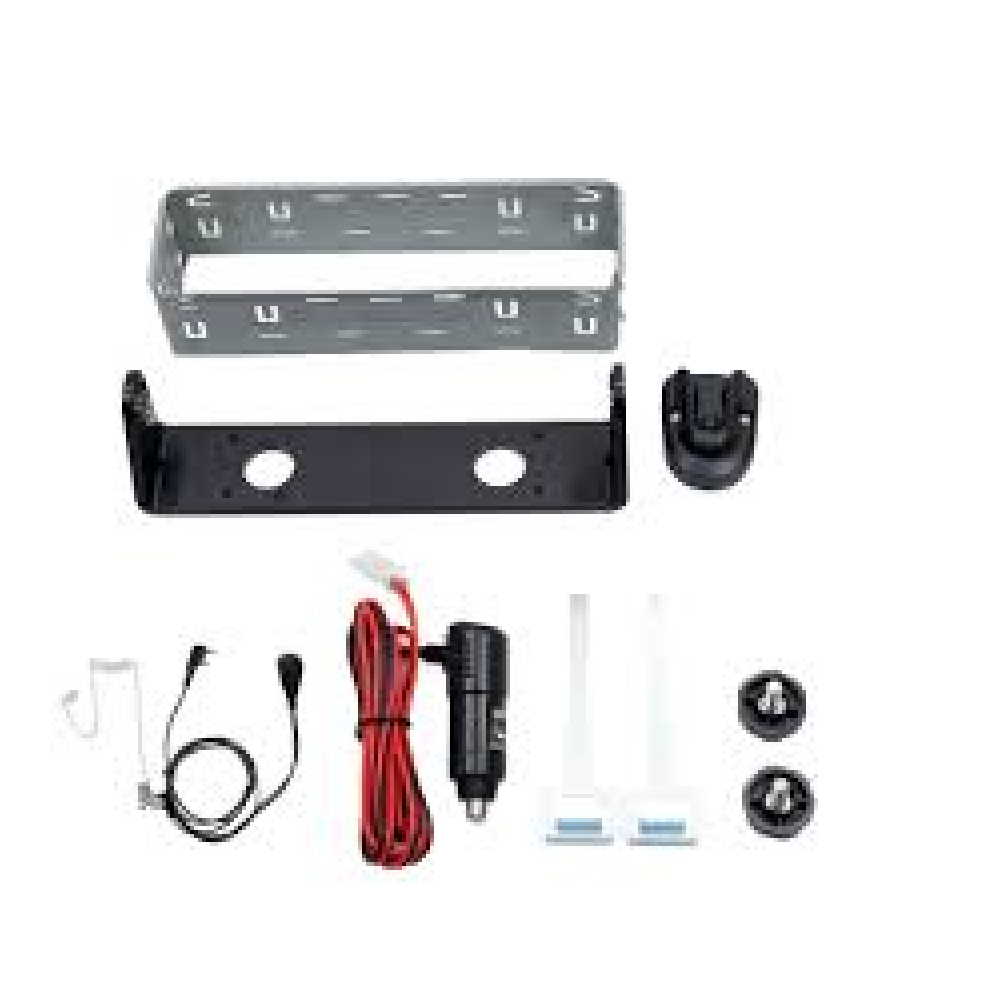

PNI Escort HP 9500 is a reliable CB station that ensures clear communication over long distances. With operation on AM and FM, multi-standard Frequencies. The HP 9500 has a robust, compact design making this station easy to place in any space in the car. The package includes a 1 DIN housing for mounting the station on board the car. The HP 9500 is a reliable companion for drivers of cars, trucks and trucks. PNI Escort HP 9500 is powered by 12V or 24V. The detachable power cord and the cigarette lighter plug required for power supply are included in the package.

Features

-Working frequency 26.965 – 27.405 MHz *(and more)
-AM/FM
-5-level automatic Squelch and adjustable Squelch,
-large multicolored lighting screen,
-On the front panel it has a 2-pin Kenwood connector for using the station hands-free.

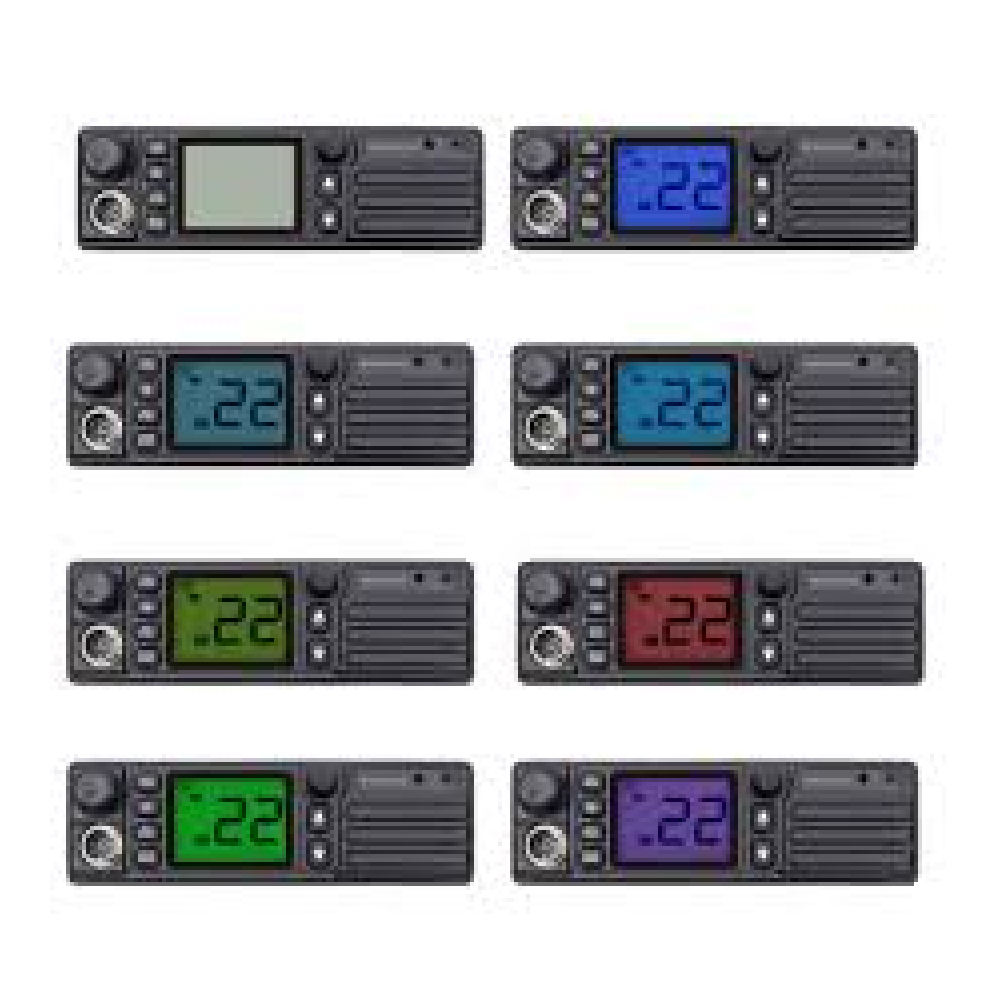

-Multicolor Display
-Scan feature
-Automatic Squelch (Adjustable)

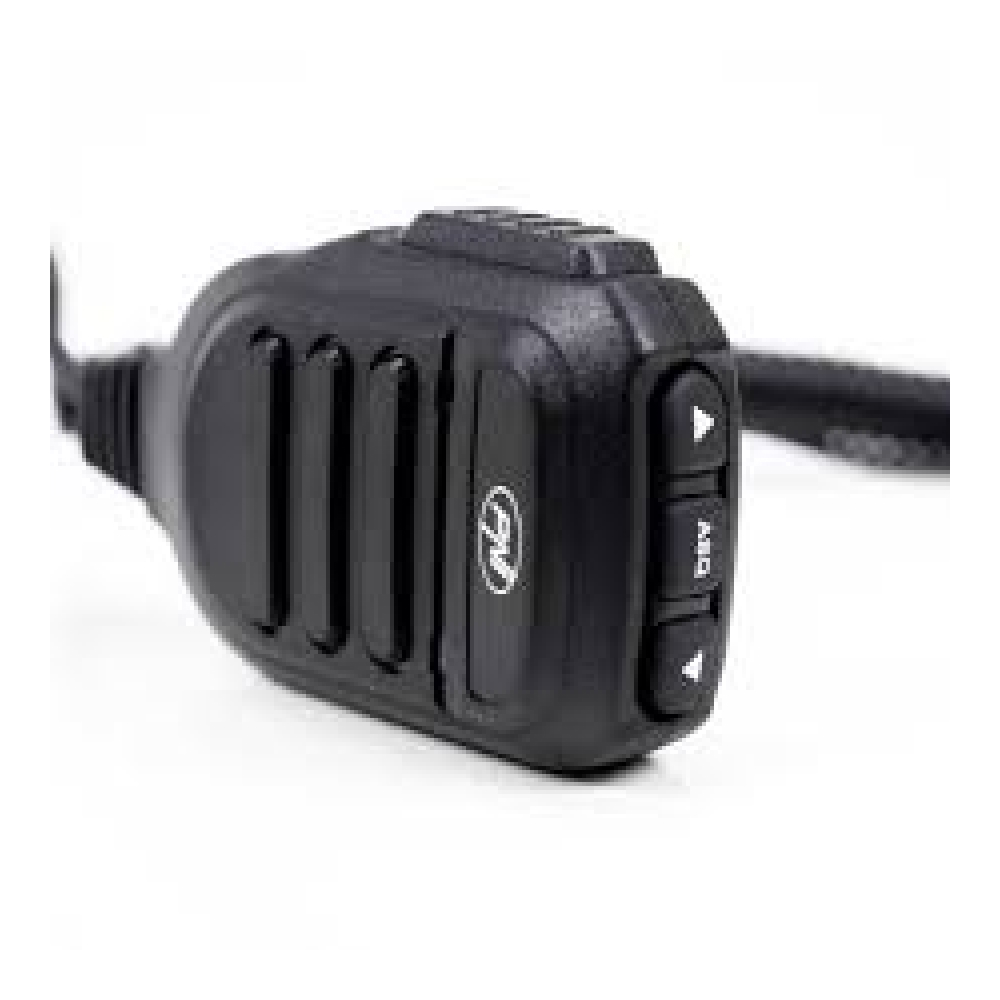

-Microphone type (pins) 6-Pin Ring
-Operating temperature -26 � C ~ + 60 � CC
-Warranty : 24 Months (Manufacturer)

Specifications

Radios requiring technical services may be delayed 3 to 7 days

Optional accessories

Select all the accessories you would like added to this product, then select add to cart.

Choose from the many upgrades below BEFORE clicking add to cart

Radios requiring technical services may be delayed 3 to 7 days

$99.50

Upgrade speaker

Add a Small External Speaker
Add a Small External Speaker
(plugs into back of the radio for improved sound)
$12.00
Add a Large External Speaker
Add a Large External Speaker
(plugs into back of the radio for improved sound)
$25.00

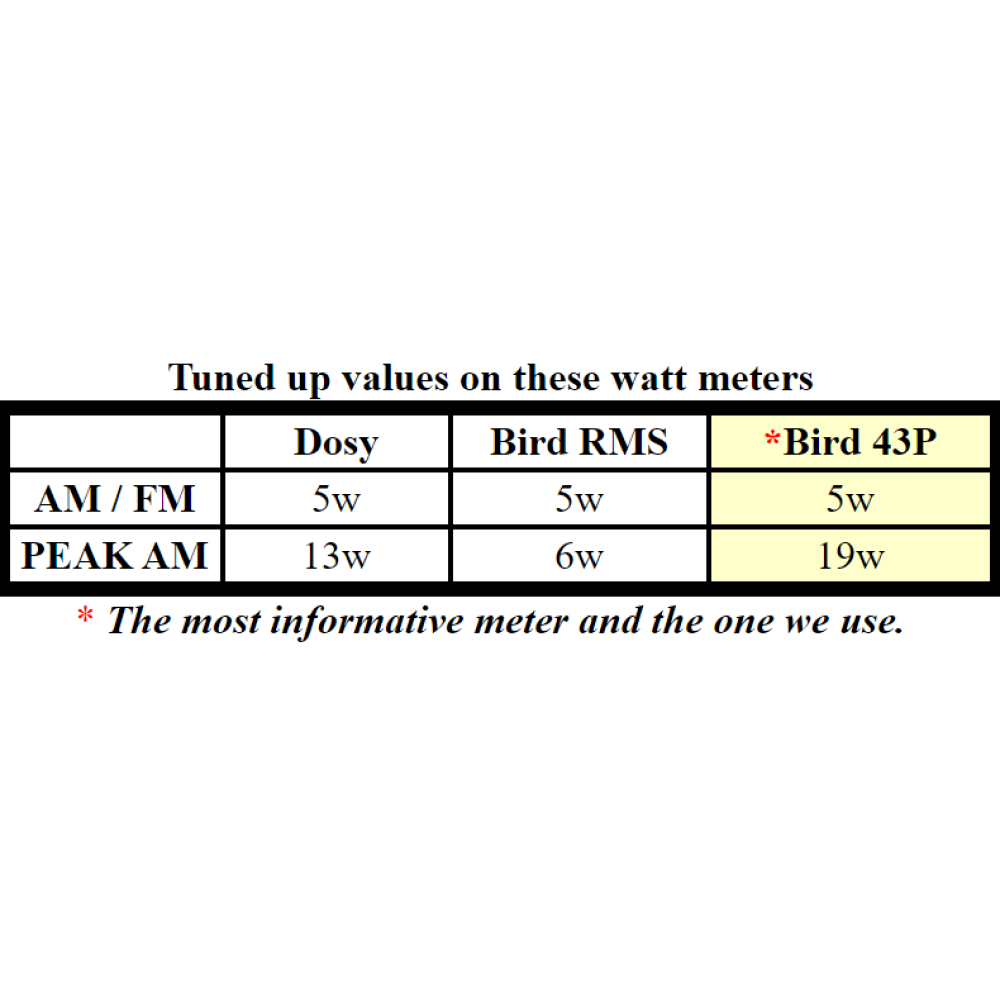

Tune-up

perform a tune-up to radio to optimize power, audio and performance

Order total:

Optional Accessories

Recommended For You

Popup code

Scroll to Top

Specifications

General characteristics
Model
Model typeAM / FM
channelsChannels max. 80 AM/FM (according to the set multistandard mode) Frequency control
Frequency26,965 - 27,405 MHz*(and more)
Microphone type (pins)6 pin
Power speaker audio3W @ 8Ω (10% distortion)
Sensitivity0.5μV (AM), 0.25μV@12Db(FM)
Emission power4 W
ModulationFM: 2KHz � 0.2KHz, AM: 85-95%
Power source12 V / 24 V
Current absorbedmaximum 1.8A (800ma in RX)
Dimensions (W x H x H / Weight)187 x 56 x 85 mm - 786g 7.36 x 2.2 x 3.35 Inches - 28 oz
Adjacent channel selectivity ≥60 dB Signal/noise ratio 45 dB
Frequency control PLL synthesized
Signal/noise ratio 45 dB
1DIN mounting Yes
